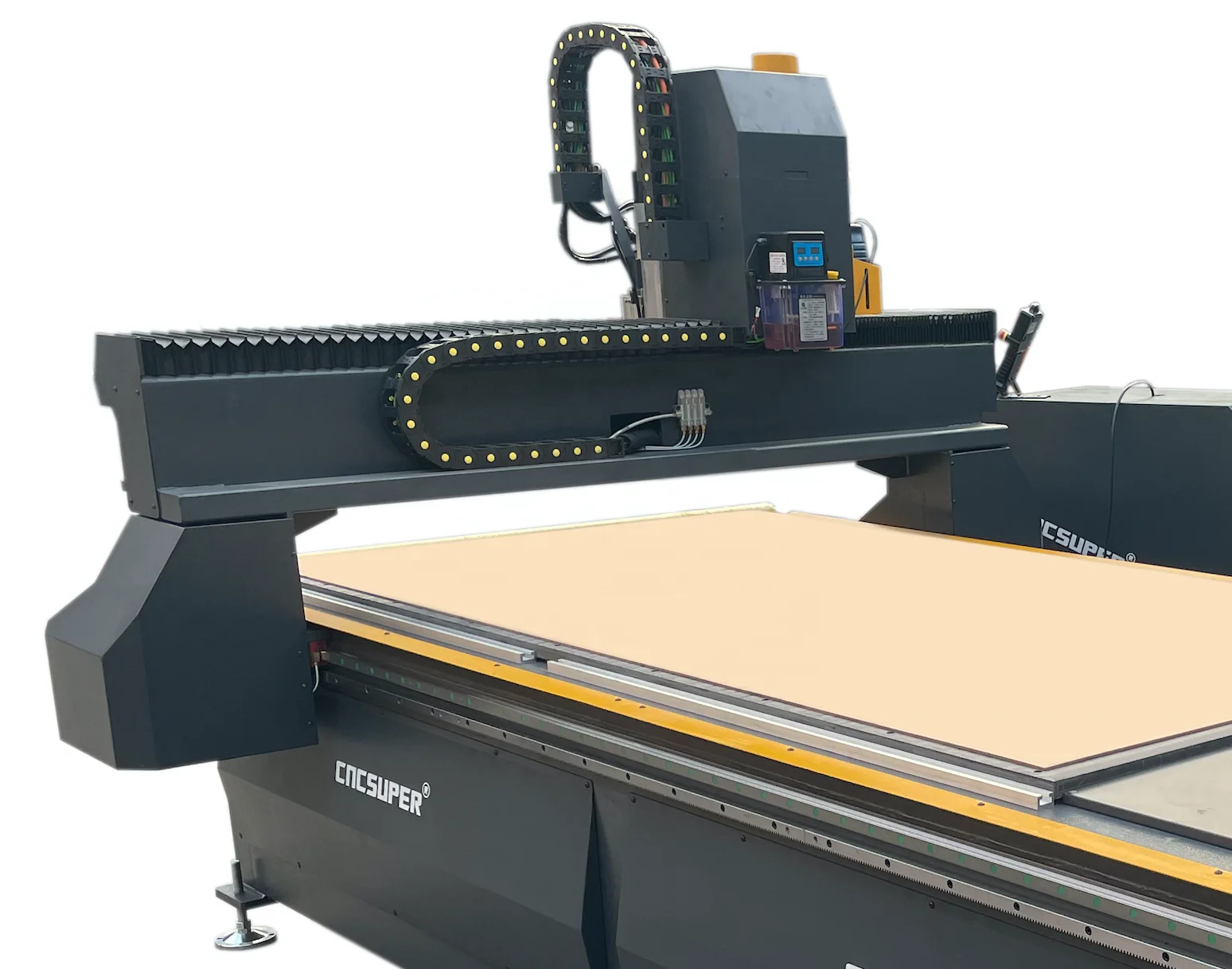

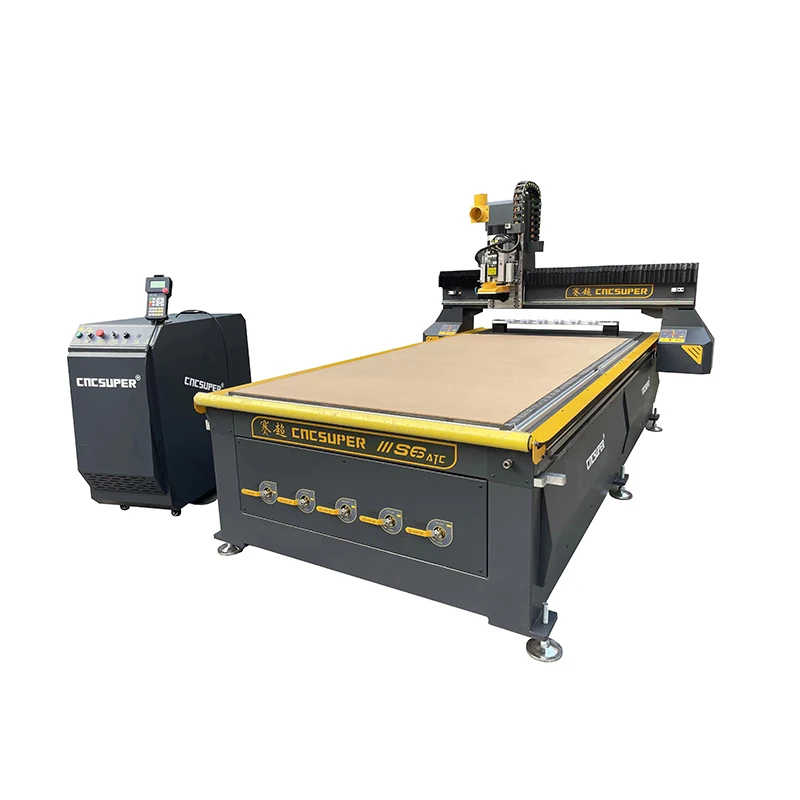

High precision automatic tool sensor Y axis 1325 ATC CNC router price
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (62253088978):
Product Overview
Description
Products Description
Product Parameters
NO. | DESCRIPTION | PARAMETER | ||||
1 | Working area(XY) | 1300x2500mm (can be customized) | ||||
2 | Z travel height | 200mm, Z with coupler (can be customized) | ||||
3 | Positional accurancy | ±0.03/300mm | ||||
4 | Spindle | 9KW ATC air cooling spindle | ||||
5 | NO. of revolution | 24000rpm/min | ||||
6 | Guide | Original Taiwan HIWIN guiding rail | ||||
7 | Motor | Taiwan DELTA servo motors and drives | ||||
8 | Inverter | Fuling 11KW | ||||
9 | Max cutting speed | 25000mm/min | ||||
10 | Controller | NC STUDIO NK105 control system | ||||
11 | Reducer | Japan SHIMPO reducer | ||||
12 | Software | TYPE EDIT or ARTCAM | ||||

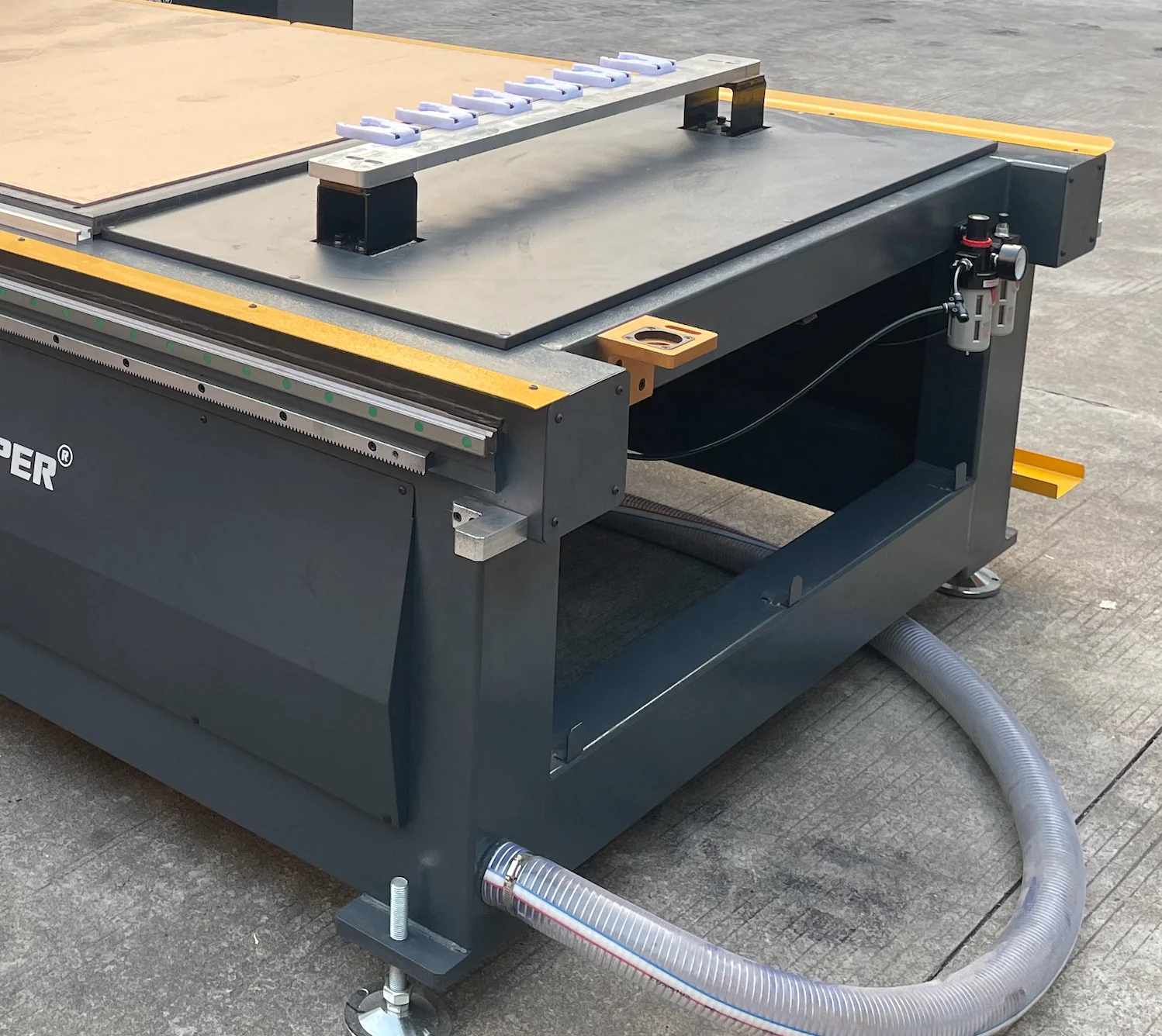

13 | Table | 5 zones vacuum plus T-slot table | ||||
14 | Vacuum pump | High quality 7.5KW air vacuum pump | ||||
15 | Lubricate | ATC self-lubrication system | ||||
16 | Tool change type | Linear type tool library, tool 6-12PCS(optional carousel) | ||||
17 | Tool setting | ATC tool sensor | ||||
18 | Diameter of cutter | 3.175-12.7mm | ||||
19 | Command | G code | ||||
20 | Working voltage | 380V, 3PH/50HZ | ||||
21 | Machine structure | Seamless welded steel structure | ||||
22 | Weight | 1800KG | ||||

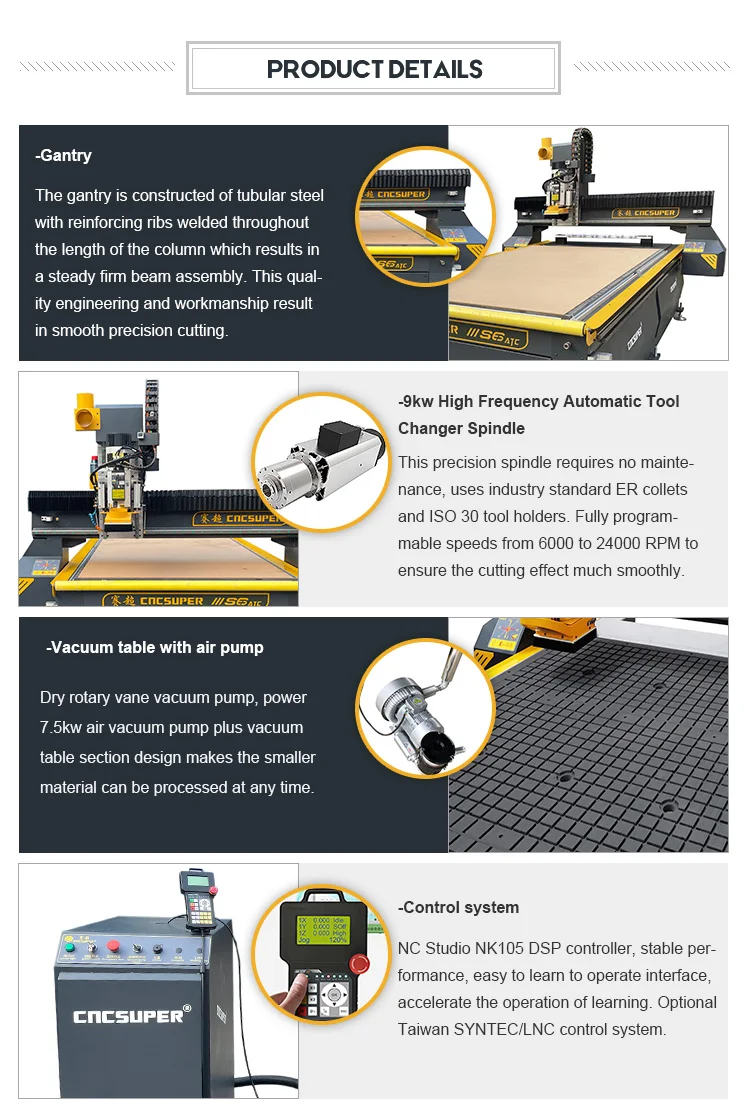

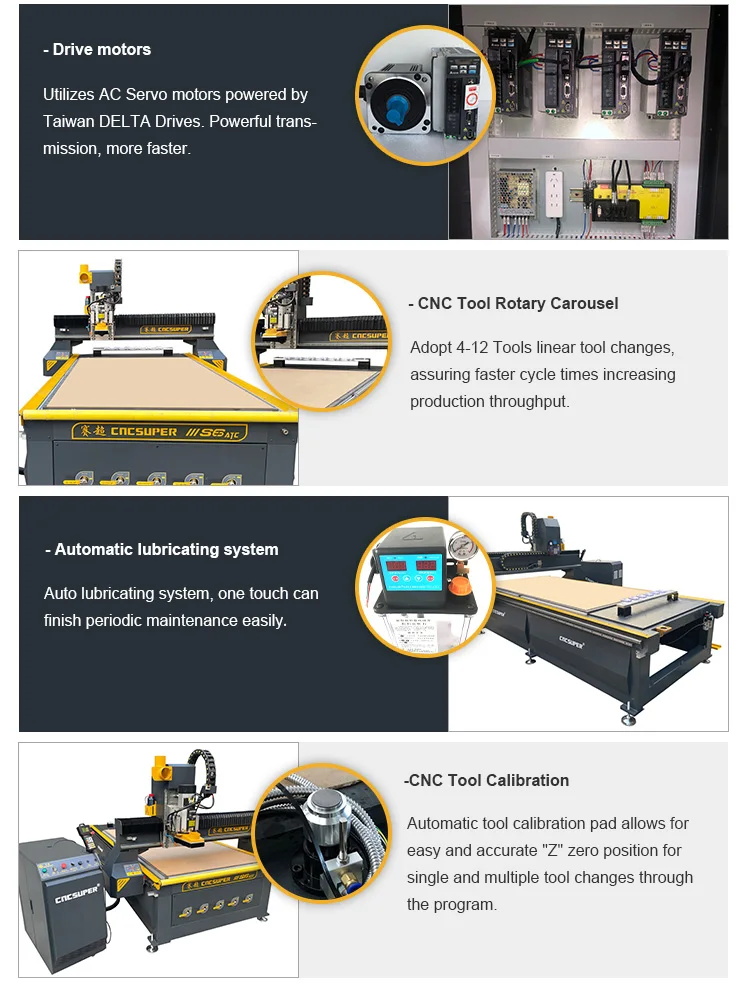

Product Details
Widely Application
