Armoured Loose Tube Cable Outdoor Fiber Optical Cable steel wire strength member fibre cable
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (62253098987):
Product Overview
Description
Armoured Loose Tube Cable Outdoor Fiber Optical Cable steel wire strength member fibre cable
Product Description

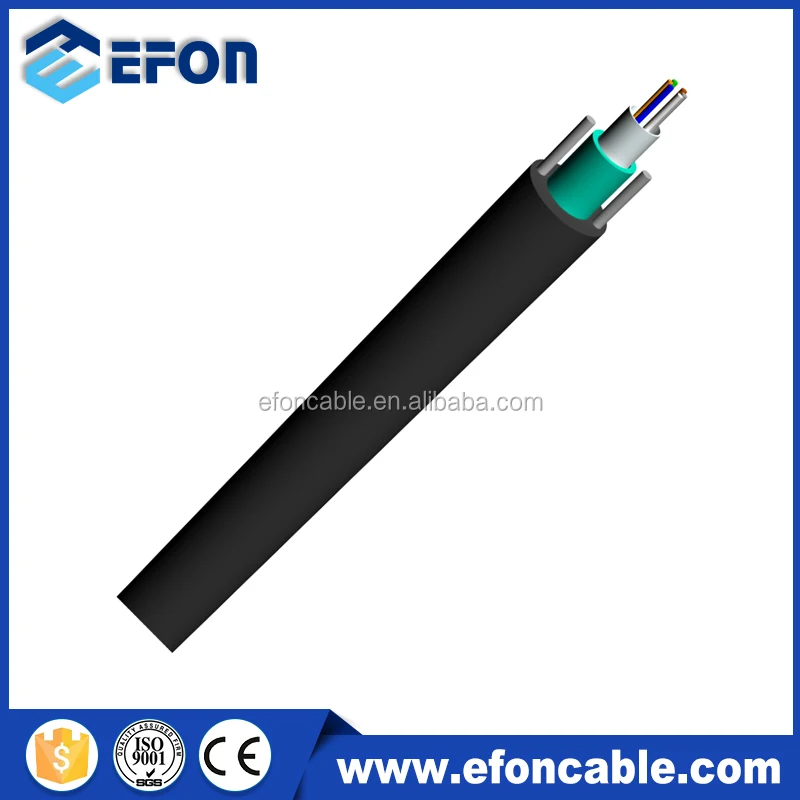

Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.

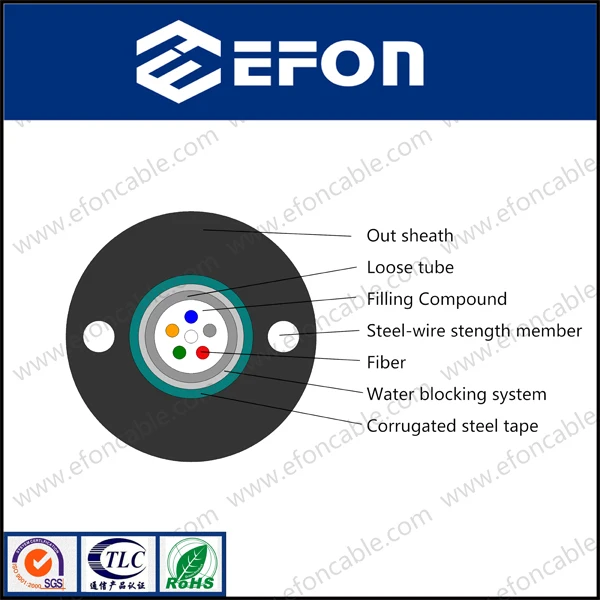

Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
Strength Member:
Embedded steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Features
Uni-tube gel-filled construction for superior fiber protection.
CST armorto protect cable from rodentattack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and moisture-resistantdesign
Applications
Installed in duct, direct burial.
FTTx.
Optical Charateristics
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance | ||
Short Term | Long Term | Short Term | Long Term | |||
2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
We produce and test cable comply with following standard
Mechanical Performance | |
Max Tension Performance | IEC 60794–1-2-E |
Max. Operation Tension | IEC 60794–1-2-E1 |
Crush Test | IEC 6079 –1-2-E3 |
Impact Test | IEC 60794–1-2-E4 |
Repeated Bending | IEC 60794–1-2-E6 |
Torsion Test | IEC 60794–1-2-E7 |
Cable bend | IEC 60794–1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance | |
Temperature Cycling | IEC 60794–1-2-F1 |
Water Penetration | IEC 60794–1–2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
