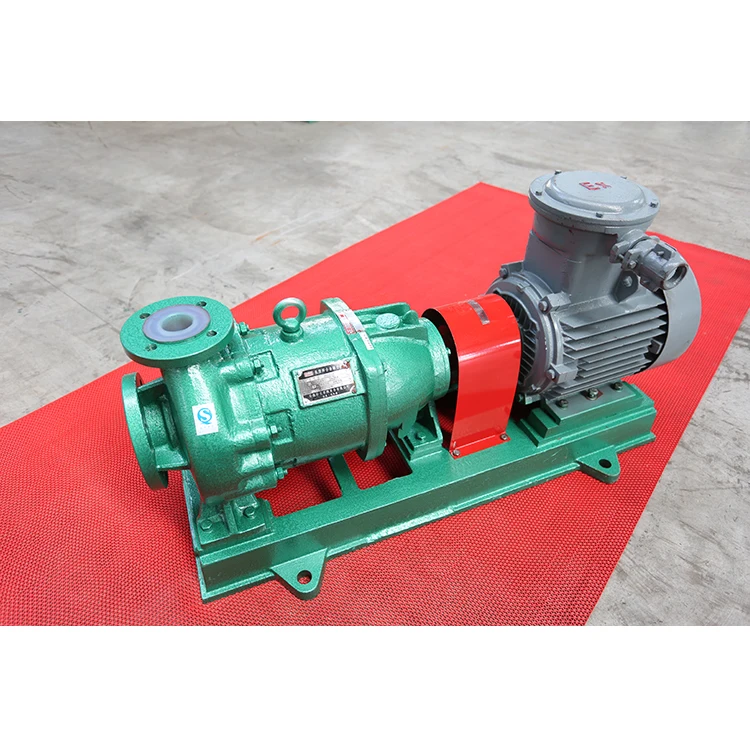

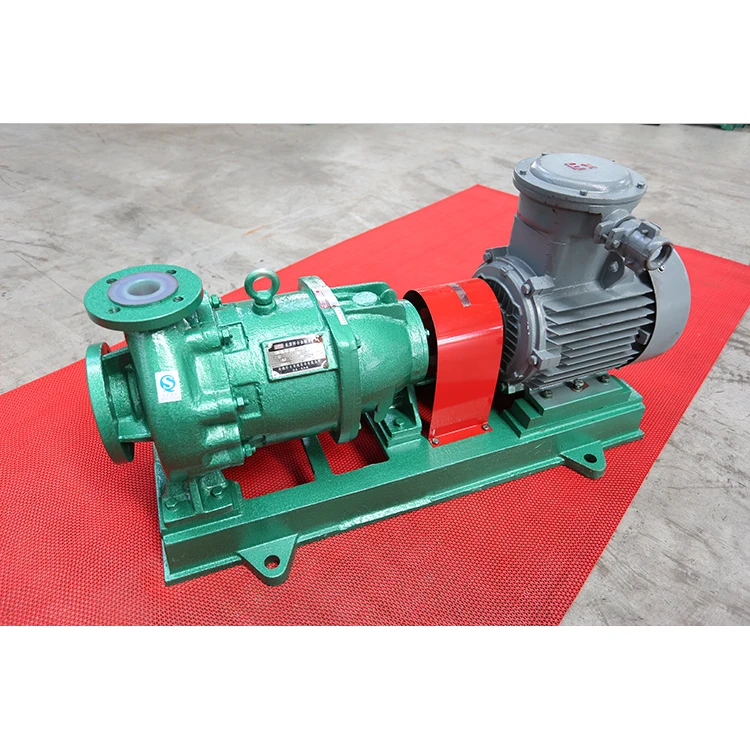

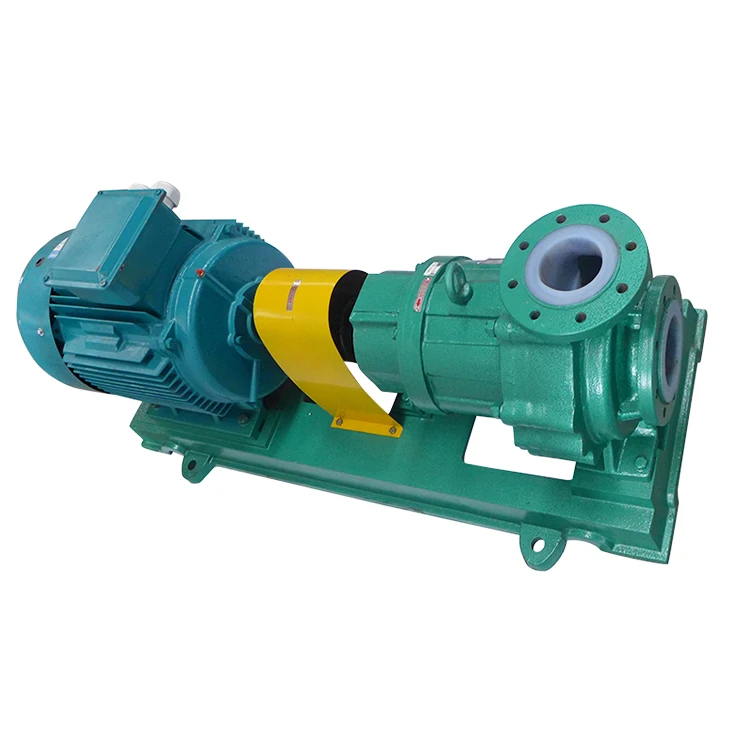

Fluorine plastic chemical pump for transfer Sodium Hydroxide
- Category: >>>
- Supplier: Shanghai Shuangbao Machinery Co. Ltd.
Share on (62253223532):
Product Overview
Description

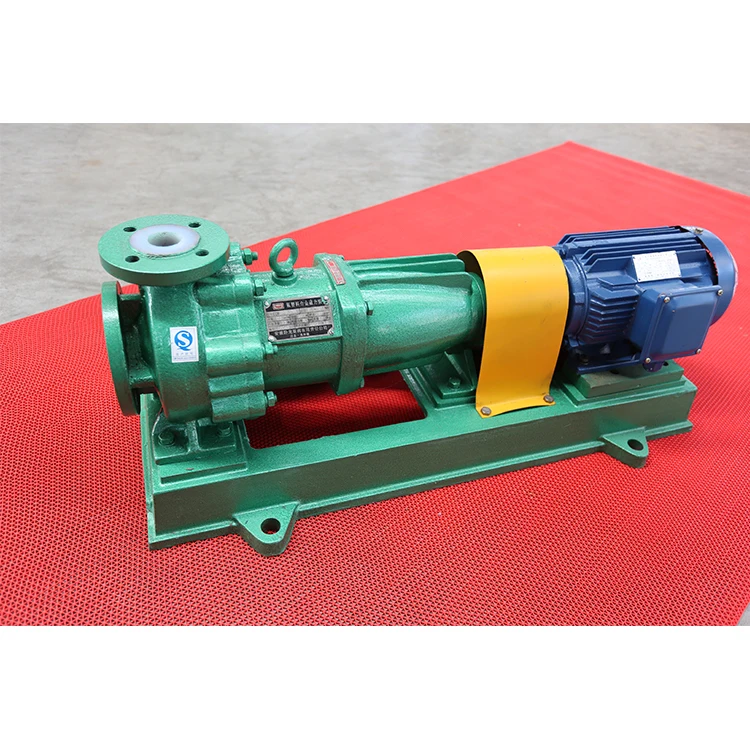

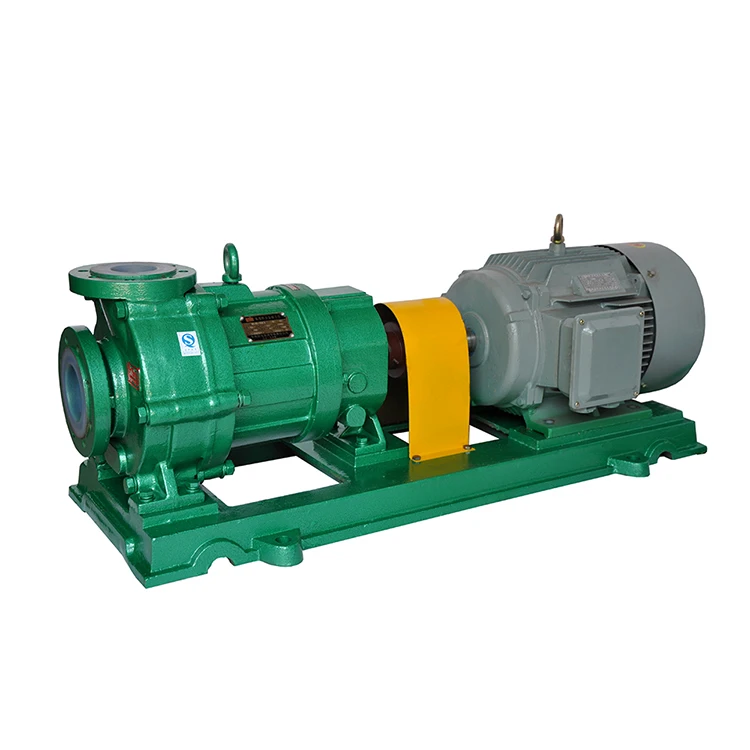

Fluorine plastic chemical pump for transfer Sodium Hydroxide
Product Description

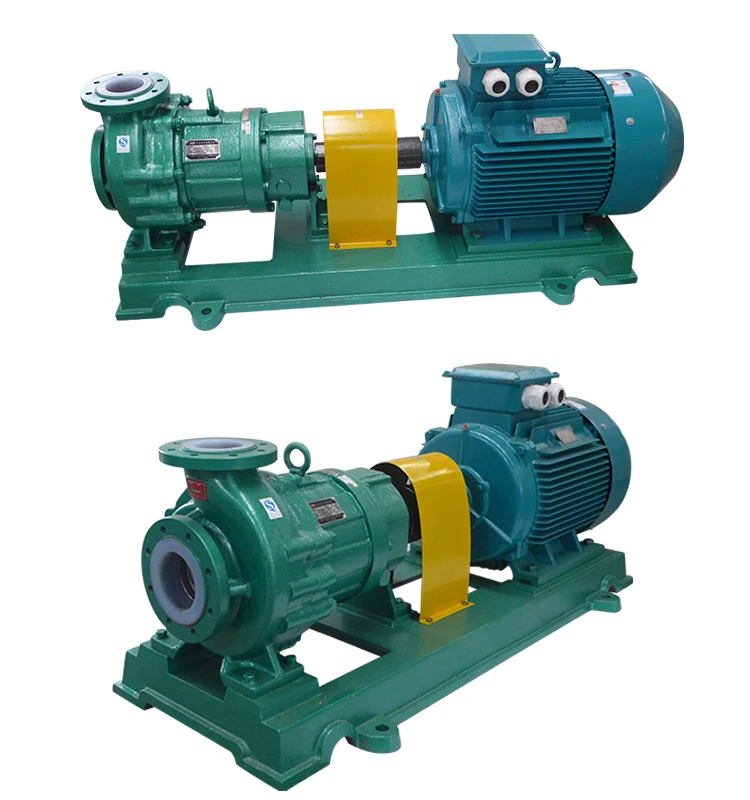

CQB series pump is a horizontal, seal-less centrifugal magnetic drive pump, compliant with ISO/ASME/ANSI sealless pump standard for general emission-free services.
Operating Range:
- Flow: 7to 120m3/hr; 31 to 528 GPM
- Head: 22 to 50m; 22 GPM to 164 feet
- Temperature: -20 °C to +100 °C;-4 to 212 °F
Application:
- Corrosive, pure and contaminated media in the chemical, pharmaceutics and petrochemical industries, in metal processing, waste water treatment;
- When stainless steel is not sufficiently resistant;
- An alternative to expensive haste alloy, titanium alloy pumps;
- When anti-adhesive surfaces are important.
Pumping Liquid
1. Acid and caustic liquid
2. Oxidizer corrosive liquids
3. Difficult-to-seal liquids
4. Sulfuric acid
5. Hydroelectric acid
6. Nitric acid
7. Acid and lye
8. Nitromuriatic acid
Model and parameters:
Design Pressure: 1.6MPa
| Item | Model | Flow (m3/h) | Pump head (m) | Efficiency % | NPSHa (m) | Inlet*outlet mm | Speed (rpm) | Power KW | Pump and motor weight (kg) |
| 1 | CQB50-32-125FA | 7 | 22 | 28 | 3.5 | 50*32 | 2900 | 2.2 | 105 |
| *12.5 | 20 | 42 | |||||||
| 15 | 19 | 46 | |||||||
| 2 | CQB50-32-160FA | 7 | 33 | 30 | 3.5 | 50*32 | 2900 | 4 | 140 |
| *12.5 | 32 | 39 | |||||||
| 15 | 29 | 41 | |||||||
| 3 | CQB50-32-200FA | 7 | 52 | 20 | 3.5 | 50*32 | 2900 | 7.5 | 210 |
| *12.5 | 50 | 31 | |||||||
| 15 | 48 | 35 | |||||||
| 4 | CQB65-50-160FL | 15 | 33 | 41 | 4.0 | 65*50 | 2900 | 7.5 | 210 |
| *25 | 32 | 51 | |||||||
| 30 | 29 | 55 | |||||||
| 5 | CQB80-65-160FA | 15 | 51 | 41 | 4.0 | 65*40 | 2900 | 11 | 250 |
| *25 | 50 | 48 | |||||||
| 30 | 49 | 54 | |||||||
| 6 | CQB80-50-200FA | 35 | 34 | 45 | 4.0 | 80*65 | 2900 | 11 | 285 |
| *50 | 32 | 60 | |||||||
| 60 | 28 | 52 | |||||||
| 7 | CQB80-50-200FA | 35 | 52 | 50 | 4.0 | 80*50 | 2900 | 18.5 | 320 |
| *50 | 50 | 60 | |||||||
| 60 | 45 | 60 |
Click Here >>>>> Get more Information !!!

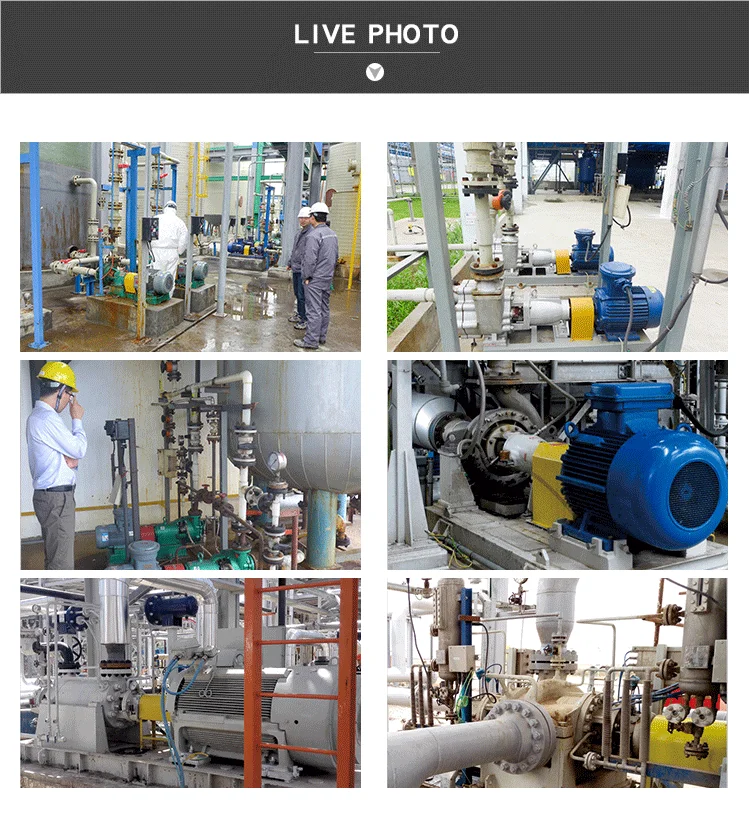

Customer worksite
Click Here >>>>> Get the Latest price !!!
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
