Maytech cablecam Superfoc6.8 ESC electric speed controller based on v6 6374 3500w brushless motor for Agricultural robot Drone

Share on (62253223634):


Price:

Quantity:


Product Overview

Description





Related Products




\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


Maytech cat cablecam Superfoc6.8 ESC electric speed controller based on V6 and 6374 3500w brushless motor for cam tv

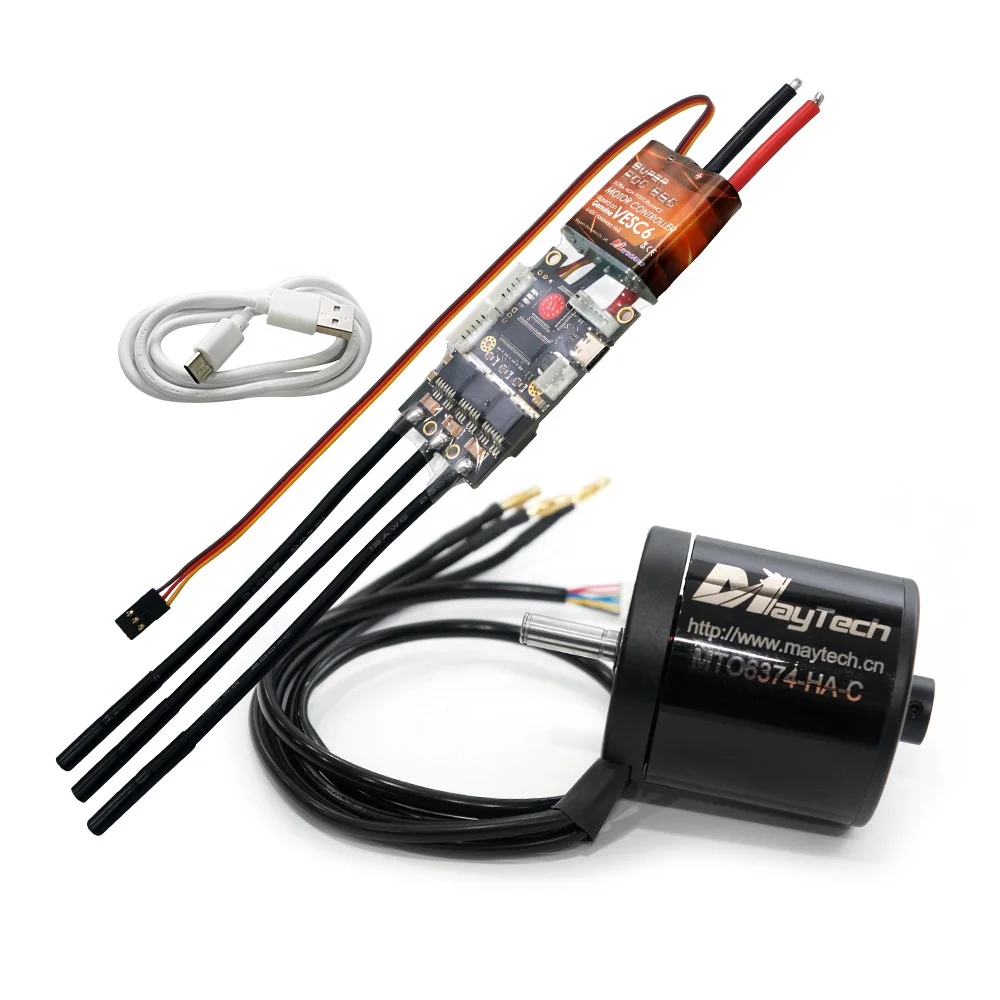

Including: 1pcs motors + 1pcs esc
1pcs MTO6374-170-HA-C + 1pcs MTSPF6.8

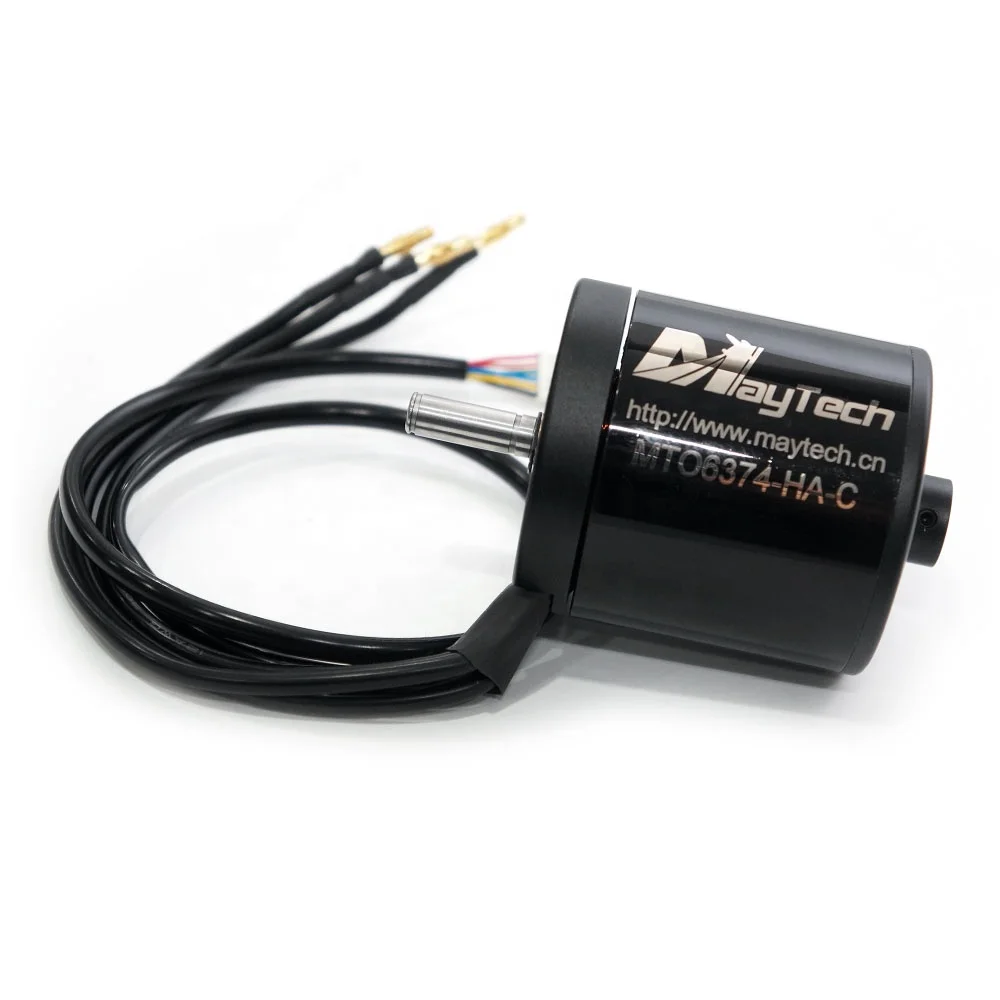

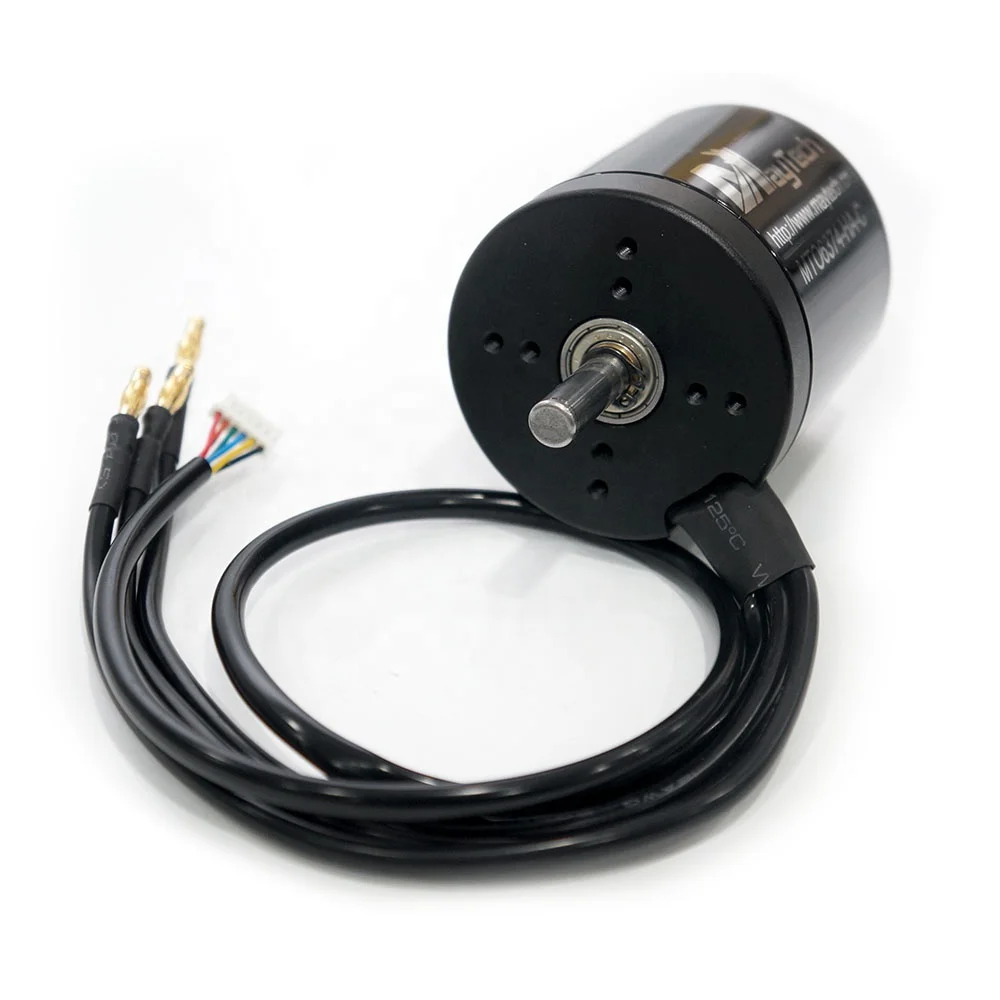

1.Maytech cablecam 6374 3500w brushless motor for cam tv
Model No
MTO6374-170-HA-C
Brand
Maytech
KV
170
Shaft
8mm with 3mm keyway
Size
Φ62.6x 69.0mm
Output Shaft Length
26mm
Max Lipo Cell
2‐12s Lipo
Motor Weight
830g
Max Current
65A
Max Power
3550W
Rated Current
60A
Hall Sensor
With Hall Sensor
Idle Current
1.5A
Max. Pull
13000g
Motor cable length
240mm, excluding connector length
Sensor cable length
500mm with 2mm pitch
With
4mm golden male connector

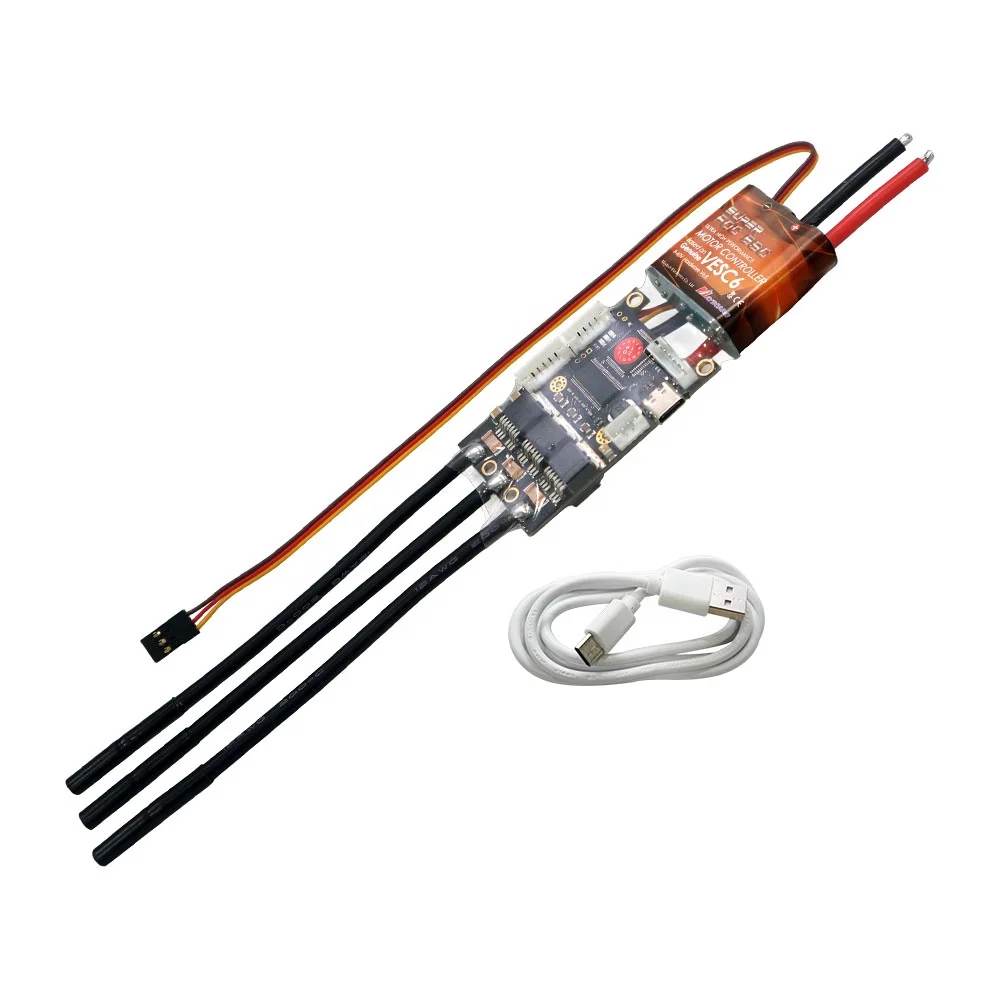

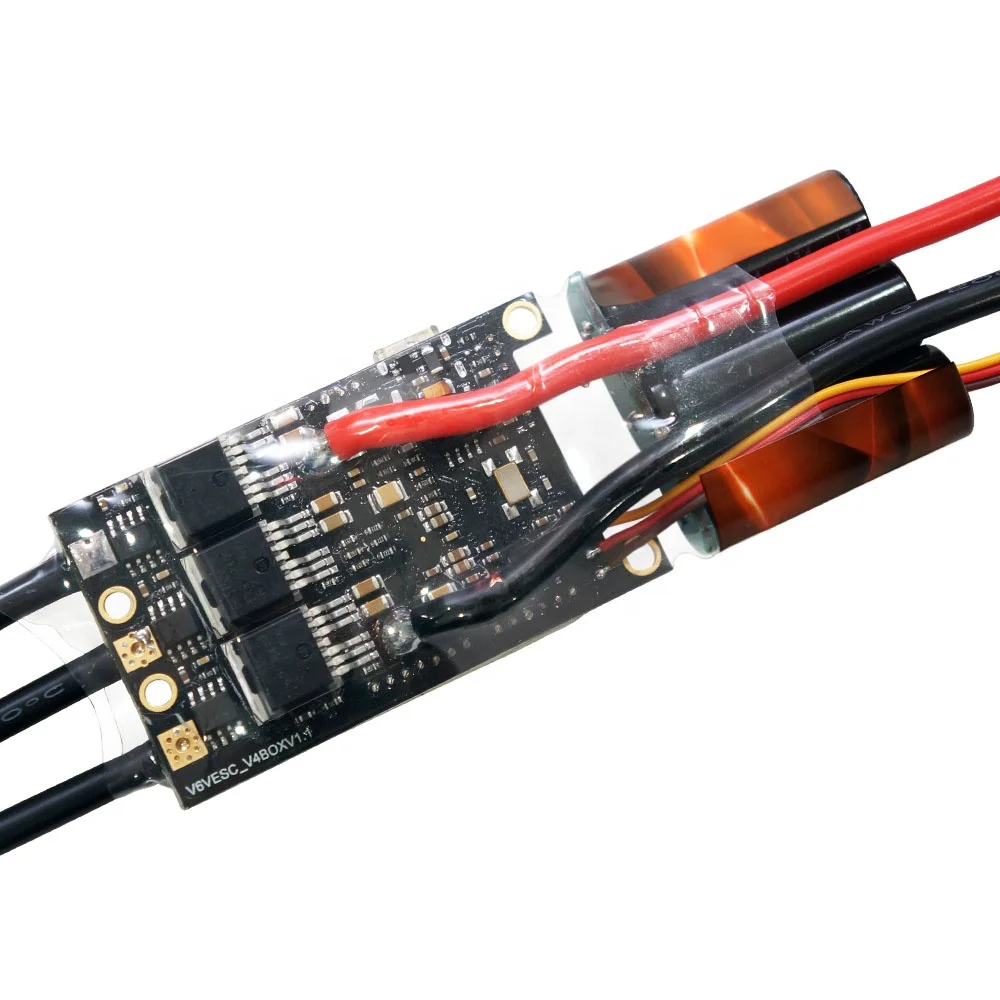

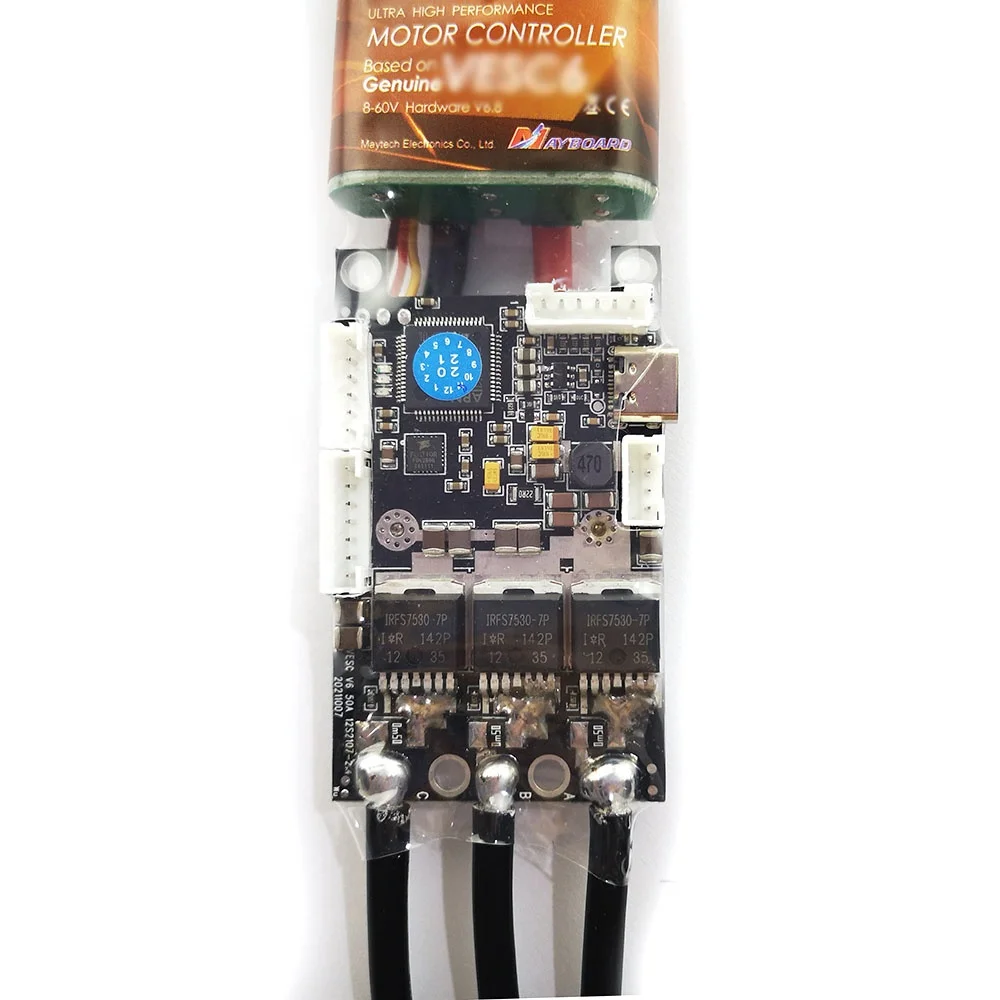

2.Maytech cat cablecam Superfoc6.8 ESC electric speed controller based on v6 cam tv
Model no
MTSPF6.8 SUPERFOC6.8
Cont. Current
50A
Lipo
3-12S
Burst Current
240A
BEC
5V
PCB size
40mm x 60mm
Capatitor
3pcs 680uf63V
MOS
IRF7530
Hardware
based on V6
Firmware version
updatable
Application
electric skateboard longboard, fighting robot, e-bike, electric surfboard, mountain board, compatible with UAV flighter, etc.,
