Type: waterproof constant current output controller Rated working voltage:DC12V Self consumption:Average static power consumption7mA; Max. charging current:10A Max Convesion Effiency:94% Working temperature: -35~60℃ Charging mode: MCT mode (Automatically tracing solar panel's Max. charging current) Working mode: Light controlling+time controlling;
Pole
Material:Q235 steel (Hot-dip Galvanized with powder coat) Top Diameter:60mm Bottom Diameter:140mm Pole Length: 6M Lamp Height:5.5M Thickness:2.75mm Base Flange:14*260*260mm "Weight:58kg wind resistant grade: 25M/s" "Welding: no crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects."
Size:260mm*600mm*M16 Features:Demountable parts, easy to transport and installation, with screws, customers don't need to weld
Accessories
15meter*2.5mm² cables,bolts and other accessories

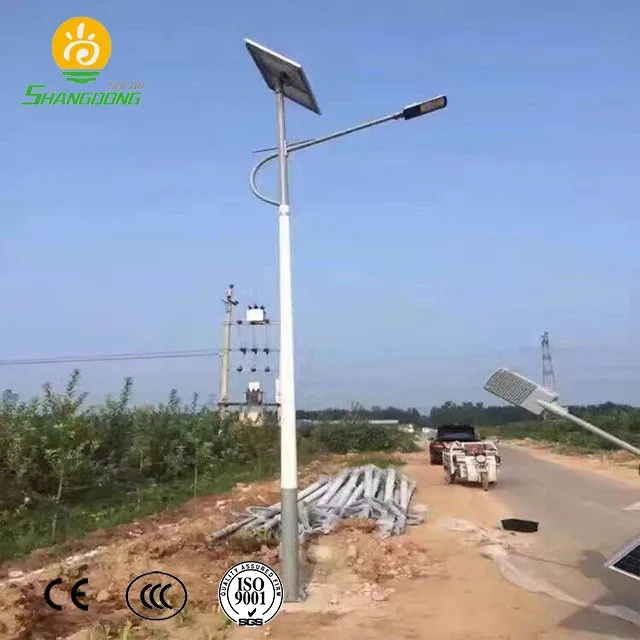

Installation Process
Height: 3~15M, hot galvanized pole, surface spray treatment System voltage: DC12V/24V Suitable light source: 30W-150W Working each day: 4~12h (may design it into a full power illumination mode or an energy-saving mode as required by the customer) Number of overcast and rainy days: 2~7 days (may design it as required) Illuminnance: 15Lux~38Lux (may design it as requirement) Wind resistance: 41.4m/s Cell panels: single/polycrystalline silicon solar cell panels with high conversion efficiency, life service time≥25 years. Storage battery: Valve-controlled and sealed maintenance-free gel, lead-acid storage batteries,for solar energy only, life service time ≥5 years. Controller: Microcomputer intelligent waterproof controller with such many function as anti-overcharge, light control and time control. life expectancy≥5years * The above configuration is only for reference and the actual configuration is designed according to the local climate conditions and the customer special requirements. * We promise a guaranteed warranty for the entire system for two years, during which if there is any quality problem found, repair or replacement shall be provided free of charge, and a guarantee for life-long repair.
