EMT Factory Best Price Polyurethane 3 Cups Pipeline Pigging Cleaner,Customized Design High Pressure Pipe Cleaning Pig Scraper
- Category: Cleaning Equipment Parts >>>
- Supplier: Shenyang,Emt,Piping,Technology,Co.,ltd.
Share on:
Product Overview
Description
Pipe polyurethane cup cleaner used in pigging system for cleaning
Product Description
1.Name:Pipe polyurethane cup cleaner used in pigging system for cleaning

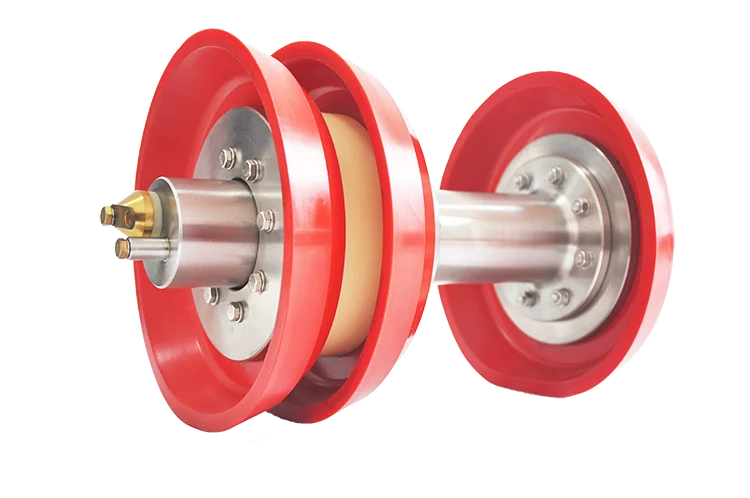

The main body of pipeline cleaning pig is steel framework, equipped with 2-4 sealed cups or steel brush.
Our products have been used long-term by the Daqing oil field and the Liaohe oil field of China with stable performance, reliable quality, has received coherent good comments from the customers.
2.Material:
The main body of cup pig is steel framework, equipped with 2-4 sealed cups or steel brush. The cup material used to be Polyurethane, Viton, Neoprene, Nitrile butadiene and etc.
Use : new pipeline pigging, drainage, water resistance, media isolation.
3.Feature:
Good wearing resistance, strong passing ability, nice cleaning performance, accurate location and tracking, Low rate of false positives and etc.
4.Advantage:
1). Good sealing performance.
2). high wear resistance.
TEST REPORT
Report No.TD-20I90117-045N-2 CX99JL03
SUMMARY OF TEST RESULTS | ||||
NO. | TEST PROJECT | UNITS | TEST RESULT | TEST METHOD |
1 | Shore hardness | Shore A | 83 | GB/T531.1-2008 |
2 | DIN abrasion | mm3 | 21 | GB/T53516-1987 |
3 | Akron abrasion | crn3 | 0.0518 | GB/T1689-1998 |
4 | 100%stress at definite elongation | MPa | 3.41 | GB/T528-2009 |
5 | 300%stress at definite elongation | MPa | 5.74 | GB/T528-2009 |
6 | Tensile strength | MPa | 51.2 | GB/T528-2009 |
7 | Elongation at break | % | 1263 | GB/T528-2009 |
8 | Tear strength (right Angle) | kN/m | 77 | GB/T529-2008 |
9 | Resilience rate | % | 34 | GB/T168-2009 |
5. Specification
Name | Pipe polyurethane cup cleaner used in pigging system for cleaning |
Material | 1. steel framework main body. 2. The disc material used to be Polyurethane, Viton, Neoprene, Nitrile butadiene and etc. 3. The cup material used to be Polyurethane, Viton, Neoprene, Nitrile butadiene and etc. 4. Steel brush or nylon brush. |
Feature | 1. good wearing resistance. 2.strong passing ability. 3.nice cleaning performance. 4.accurate location and tracking. 5. Low rate of false positives. |
Packing way | packed pipe cleaning pigs with inner plastic film and outer plywood wooden case. |
Payment | TT/LC |
Advantage | 1. Good sealing performance . 2. high wear resistance. |
6.Usage:
(1) Cleaning the new-built pipeline.
(2) Remove rust and clean before coating in the pipeline.
(3)Remove rust and clean before repairing the pipeline.
7.Minimum Order Quantity(MOQ):1 Piece/Pieces .
8.Payment term:T/T or L/C at sight.

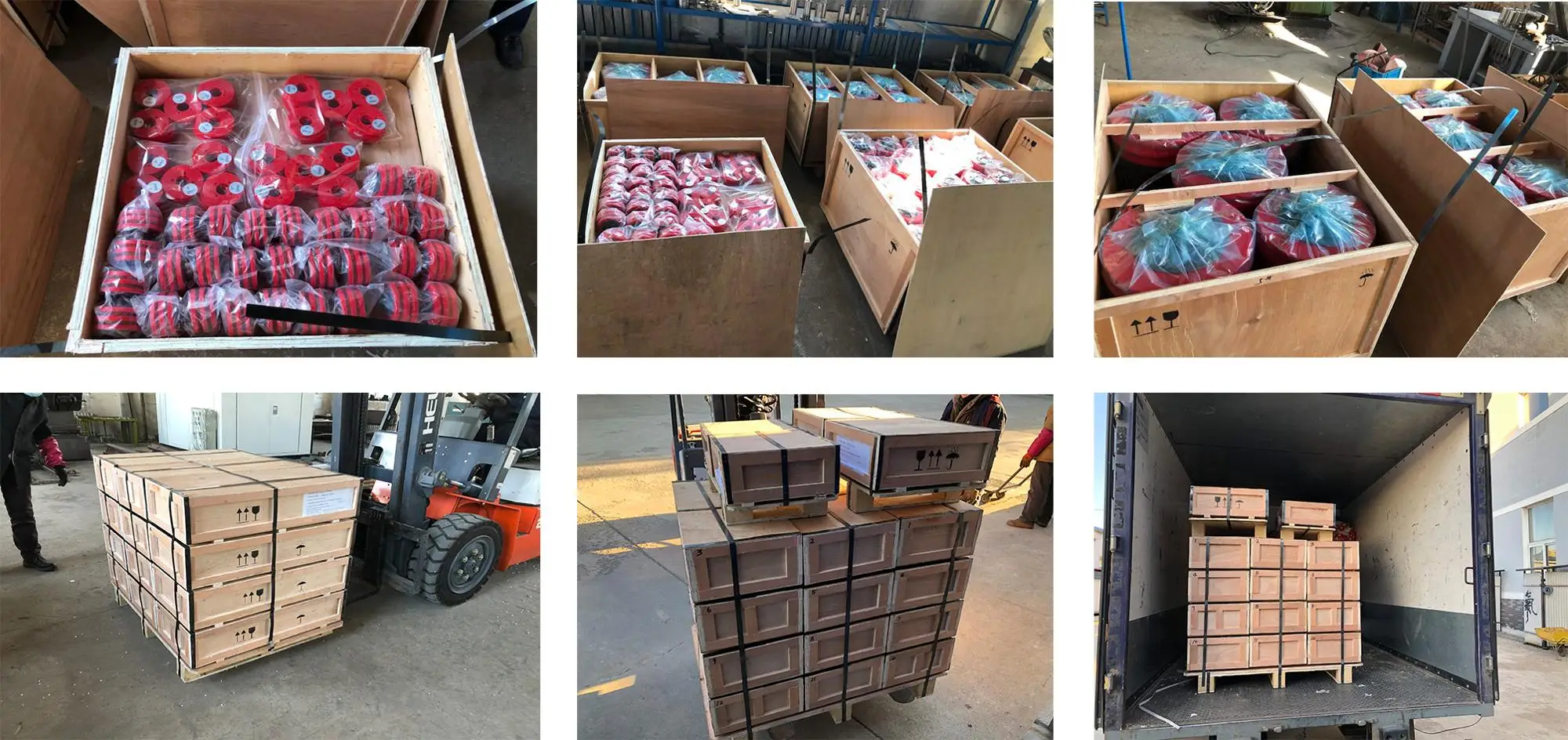

Packaging & Shipping
Packaging will choose the adaptation methods according to the requirements, size, weight, transportation distance, and etc. Package purpose prevents deformation, pollution, and damage in the process of transportation, loading, and unloading.
If you have a special demand for the package, please just tell us before ordering .we can produce as your request.
Our Services

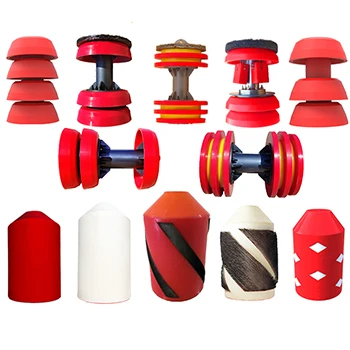

1.Many kinds of pipe cleaning pig with a different type to meet different requirements.
2. Samples will be offered to attest to the quality and our services.
3. The fastest feedback!
4. The fastest delivery time.
5.24 hours,7 days online.
Related Products
 |  |  |
|
Company Information
We Shenyang EMT Pigging Technology Co., Ltd. was founded in 2004 has developed to a science and technology development enterprise that combines science development, product development, production, sales, and service as a whole. The meters, instruments, and equipment developed have been widely used in petroleum, power, chemical, liquor-making, metallurgy, mechanical industries. Our institute has professional R&D, sales, site and after service staff with strong strength of R&D, development, production, and installation.
Certifications
1.Our company have gotten ISO9001:2015 quality management system certification.
2.Our company have gotten idt14001:2015 quality management system certification.
