Product Overview
Description
Laboratory Safety Programmable Rapid Temperature Change Rate (Humidity & Temp.) Test Chamber Price
Product Description
Y1: Relative humidity %RH;
Y2: Temperature,℃;
X: Time,h;
a: end of the heating; b:cooling start; c:recommended temperature and humidity values;
d: condensation; e: desiccation; f: 1 cycle.
Relevant standards requirement:
1.Temperature shock
(1)Test Object: Battery storage pack or system.
(2)Li-ion battery pack or system placed in (-40±2)℃~(85±2)℃ alternation temperature, the conversion time of two extreme temperatures is less than 30 minutes. Place the test objects into each extreme temperature keep 8h, test 5 cycles.
(3)Observe for 2 hours under the room temperature after testing,
2.Humidity & Temperature Cycling
(1)Test Object: Battery storage pack or system.
(2)Refer the GB/T2423.4 Test Db, variable refer the Graph 4,the highest temperature is +80℃,5 cycles. Observe for 2h under the room temperature.
Other Requirement:
1. Main-subsidiary type trolley for specimen in and out of the test chamber.
2. Explosion-proof lighting system.
3. Explosion-proof pressure relief system.
4. Smoke exhaust system.
5. Automatic Water Supply System.
6. Fire extinguishing device; spray device; smoke alarm device;
Technical Parameters:
Model | BTKS5-12m³-C |
Internal Dimension | W2000 X D3000 X H2000mm |
External Dimension | W2400 X D4500 X H2940mm |
Temperature Range | -50℃ ~ +150℃ (Adjustable) |
Humidity Range | 20%RH-98%RH (Limit temperature section, see the regional figure ) |
Temperature Fluctuation | ±0.5℃ |
Humidity Fluctuation | ±2.0%RH |
Temperature Deviation | 2.0℃ |
Humidity Deviation | A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH. |
Heating Rate | ≥5℃/min(From -40℃ up to +80℃ , Non-linear load 800kg) |
Cooling Rate | ≥5℃/min(From -40℃ up to +80℃ , Non-linear load 800kg) |
Temperature overshoot | ≤±2℃ |
Weight | Approx 5 Tons |
Power Supply | AC 380V, 50HZ, 127KW |
Noise | ≤70dB(A Level) |
External Material | Galvanized sheet with high temperature electrostatic resin coating at both sides. |
Internal Material | 1.2 mm thickness SUS# 304 heat and cold resistant stainless steel with seal welding. |
Controller | 24 bit high accuracy 7 inch TFT true colors LCD touch screen. |
Compressor | Semi-Hermetic Compressors BOCK / BITZER (Germany) |
Cooling Type | Air cooling or water cooling (Optional) |

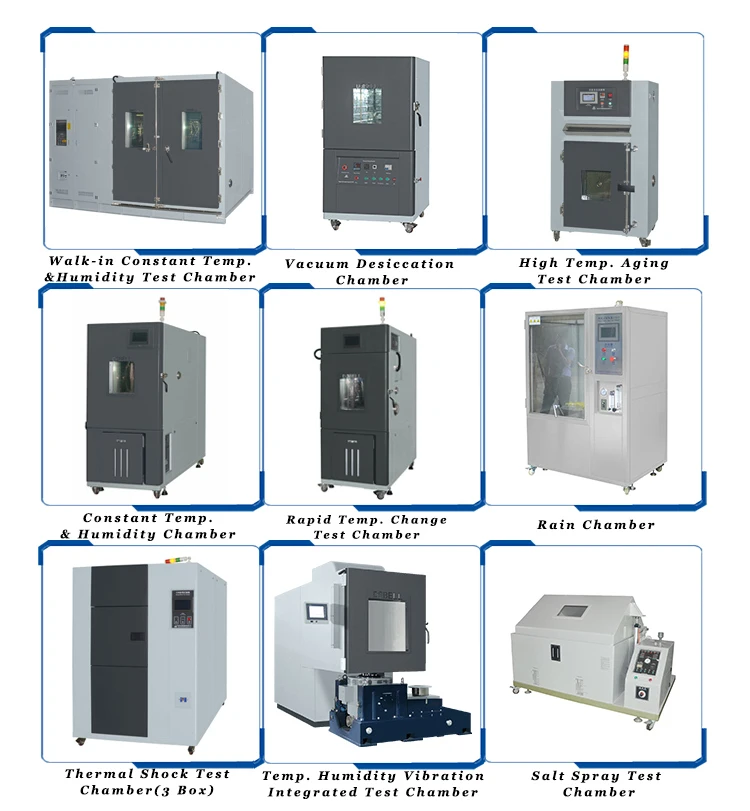

Main Products
Company Information
GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.
Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Certifications
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Laboratory Safety Programmable Rapid Temperature Change Rate (Humidity & Temp.) Test Chamber Price. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
