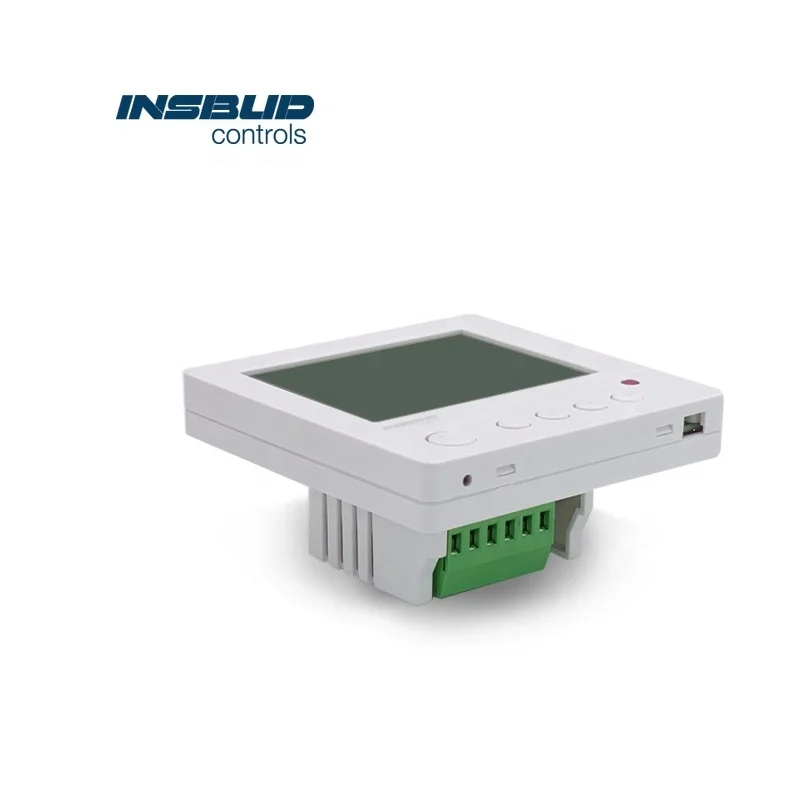

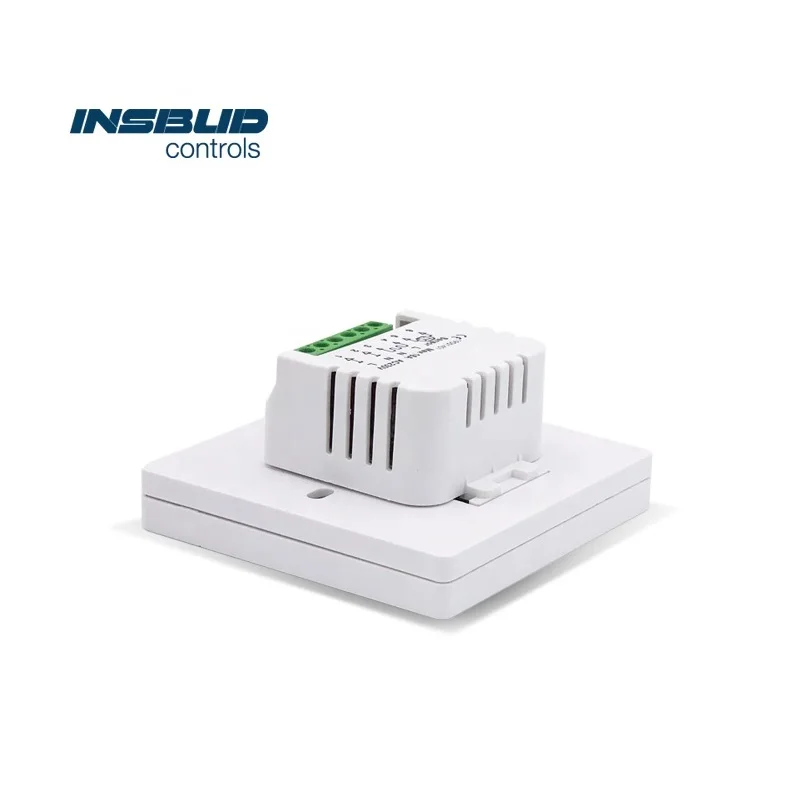

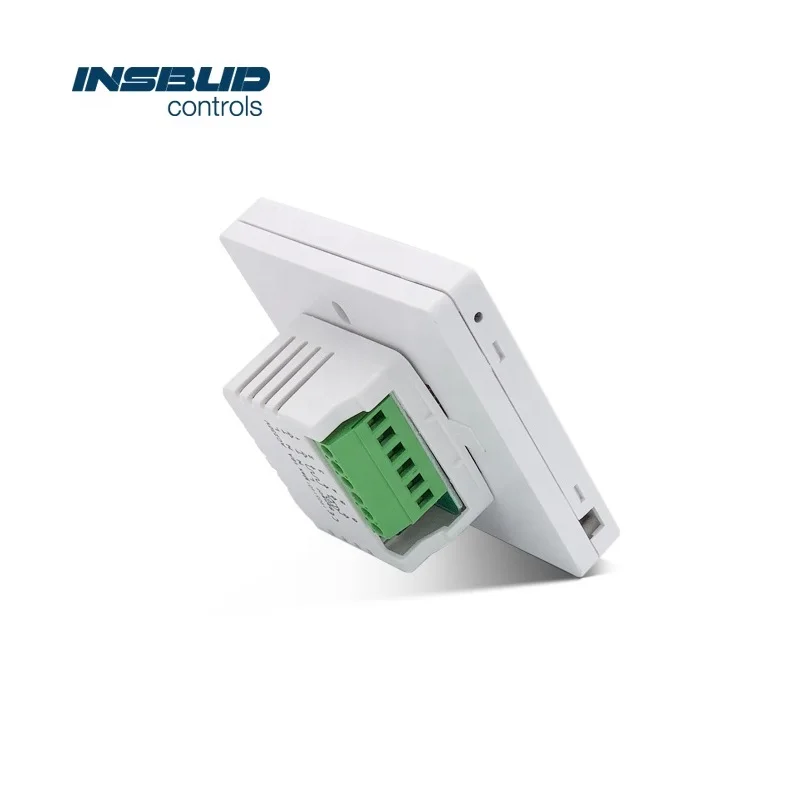

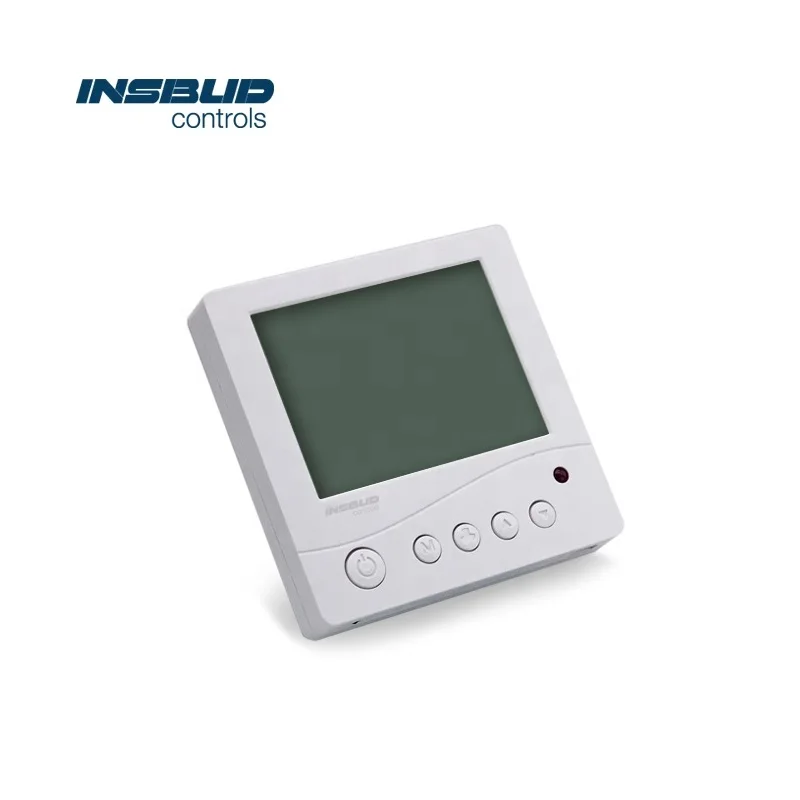

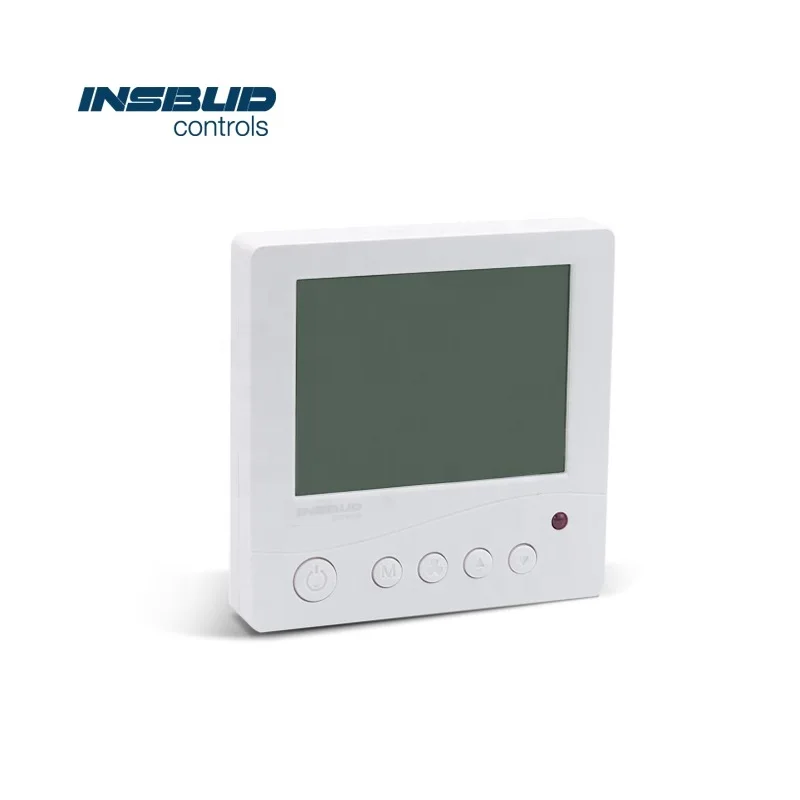

220V AC Electric gas boiler water heater thermostat
- Category: >>>
- Supplier: Nanjing Insbud Controls Company Limited
Share on (62253578554):
Product Overview
Description
Floor Heating Part Type | Gas boiler thermostat |
Color | White |
Application | Underfloor Heating System |
Voltage | 220V/230V |
Power comsuption | 2W |
Switching capability | 16A Resistive |
Setting range | 5-35°C |
External limitation | 5-40°C(factory setting:35 °C) |
Switch differential | 0.5-10°C adjustable factory setting: ± 1 °C |
Ambient temperature | -5-50°C |
Protective houseing | IP20 |
Housing material | Anti-flammable PC/ABS |
Technical Data
Supply voltage: 230vac
Output switching capability: 16A resistive
Temp range:5~35 deg C
Floor range: 5-40 deg C
Battery backup: 1x Cr1220 3V
Ambient temp:0~+40 deg C
On/off differential:0.5 deg C
Protective Housing: IP20
Housing material: PC+ABS
Sensor type: NTC(10K ohm)
Approvals: CE
Warranty: 2 years
Output switching capability: 16A resistive
Temp range:5~35 deg C
Floor range: 5-40 deg C
Battery backup: 1x Cr1220 3V
Ambient temp:0~+40 deg C
On/off differential:0.5 deg C
Protective Housing: IP20
Housing material: PC+ABS
Sensor type: NTC(10K ohm)
Approvals: CE
Warranty: 2 years
220V AC Electric gas boiler water heater thermostat
Features

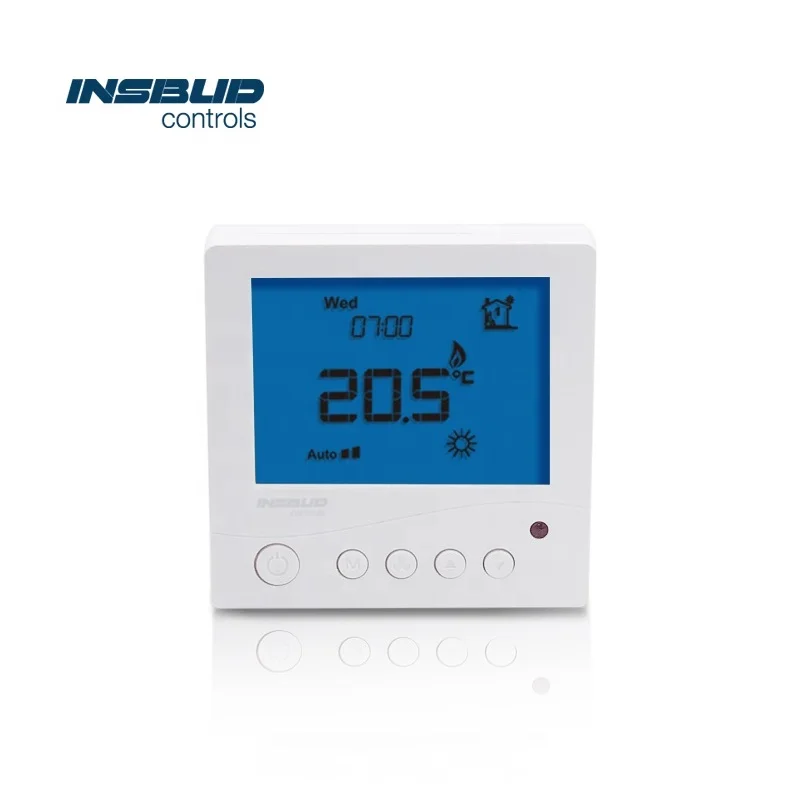

> Large LCD display
> Extra slim and compact control panel
> Can switch up to 16 amps,even 30 amps , (24vac, 230v AC, 120v Ac available)
> Can be either an air only / floor only / Air & Floor
> 7 day programmable (each day can be set different)
> Blue back light illumination (white backlight optional)
> Casing available in white, gold,silve,black color
> 4 set points per day (2 comfort - 2 economy), or 4 independent setpoints per day
> Manual override and vacation mode
> Frost protection
> F / C temperature format can be selected
> 12/24 Hour clock system can be selected
> programmes and settings can be reserved after power break
> 2 year warranty
> equipped with air and floor sensor
> Back light turning on/off time can be set
> Floor temperature limit
> Switching differential setting
> Firmware can be upgraded
> Customizing welcome
