Product Overview

Description

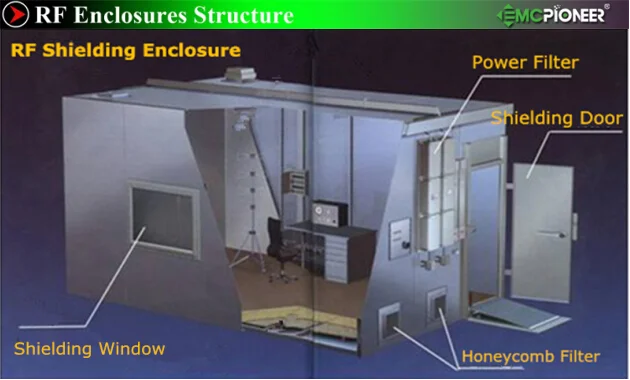

RF Shielding EMI/EMC Chamber



EMCPIONEER Provide 2 Service



Service A: Provide EMI/EMC Chamber accessories. Such as RF door, RF window, RF absorber, Power filter, Signal filter, Steel honeycomb filter, Steel waveguide, Copper wool, Beryllium copper fingers and EMI shielding gasket.



Service B: Provide Complete EMI/EMC Chamber proejct. With installation service or without installation service.




PIONEER EMC LTD provide Modular type RF chamber for the military, commercial, and medical industries.


Pioneer EMC LTD’s EMI/EMC Chamber are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents




EMI/EMC Chamber Shielding Properties (dB)



Magnetic field

14kHz

85dB

100KHz

100dB

200KHz

110dB

Plane wave

50-103MHz

120dB



Microware

1-10GHz

110dB

10-20GHz

100dB

20-40GHz

80dB

Application Scope

EMC tesing, RF Testing

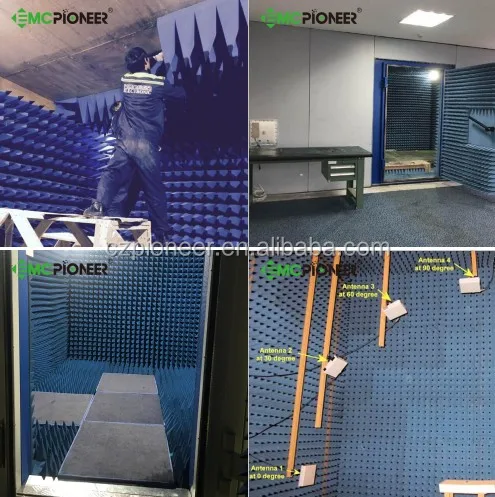

Anechoic Chamber.JPG

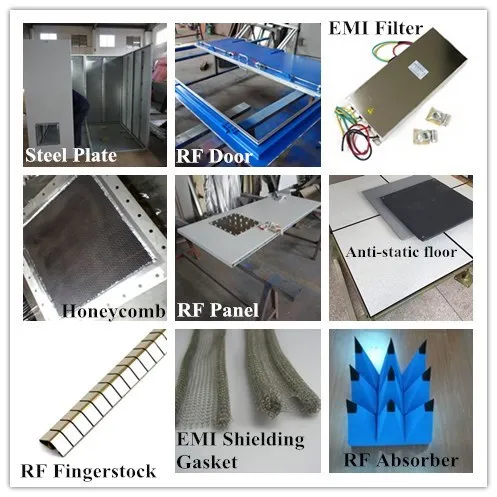

EMCPIONEER Could Separate Provide These Items
Items 1Module Panel type, 2mm/3mm galvanized steel plate
Items 2RF Shielding Door, Open size:1000*2000mm
Or Customized dimension
Items 3Power Filters
16A/ 32A/50A/63A
Or Customized parameter
Items 4Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension
Items 5RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension
Items 6Floor
Anti-static floor or Laminate flooring
Or customized materials
Items 7Foam RF absorber
Ferrite tile
High power absorber
Items 8Beryllium copper Fingers
Items 9Steel waveguide
Items 10EMI Shielding Gasket

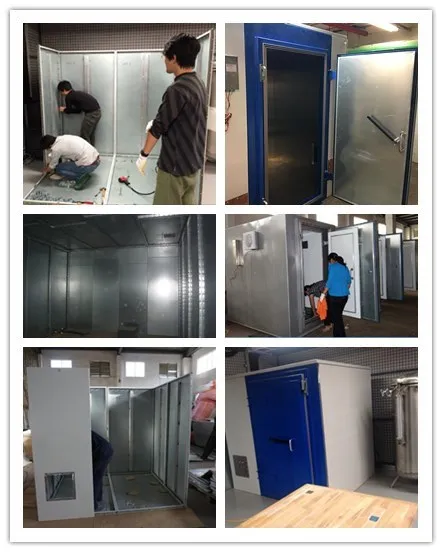

Pioneer EMC LTD's EMI/EMC Chamber



Modular panel type is easy to install and remove to other place.



Installation Guide:

When ship the EMI/EMC Chamber, Installation guide will be put in the packing Box.



Installation Service:

We could arrange worker and engineer help customer install the EMI/EMC Chamber in project local.



Warranty Time: 2 Years



Color: Customized

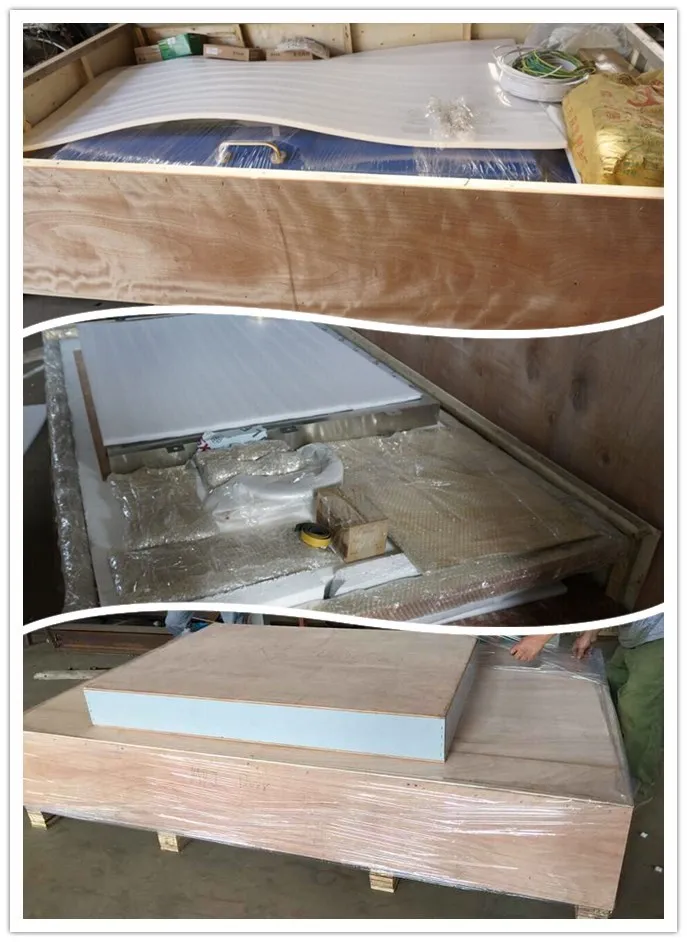

 Wooden Carton Packing. Strong and safty in transport.

RF Chamber Packing.jpg

If you have an RFI/EMI shielding problem, Pioneer EMC LTD has the engineering and manufacturing expertise to provide a solution.
