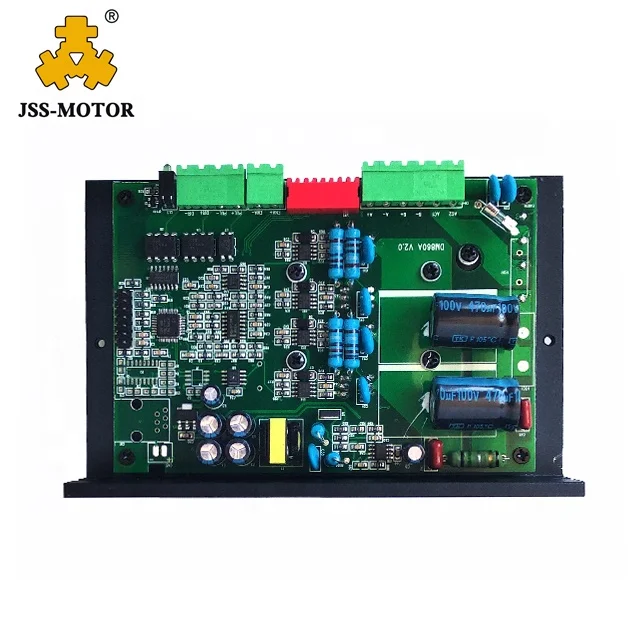

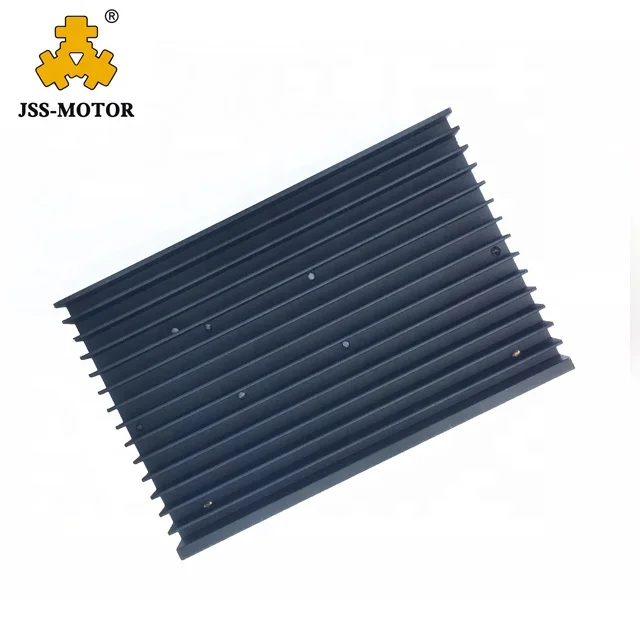

2 Phase stepper motor driver controller DM860D for nema23 and nema34 stepper motor

Share on (62254358624):


Price:$25.00 - $37.50

Quantity:


Product Overview

Description

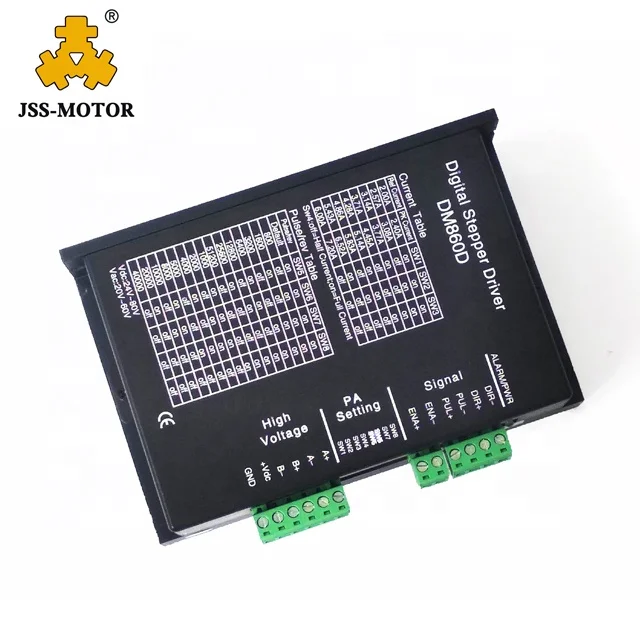

DM860D


2-Phase Digital Hybird Stepper Driver


Features


1. Adoption of 32-bit DSP, pure sine wave subdivision technology


2. Low-noise, low-vibration and low temperature rising


3. Voltage 24-80VDC or 20-60VAC


4. With 8 stalls output current setting, peak current 7.2A


5. With16 stalls microstep subdivision setting


6. Automatic half current, self-test, over voltage, under voltage, over current protection


7. Internal optical isolation, highest frequency response 200KHZ.


8. Suitable for current range 2.4-7.2A nema34 2,4-phase Hybird stepper motor


Current selection





































































REF



Peak



SW1



SW2



SW3



2.00A



2.40A



ON



ON



ON



2.57A



3.08A



OFF



ON



ON



3.14A



3.77A



ON



OFF



ON



3.71A



4.45A



OFF



OFF



ON



4.28A



5.14A



ON



ON



OFF



4.86A



5.83A



 OFF



ON



OFF



5.43A



6.52A



ON



OFF



OFF



6.00A



7.20A



OFF



OFF



OFF









Microstep selection
































































































































Pulse/REV



SW5



SW6



SW7



SW8



Default



ON



ON



ON



ON



800



OFF



ON



ON



ON



1600



ON



OFF



ON



ON



3200



OFF



OFF



ON



ON



6400



ON



ON



OFF



ON



12800



OFF



ON



OFF



ON



25600



ON



OFF



OFF



ON



51200



OFF



OFF



OFF



ON



1000



ON



ON



ON



OFF



2000



OFF



ON



ON



OFF



4000



ON



OFF



ON



OFF



5000



OFF



OFF



ON



OFF



8000



ON



ON



OFF



OFF



10000



OFF



ON



OFF



OFF



20000



ON



OFF



OFF



OFF



40000



OFF



OFF



OFF



OFF












Mechanical Dimension(mm)







Product Description

Product Description


Produce process







Our Services


Different specification of stepper motor with competitive price for your choice:







A wide range of application:





    Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.





First-class service:


customization and OEM is available.


Warranty: 12 months


Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us                               without any hestation. It's a pleasure to serve you.





Contact me :


WhatsApp: +86 18306110590


Phone: +86 18306110590








Packaging & Shipping


 We have standard package for our products. We can also make it as per your special requirements.


  .jpg


Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.








Company Information


    Changzhou jss Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.





    Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low  failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.





    If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!


Certifications:


CE certification.png

















FAQ


1.Q:Can I get some samples first?


   A:Sure, we are honored to offer you samples for your check.


2.Q:Do you have the products in stock?


   A:Our products are manufactured according to your order except the normal products.


3.Q:What's the delivery time?


   A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.


4.Q: How does your factory do regarding quality control?


   A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
