5v 12v High Speed 25x25x10mm Car Amplifier Fan DC Axial Cooling Fan 2510
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (62254447707):
Product Overview
Description
Product Description

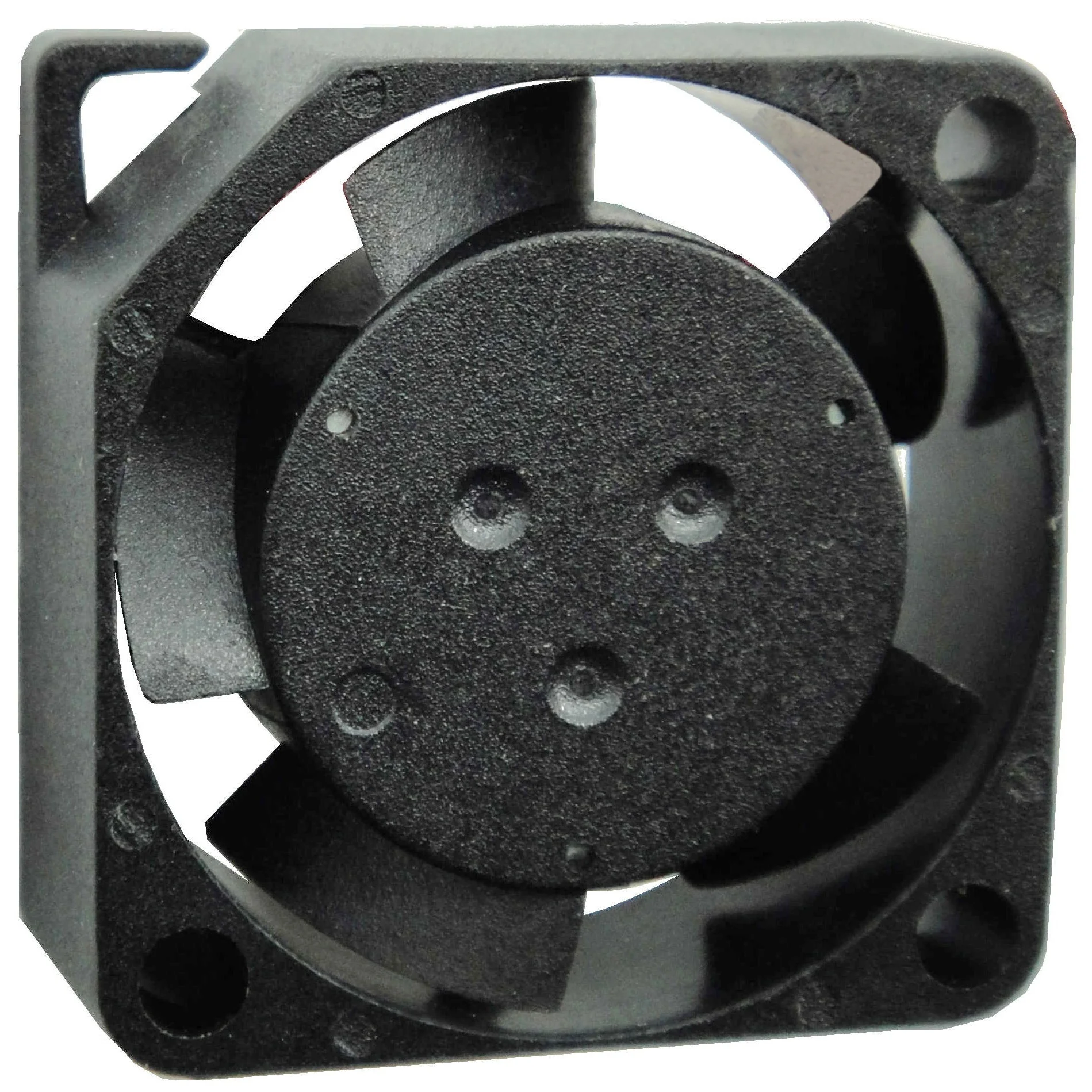

25x25x10mm dc axial cooling fans dc cooling fan 5v 12v
The fan with various functions are available, such as 3 wires Tachometer signal output , Alarm signal output , Dual speed with Tachometer signal , Temperature control, PWM , 4 wires FG+Alarm function, Waterproof , USB cable, etc…

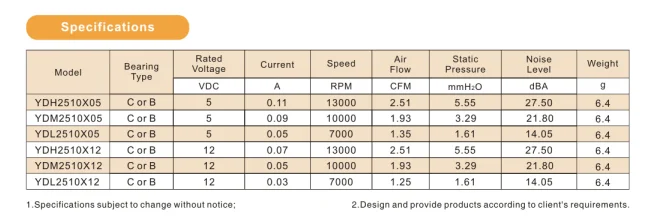

| Size | 25x25x10mm |
| Construction | Plastic blades, Plastic Frame |
| Operating Temperature | Ball bearing:-10°C to +70°C Cycleseal bearing:-10°C to +70°C |
| Insulation Resistance | 10meg Ohm min,at 500 VDC(between frame and terminal) |
| Dielectric Strength | 5mA max,at 500 VAC 60hz one minute (between frame and terminal) |
| Life Expectancy | Dual ball:50000-70000 hours Cycleseal:40000 hours |
Rated voltage: 5v 12v according to customer's requirement
Air flow, air pressure, speed and rated voltage can be customized based on customer's requirement
Bearing: Cycleseal or Ball ( Cycleseal working time for 40,000 hours, ball working time for 50,000 hours)
Yccfan ball bearing is Minebea NMB brand, it is imported from Japan

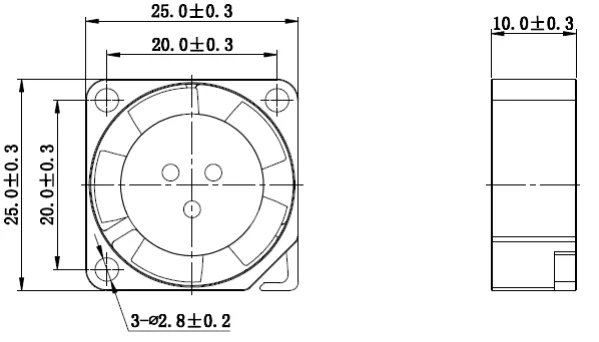

Size: 25*25*10mm dc fan 12v
Construction: Glass fibre reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
Impedance protected
Leader wire or terminal is available
Operating Temperature: Ball bearing:-30°C to +75°C
Cycleseal bearing:-10°C to +70°C
Life Expectancy: Dual:55000-60000 hours
Cycleseal:40000-50000 hours
Packaging & Shipping
- carton package.
- 10-15 days after confirming your order and receiving your payment.
- We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
- Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We are not responsible for any custom duty or import tax.
- All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
Company Information
YCCFAN is a professional manufacturer and supplier in Guangdong, China.
We have 11 Years’ experience in Cooler Industrial.
We devote ourselves to offer high quality products to our clients in a competitive price, we also provide top quality service to clients.

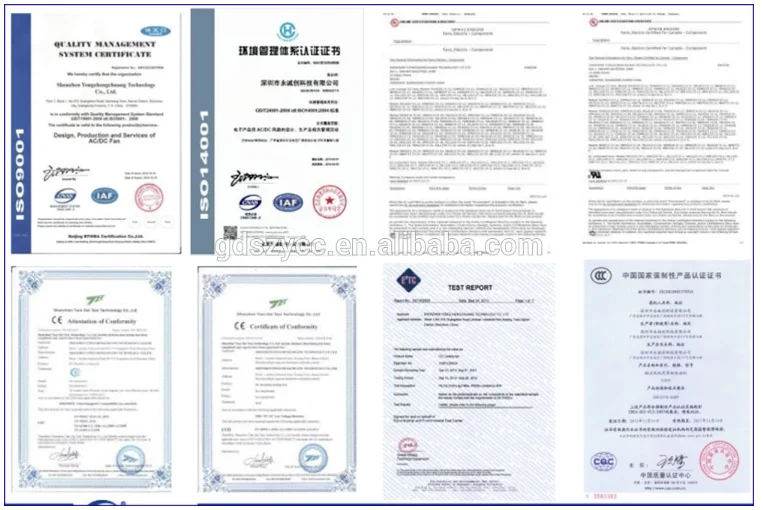

Certifications
1. All cooling fan have passed CE , Most of them also got UL & CUL certifications.
2. Our company have approved IS9001 & ISO14001 & IATF16949 certificate .

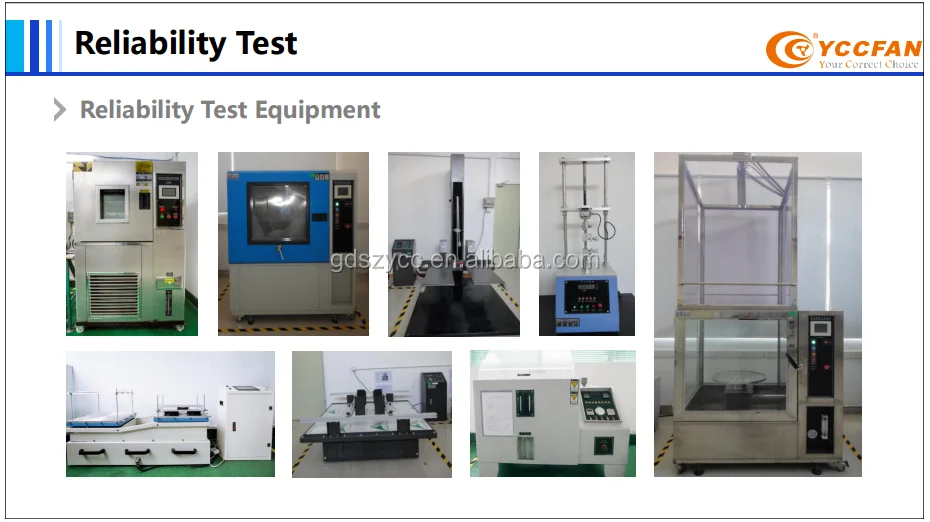

Testing
100 % testing ,cooling fan before leave our factory.
Visting & Exhibition
We welcome the customers and visitors from home and abroad. By face-to-face talking, we can better know each other and solve each others' questions more effectively. Some customer from US, Germany, Korea.. fly to our factory to sign the contacts.
FAQ
1. What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4.How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quality of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
