Melting (such as gold, silver, copper, tin, aluminum, iron, and other precious metals)
Product parameters
Working voltage
340V-430V
Type of cooling
Water cooling
Output power
15KW
Cooling water volume
0.06-0.12Mpa 7.5L/min
Oscillation frequency
30-80KHZ
Dutycycle
100%
Current output
200-600A
Volume
L500*W220*H470(mm)
Time setting
1-99s
Weight
25KG
Product description
Principle of induction heating technology
1. The metal object can be instantly heated to any desired temperature, including its melting point;
2. Not only can the metal object be heated as a whole, but also can be selectively heated locally for each part;
3. The same is electric energy heating, but it can save 40% energy than electric furnace, electric oven, etc.
This is the powerful advantage of induction heating.

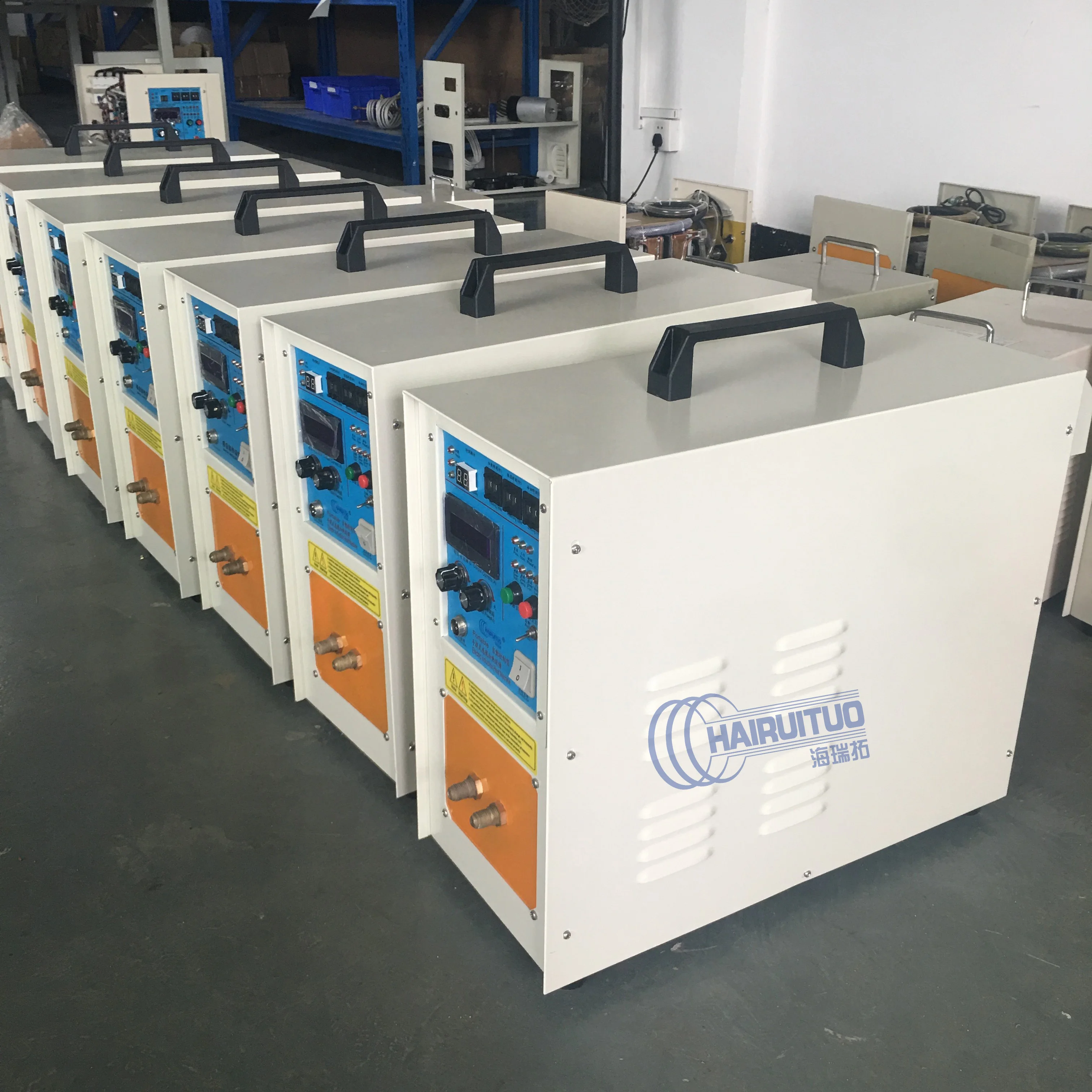

Product show
Product details
Adopts the latest MOSFET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and high output power. (Use Germany SIMENS INFINEON ON IGBT)
The integrated filter capacitor is used after the technology upgrade, the performance is more stable, the power output is larger, and the fault caused by the manual plug-in is effectively reduced.
The motherboard is independently developed by our engineering department to ensure that all components are genuine and will be tested after assembly.
Heating principle

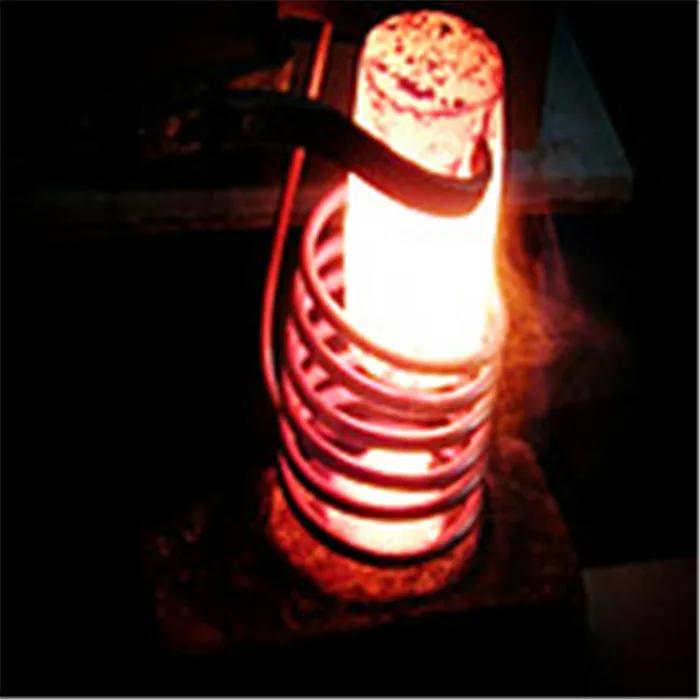

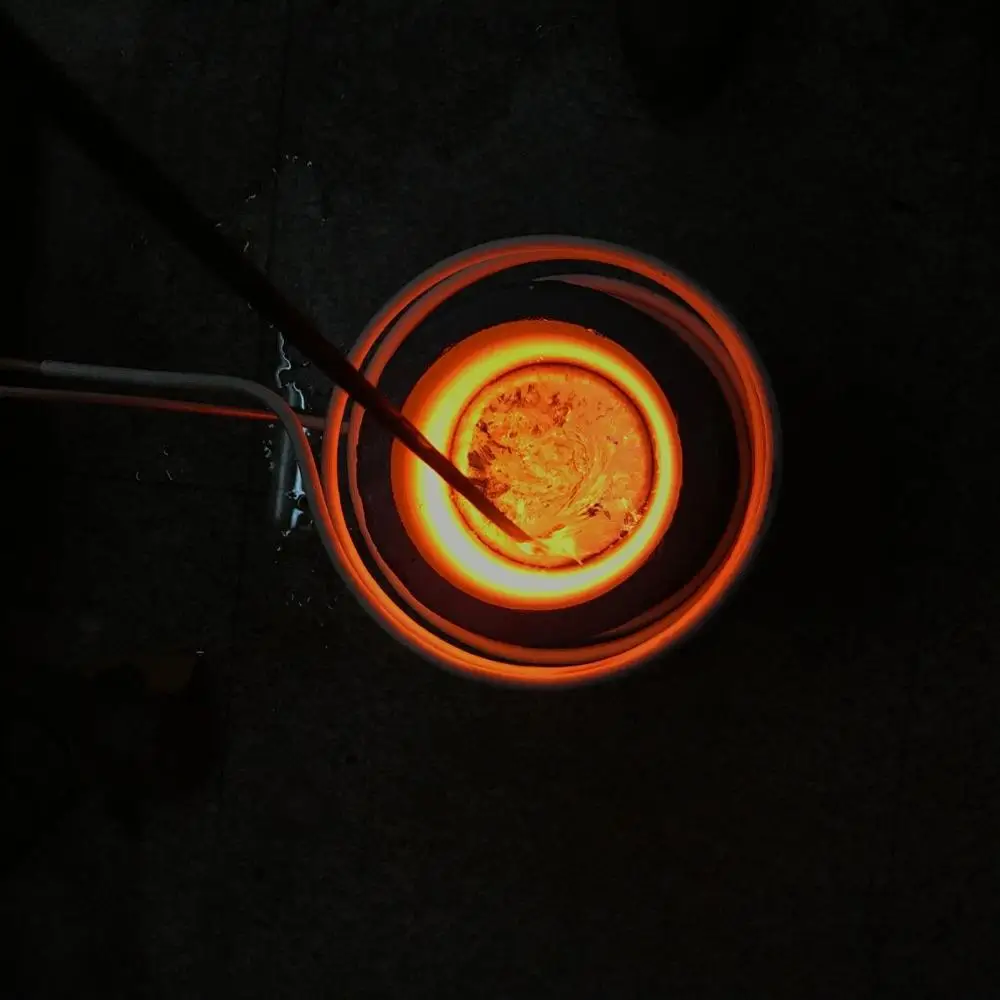

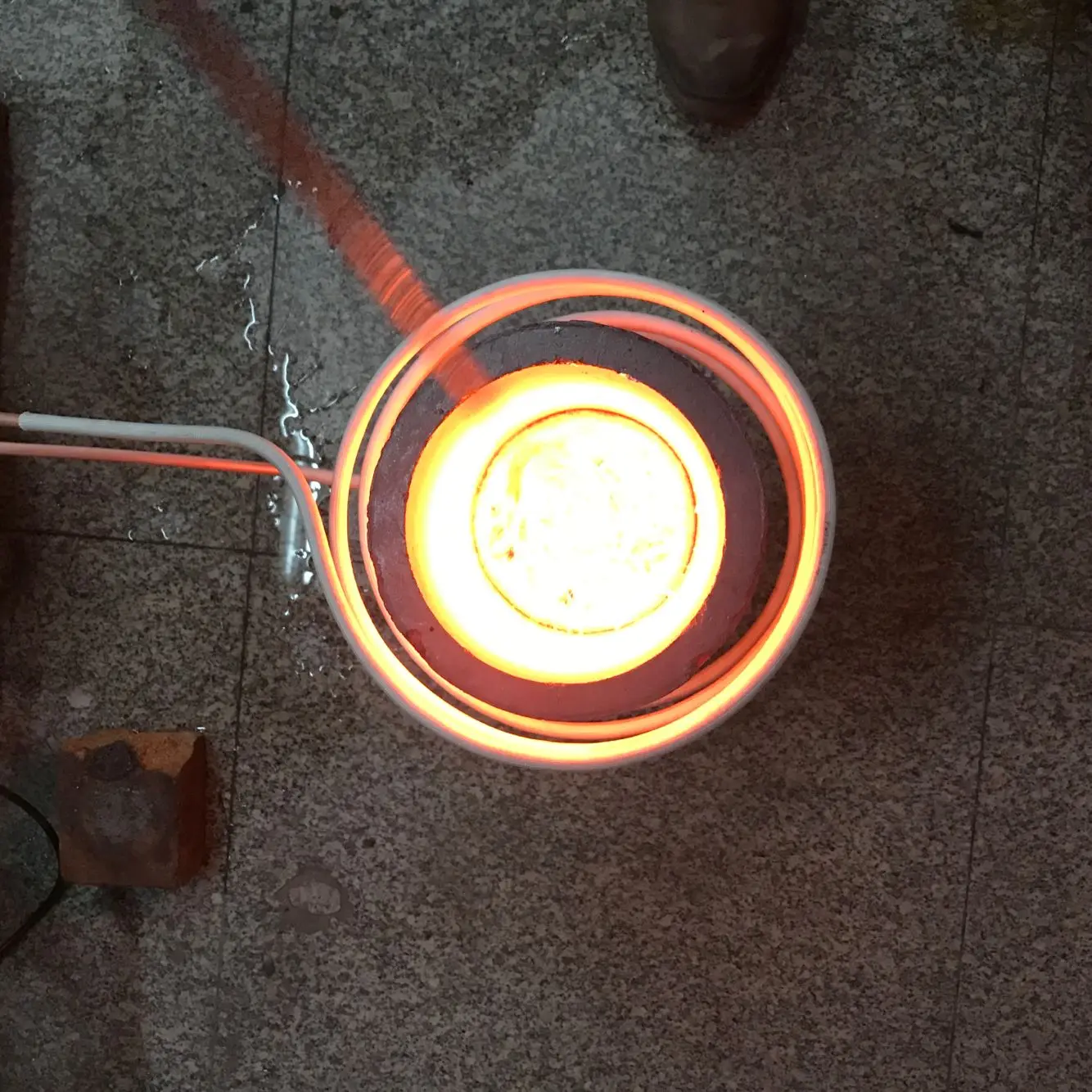

Application display
Parkaging and transportation
FAQ
01
Are you are a manufacturer or trad company? We are manufacturer. Our factory produce and export all kinds of induction heating machine. We also can design and develop the induction heating machine according to your requirements.
02 How about your standard delivery date? If have storage will be 1day.if have to produce 7-10 days. Our company provide just-in-time delivery.
03 If the machine get damaged, what can i do? If the fault caused by non-artificial reason, In the guarantee time (1 year) , we will send the spare parts to you for free. And provide the technical consultant for anytime.
04 How about your factory service? Pre-sale service, we will recommend the most suitable machine for you and we can offer sample testing support ;In-sale service, we will produce the machine according to relevant technical standards, strictly check up the machine before delivery and delivery on time.
05 Why choose you? More than 10 years experience in induction heating field. Our heating equipment export to America , Russia, Southeast Asia, Africa and Europe etc. Fast, timely delivery & reliable after sales service Customers & Quality first.
