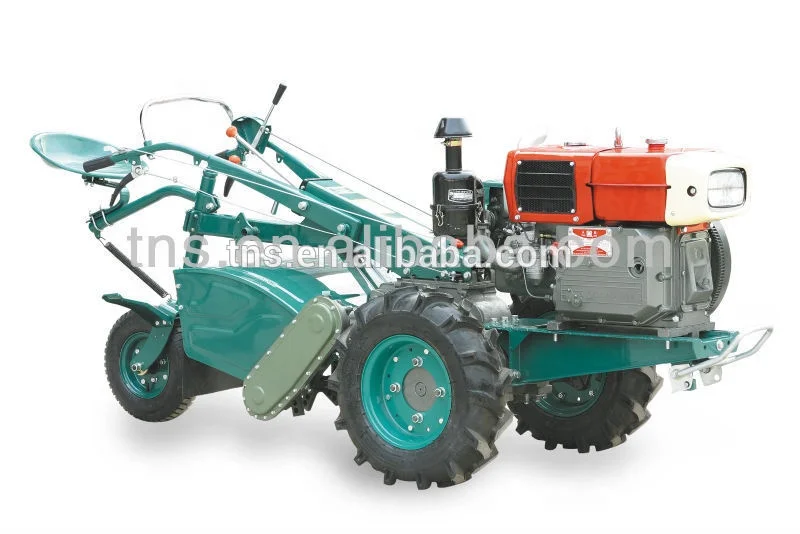

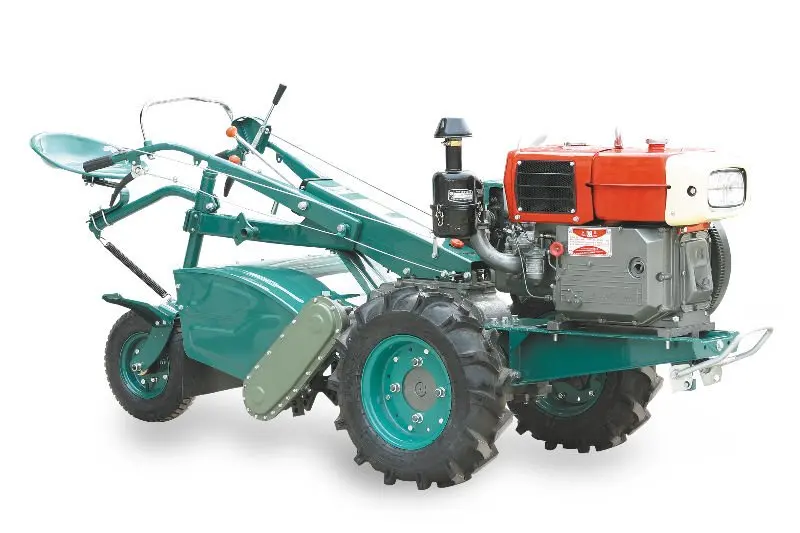

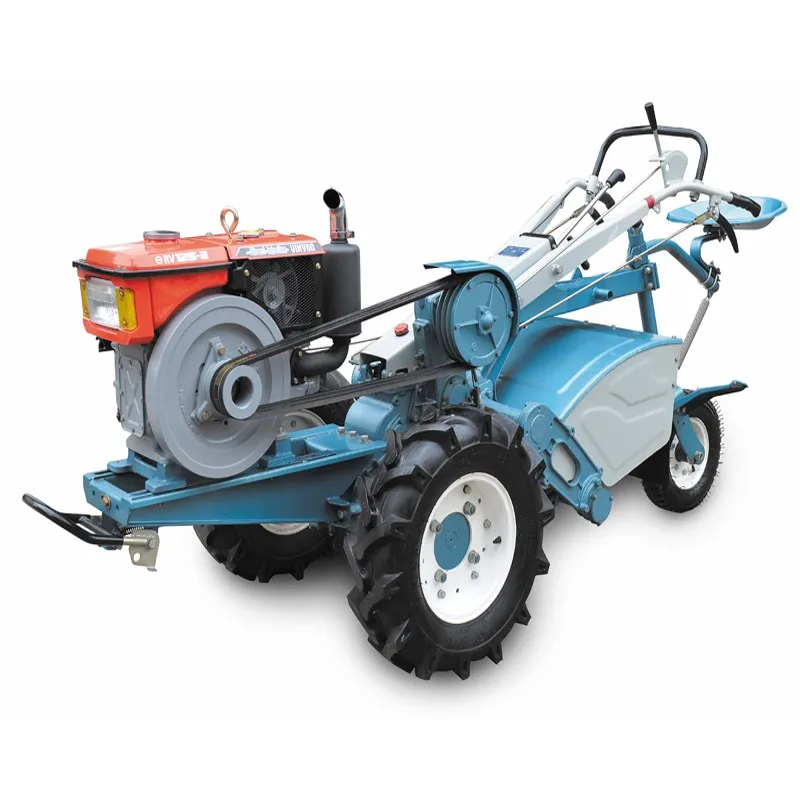

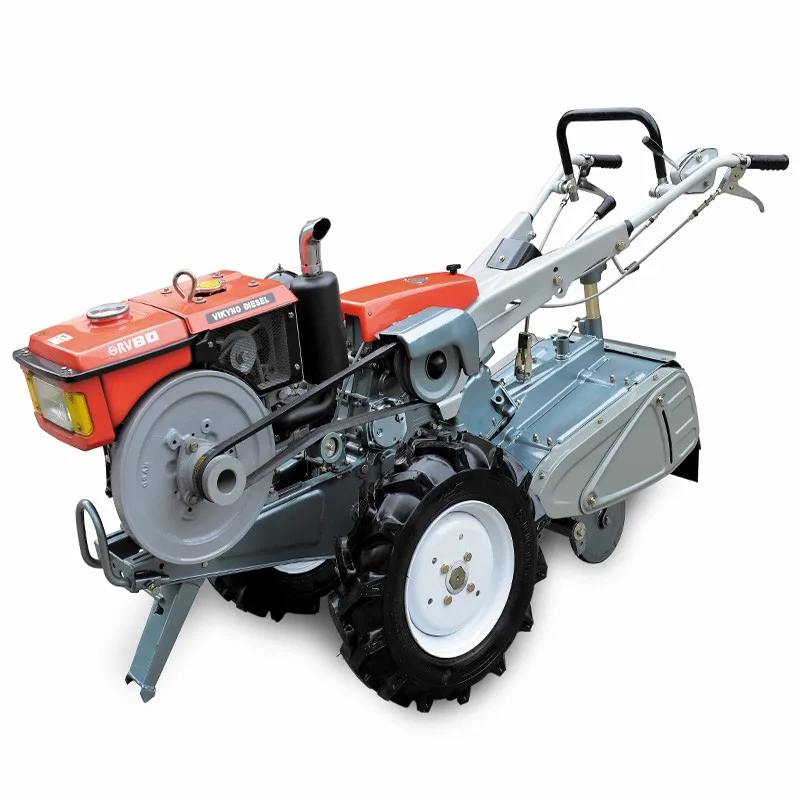

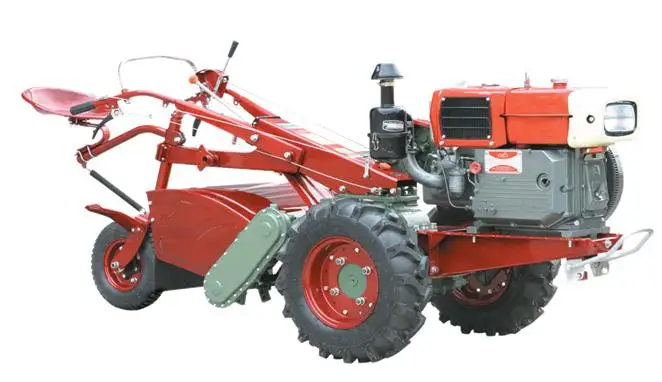

sifang multifunction diesel walking tractor nepal bangladesh india
- Category: >>>
- Supplier: Zhejiang Ting Neng Sheng Machine Co. Ltd.
Share on (62255023313):
Product Overview
Description
| MODEL | GN-12 | |||
| Overall dimensions:(L×W×H) | 2950×980×1240mm | |||
| Wheel tread | 570,630,690,750,810mm | |||
| Tyres | 6.00-12 | |||
| Ground clearance | 210mm | |||
| Working weight (with rotary tiller) | 480kg | |||
| Speed | Forward | 1.41, 2.51, 4.21, 5.22, 9.27, 15.56 | ||
| (km/h) | Reverse | 1.12, 4.12 | ||
| Turning speed | Low:200 | |||

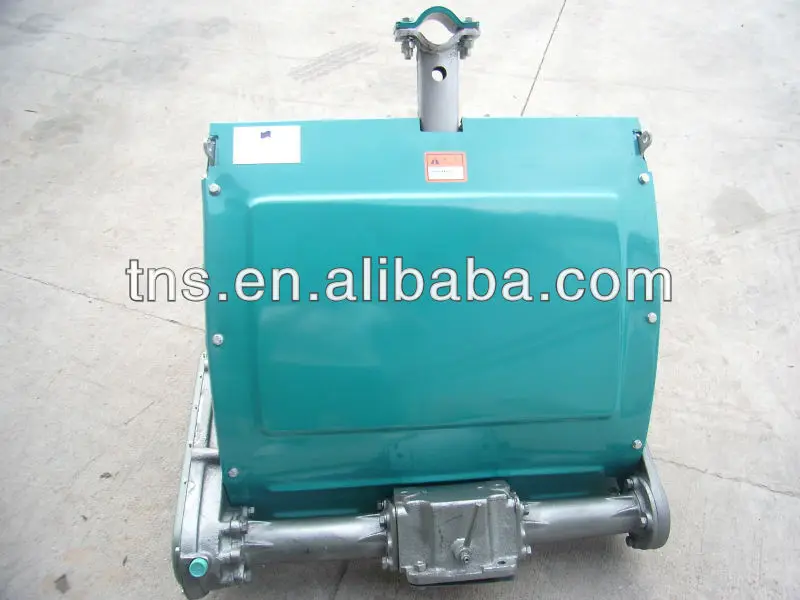

| Rotary tiller | Width | 600mm | ||

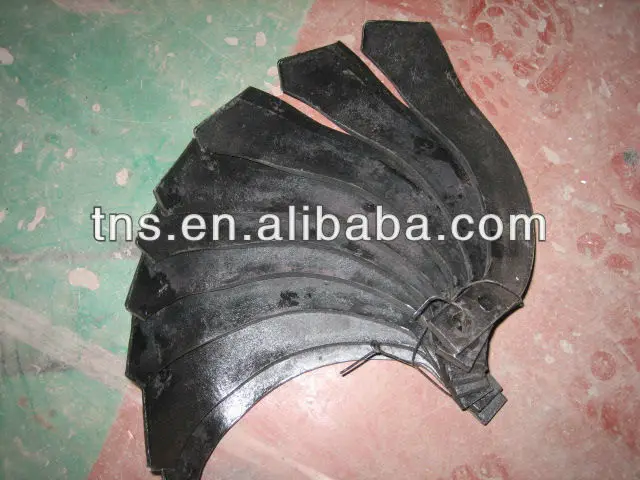

| Number of blades | 18pcs | |||
| EINGEN MODEL | CP120 |
| Type | Water-cooled, 4-stroke, horizontal, diesel engine |
| Bore x stroke (mm) | 94 x 90 |
| Displacement(cc) | 624 |
| Compression ratio | 21:1 |
| Combustion chamber type | Swirl-chamber |
| Rated output hp(kW) | 11(8.09) |
| Max output hp(kW) | 12(8.8) |
| Rated speed ( rpm ) | 2400 |
| Max torque (N.m) | 38.2(3.9) |
| Speed at max.torque ( rpm ) | 1850 |
| Fuel consumption at rated output g/kWh( g/hph ) | 286 ( 210 ) |
| Fuel tank capacity (L) | 10 |
| Lubrication method | Pressure combined with splashing |
| Cooling system | Radiator type |
| Fuel tank capacity (L) | 10 |
| Crankcase oil capacity (L) | 2.3 |
| Cooling water capacity (L) | 2.1 |
| Starting method | Hand starting or electric starting |
| Head lamp | 12V 45W/45W |
