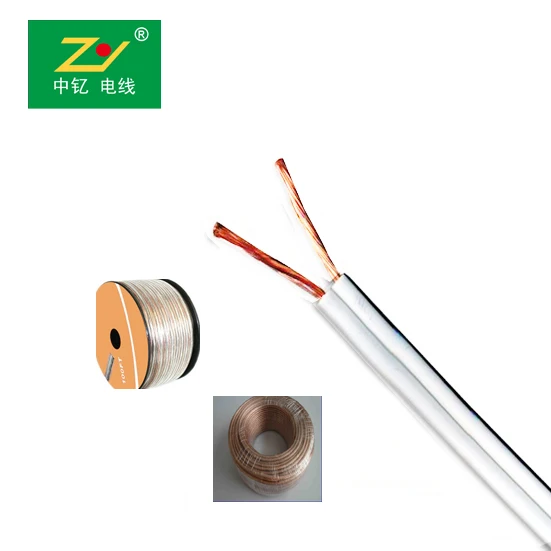

White 12awg SPT lighting cable
- Category: >>>
- Supplier: ZHEJIANG ZHONGYI CABLE AND WIRE CO. LTD
Share on (62255037775):
Product Overview
Description
White 12awg SPT lighting cable
Definition:
12awg , 14awg, 16awg, 18awg, 22awg SPT cables are suitable for lamps, clocks, household fans and small appliances where not subjected to hard usage. The two conductor cords are for use as internal wiring of air conditioning and refrigeration equipment. not exceeding 300Volts. Maximum operating temperature is 60°C.
Voltage Rating:
Rated at 300 Volts with an operating temperature of 60°C.
Construction:
• Conductors – made up of soft annealed copper, flexible.Two Soft drawn bunched copper conductor .Available sizes are listed below.
• Two conductor are laid in parrallel and extruded with polyvinyl chloride(PVC) Lead free to form a two-wire flat conductor. This thermoplastic is flam retardant and resistant to moisture.
Cable Marking:
• Size
• No. of cores
• Type
• Voltage
• Manufacturers name
• Date
Standard size
| Reference Standard: UL 62 approved | Rated Voltage: 300V | Rated Temperature: 60°C –105°C | |||
| Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) | Insulation : PVC | ||||
| AWG/No.of cores | NO./Normal Diameter of strand(mm) | Normal Thickness of Insulation(mm) | Over Diameter of Cable(mm) | ||
| SPT-1 | 20 x 2c | 21/0.18 | 0.78 | 2.55 x 5.1 | |
| 18 x 2c | 41/0.16 | 0.76 | 2.7 x 5.4 | ||
| 18 x 3c | 41/0.16 | 0.76 | 2.7 x 8.0 | ||
| SPT-2 | 18 x 2c | 41/0.16 | 1.14 | 3.4 x 6.8 | |
| 16 x 2c | 65/0.16 | 1.14 | 3.7 x 7.4 | ||
| 18 x 3c | 41/0.16 | 1.14 | 3.5 x 8.6 | ||
| 16 x 3c | 65/0.16 | 1.14 | 3.8 x 9.6 | ||
| SPT-3 | 18 x 2c | 41/0.16 | 1.52 | 4.4 x 8.7 | |
| 16 x 2c | 65/0.16 | 1.52 | 4.8 x 9.5 | ||
| 14 x 2c | 41/0.254 | 2.03 | 6.0 x 12.0 | ||
| 12 x 2c | 65/0.254 | 2.41 | 7.4 x14.0 | ||
| 10 x 2c | 105/0.254 | 2.79 | 9.1x18.2 | ||
| 18 x 3c | 41/0.16 | 1.52 | 4.4 x 10.7 | ||
| 16 x 3c | 65/0.16 | 1.52 | 4.8 x 11.8 | ||
| 14 x 3c | 41/0.254 | 2.03 | 6.0 x 14.5 | ||
| 12 x 3c | 65/0.254 | 2.41 | 7.4x16.5 | ||
| 10 x 3c | 105/0.254 | 2.79 | 9.1 x 18.8 | ||
Philippine SPT FLAT PARALLEL CORD, 300Volts, 60.C C
| Philippine SPT FLAT PARALLEL CORD, 300Volts, 60.C | ||||||
| Size of sectional area | Reated Voltage | Conductor Material | No.& Diameter of strands | Wall thickness (mm) | ||
| mm2 | AWG | V | Type | mm | mm | |
| 0.3 | 22 | 300 | Pure copper | 2X12/0.17 | 2.4X4.8 | |
| 0.75 | 18 | 300 | Pure copper | 2X30/0.17 | 2.8X5.6 | |
| 1.25 | 16 | 300 | Pure copper | 2X50/0.17 | 4.0X7.7 | |
| 2.0mm2 | 14 | 300 | Pure copper | 2x37/0.26 | 11.6x5.8 | |
| 3.5mm2 | 12 | 300 | Pure copper | 2x45/0.32 | 12.8x7.4 | |
1. Q: Are you a factory or trading company?
A: We are factory and trading company, we have professional team of salesmen, workers,engineers,
designers and inspectors.
2. Q: How many workers in factory?
A: we have 1 factory, 30 workers. We mainly use machine to produce cables.
3. Q: What is your main products?
A: household electric cables, speaker and spt cable, THHN&THWN cables,Australian & NZ TPS cable
And Africa and UK 6242y Twin and earth cables.
4. Q: How to get a sample?
A: Some models would be free if we have stocks Charged, depend on which style, color and logo printing
you required.
5. Q:What’s your advantage?
A: competitive prices,good quality,flexible customized design service, Low MOQ,long payment terms
(1) competitive price
(2) high quality which is suitable for both scuba diving and snorkeling
(3) one stop purchasing
(4) fast response and professional suggestion on all inquiries
(5) 10 years quality guarantee for all our products.
6. Q:What is your Minimum quantity?
A: For normal cables, 5000meter is our MOQ
7. Q: How long to deliver the products?
A: The exact delivery date need to according to your style and quantity. Usually within 30 work days after
receive the 30% down payment If you choose the items which we have stock ,we can deliver in 3 days.Name card
