Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан
Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан

Инструмент Swagelok типа SS, клапаны BKH 6000 PSI, шаровое сиденье из нержавеющей стали 316/316L, инструмент, гидравлический шаровой клапан

Share on (62255136167):


Price:

Quantity:


Product Overview

Description

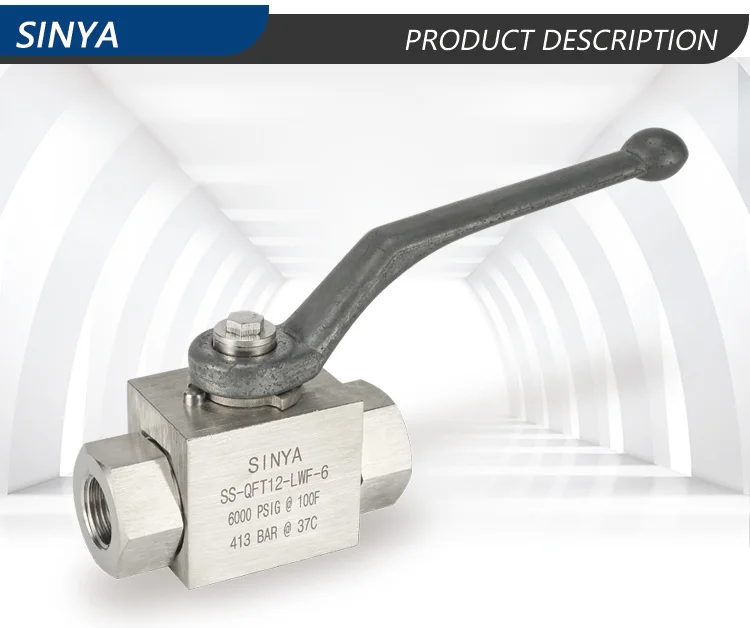

Product Description




1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades: SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.

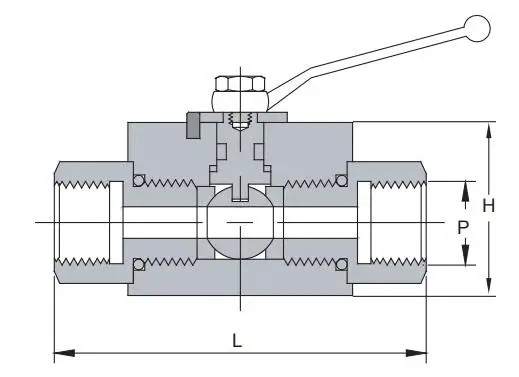

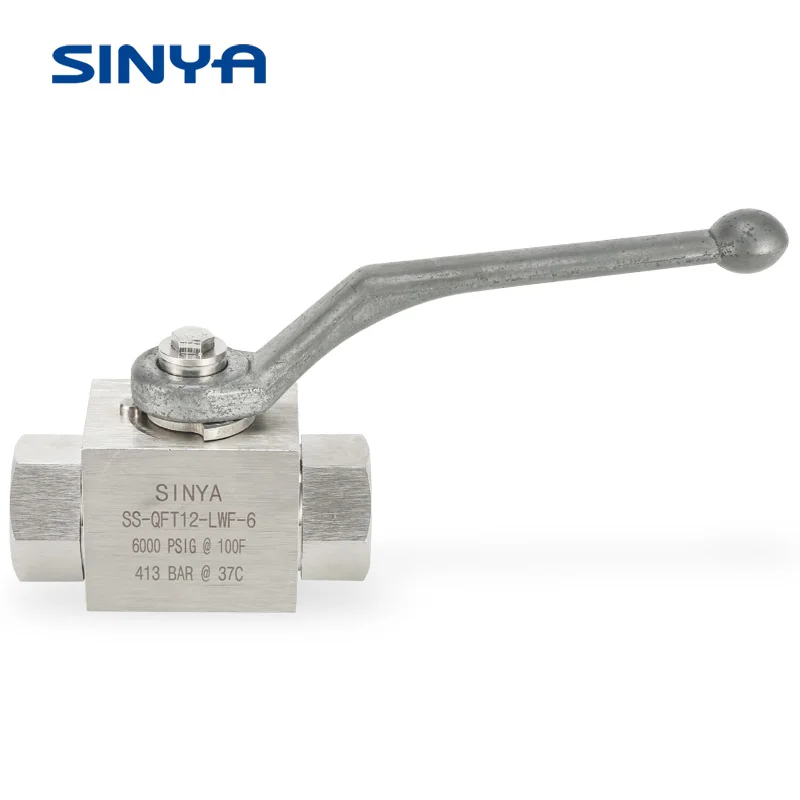

-QFT12-LWF Female square-type ball valve

Order information
DN
P
L
B
H
PN
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
（bar）
-QFT12-LWF-G2
4
G1/8
2.72
69
1.02
26
1.69
43
500
-QFT12-LWF-G4
6
G1/4
2.72
69
1.02
26
1.69
43
500
-QFT12-LWF-G6
10
G3/8
2.87
73
1.26
32
1.93
49
500
-QFT12-LWF-G8
13
G1/2
3.35
85
1.5
38
2.01
51
500
-QFT12-LWF-G12
20
G3/4
3.78
96
1.93
49
2.87
73
400
-QFT12-LWF-G16
25
G1
4.45
113
2.36
60
2.99
76
350
-QFT12-LWF-G20
32
G1 1/4
4.72
120
2.99
76
4.02
102
300
-QFT12-LWF-G24
40
G1 1/2
5.31
135
3.35
85
4.33
110
210
-QFT12-LWF-2
4
NPT1/8
2.72
69
1.02
26
1.69
43
500
-QFT12-LWF-4
6
NPT1/4
2.72
69
1.02
26
1.69
43
500
-QFT12-LWF-6
10
NPT3/8
2.87
73
1.26
32
2.01
51
400
-QFT12-LWF-8
13
NPT1/2
3.62
92
1.5
38
2.44
62
350
-QFT12-LWF-12
20
NPT3/4
3.82
97
1.93
49
2.87
73
350
-QFT12-LWF-16
25
NPT1
4.45
113
2.36
60
2.99
76
300
-QFT12-LWF-20
32
NPT1 1/4
4.53
115
2.99
76
4.09
104
300
-QFT12-LWF-24
40
NPT1 1/2
5.31
135
3.35
85
4.33
110
210

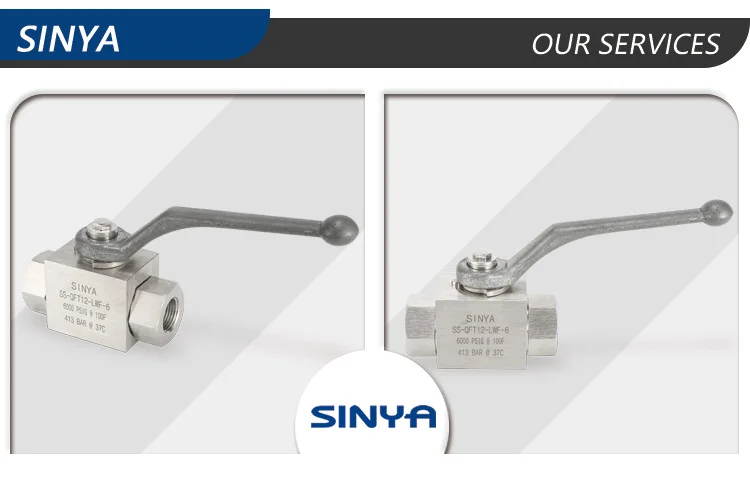

Our Services




Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.

Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
1.Custom design, CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery

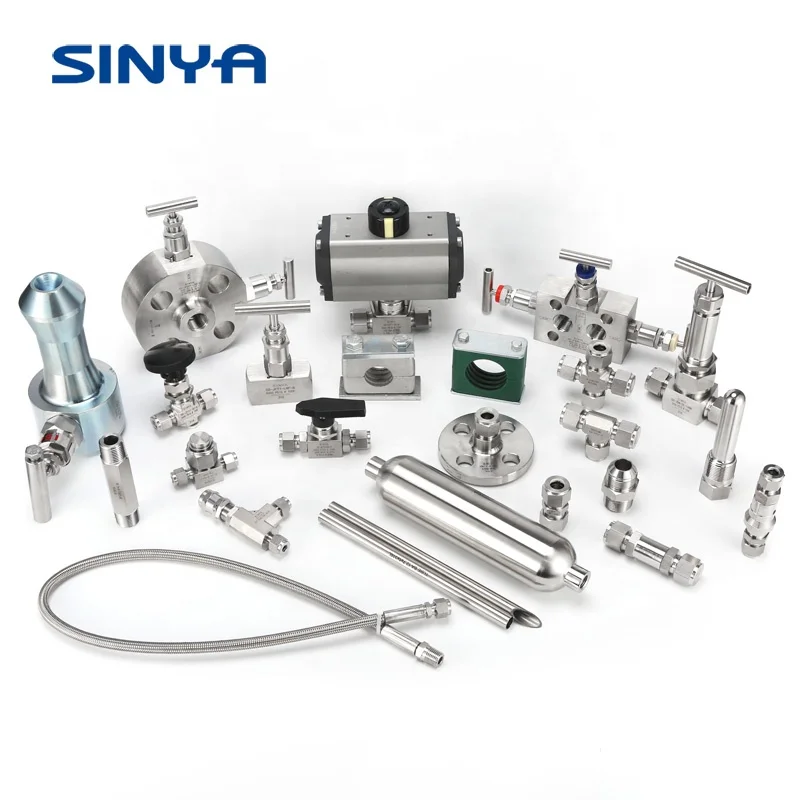

Products Display




Contact us to get more information :
Tube Fittings
Check Valves
Manifolds Valves
In-line Filters
Thermowells
Pipe Fittings
Relief Valves
Distribution Manifolds
Instrumentation Tubing
Syphons
Needle Valves
Air Headers
Bleed & Purge valves
Sample Cylinders
Tube Clamps

Ball valves
Gauge Valves
T-type Filters
Pots and Vessels



Packaging & Delivery




Mode of packing:
Export standard package or as your detail request.
Delivery time:
2 weeks after receipt of payment
Mode of shipment:
By Express like DHL,Fedex,TNT Ups.


Our Company




1.Established in 1995.
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
6.Always available to discuss your requirements and ensure full customer satisfaction.
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
8.We have obtained ISO9001 certificate, CE Certificate.
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
