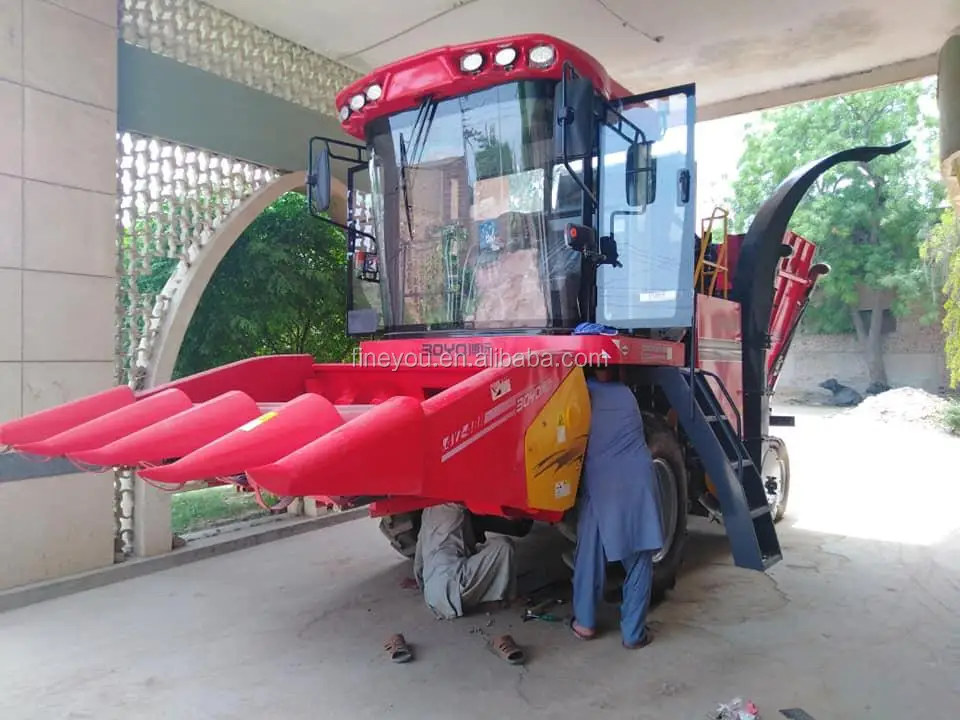

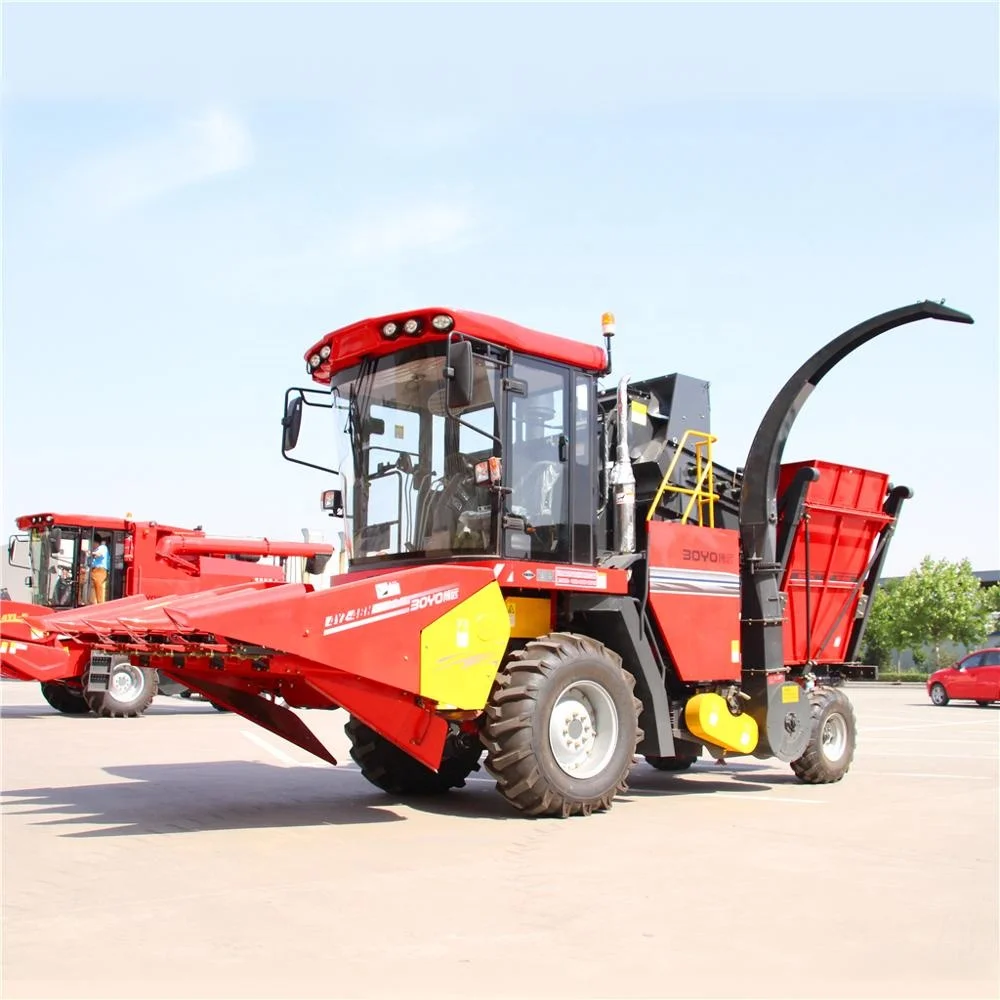

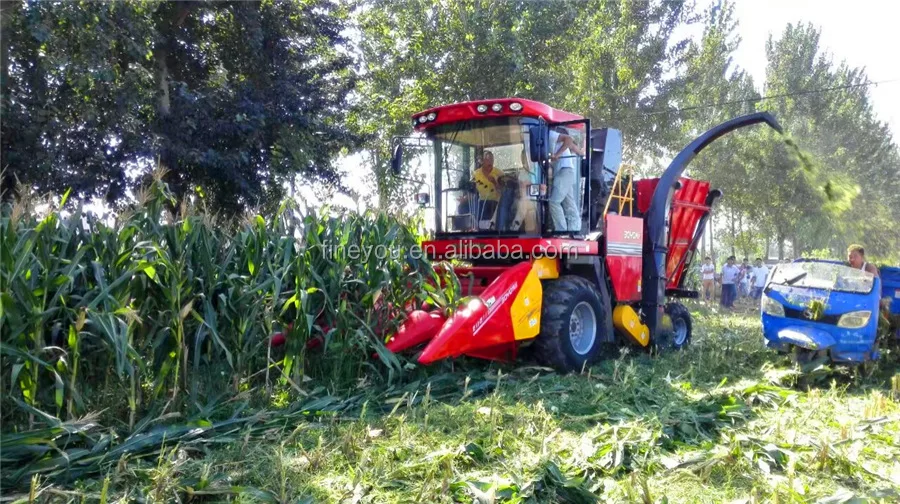

The machine is a corn picker who can pick off green or yellow corn and then stripped of the corn husks to harvest the ears of corn. The corn stalks, on the other hand, are handled by the straw handling system below the fuselage and are optionally chopped into the fields, So you can make green manures to provide nutrients for the next season. Alternatively, you can choose to break the corn stalks into silage and feed the sheep for feeding. The excellent products at this stage represent 4YZ-4 F/L, which has many functions such as corn picking, corn peeling and corn stalk chopping. It is characterized by fast harvesting speed, good peeling effect, less loss of ear and grain, and firm quality. At present, our products have been sold to Turkey, Mexico, India, Pakistan, Australia, South Africa, Kenya, Albania, Indonesia and other countries, and the export volume has been the first long-term.
SPECIFICATIONS FOR CORN HARVESTER
Project
Unit
Data
Walking system
Self-propelled
Engine model
YC4A160-T301/YC4A175-T301
Engine rated power
kW
129
Engine rated speed
r/min
2300
Dimensions
mm
Length × width × height 7300 × 2050 × 4000
Structural quality
kg
6940
Number of work lines
Row
4
Adapt to the line spacing range
mm
530-800(Can be modified)
Working width
mm
2440-2800
Maximum unloading height
mm
2200
Theoretical work hour productivity
ha/h
0.4 to 1
Fan diameter
mm
350
Gearbox type
mechanical
Guide wheel track
mm
1750
Drive wheel track
mm
1640
Fruit box theoretical volume
m3
2.3
Main Features
1, High efficiency: 175 horsepower three national standard turbocharged engine, low fuel consumption, strong power, operating speed up to 6-8KW / h, the maximum operation of 1 ha / h.

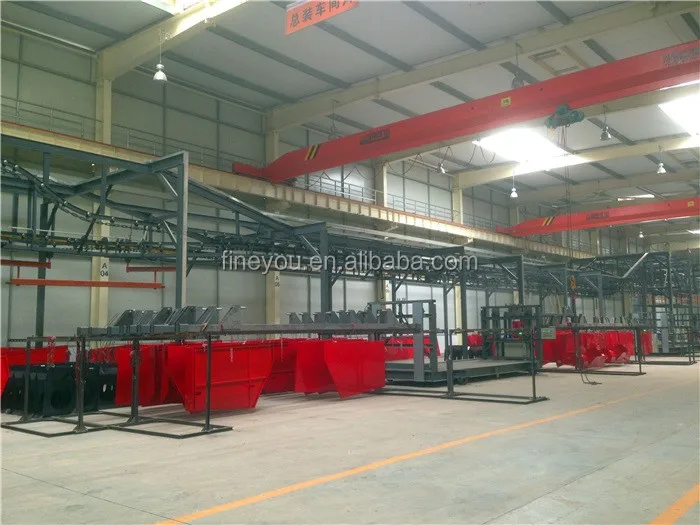

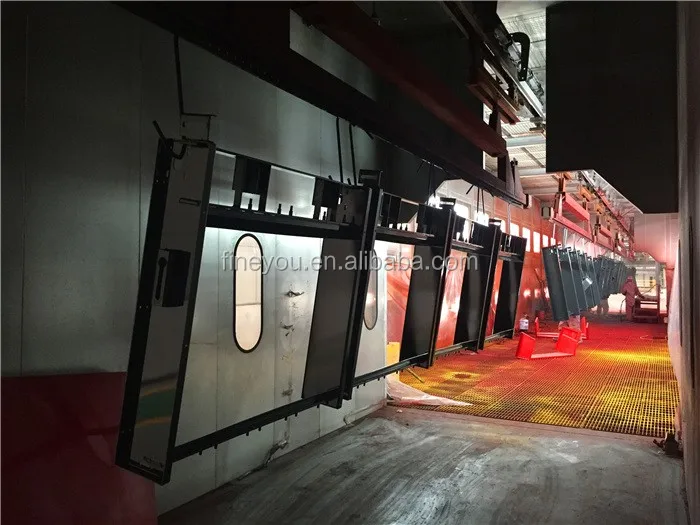

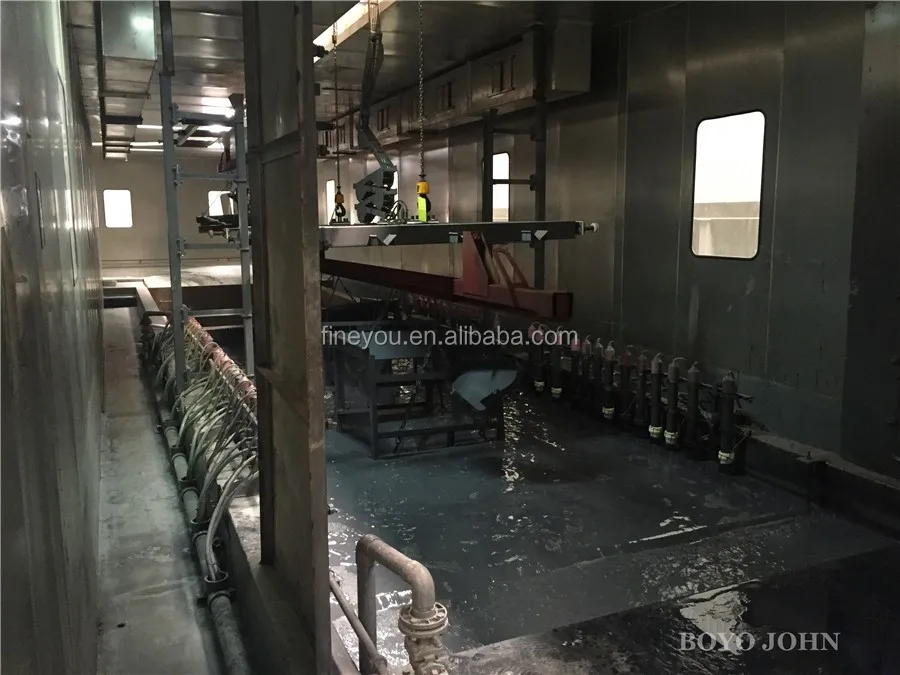

2, More durable: The whole machine and the shell electrophoretic coating process, the body with high performance Just now, the whole car belt using SPC belt.
3, More reliable: longer dividers, to accommodate the harvest lodging corn; optional front chopper, chopped more thoroughly; peeling machine and water tank system through a new optimized design. Body after years of market testing and improvement, very durable.

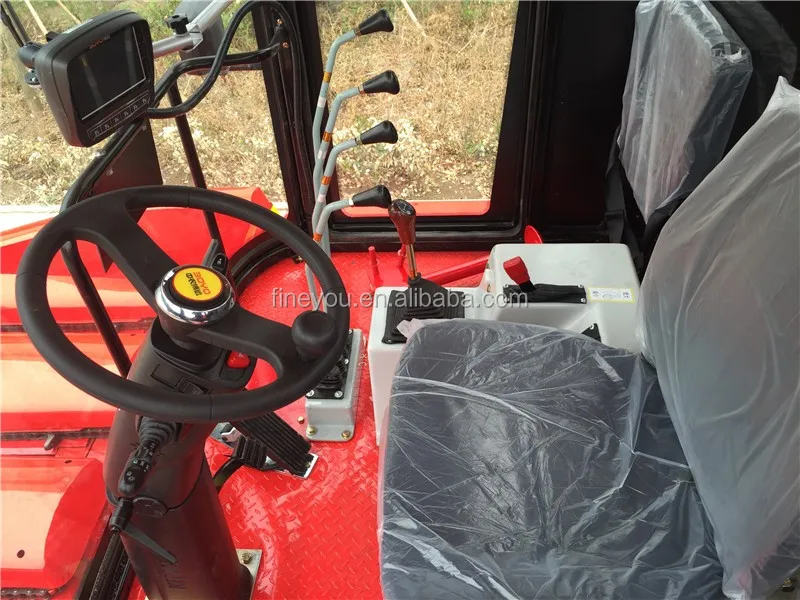

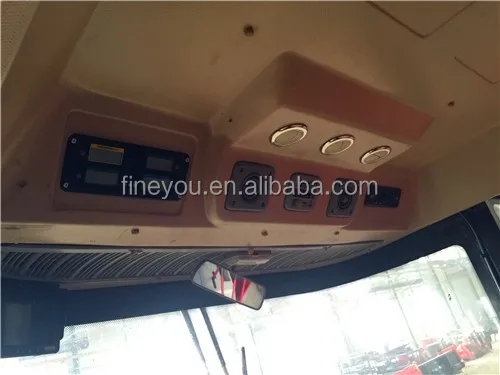

4, More intelligent: high-end information integration system, the system operating information at a glance on the monitor; fault self-detection and repair guide integration and display; fan will be based on different job steps for automatic inversion of positive and negative.
5, Other advantages: The machine's information system can choose Chinese or English display. Body can choose full English logo and security warning stickers. With the EU's CE certification.

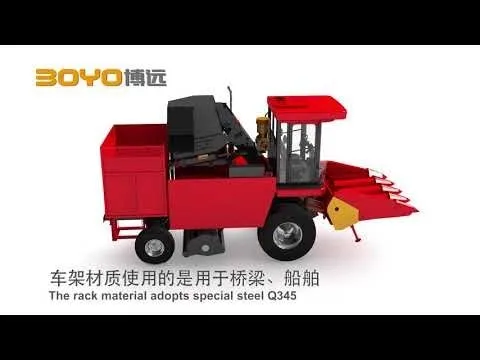

Video
For more detailed product descriptions, see YOUTUBE:
https://youtu.be/grFuW7ABDiE
Sales Promotion
Promotions:

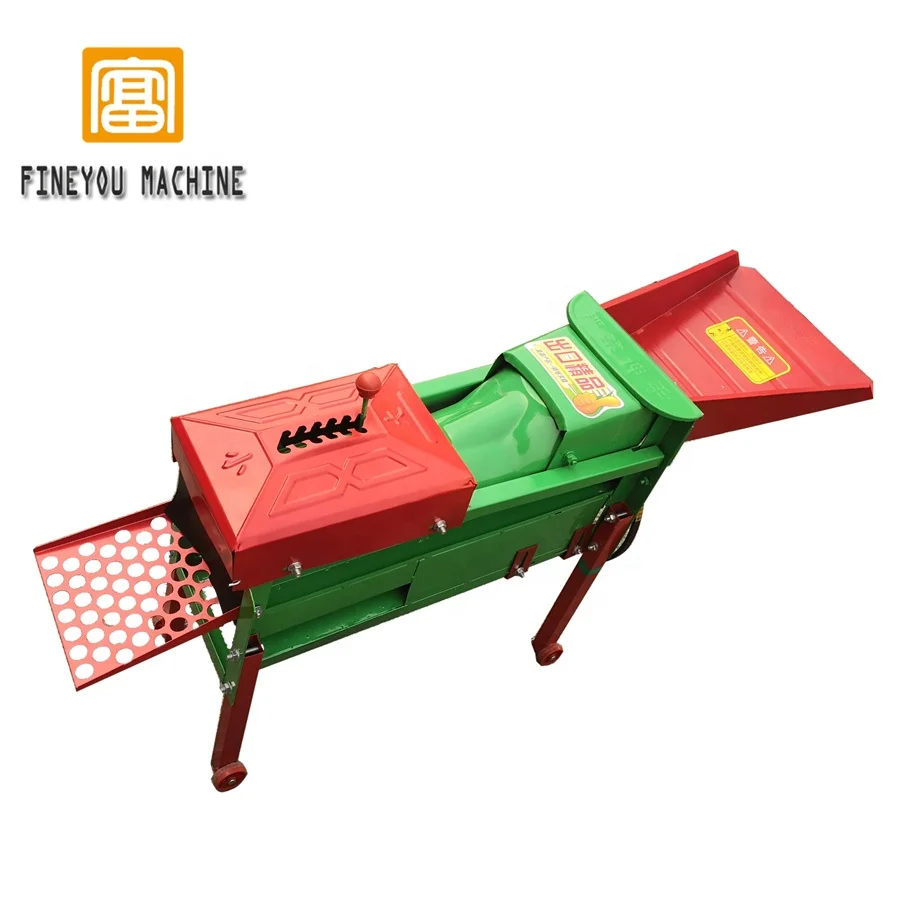

1. Now when you purchase a harvester, you will get a corn thresher for free.
2. Certificate of origin is provided free of charge, and some countries can achieve import tax exemption.
3. Free on-board accessories are provided to ensure a long-term stable use.
4. Give enough video and text training and guidance materials.
Certifications
FAQ
1. What about your Warranty period and how do I fix it, if he was damaged?
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it's easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.
2. How to buy your products and Does this payment safety for me?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality. Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.
3. What can you offer for customers?
Free OEM, Marketing support and Regional protection. We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
Our Service
service
1, Training how to install the machine, training how to use the machine, free technical support for lifetime.
2, Warranty period of one year since machine arrives destination port. Our machine adopts modular design, if there have any damaged parts we will send you the free part, you just need pay the freight.
3, Big order, Module replacement even product design.
4, Engineers available to service overseas for Major clients.
Packing & Delivery
Packaging
Size
7300*2350*3430
Weight
6.35T
Packaging Details
We will choose the optimal delivery solution according to the model of your choice, and some special sizes will be shipped by special shipping method. We will complete the parts before packing, corrosion, reinforcement and many other works. Our existing means of shipping containers, frame boxes, ro-ro, bulk carriers and so on.
