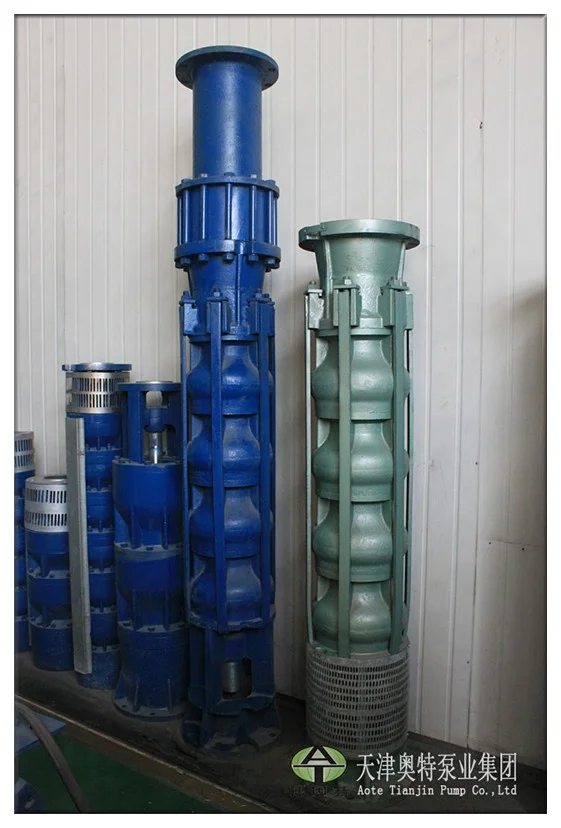

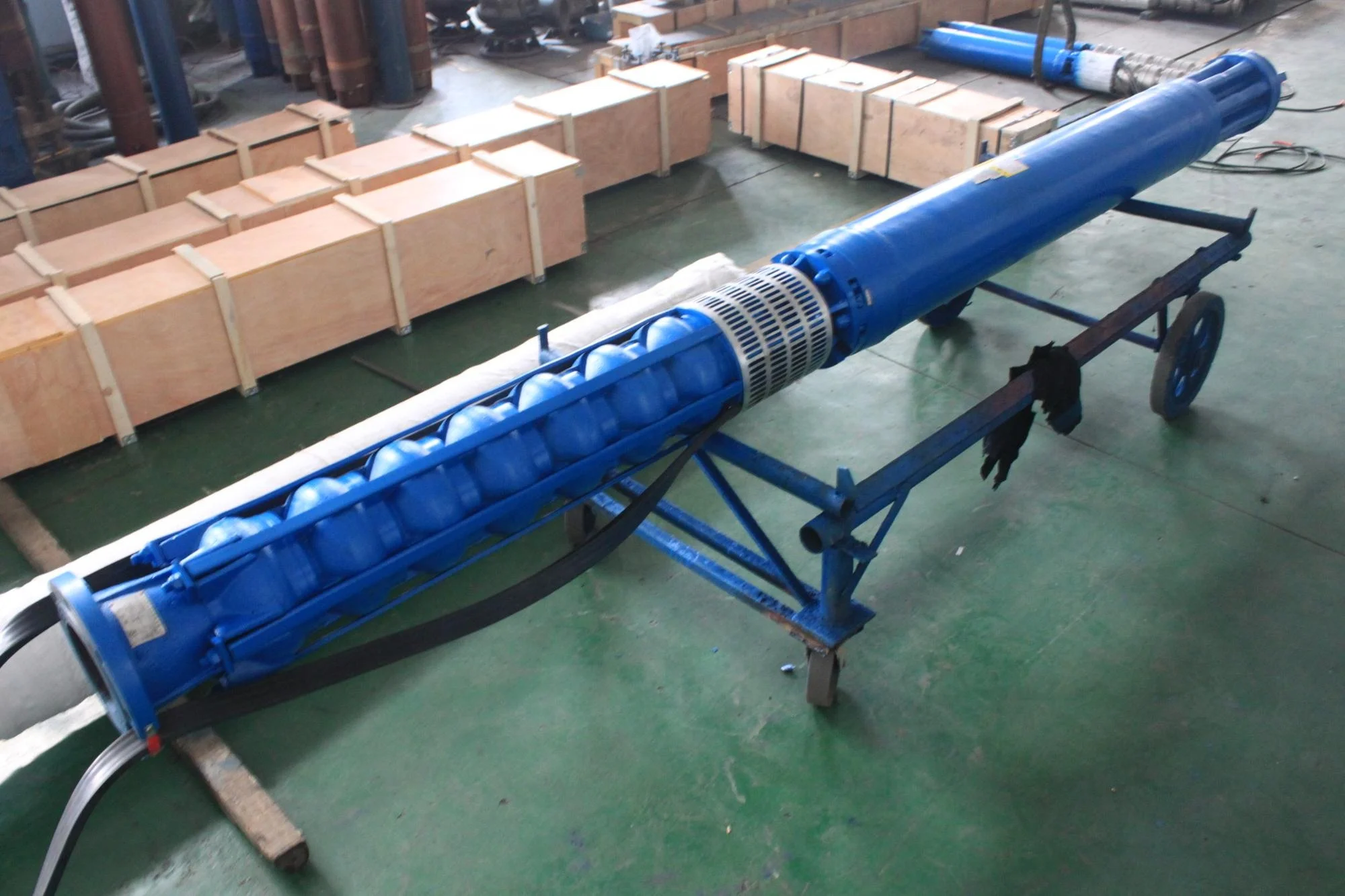

6618 German technology multistage stainless steel submersible water pump

Product Overview

Description

Introduction:

We called this kind pf pumps Ritz submersible pump because of the ritz pump producing technology we have introduced from Germany.



Type Description:

6618×8

66series code number

18: pump type

8: eight-stage impellers series connection



Application:

66 series pump is single suction multistage submersible pump that can applied to farm irrigation, garden sprinkling,fountain landscape, rainwater recycling system, mining drainage, emergrency rescues, urban water supply, enterprise and government instution water lifting. It can be used in horizontal position(while its service life will be inferior to that of vertical using). This product has some advantages of low noise, high efficiency and energy saving.

Its suitable for enterprises and public institutions such as bath center, district heat supply, power generation, underground hotwater lifting. Different specifications and types provided for different wells.



1) working part:

For pumps with strong axial force, we equipped with balance hole in order to relieve the pressure, then the motor could bear the rest.

We are strict about the concentricity and axial movement. With equisitive accessories and accurate axial locating dimension, the machine has a long service life and can be operated smoothly and reliably.



2) Pipe:

The pipe contains check valve, discharge pipe and pump frame. Outlet of check valve  is connected with the discharge pipe to prevent the water regorging when the power is cut off. Water flows out from check valve through discharge pipe, pump frame, ground gate valve and pipes to the destination. The pump frame is fastened on the concrete plinth, supporting the whole weight of the pump.



Medium Range:

1  clean water, cold water, rainwater, gushing water of mining, drinking water, etc.

2        Water temperature range: +5--+105

3        Solid content (mass ratio): ≤0.01%

4        PH value: 6.5-8.5

5        H₂S content: ≤1.5mg/L

6        Cl^- content: ≤400mg/L

7        The full set must be submerged into water completely in vertical position and the model must be matched with the well diameter.



Motor Parameter:

The submersible motor is lubricated by clean water. It must be filled with clean water, or else its service life will be lessen. If you forget filling, the motor will be broken.

Motor protection level: IPX8

Insulation Class: E



Power Source:

Low-voltage: 380v/ 50HZ, or 660v/ 50Hz

High- voltage: 3000v/ 50HZ, or 6000v/ 50HZ

If you need special voltage or frequency, please inform us in advance.



Materials:

1Impeller: Cast iron, gray iron200, or tin bronze,such as ZCuSn3Zn8Pb6Ni1

2Pump bowl: Cast iron, gray iron200, or stainless steel, such as 2Gr13 .304

3Pump shaft: stainless steel 2Gr13(1050thermal refining,enhancen torsional moment)

4Tension bolt: made by cutting 20# steel, the end part is welded by stainless steel 304.

5Check valve: body, seat ZG230-450; plate, ring, valve rod Gr17Ni2

6Interface shim: rubber asbestos plate

7Motor Seal: Rubber O-ring seal, mechanical seal

8Motor regulating sleeve: rubber
