4HP 3KW High Pressure Two Stage Vacuum Pump For Printing Machine (62255529958)

Share on:


Price:$355.00 - $361.00
Price in USD:Details

Quantity:


Product Overview

Description








Specialized in sales and production of ring blowers since 2001



Product Description







Description:


Die-cast aluminum alloy ADC12, Excellent heat-dissipating;


2-pole electric motor with IP55 and Insulations class F;


Dual usage - suction and blow;


Compact surface, light weight;


100% No-oily odor and maintenance-free;


Long life span and Low noise;


24 hours continuously working;


Environmental protection;


Anti-vibration; Cooler running bearing;


National Patent design --- Balanced design of dual bearings


Easy installation;





Specifications:






























































Model Number2LG520-7HH46
Frequency50Hz60Hz
Rated Output3kw3.45kw
VoltageΔ 200-240vY 345-415vΔ 220-275vY 380-480v
CurrentΔ 12.5AY 7.2AΔ 12.5AY 7.3A
Weight39kg
Noise72db74db
Max airflow230m³/h275m³/h
Max vacuum

-340mbar


-380mbar
Max compressor410mbar360mbar
Caliber2inch2inch

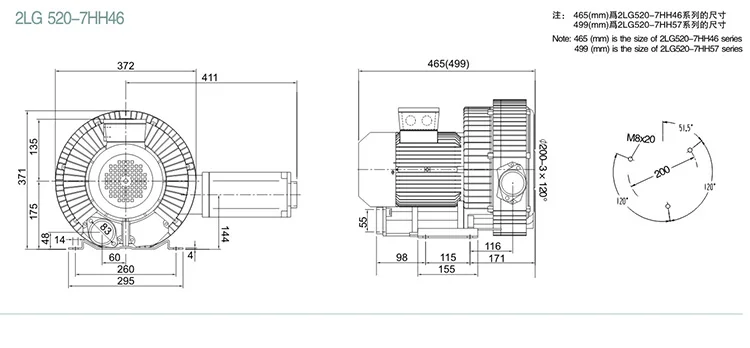

Dimension:







Detailed Images







1

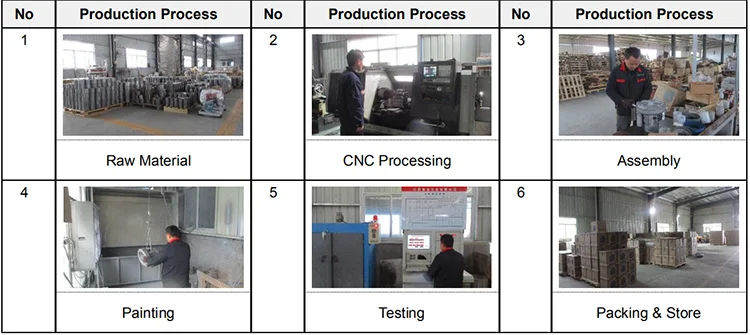

Production Flow







production flow.jpg






Industry Application







Liongoal side channel blowers (regenerative blowers / ring blowers) are dual usages: suck and blow, so they can be used as vacuum pumps or draught fans. There are multiple uses for side channel blowers like: Pneumatic conveying, pond aeration, printing pumps, soil remediation, vacuum hold-down, mixing sediment, card feeder, dryer, eliminator, air shooter, evaporator, feeding machine, pool, paper dryer, paper feeding, punch collector, sewing machine, sock loom, vacuum transfer, waste gases, paper scrap, bottling, collector, air bearings, auto loom, circulation, egg processing, hopper, medical suction, paper holder, powder transfer, transfer, tunnel, wastewater.





Related Products

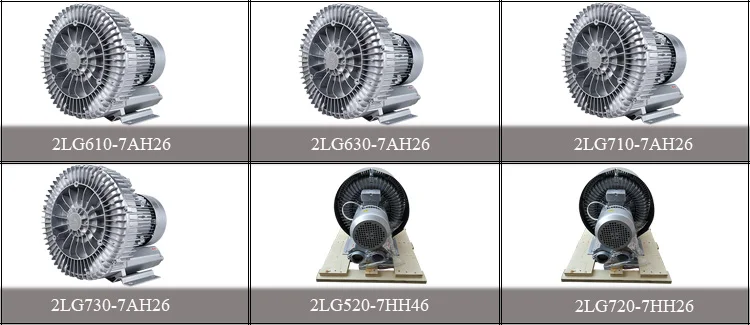

Buyers who searched vacuum pump 3kw may also interested in these:



2LG610-7AH26

2LG630-7AH26

2LG710-7AH26

2LG730-7AH26

2LG520-7HH46

2LG720-7HH26





Packaging & Shipping







Vacuum pump 3KW package:



  • 1 set vacuum pump


Shipping Methods :



  • By Express, such as DHL, UPS, FedEx etc

  • By Air Cargo

  • By sea


Payment details:



  • Credit Card

  • T/T

  • E-checking

  • Boleto

  • Pay Later


Trade Assurance Order is highly recommended for buyers through the world.






Company Information







Established in 2018, Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd. is a manufacturer and trading company specialized in the research, development, production and sales of ring blowers and position sensors. We have committed to the sale area of ring blower since 2001 and created our factory on 2013.





We can produce most of high pressure air blowers and roots blowers. Besides, we have many reliable cooperated factories for other models, such as centrifugal fans and EMOREHORN ring blowers.





Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customers stisfaction.



 Workshop:chejian





Certifications:photobank





Finished Products:


IMG_20180413_134802





Exhibitions:


photobank (9)



FAQ







Q1: Can you give us a discount for bulk orders?


A1: Yes, of course. We can also offer OEM/ODM service.





Q2: Can you offer ring blower accessories, such as filter, relief valve and muffler?


A2: Yes, we can offer them. Please contact us freely for more details.
