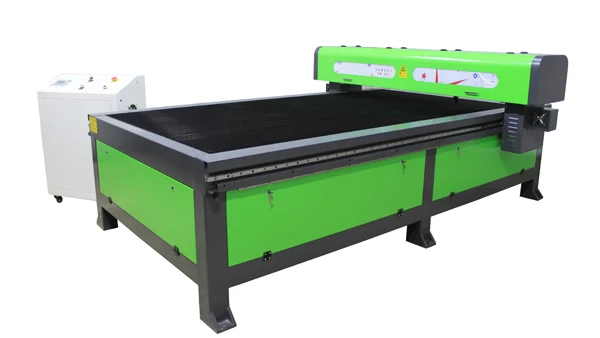

China Hot Sale Wood Acrylic 1325 laser cutting machine / Co2 laser cutting machine 180W
- Category: >>>
- Supplier: Jinan Jindiao Technology Co. Ltd.
Share on (62255532064):
Product Overview
Description
China Hot Sale Wood Acrylic 1325 laser cutting machine / Co2 laser cutting machine 180W
Apply industry: professional for handicrafts, bamboo products, advertising decoration, clothing, leather, printing plate, decorations and decorating, construction model, various signs sculpture, seals: plexiglass and non-metallic materials
Application materials: fabric, leather, rubber, bamboo, crystal, plexiglass, ceramic tiles, marble, veneer film, cardboard, jade, plastic, ox horn, wood, rubber, ink pad save the various non-metallic materials such as shape of the material.
Product Description
Flatbed 1325 CO2 Laser Cut Acrylic Machine 150W laser wood cutter
1. Fast speed than handle making
2. Cutting quality good together with high accuracy. Computer control easy for complex design.
3. Self-design keeps same space from up to down as well as straight with surface. Small laser dot keeps thinner cutting lines.
4. Adjustable for working speed and laser power, change setting up easily.
Technical Parameter
Flatbed 1325 CO2 Laser Cut Acrylic Machine 150W laser wood cutter
1). Adopts quality & steady co2 sealed laser tube --80W, 100W, 130W, 150W & 180W
2). X.Y axis adopts Taiwan imported Hiwin Linear guide rail & Belt, make sure the working accuracy.
3). Special researched 2 Parallel exhaust path, and equip 2PCs 750W big power exhaust fan,
guarrantee the smoke can be taken out even with thick wood cutting.
4). Honeycomb work table for cloth, leather and textile cutting,
blade piece work table for wood , mdf, acrylic cutting
5). DSP offline RD6442G controller and RD WORKS V8 software--easily use and human interface
6). Auto sensor laser head for metal cutting--maxi cut steel 2mm thickness
Technical Parameter
Products model | JD1325 | JD1625 | JD2030 |
Working area | 1300x2500mm | 1600x2500mm | 2000x3000mm |
Laser Types | Hermetic And Detached CO2 Laser Tube--80W, 100W, 120W,150W, 180W | ||
Engraving speed | 0-75,000mm/min | ||
Cutting speed | 0-40,000mm/min | ||
Location precision | ≤0.01mm | ||
Resetting positioning accuracy | ≤0.01mm | ||
Power supply | AC 220V/50~60Hz (110V is optional) | ||
Gross power | <1,000W | ||
Operating temperature | 0 - 45° | ||
Operating humidity | 5 - 95% | ||
Minimum shaping character | English 1×1mm | ||
360°slope engrave | YES | ||
Motors driving system | Stepper (servo is optional) | ||
Cooling mode | Water-cooling and protection system | ||
Operating system | Windows XP, VISTA, Windows7, Windows8 | ||
Software | RDWorksV8(compatible with CorelDraw, AutoCad, Illustrator, PS) | ||
Graphic format supported | DXF,AI,PLT,DST,DSB,CDR,BMP,JPG,GIF,PNG,MNG etc | ||
Standard accessories | air pump, exhaust fan | ||
Optional parts |
Water chiller | ||
Machine Detail Parts

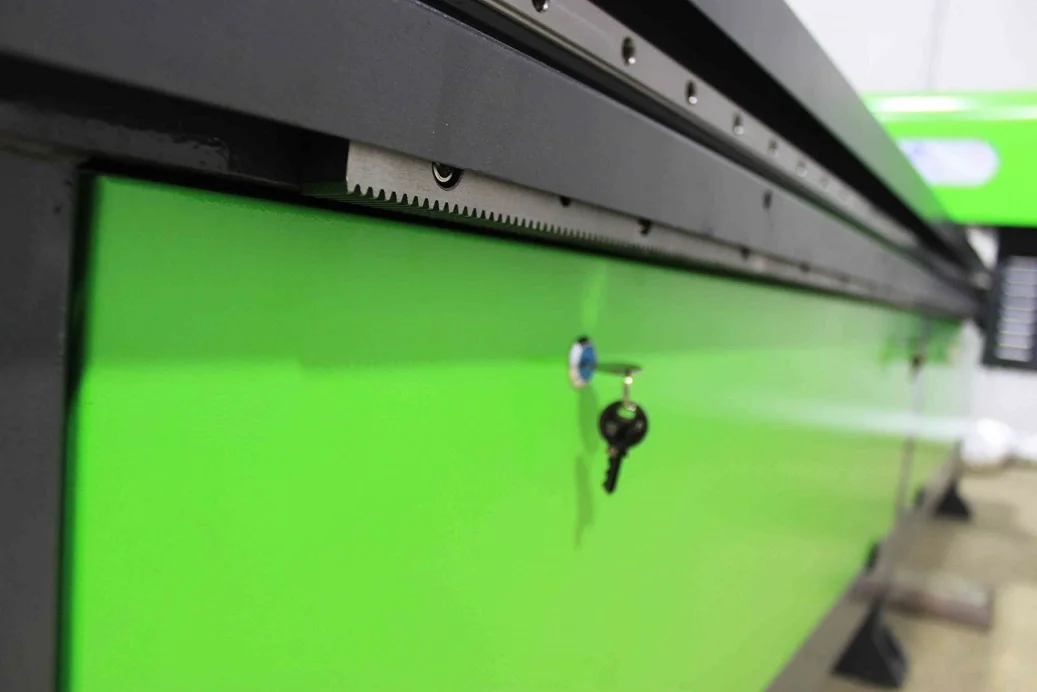

 | Taiwan Imported Square Rail ---High Speed and Precision ---High load capacity and rigidity
|
Y axis uses Rack-Pinion transmission, with more accurate and high precision |
|

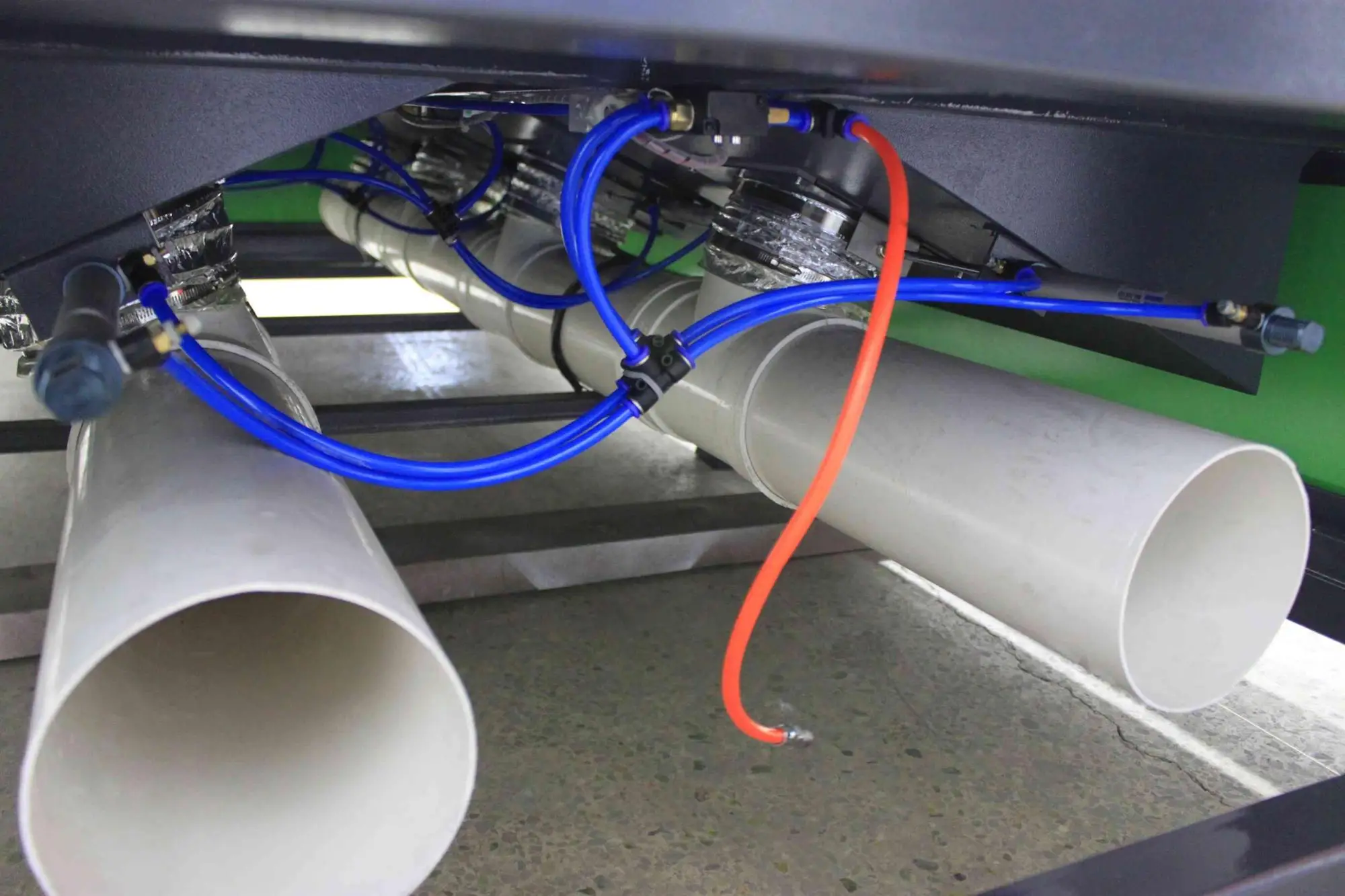

 | The whole work table is divided into several zone, the exhaust fan will move around together with laser head, to confirm the smoking will be take out completely.
|
Cross Red dot position system Easy to find the accurate posiution of Cut /Engrave |
|

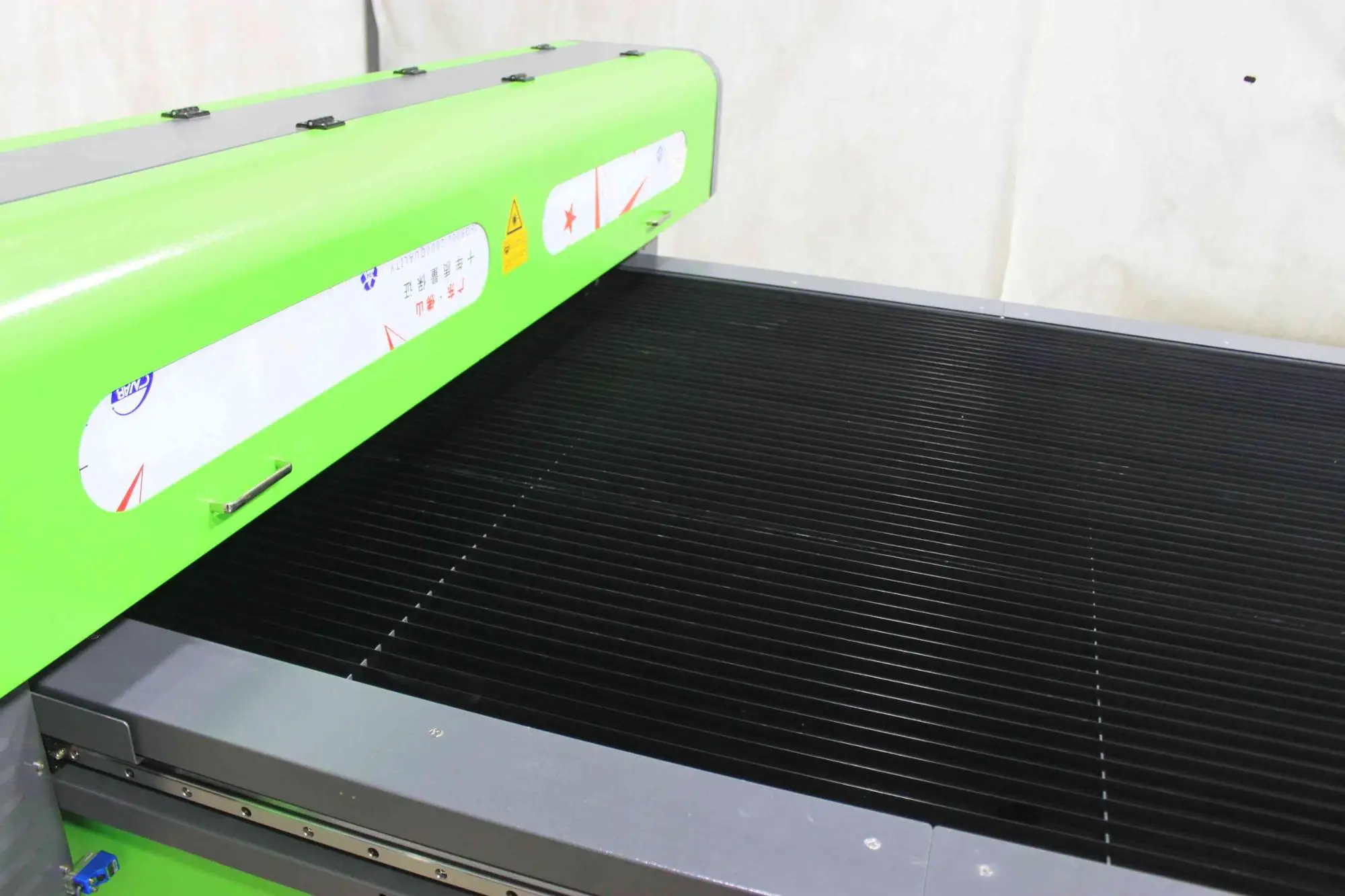

 | Blade Piece Work table |

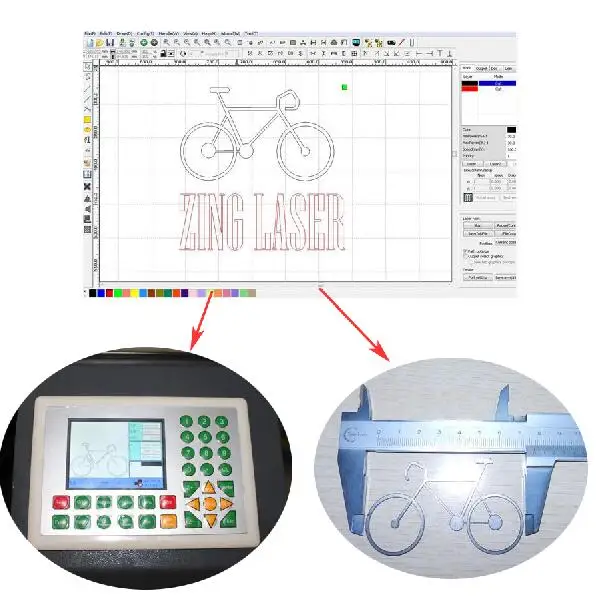

RD Works V8 software Easy to use and human interface Support Coreldraw,Autocad |
|

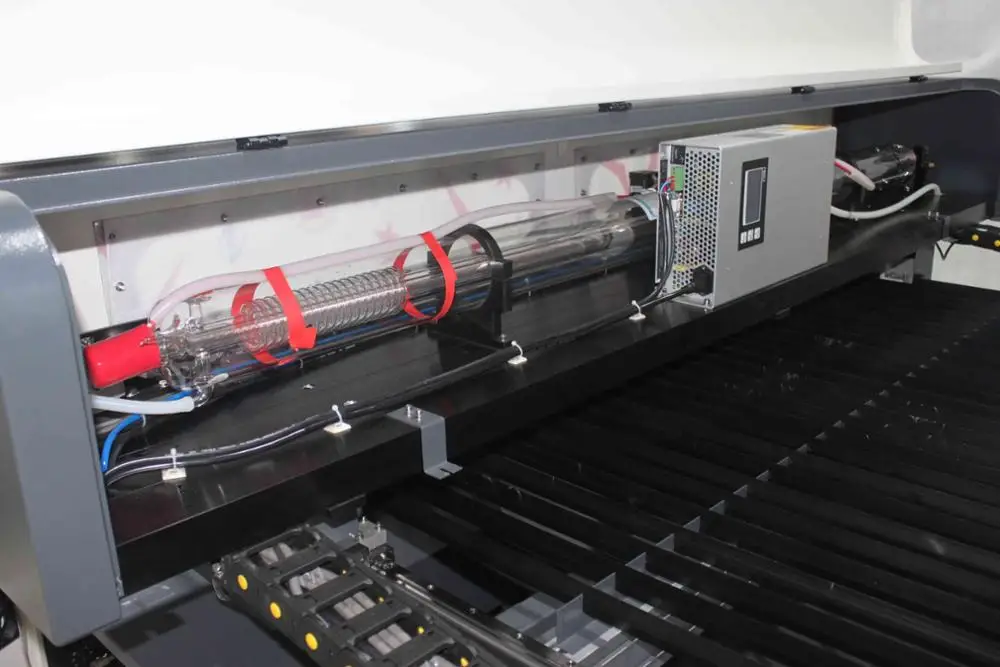

 | Quality Laser tube and Power Supplier |
Samples
Packaging & Shipping
Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
