Высококачественный мини сваечный молоток
- Category: Pile Driver >>>
- Supplier: Henan Nybon Machinery Co. Ltd.
Share on (62255671270):
Product Overview
Description
Product Description

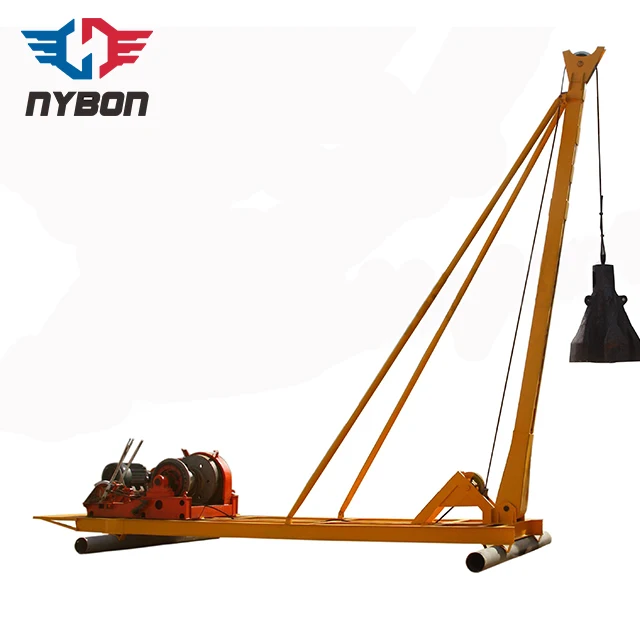

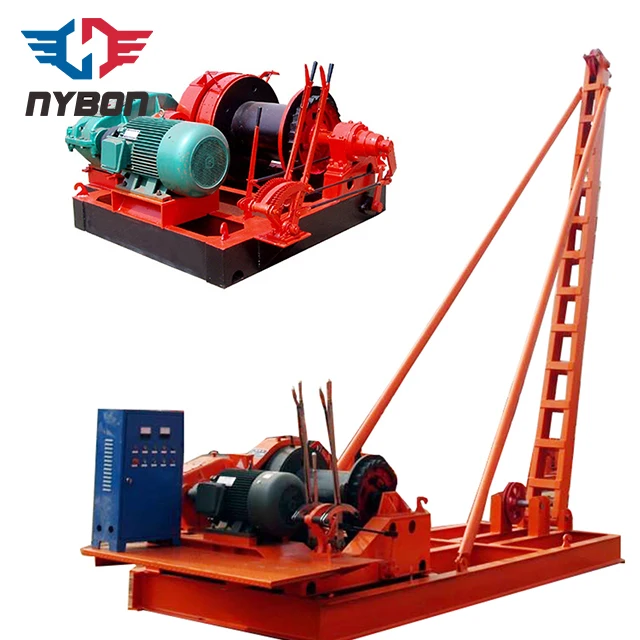

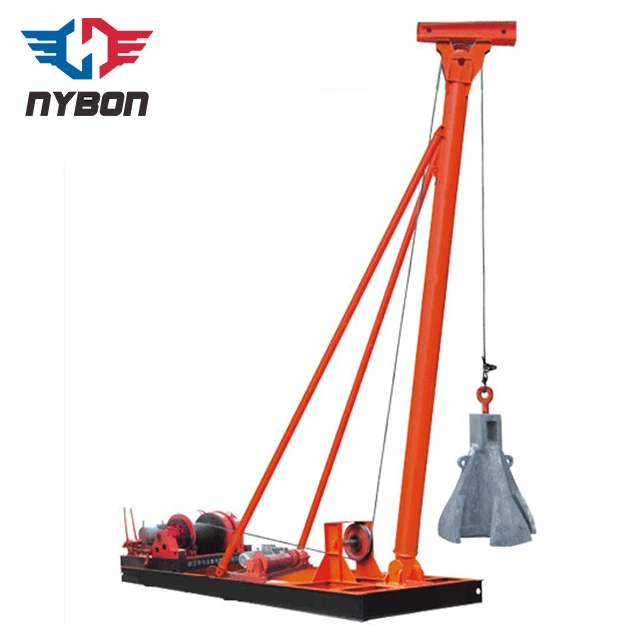

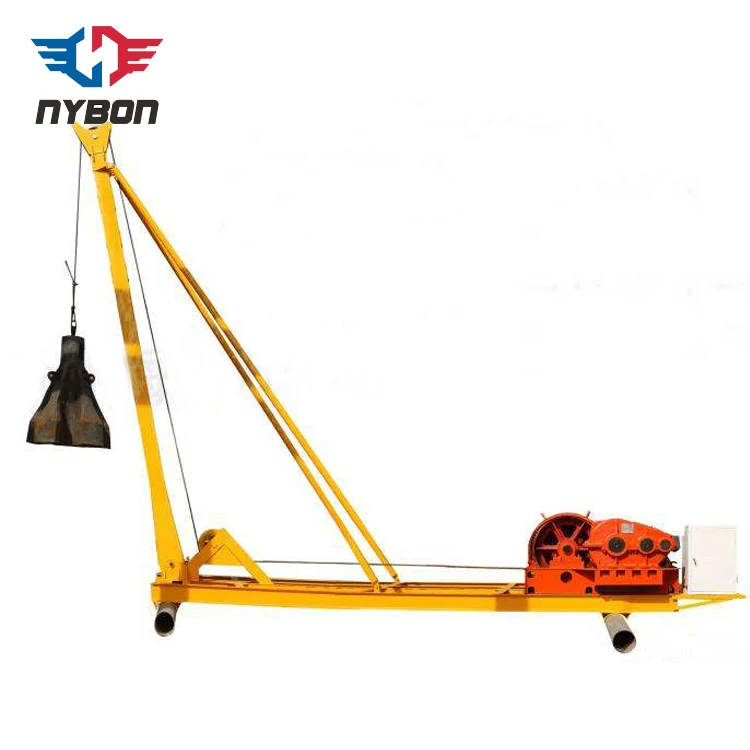

high quality drop hammer mini pile driver
Punching pile drivers are mainly used in areas with hard geology. They cannot use long sprial. They usually use heavier pile hammers to make cyclic impacts and break stones below the ground.

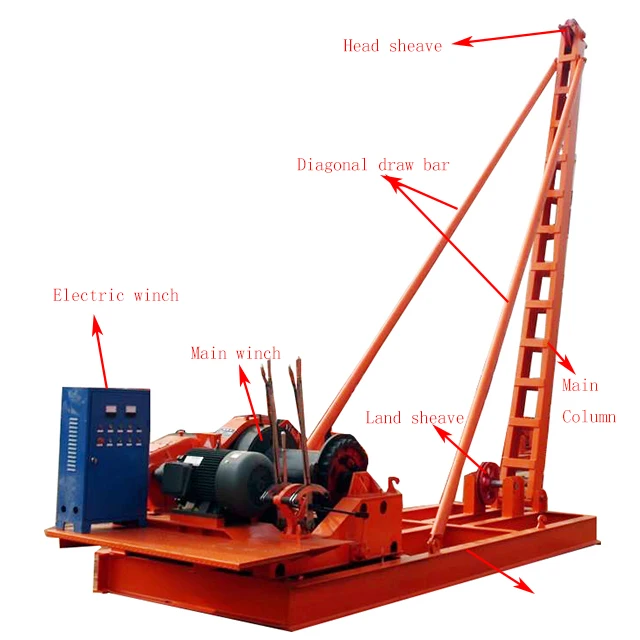

Piler structure consists of: frame, main winch, auxiliary hoist diagonal cable, main column, walk pipe, electrical, mud pump, clear water pump, tripod, mud pipe, pipe, hopper, hammer, hammer teeth, pulley, automatic rush
Feature:
1. Suitable for hard rock piling
2.Easy to operate.
3. High work efficiency and labor cost savings
4. Safe and reliable working
5. free fall hammer
Want to know more, contact me!
Parameter:
Send your special needs to us!
Model | Punching hole diameter (mm) | Punching hole depth (m) | Main winch model | Hammer max. weight (t) | Vice winch | Impact times (min) | Size (mm) | Weight (kg) |
CK900 | 600~900 | 80 | JKL3 | 2 | JKL1.5 | 5~6 | 6000*2000*6300 | 5500 |
CK1500 | 900~1500 | 80 | JKL5(A) | 4 | JKL1.5 | 5~6 | 7000*2000*7000 | 6500 |
CK1800 | 1200~1800 | 80 | JKL6(A) | 4.8 | JKL2 | 5~6 | 7000*2000*7000 | 6700 |
CK2000 | 1500~2000 | 80 | JKL8(A) | 6 | JKL2 | 5~6 | 7200*2000*7200 | 9500 |
CK2200 | 2000~2200 | 80 | JKL10(A) | 8 | JKL2 | 5~6 | 9800 | |
CK2500 | 2200~2500 | 80 | JKL12.5 | 10 | JKL2 | 5~6 | 7500*2200*7200 | 13500 |
CK3000 | 2500~3000 | 80 | JKL15 | 12 | JKL2 | 5~6 | 13500 |
Spare parts for reference:
Want to know more details to contact me!
Advantage:
The drop hammer type pile driver is suitable for playing various piles, the structure is simple, the use is convenient, the impact force is large, and the falling distance can be adjusted at will.
Company Information
Nybon is a group of Lifting Business with Rich Experience, sercving abroad range of customers, including factory lifting work, manufacturing and process industries, shipyards, ports and terminals. Regardless of your lifting needs, Nybon is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.
