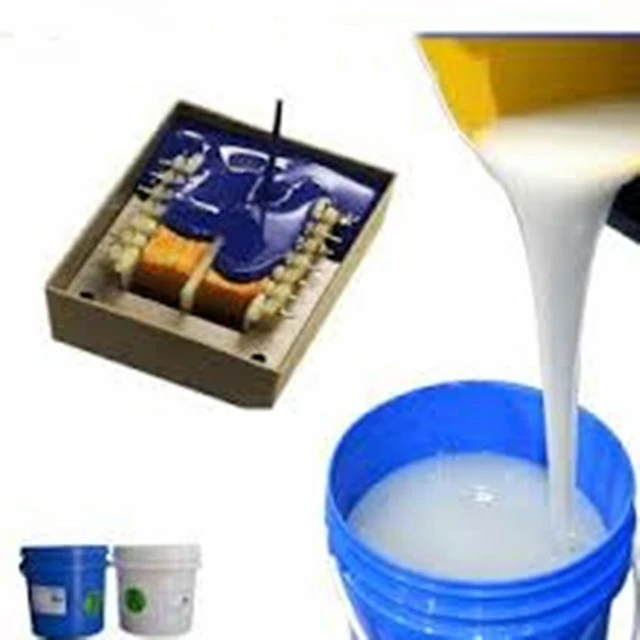

Electronics Potting RTV 2 Liquid Silicone Rubber
- Category: >>>
- Supplier: Shenzhen Zhihua Chemical Co. Ltd.
Share on (62255856625):
Product Overview
Description
Product Description
Description

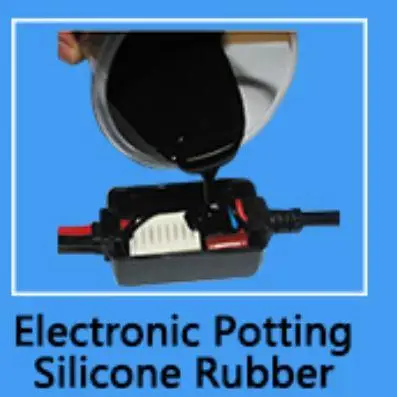

DC-E55 Electronic Potting Silicone Compound is a kind of low viscosity, Inherent flame resistance, two components addtion cured potting silicone with heat-conducting. It cures with both on room temperature and heated temperature. It has the feature of the higher temperature the faster of the curing time.
Technical Parameters
Model | Color | Viscosity (cps) | Hardness (A°) | Mixing ratio | Operating Time(min) | Curing Time(hr, 25℃) |
DC-E55 | Greg | 3000±500 | 55±5 | 1:1 | 30~60 | 4~5 |
(Pls note: the above data for this product in 25 ℃ temperature, 55 percent humidity conditions, for reference. The accurate data is measured by customers when using.)
1.The following material may hinder the curing of DC-E55, so pls use after the test. When necessary, pls clean the application areas.
2. DC-E55 should be sealed storage. The mixture should be used up disposable to avoid causing waste.
3. DC-E55 belongs to non-dangerous goods, but keep away from mouth and eyes.
4. When it gets stratified after a period of storage, Please mix it evenly before using, which does not affect the performance.
2. DC-E55 should be sealed storage. The mixture should be used up disposable to avoid causing waste.
3. DC-E55 belongs to non-dangerous goods, but keep away from mouth and eyes.
4. When it gets stratified after a period of storage, Please mix it evenly before using, which does not affect the performance.

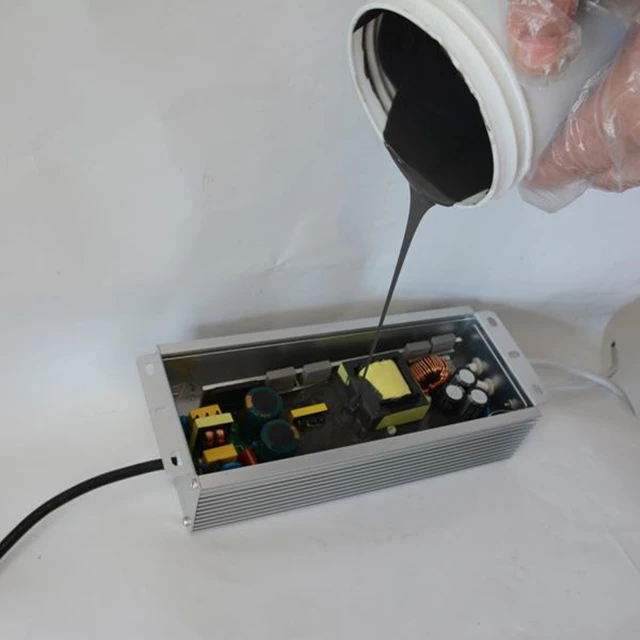

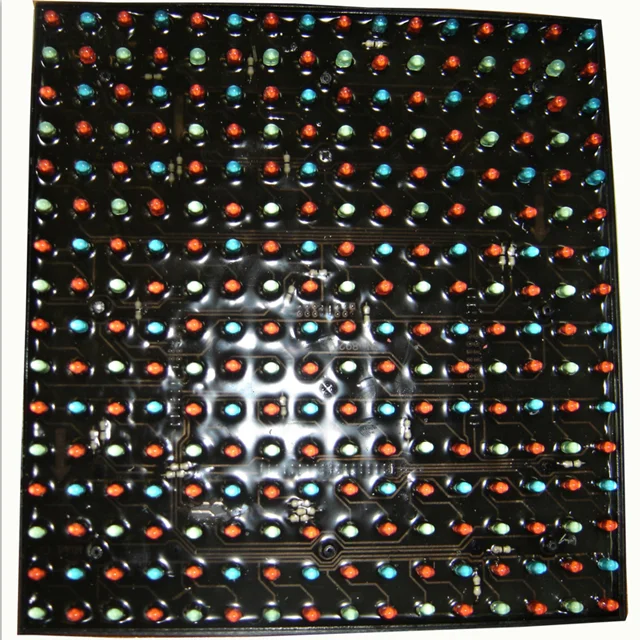

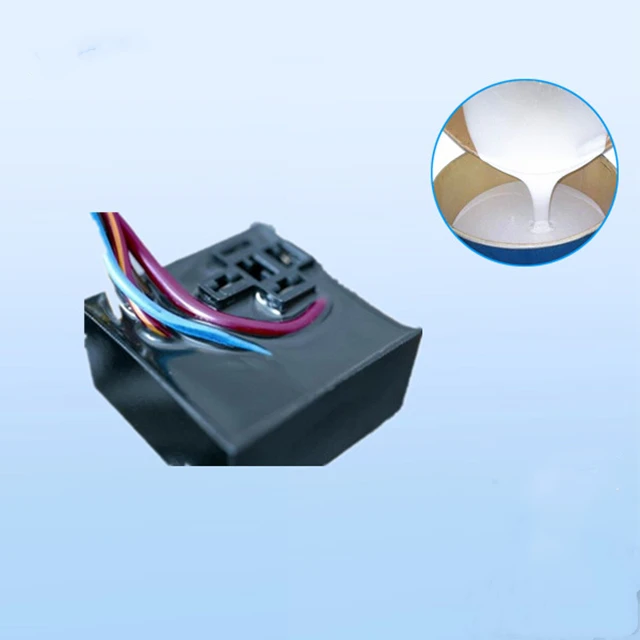

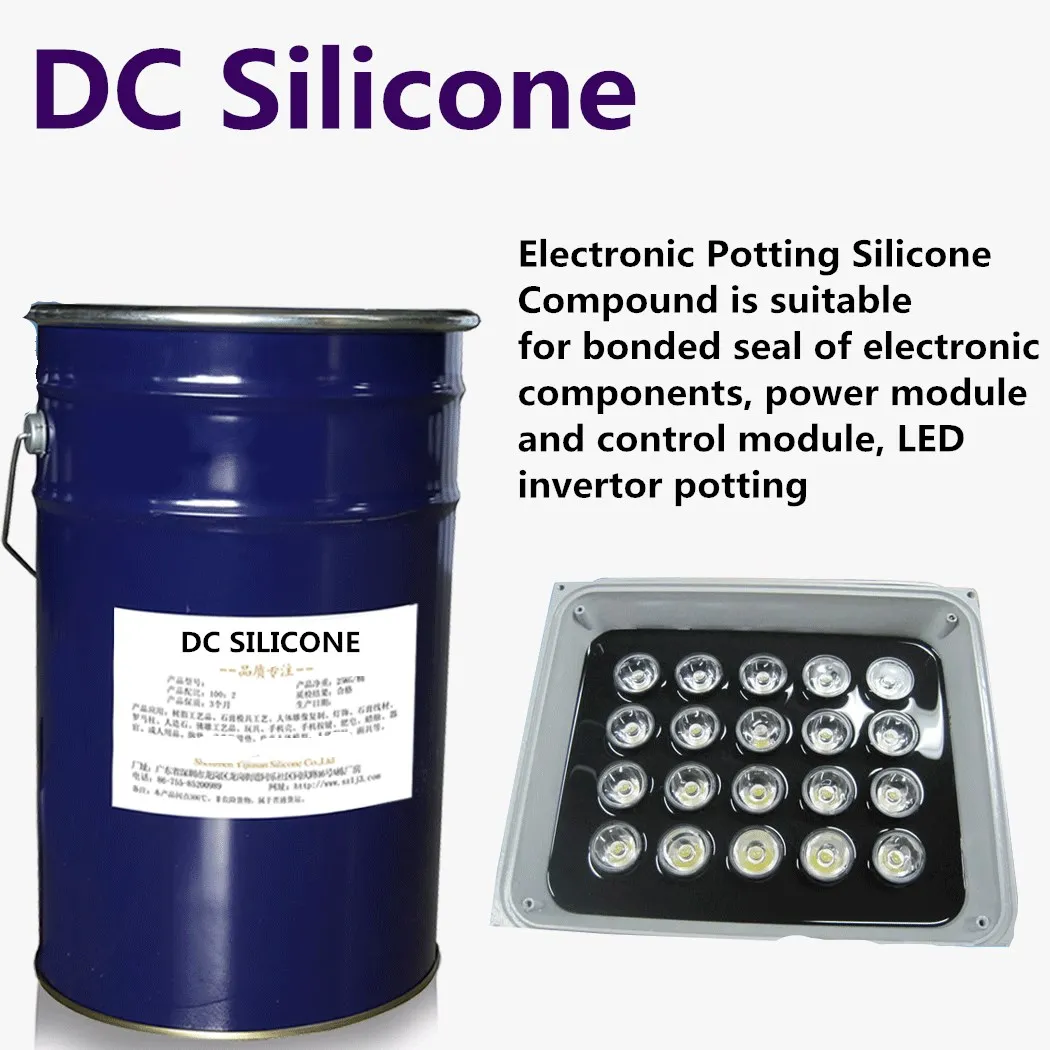

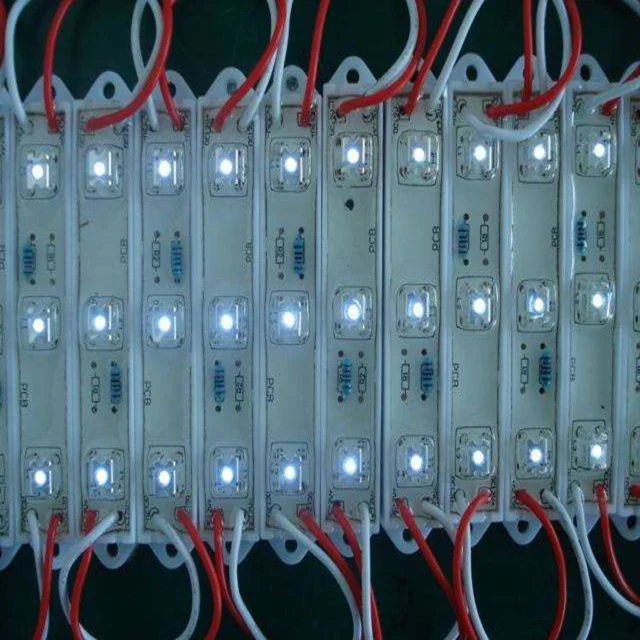

DC-E20 RTV-2 Silicone Potting Component is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.
TECHNICAL GUIDELINES
1, Typical Application

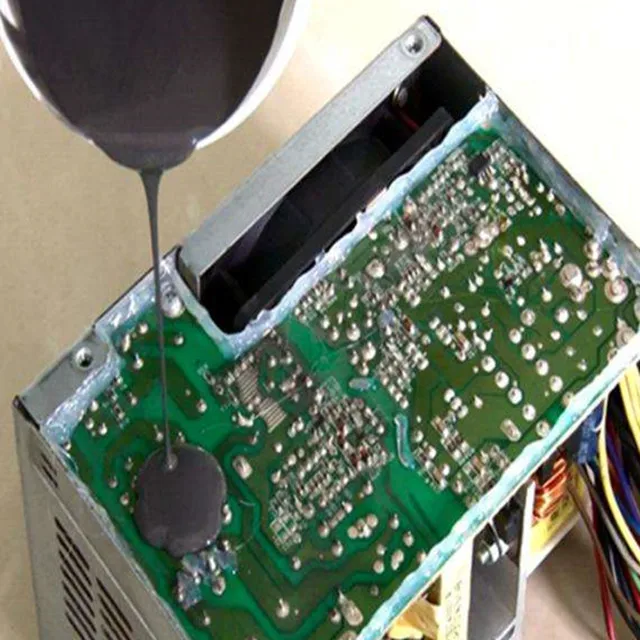

DC-E55 could be applied to
- high powered electronics,
- DC-E55 module and circuit board which requires heat dissipation and high temperature resistance.
-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc. Pls put part A and part B in separate container and stir evenly before mixing the two part together.
2, Mixing Ratio: part A: part B = 1:1
3, Deaeration the mixture in vacuum pump under 0.08 MPa for 3-5 minutes. Then the mixture could be used for pouring.
4, Pls note that the thickness of the silicone affects the curing time. If the silicone used is a little thick, then the curing time will be a little longer. The temperature also affects the curing time. When in lower temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization. With temperature of 80～100℃, the silicone will cure in 15 minutes; while in 25℃ room temperature, the silicone will cure around 8 hours.
DC-E55 could be applied to
- high powered electronics,
- DC-E55 module and circuit board which requires heat dissipation and high temperature resistance.
-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc. Pls put part A and part B in separate container and stir evenly before mixing the two part together.
2, Mixing Ratio: part A: part B = 1:1
3, Deaeration the mixture in vacuum pump under 0.08 MPa for 3-5 minutes. Then the mixture could be used for pouring.
4, Pls note that the thickness of the silicone affects the curing time. If the silicone used is a little thick, then the curing time will be a little longer. The temperature also affects the curing time. When in lower temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization. With temperature of 80～100℃, the silicone will cure in 15 minutes; while in 25℃ room temperature, the silicone will cure around 8 hours.

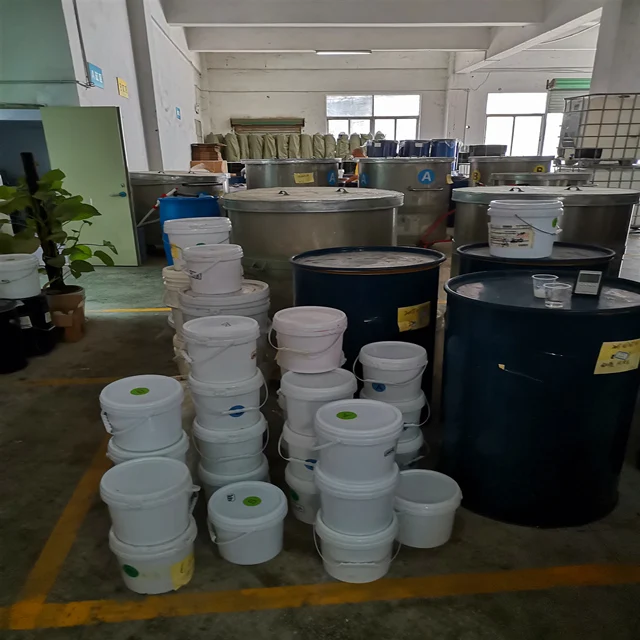

Package
50Kg/pail as a set (Part A 25Kg + Part B 25Kg)
400Kg/pail as a set (Part A 200Kg + Part B 200Kg)

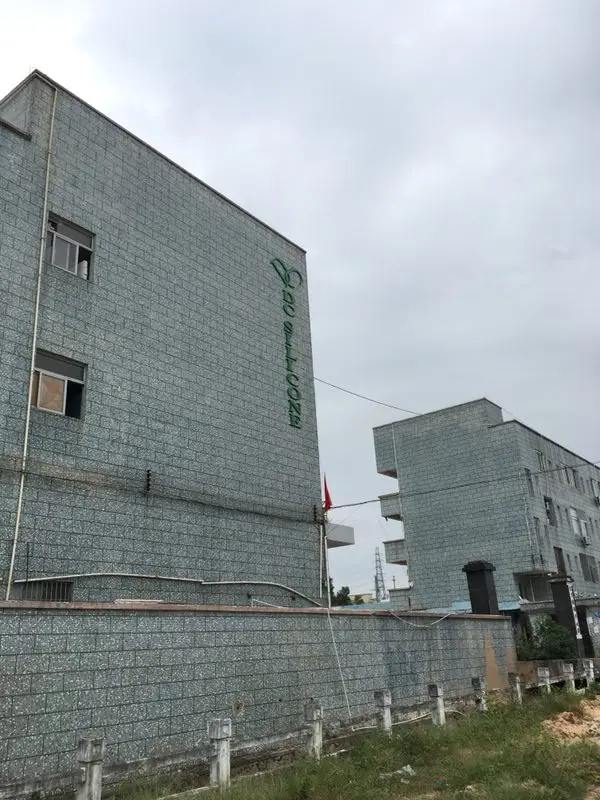

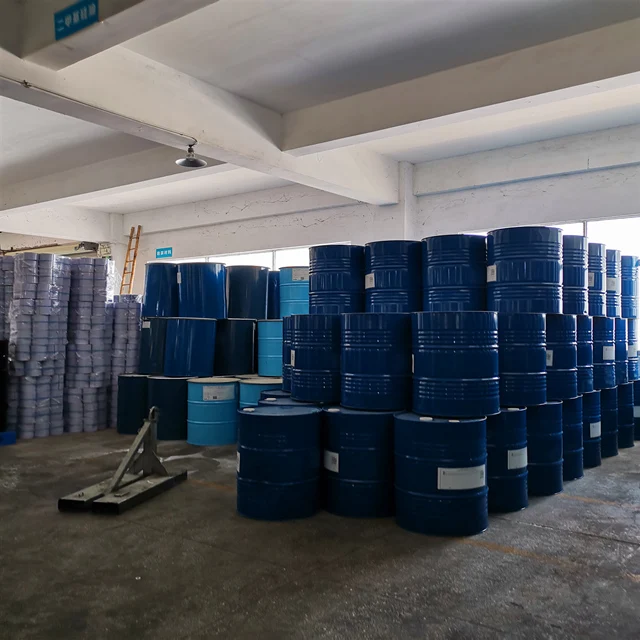

About Our Company
Shenzhen Zhihua Chemical Co.,Ltd.(DC SILICONE) was established in 2008,is a science and technology Company which is concentrating on production, R&D, and sales of Chemical products, especially silicone rubber. We are praised as the leading professional manufacturer of Mould Making Silicone Rubber, Addition Silicone Rubber ,Life Casting Silicone Rubber, Electronic Potting Compound, Pad Printing Silicone Rubber, and so on. There has two main Series of best selling silicone rubber in our company. The DC-A Series Addition cure silicone rubber and The DC- C Series Condensation cure silicone rubber.
Attractive price to help you save cost
High quality with stable performance.
Free technical support and sample test to check the quality.
More than 10 years experience of silicone rubber producing.
Relate products purchasing assistance
New market developing
New products research and development
All traffic ways including the air, the sea and the express might be utilized according to the specific quantity off the order.
Shelf life
1. Eighteen(18) months from date of shipment when stored at 25C in original unopened packages.
2. This kind of product is non-dangerous product, it can be transported as general chemicals.
3. Products exceed the storage life should be confirmed normal before using.
2. This kind of product is non-dangerous product, it can be transported as general chemicals.
3. Products exceed the storage life should be confirmed normal before using.
