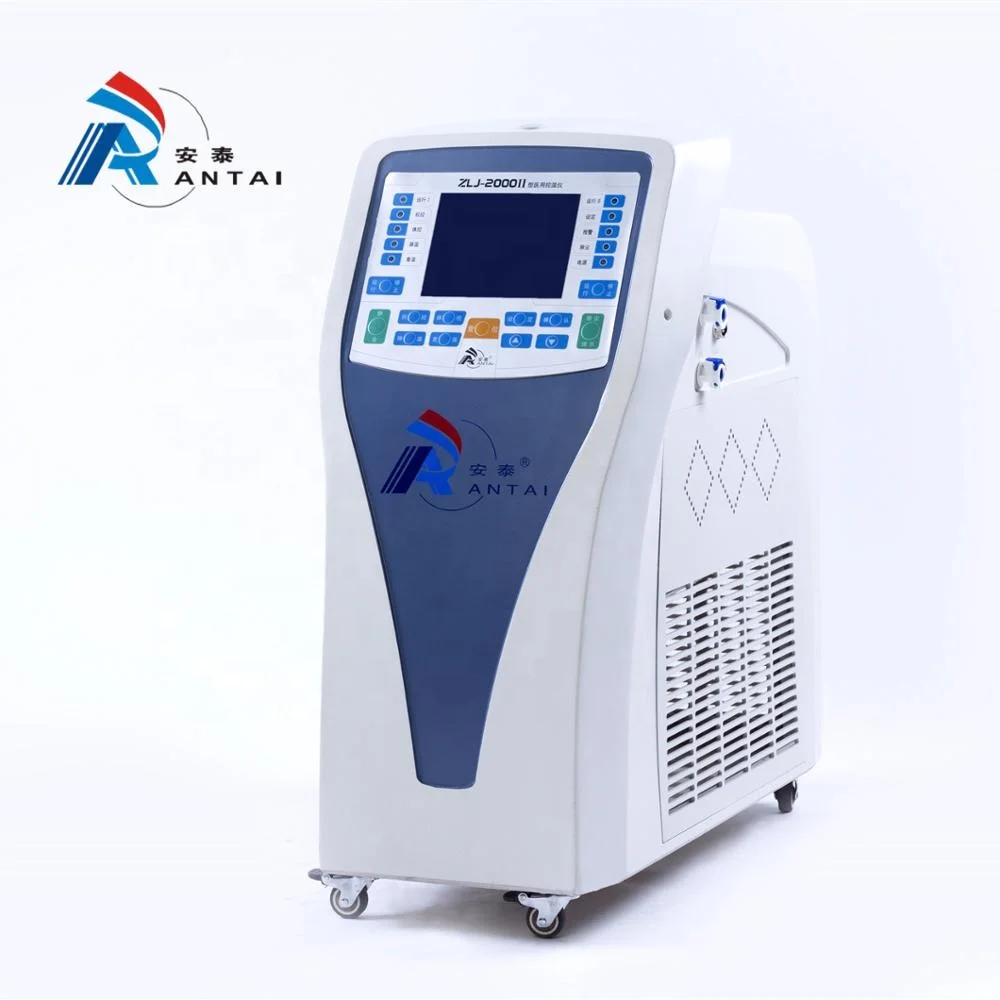

hypothermia therapy cooling blanket

Product Overview

Description

hypothermia therapy cooling blanket

Products specifications:

Place of Origin: Jilin, China (Mainland)
Item No:ZLJ-2000

Brand Name:Antai
Material:ABS (instrument) + TPU (cap or blanket)
Color: white & blue

Packing detail:

Products size:370mmWx450mmLx920mmH

Packing size:565mmWx515mmLx1090mmH

Package:1pc/ctn

Weight: N.W::50kgs ,GW.:52kgs

Port: Dalian,shanghai

Lead Time :within 10 working days upon receipt of payment

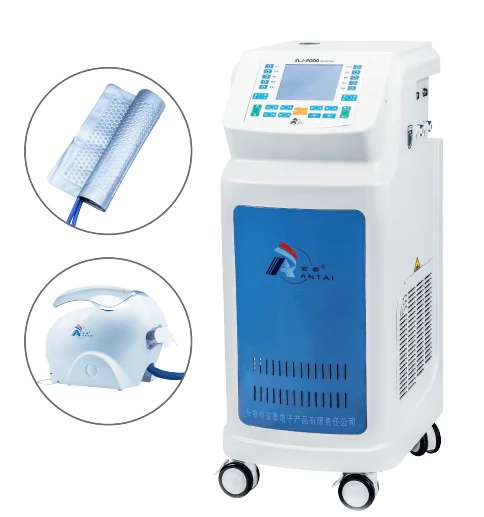

Structure:

Two way output, double temperature control,connecting with a cooling blanket and a cooling cap, working at the same time,control separately.





Advantages Of Antai Equipment:
1.Fully passed through the testing of EMC,strong anti-electromagnetic interference ability,Meet YY0505-2005 standard requirement,reliable safety
2.Portable,easy to move,saving space in the ward(the smallest type is only a little bit bigger than the computer)
3.The automatic computer control system with stable performance providing continuous operation
4.The imported compressor provide cold source, using environmental protection refrigerants without fluorine,low power consumption ,fast cooling system can save the time for rescuing
5.Temperature warming system is made of Silicon nitride heater with stable performance Large LCD display screen in 5.7 inch
6.low noise <=45db

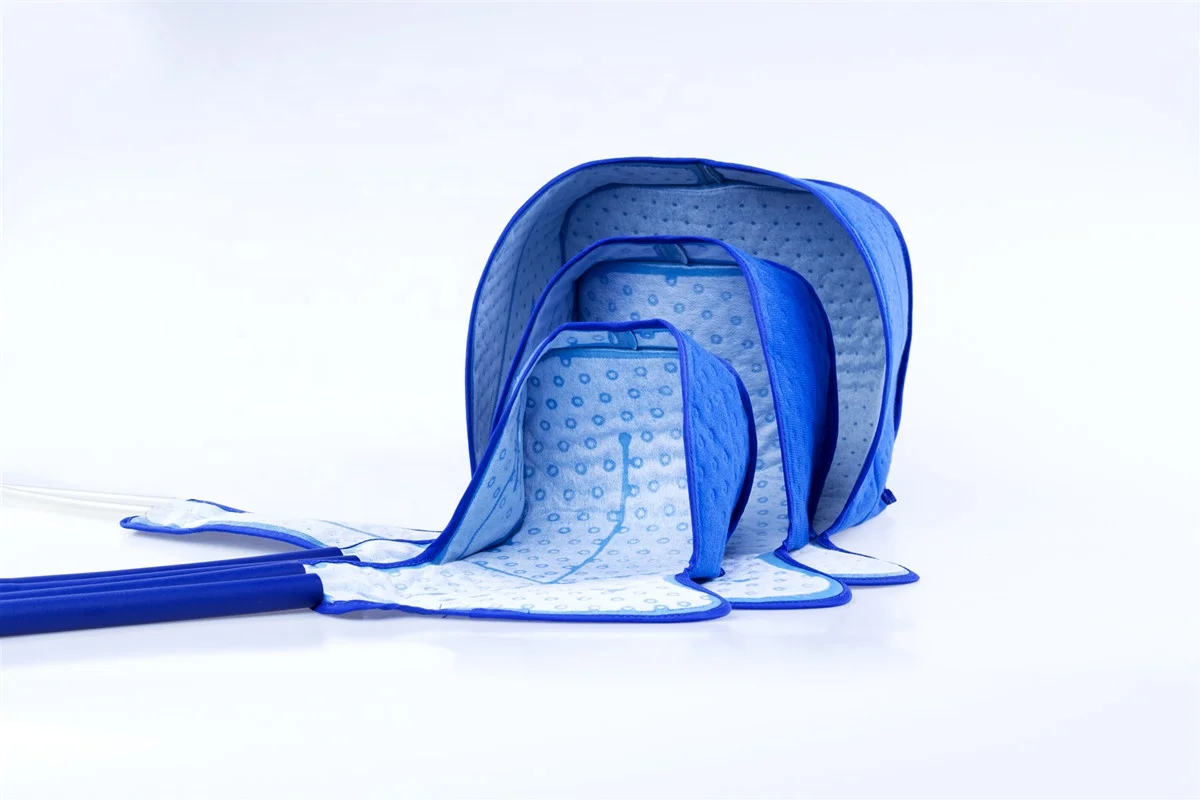

7.special cooling cap and blanket
  a.the cooling cap and blanket use TPU material with the features of low temperature resistance , ozone resistance and long service life.
  b.Unique honeycomb design, soft surface, can be folded, cleaned and disinfected easily.
  c.Good quality pipe connecting equipment to the cooling cap or blanket for water cycle circulation. build-in sensor is not easily falling off and easily operating
  d.Equipped with matching cloth cover on the surface to avoid the dew of the same specification.
  e. Material for newborne ,it is very soft to close to the skin directly.



Technical parameters:





 intelligent alarming functions: the voice/sound / light alert and the visible prompt in running status block.
    a. Equipment alarming: the system malfunctions.
    b. Over-temperature alarming: the water temperature exceeds 45ºC.
    c. Sensor alarming: the sensor falls off ,get short-circuited or damaged.
    d. Water-shortage alarming: the water level line below the working level.



Clinical Applications:
1.it is Widely used for the physical cooling patients of traumatic brain injuries,brain edema,     cerebral hemorrhage, cardiopulmonary resuscitation(CPR), bone joint swelling, cranial hypertension, febrile     convulsion, central high fever, intracranial hemorrhage, etc.

2. what is more, the hypothermia therapy helpping the patients with tumor to reduce the side effects of      chemotherapy and radiotherapy, especially improving the survival rate effectively of the patients in  operation .

3. the instrument is applied to neurosurgery department, neurology department,  brain surgery department,          Anesthesia department, emergency department, neonatology department ,                                                        oncology department, The orthopedic department ,etc.



Working principle:

1.Highly-efficient refrigeration system from imported compressor and fluorine-free refrigeration techniques to realize quick cooling.

2.after the water cycle circulation system and control system starting work.

3.the water temperature of cooling caps or blankets used for the patients changes as presetted slowly.

4. and then abtainning to the purpose of cooling or building an hypothermia circumstance for patients.

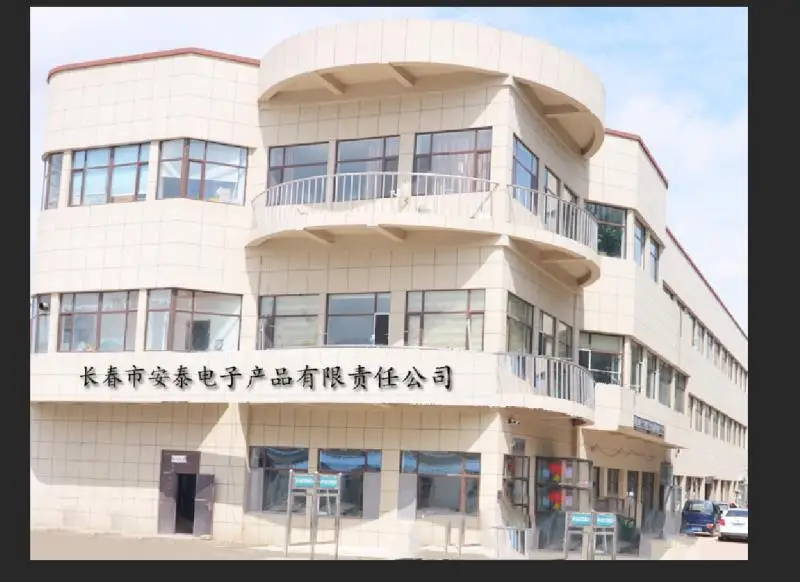

company info:

      we are professional supplier for hypothermia therapy ,and had obtained 3 national patents in hard cooling hat used for craniocerebral operation.

    We mainly produce medical temperature controller (hypothermia therapy apparatus,cooling blankets ,cooling caps) of differents items which can be widely used in clinical physical treatment in various departments in the hospistal.

   The products has fully passed through ISO9001/ISO13485, and EMC YY0505 testing have gotten the certificate of the international quality management system.

       We have entered into good relationship with the partners abroad reply on the hign quality products of advanced material, competitive price and fast service ,and we sincerely expecting the coorperation with you in the near future.

Our Service:

1. we provide OEM order for clients from different country with 20 years researching experience

2.competitive price in the international market on the basis of hign  quality

3.professional installation trainning and guidance

4.fast delievery time



FAQ:

1.Are you manufacturyer or trading company?

    We are professional manufacturyer with 20 years researching and developing experience.

2.Do you provide sample ?

  Yes ,we provide sample, but the customer should bear the sample fee and the freight, and the sample charge will be deducted when place the formal order as certain propotion.

3.do you provide OEM order?

   Yes ,we do ,and we had made for the customer from different countries.

4.What'S your delievery date?

    1-10set need 7 working days,  more than 10sets need 10-15 working days, depense on the quantity and stock.

5. What's  your payment terms ?

     sample charge 100% payment , formal order charges 50% TT, the balance against the copy of B/L.

6. What's your main market abroad?

     Southeast Asia,   Africa,  North Europe,  South America, East Europe, etc.
