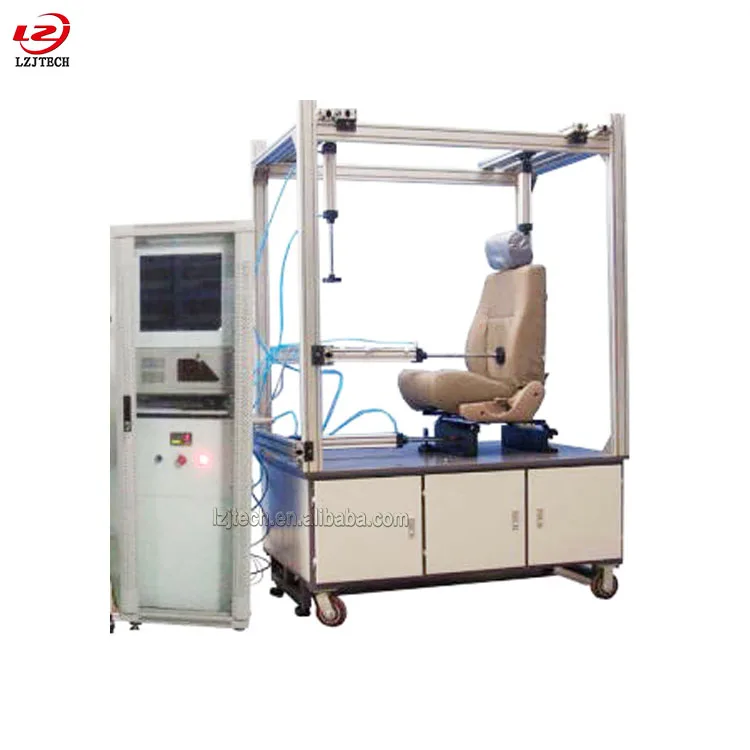

Slide Rail Durability Test Machine for Car seat ,Automobile Seat Strength Test Equipment Price

Product Application

The machine is designed according to the technical conditions of the QC/T 805-2008 passenger car seat rails. The dynamic durability test is carried out on the indicators of the seat rails. The main test items include separation strength test and lock strength test. , Limit stop strength test, static load strength test, withstand strength endurance test, slide durability test: All test results are automatically recorded by the computer, and test curves and test reports are automatically formed. Applicable objects: Manual adjustment of the slide rails and electric adjustment rails.

Specification

 1) Load weight accuracy: ≤ ± 1%
2) Load cell resolution: 1/10000
3) Load capacity: 20KN, 500N each
4) Power display accuracy: 0.1N
5) Test frequency error: ≤±1 times
6) Number of tests: 0---9,999,999 can be set
7) Test frequency: 5 times / min ~ 10 times / min (slide durability test)
15 times / min ~ 30 times / min (slide rail alternating load bearing strength durability test)
8) Control method: Computer servo control
9) Push the cylinder stroke of the slide: 0--800mm adjustable front and rear
10) Slide rail strength test cylinder stroke: 0--300mm
11) Handle unlock cylinder: 0--150mm
12) Fixture: 3 sets (special fixture for slide only; seat frame with crossbar + slide clamp; seat + slide clamp) (guaranteed to seat fixing for different foot sizes)
13) Solenoid valve and cylinder: Japan SMC, the cylinder up and down position is adjustable, there is a pause function
14) Counterweight: 80KG
15) Air source pressure: 7KG/CM2
16) Power supply: 220V 10A 50Hz
17) Can meet different seat fixing

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Pre-sales service

*24-hour Online contact

*Choose the right model of the equipment according to customer's request

Middle service

*Give the best offer

*Support customization

* Do customer's request

*Choose payment term you convenient.

*Promptly production and delivery inform you in time.

*Can provide invoice value as you like to decrease your tax

After sale service

*1 year warranty service and all life maintenance

*Provide Free information (1. Product Instruction 2. Product

operation instruction/video 3. Experiment Test)

*Remote control technical consult

*Free installation DVD

*Maintenance plan

Q:Are your company a trading one or a factory?

A:Factory + trade (integration),we have our own factory.

Q:Do you accept customization service?

A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.

Q:What is your product warranty ?

A:1Year warranty, but lifetime for services.

Q How about the products quality?

 A: Our products apply to ISO, ASTM, GB, etc.
