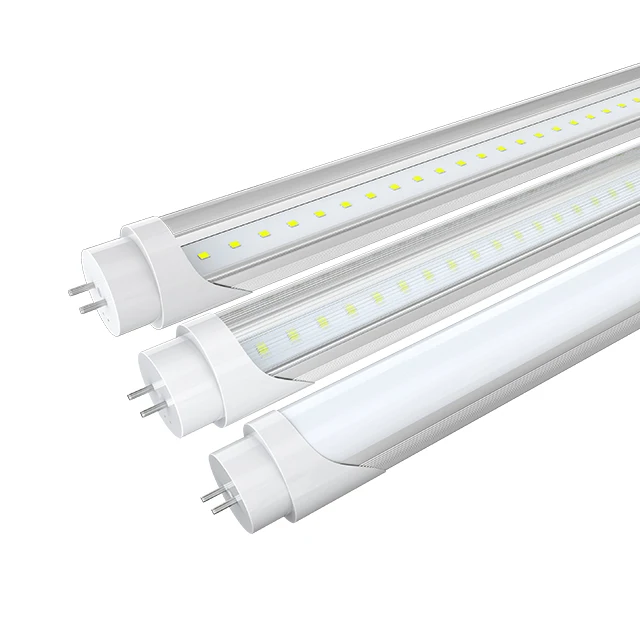

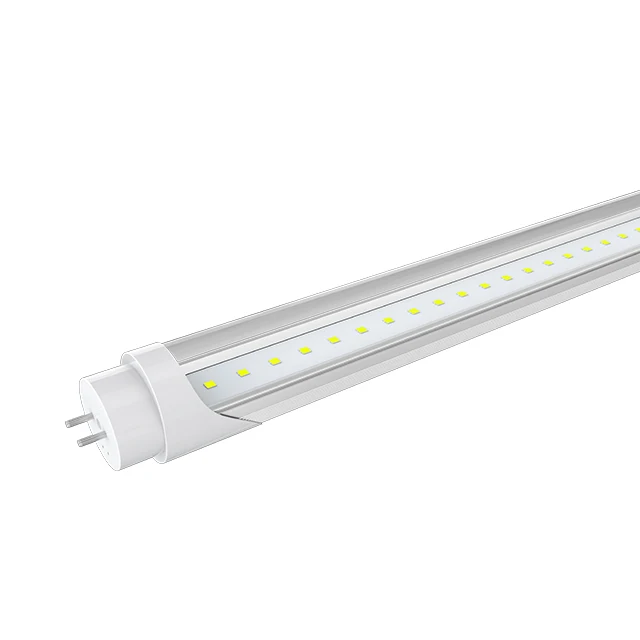

led light tube dlc 4 foot led lights t8 type AB
- Category: >>>
- Supplier: Naiming Opto-Electronics Ltd.
Share on (62255986303):
Product Overview
Description
Specification
led light tube dlc 4 foot led lights t8 type AB
① Product Features
- Plug & Play Compatible electronic ballast & ballast bypass direct wire, Single-End or Double-End Input.
- Very high-power efficiency 130lm/w-170lm/W and high CRI which can reach above 80.
- Nanometer material with light weight and strong hardness.
- Optimum light uniformity and high color homogeneity.
- Overpower, short and open circuit protected.
- Long lifetime: 50,000 hours with 3-5 years warranty.
- NO noise, NO UV and IR, Mercury-free and RoHS compliant.
- Comply with CE, FCC, Ul and DLC standards.
- Fire - resisting sleeves: UL94 V0 level, high temperature resistant, thermal-insulation, inflaming retarding & anti climate aging much prolong tubes life time.
② Physical Specifications
Module | EDI-APT8-4F16-AB | EDI-APT8-4F15-AB | EDI-APT8-4F14-AB | EDI-APT8-4F12-AB | EDI-APT8-4F10-AB |
Length | 1200mm/4ft | ||||
Weight | 260g | ||||
Housing | Aluminum Base + PC Cover | ||||
Lens | Milky/Clear | ||||
Tube Diameter | 26mm | ||||
Base Type | G13/Rotatable | ||||
Work Environment | Indoor use | ||||
③ Electrical Specifications
Module | EDI-APT8-4F16-AB | EDI-APT8-4F15-AB | EDI-APT8-4F14-AB | EDI-APT8-4F12-AB | EDI-APT8-4F10-AB |
LED Quantity | 120 | 120 | 120 | 120 | 120 |
Power Consumption | 18W±1W | 15W±1W | 14W±0.5W | 12W±0.5W | 10W±0.5W |
Input Voltage | 100-277ACV | ||||
Driver | Internal driver | ||||
Power Factor | >0.95 | ||||
Light Source | SMD 2835 | ||||
Operation Temperature | -20~40 °C | ||||
④ Optical Specifications
Module | EDI-APT8-4F16-AB | EDI-APT8-4F15-AB | EDI-APT8-4F14-AB | EDI-APT8-4F12-AB | EDI-APT8-4F10-AB |
|
Power Consumption | 18W±1W | 15W±1W | 14W±0.5W | 12W±0.5W | 10W±0.5W |
|
Lumens | 2340lm | 1950lm | 1800lm | 1800lm | 1800lm |
|
Luminous Efficiency | 130lm/W | 130lm/W | 130lm/W | 150lm/W | 180lm/W |
|
Certificate | UL DLC | |||||
Color Temperature | Warm White: 2800K-3200K Natural White: 3800K-4200K 4700K-5300K Cool White: 5700K-6200K | |||||
CRI | >80 | |||||
Beam Angle | 120 Degree | |||||
Company Information
Shipping
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 15working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
