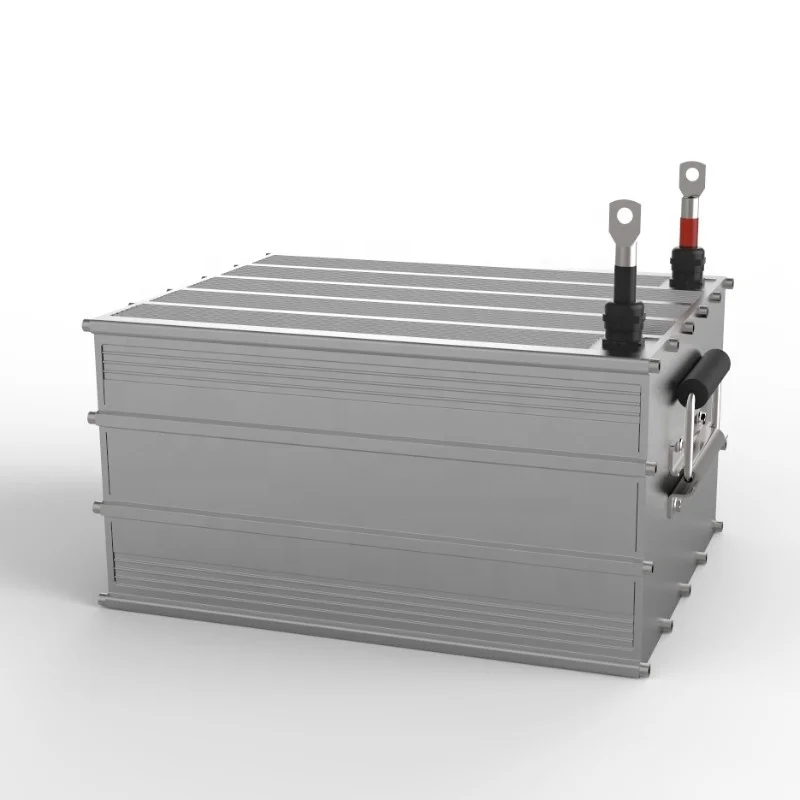

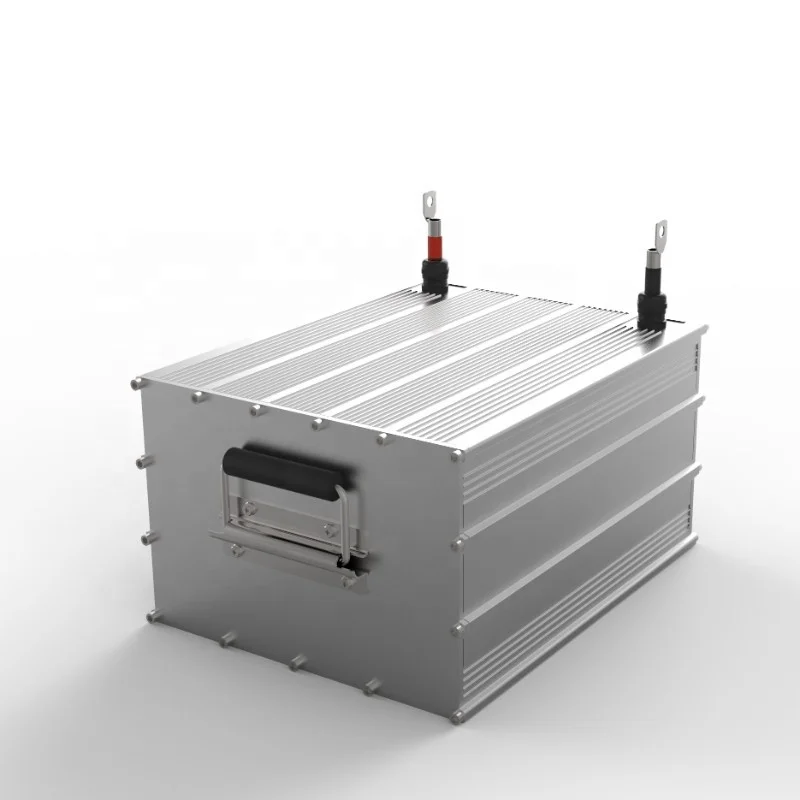

High life >5000 times Deep cycle 12V180Ah Li ion battery pack with BMS
- Category: Rechargeable Batteries >>>
- Supplier: Huzhou Hongwei New Energy Automobile Co. Ltd.
Share on (62256103293):
Product Overview
Description
Product Description
NO. | Item | Parameter | Remark | ||
1 | Nominal Capacity | 180Ah | ±5% @25℃ | ||
2 | Nominal Voltage | 10.8V | --- | ||
3 | Nominal Energy | 1.94KWh | --- | ||
4 | Configuration | 3S12P | --- | ||
5 | Pack resistance | < 50 mΩ | @ 1KHz AC， 50% SOC | ||
6 | Continuous Charge | 40A | Customized | ||
7 | Continuous Discharge | 40A | Customized | ||
8 | Peak Charge Current(10S) | 120A | 10S | ||
9 | Peak Discharge Current(10S) | 120A | 10S | ||
10 | Weight | <17Kg | --- | ||
11 | Cooling | Natural cooling | |||
12 | Ingress Protection | IP67 | Connector not included | ||
13 | Storage Temperature | -20℃~40 ℃ | SOC>30%，one full charge needed per two months | ||
14 | Storage Humidity | 25% ~ 95%RH | --- | ||
15 | Operating Temperature | Discharge | -20℃~60 ℃ | --- | |
Charge | 0℃~55 ℃ | --- | |||
Detailed Images
Safety and Reliable Frame and Case
Adapted aluminous case and cooling fin to transit the heat effectively, which can protect the cell and prolong the cell life as well as enhance the safety of the battery system.
Cell
All cells are from Microvast. Produced on the same production line and complied the same quality control process.
Modified amorphous carbon material
Fast charge in 10~15 minutes
Higer energy density
Long Life to 10,000 cycles.
Module
Collected the single cell voltage and evaluated the state of the battery system to protect it from over-charge and over-discharge.
In case of over-heating, we adapted two temperature sensors to monitor the whole battery system in real time, if the battery temperature excessed the setting value, the BMS will send message to cut down the main relay or decrease the output power to protect the battery.
Fast Charge
MVPACK has a 10-15 minutes fast charge full charging capability (4C).
iBMS
Long term partner iBMS
Our BMS are all famous supplier in China, and we keep long stable relationship with them, so we can provide high quality.
the above BMS can moitor the temperature and charging and discharging voltage, BMS will cut off the relay when the battery acheived the setting value.the first is protection board, the second one is the standard borad with SOC light indicater, and the last one is the profession BMS which is used for vechile or other special applications. we can choose the BMS according your requirements.
Critical Data
Cycle life test at RT & 55℃.
The test results show that after 1200 cycles, the capacity still maintain 100 % at 25 ℃.after 1800 cycles, the capacity still maintain more than 90%.
Production Line
Shipping way
FAQ
Q1-Do you provide OEM&ODM service?
Q2-Why ask so many quetions, I just want to konow the price?
A2.: Sorry for annoying you. But the discharge current, voltage motor power etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders Our target is win-win cooperation.
Q3-Dose the battery include BMS?
A3-Yes, our battery includes BMS, and consider the different customers, we have two version bms for one battery, all of the BMS can monitor the temoerature and voltage protection functions. The Bluetooth and gprs etc. We can design the BMS functions according your requirements.
Q4-What is your warranty?
A4-Our standard warranty is 1 years. Our battery lifespan more than 5000 cycles under standard operation. and we will packing the vulnerable connectors with the battery to the cunstomer. We have a complete warranty policy documents, please feel free to contact us to get it.
Q5-What is the advantages of your battery?
A5-Microvast is the advocater in the Fast Charging battery filed, our battery can be full-charge in 15min with the matched charger and pack parts. the life cycle is also the 1 rank in the battery field as well as the safty.
