Honeycomb Coconut Shell Wood Sawdust Charcoal Briquette Machine For Briquetting Coal Powder

1. The flow chart of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder :

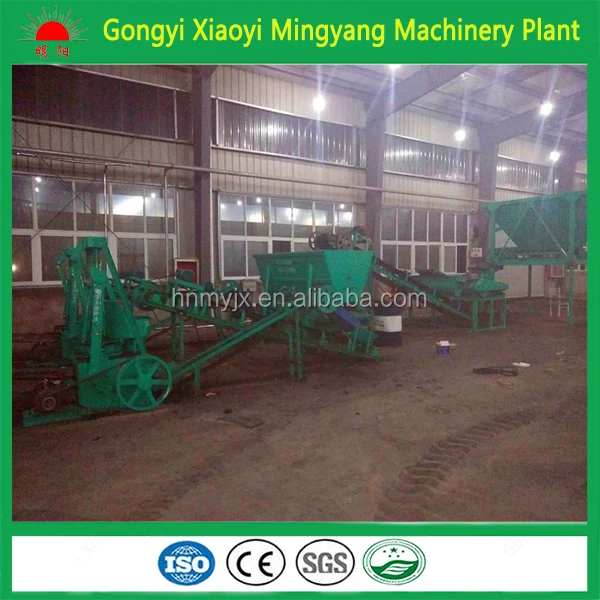

Apart from the wood charcoal honeycomb briquette machine, other related machine such as feeder, grinder, crusher, conveyor and dryer are also available in our factory, it means we can offer a whole product line. In addition, we can help you with the installation.

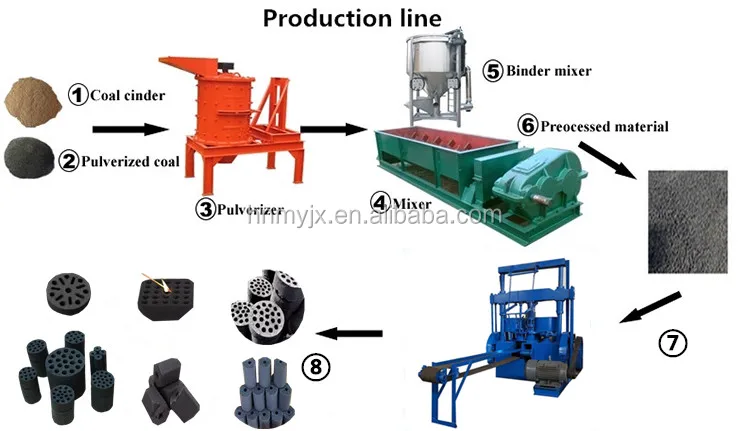

Raw material-----Crushing-----Mixing-----Feeding-----Briquetting----Final briquette

 2. The general introduction of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder:

1)honeycomb machine is also called coal charcoal briquetting press, coal charcoal briquetting machine, coal charcoal moulding machine, or coal charcoal honeycomb briquette press.machine

2)The raw materials will by formed by the punching needles of the machine and the final products have high density and easy to burn, long lasting burning as well.

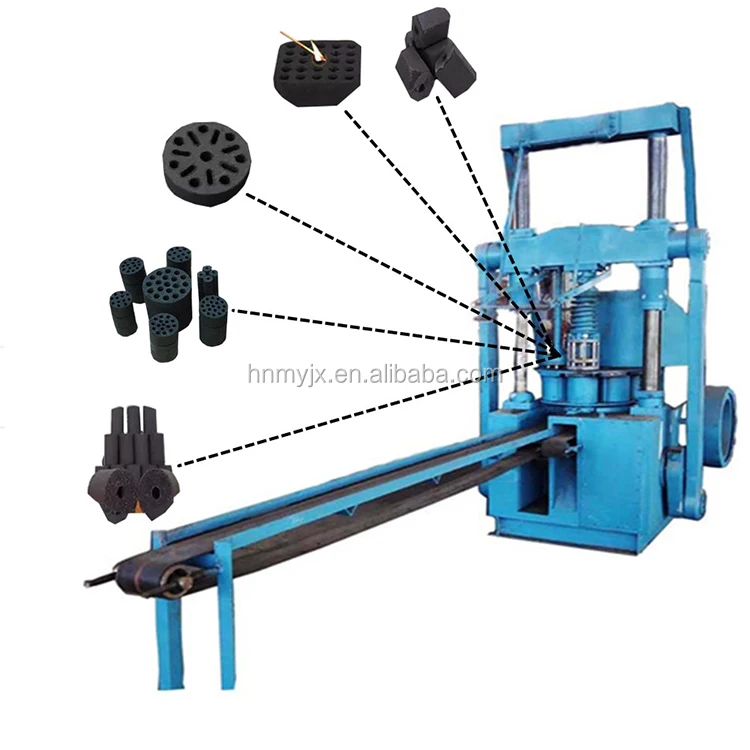

3)The machine consists of frame part, driving part, feeding part, press shaping part, and finished product delivery part.

3.1) Frame part: platen, engine base.
3.2). Driving part: motor, pulley, gear, transmission shaft. The gear is driven by the pulley connect with the motor by belts. The gear movement drives the transmission shaft. The transmission shaft drives the plate.
3.3). Feeder parts: rotation shaft, hopper, mixer etc.
3.4). Briquette press part: four slide bars, punch, punch seat, platen, mold sole, spring.

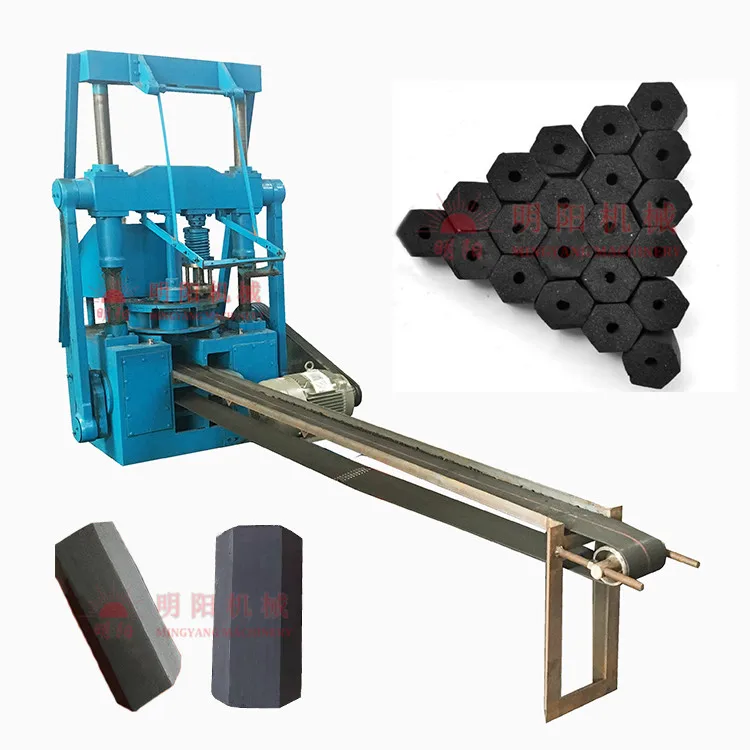

3.5). Delivery part: delivery rack, pulley, and belt conveyor.

3. The raw material of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder

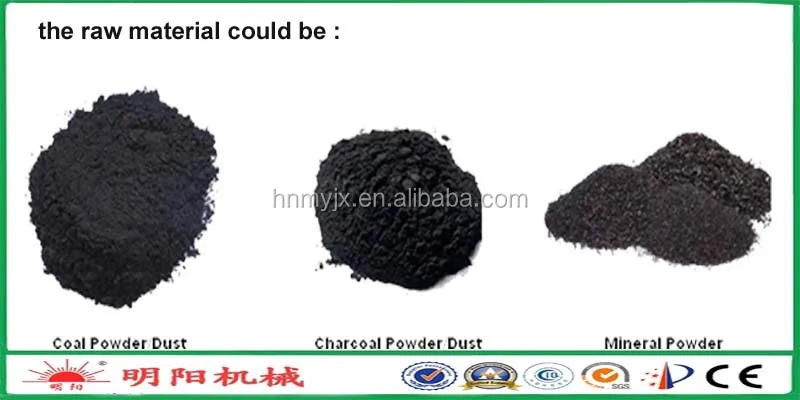

1) Raw material: All kinds of coal powder,charcoal powder,biomass materials.
It can be coal powder, charcoal powder, coke powder, carbon black powder, brown coal, many mineral powder, etc. It also can be biomass materials and agricultural materials like all kinds of straw, sawdust, wood, branches, shells, husks, biogases etc as raw materials to produce charcoal briquettes.
2) Raw material diameter: Less than 3 mm.
3) Raw material moisture: 8-12%.
4)Add different binder according to your raw material and final briquettes requirements.(liquid and dry powder binder).

4.The main technicak parameter of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder

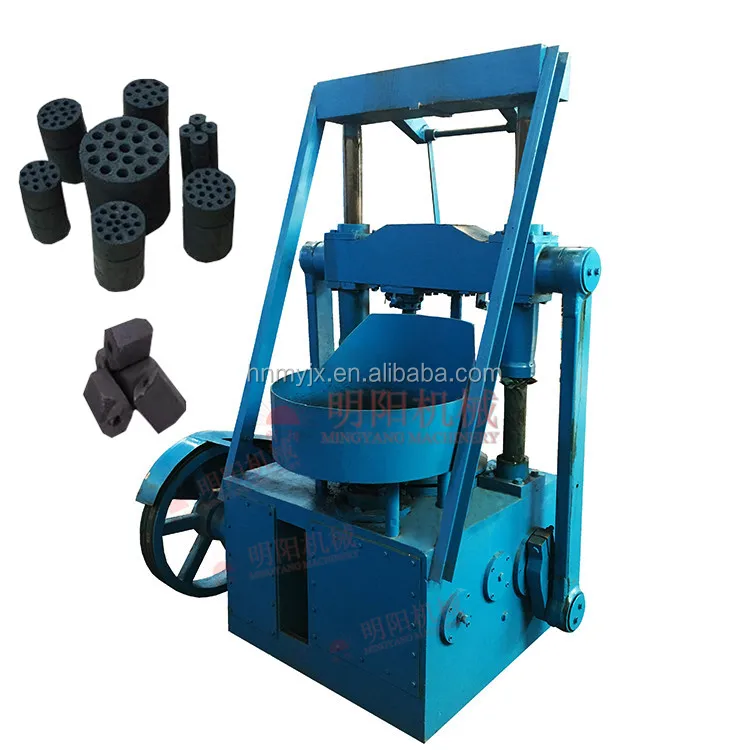

The coal charcoal briquette maker machine is mainly used to make the coal briquettes in honeycomb shapes

5. The final briquettes from the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder:

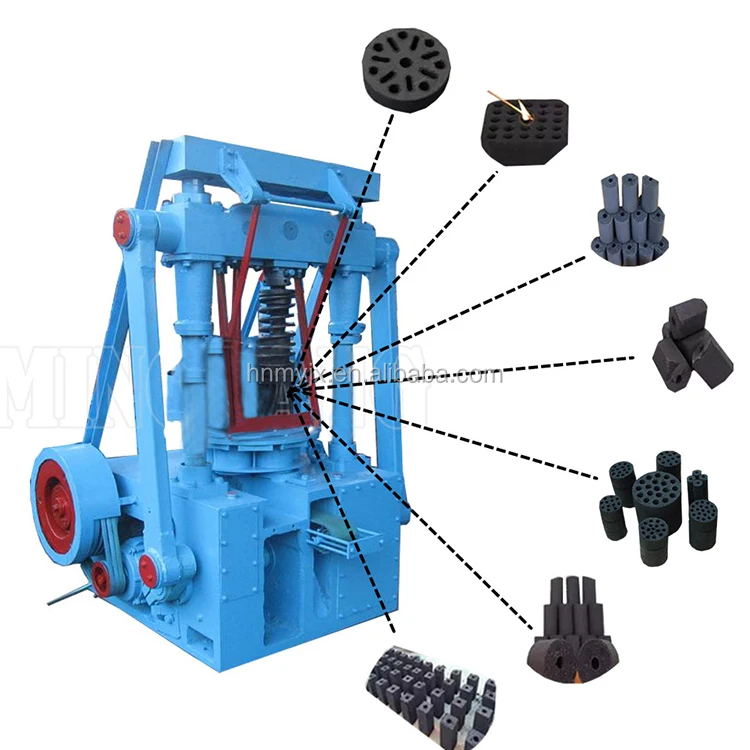

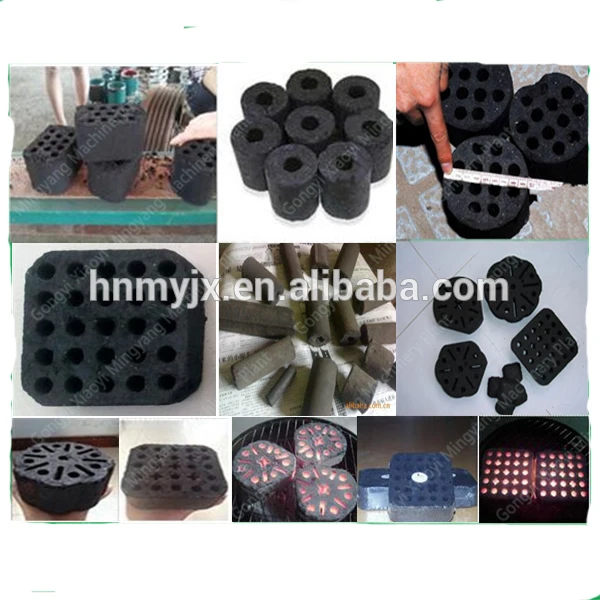

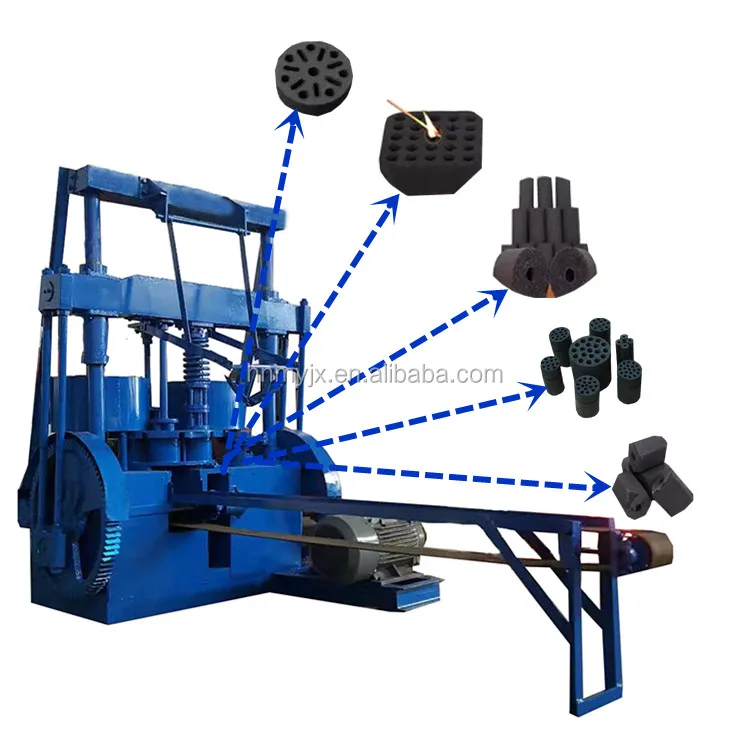

(1) Shapes of final briquettes: There are different shapes, such as cylindrical,round, square, flower shapes
and fan-shaped, hexagonal shape,etc. Or we can custom moulds as your requirements.
(2) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made diameter.
(3) Honeycomb height: 80±5.0mm;90±5.0mm
(4) Inside hole diameter is:14-16mm or 25mm.
(5) Hole number:16PCS ; 19PCS or required hole number.
(6) Binder formula: we have 6 kinds binder formula, we also can offer water-proof formula and instant ignite(combustion-improver) to our customers free of charge.

5. The advantages of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder

1.Each machine can be equipped with various molds for different needs.
2.Customized service: Moulds can be customized according to customers special demands.
3.Flammable, produce high calorific value 4000-6500 kcal.
4.Durable burning time is 80-100 minutes.
5.This machine is designed novelty with rational structure and could running stably
6.Positioning system:distinctive positioning system, can position accurately once
7.Copper heating:use copper to lengthen machine service time.
8.Spart parts supply: Our spare parts are manufactured standardized in batch, so you can get them easily and convenient in future.

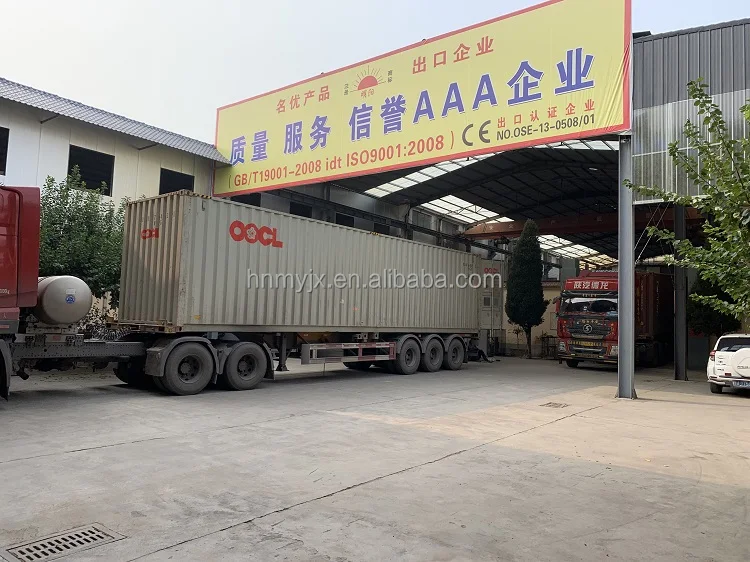

6. The transportation of the Honeycomb Coconut Shell Charcoal Briquette Machine For Coal Powder

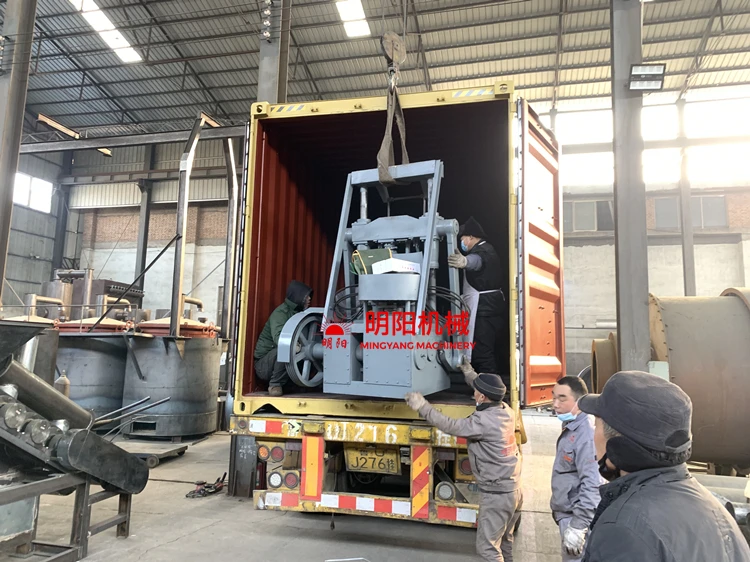

For one single machine we use the wooden case for the package , for the whole line , we need to use the whole container for the transportation .

Gongyi Xiaoyi Mingyang Machinery Plant
is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market,
 see more.......

If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
