Pulse three double gun skin beautifier skin care beauty industry instrument

Product Overview

Description

Pulse three double gun skin beautifier skin care beauty industry instrument

1,Product Introduction

    Ice beam skin softer is a beauty equipment combining the most popular facial care terms at present, which has a significant clinical effect and has been proven to safely and effectively apply to different skin types and skin complexion.

    Applying the most advanced technologies in the field of optical beauty, smart and fast painless hair removal machine could solve two traditional difficult problem of hair removal slowness and pain, it brings revolutionary change in the optical hair removal field, making the customer enjoy easy and comfortable hair removal.



2,Technological Advantages

    Latest technique of mobile light therapy, fast and efficient.

    Latest single pulse technology. Painless, comfortable and relaxed during hair removal

    Latest plug and play butt joint, separate water and electric design, more secure and easy to install.

    Perfect  combine of  large capacity stainless steel tank and industrial radiator,  it provide water cycle cooling system which satisfies customers’ continuous treatment demand.

    Nine operating languages suit to different colleagues in different countries.

    Water flow and temperate self- testing system and self-correcting system to guarantee safe operation.



3 ,Technical Principles

    E-light technology: Aimed at entire dermis and connective tissue, IPL and Bipolar RF technology stimulates and makes the collagen in different depths rearrange and grow  so as to achieve the therapeutic effect, while bipolar radio frequency simultaneously releases energy, making diseased tissues in epidermis and dermis produce light pyrolysis through skin’s selective absorption of light energy. Because of  energy it needs far lower than traditional IPL, it makes the pigmented and vascular diseased tissues in epidermis and dermis absorb more energy without skin damage and removes these diseased tissues, by which achieves therapeutic effect.

    SHR technology:The effective depth penetration of 640nm-1200nm professional wavelength of  hair removal can reach to papilla, and continuously shines to ensure the target tissues  produce sufficient heat that makes hair follicles and stem cells around them lose activity until hair follicles atrophy and hairs stop growing; latest single pulse technique and sapphire contacting operation head making operation and cooling work simultaneously, not only have a good long-term effect in hair removal, but also protect normal skin tissues from harm and make customers feel more comfortable during the operation.

    SHR core is capable of precise control of each pulse, and the energy of each pulse is no attenuation effect on our skin, it is precisely because this will form a perfect pulse energy, eliminate the first pulse E light IPL high energy peaks, one by one sub-pulse energy attenuation of the drawbacks of this technology, which makes the SHR had a special effect in the treatment of a significant improvement of the above, especially in the cream, hair removal, skin rejuvenation aspect. More Good improve skin texture, reduce the role of pores, skin rejuvenation technology is therefore a real sense, more important is the safety of the treatment is greatly improved, to avoid the kinds of IPL treatment often occur past skin burns, etc. side effects. The real pulse energy to the whole issue of uniform output steady, full intelligent control software, set pulsed light rejuvenation, pigmented lesions, vascular therapy in one, once SHR therapeutic effect equivalent to 2-3 times the conventional art therapy. Sapphire cooling technology, greatly improving the safety and effectiveness of treatment. This is the fourth generation of IPL technology through full breakthrough. Square wave technology that is perfectly controlled SHR intense pulsed light technology, is the latest generation of pulse technology.



4, Range of application

    Hair removal: permanent hair removal, hairs through whole body(hairs in growing period, including tiny hairs with light color

    Freckle removing: removing freckles, chloasma, sunburn, age spots, acne marks and facial blemishes

    Skin Rejuvenation: improving large pores, rough skin, tiny wrinkles, and restoring skin elasticity.

    Telangiectasia treatment: redness, facial flush.

    Improving dull complexion to whiten and uniform skin

    Specifically eliminating red, brown, suntan and other colored tattoos.

    Effectively wiping out all kinds of eyebrow, embroider eyebrow, tattoos, eyeliner and lip liner.

    Treating pigmented skin lesions and mixed hyperpigmentation such as age spots, birthmarks, ota nevus, moles and so on.



5,Technical Parameters

Illuminant	IPL	Spectral Range	430/480/530/560/640-1200nm(E-LIGHT) 640-1200nm(SHR)
Illuminance Area	15*50mm(E-LIGHT) 10*40mm(SHR)	IPL Energy	1-50J/cm²
Adjustable pulse width	2-99ms(E-LIGHT) 0.1-20ms(SHR)	SHR Frequency	1-10Hz
Display Screen	8.0- itch color touch screen	Cooling system	Water cooling + semiconductor refrigeration, air cooling
Total Power	2000W	Voltage	AC220V / AC110V Alternative
weight	50kg	package size



6 ,Attachment Lists

Terms	Unit	Amount	Remarks
Main Engine	PCS	1
Hand Tools	PCS	1
Power Line	PCS	1
Keys	PCS	2
Blinder	PAIR	1	Used by customers
Protective Glasses	PAIR	1	Used by conductors
Water-injected Funnel	PCS	1
Protective Tube	PCS	2	Standby
Rack	PCS	2	E-light, SHR
instructions	PCS	1



  Please check the items immediately with the attachment list after unpack, and contact our company in 24 hours if there is any missing or damaged term.



7,Installation and debugging

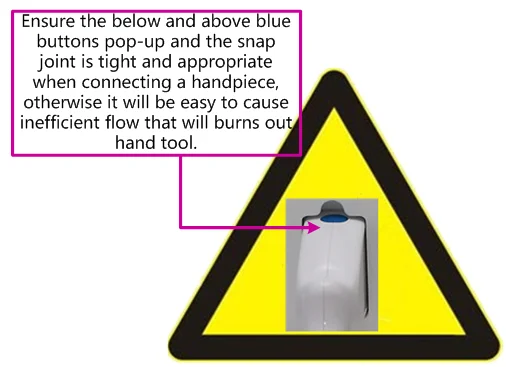

Step One: Hand-tool installation	1 Pick out rack screws and install E-LIGHT, SHR racks 2 Contact handpiece in handpiece interface tightly and appropriately and put handpiece on its holder.	Key Step
Step Two: Apparatus Injection	1,Screw off the sealing cap of injection hole and overflow hole. 2,Screw water-injected Funnel in injection hole and inject  water(pure water or medical distilled water)in machine, until water flows from the overflow hole. 3,Screwed on the sealing cap after injection is completed, and screw tightly the sealing cap ofoverflow hole while injection hole is not used.	Key Step
Step Three: Apparatus Debugging	1,and ensure the waterway and circuit is connected accurately, then plug in the power line, turn on power switch behind the backboard and start up on the condition that joints do not leak. 2,Clockwise screw the sudden button and clockwise to unscrew the key switch and start the apparatus.	Key Step





8,Product Display

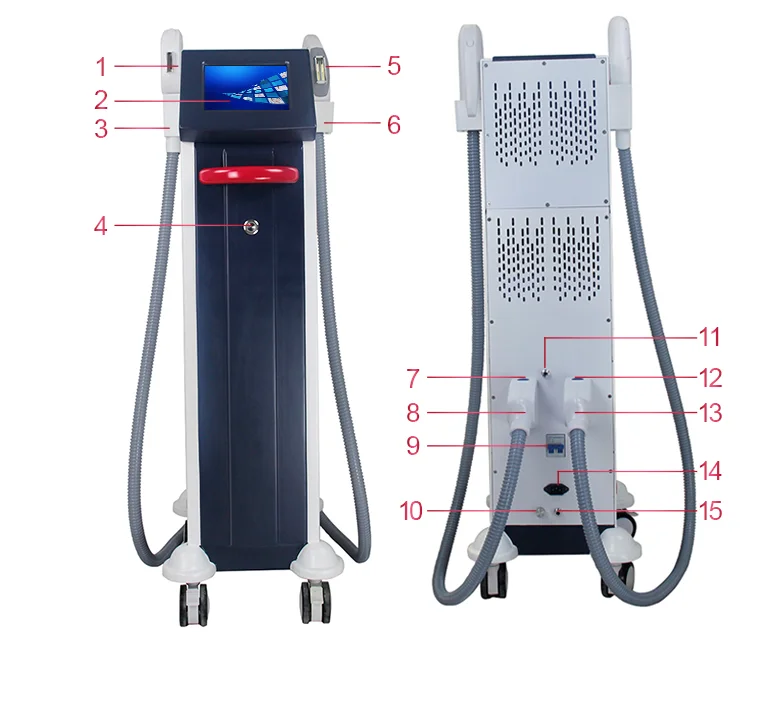

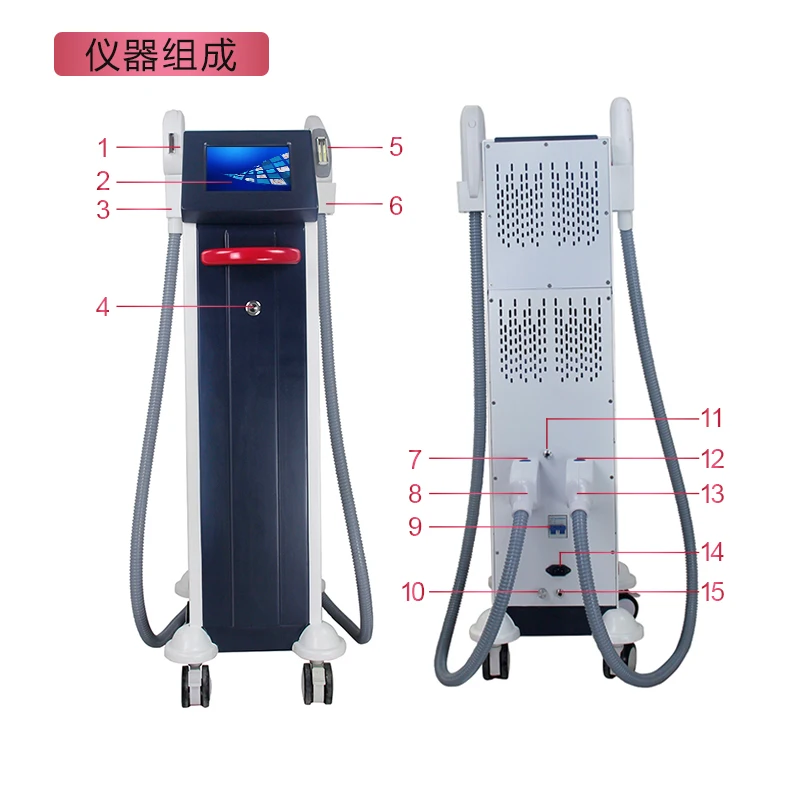

1. SHR handle    2. Screen     3. Handle bracket    4. Power switch    5. E-light handle

6. Handle bracket     7. Spring buckle    8. E-light Plug head   9. Main switch

10. Drain hole  11. Water injection hole  12. Spring buckle  13. SHR Plug head

14. Power line interface    15. Overflow hole











1.24 hour online service
2.We offer OEM&ODM service.
3.We offer free samples for you to test the quality.
4.Package customize is welcomed!
5.Our products are approved by CE and ROHS

6.Welcome to visit the factory.



Q. Do you have any warranty?
A. Yes, we have. One year warranty on host machine is given. Three months free replacement warranty for handles, treatment heads, and parts.
Q. How is your after-sale service?
A. We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q. What certification do you have?
A. All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
