6YL series screw press is a kind of oil processing equipment with wide applicability and excellent performance. It is suitable for pressing a variety of vegetable oils such as rapeseed, peanut, tea seed, soybean, sesame, tung oil seed, cottonseed, oil sunflower and palm kernel. The product has the characteristics of beautiful appearance, compact structure, simple matching, simple operation and maintenance, strong applicability and high oil extraction efficiency. Applicable to all kinds of medium and small oil plants and personal processing and production.

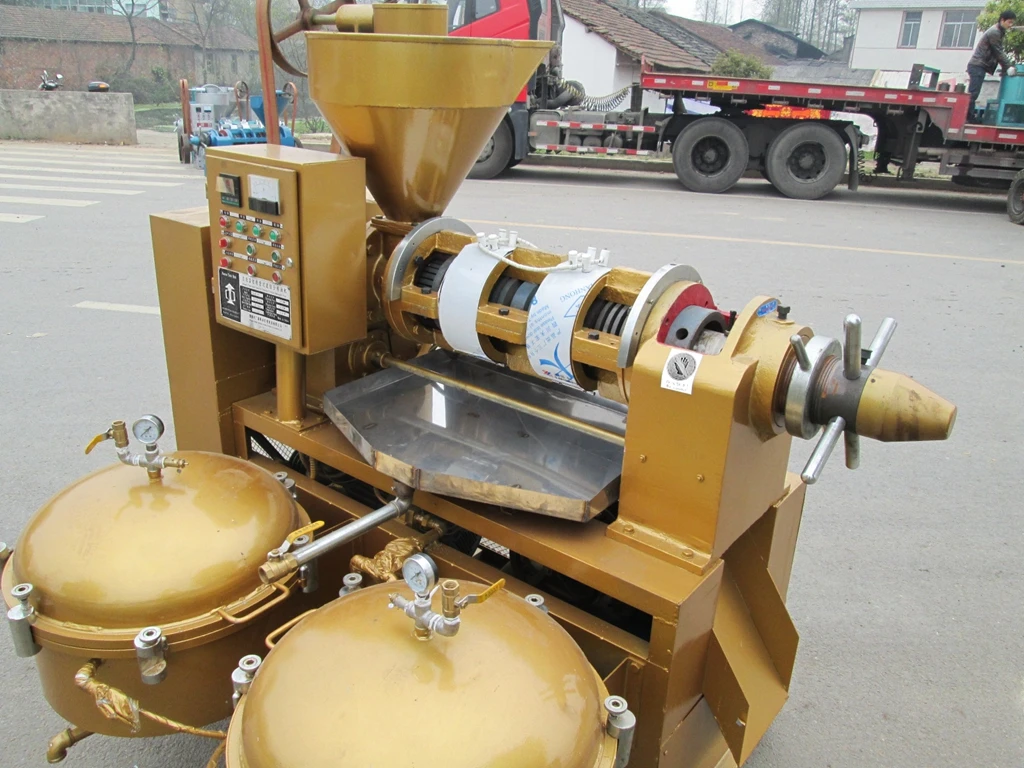

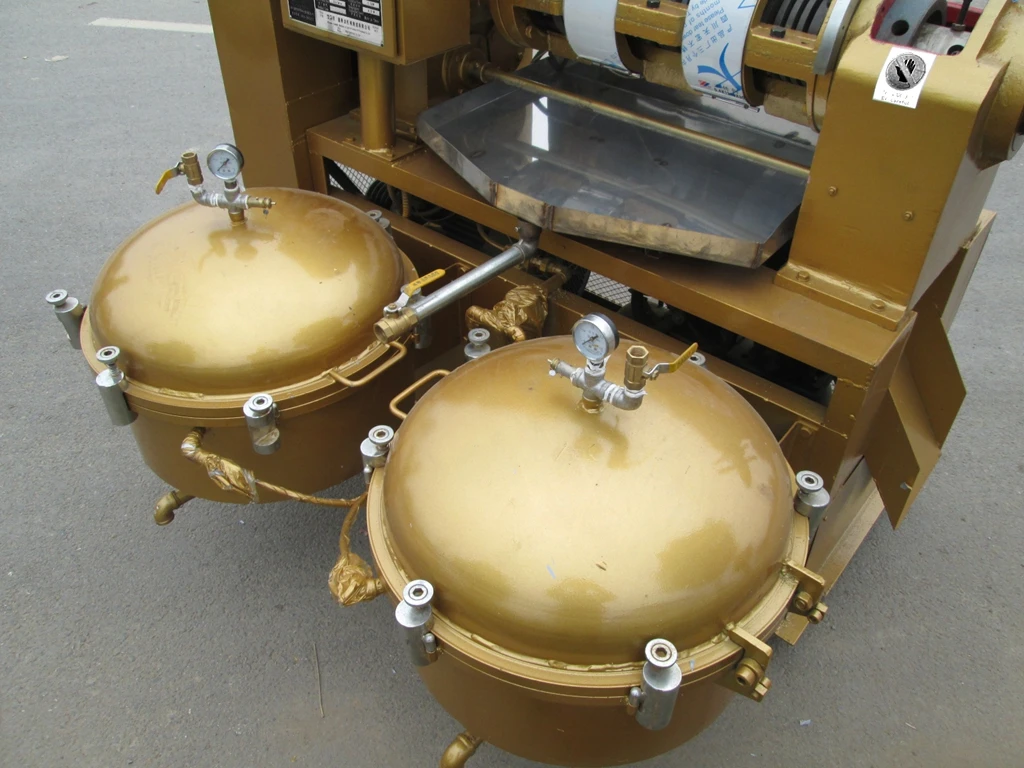

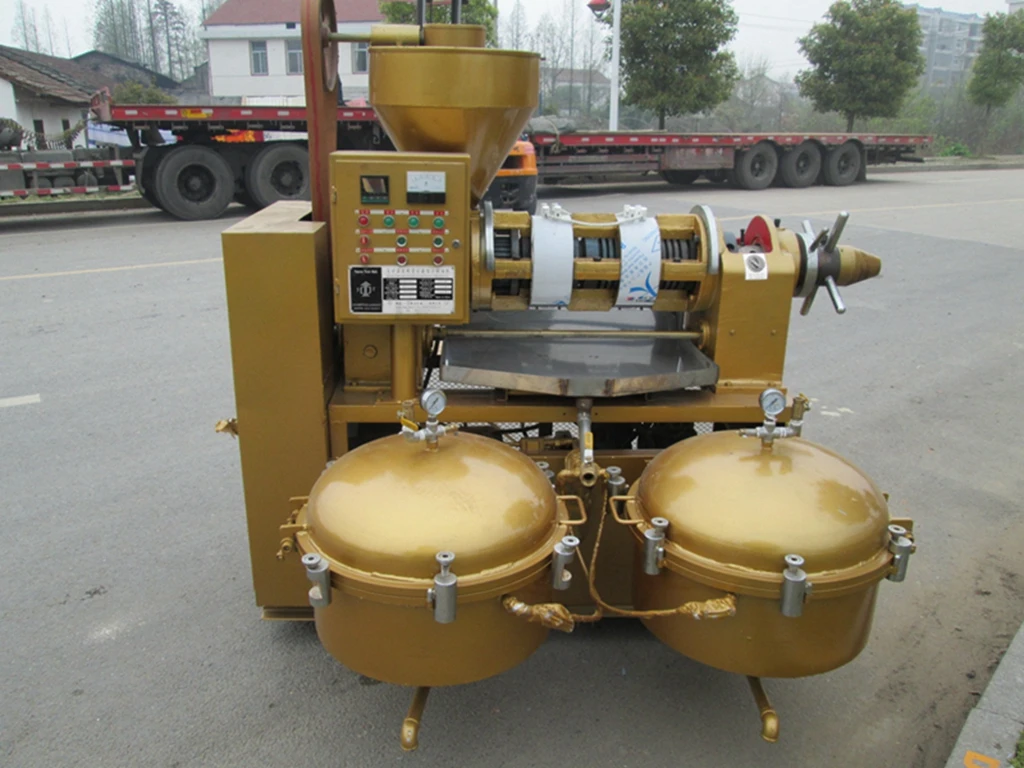

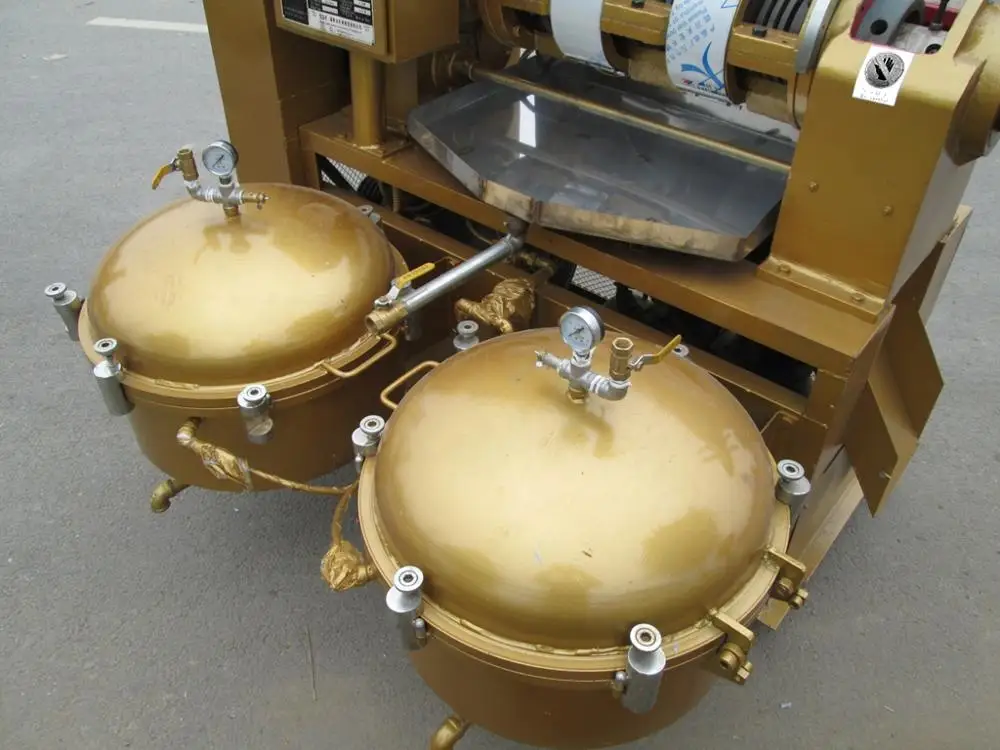

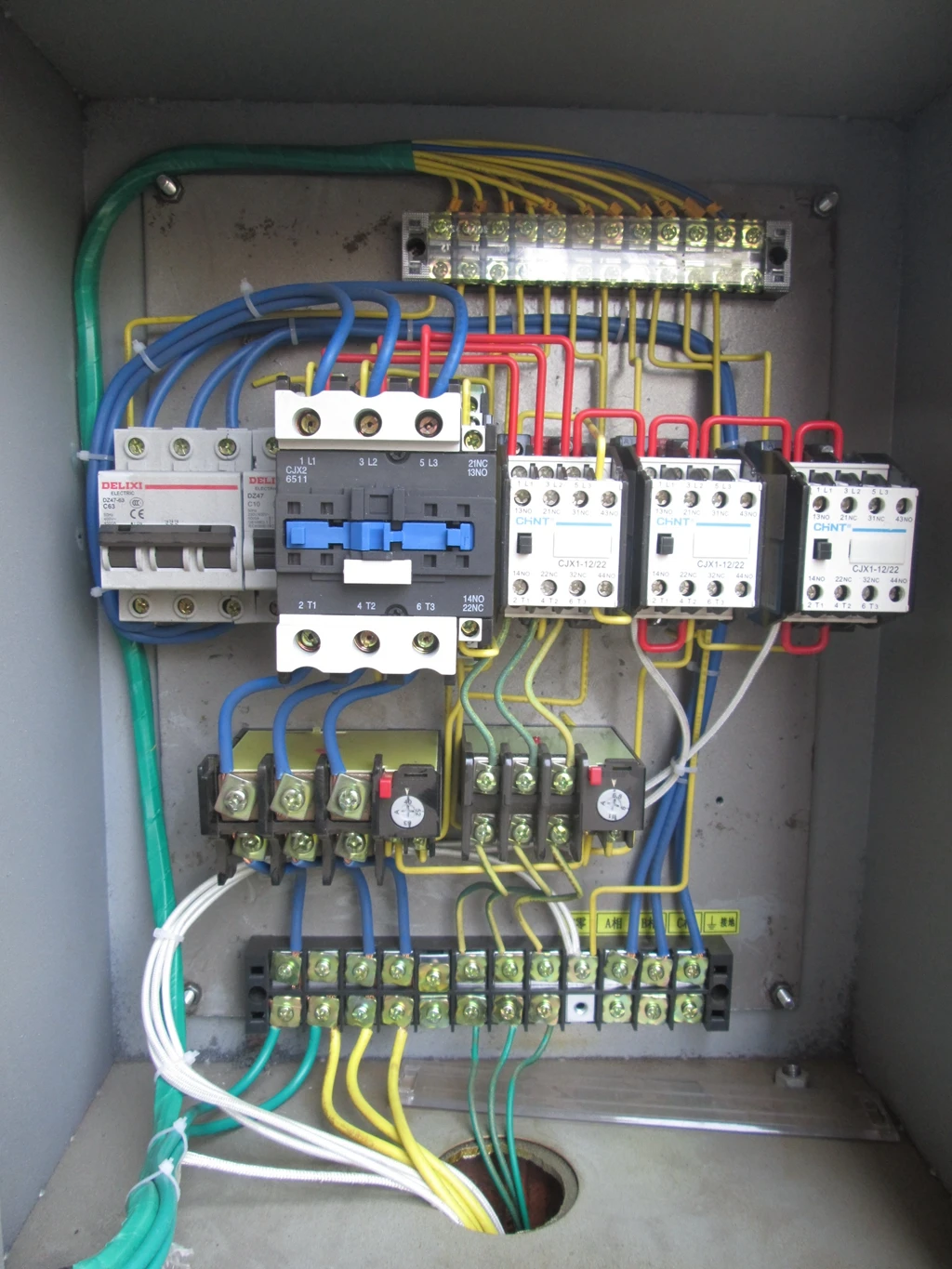

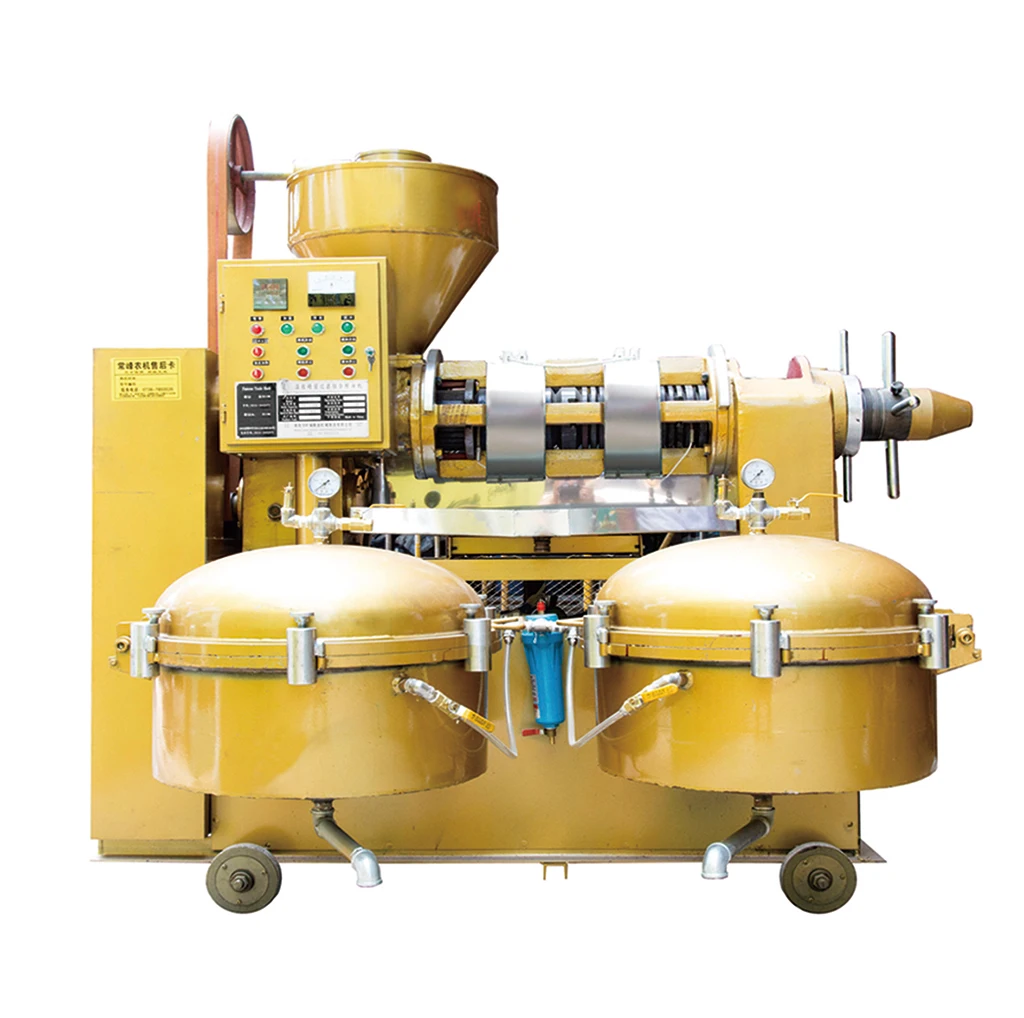

The 6YL-120 integrated oil press is based on the 6YL-120 standard type, adding a filtering system and enhancing the controller function. The whole machine is more beautiful and compact, the operation is simpler, and the operation intensity is reduced.
The quality of this product complies with the regulations of the People's Republic of China Machinery Industry Standard JB/T9793.1-2013 "Agricultural Screw Extruder".
Technical Parameters:
Dimensions (mm)
1950×1550×1950
Machine weight (kg)
1160
Packing size (mm)
2100×1700×2100
Screw shaft speed (r/min)
30~40
Motor power (kW)
15
Heating power (kW)
1.5
Filter oil power (kW)
1.5
Working voltage (V)
380
Pressure ring size (mm)
φ120
Performance:
Name
Processing capacity
Dry cake residual oil rate
Oil production efficiency
Tons of electricity consumption
Rapeseed
6.5 t/24h
≤7.6%
≥82%
≤34 kW·h/t
Cottonseed
5.5 t/24h
≤6.8%
≥77%
≤54 kW·h/t
Soy
5.5 t/24h
≤6.5%
≥67%
≤51 kW·h/t
Peanut kernel
6.5 t/24h
≤6.5%
≥92%
≤34 kW·h/t
Note: The daily processing volume refers to the processing amount when hot pressing (cooking) is performed once; the actual result will be inaccurate with the data in the table due to factors such as the variety of oil, the quality, and the difference in operation.
