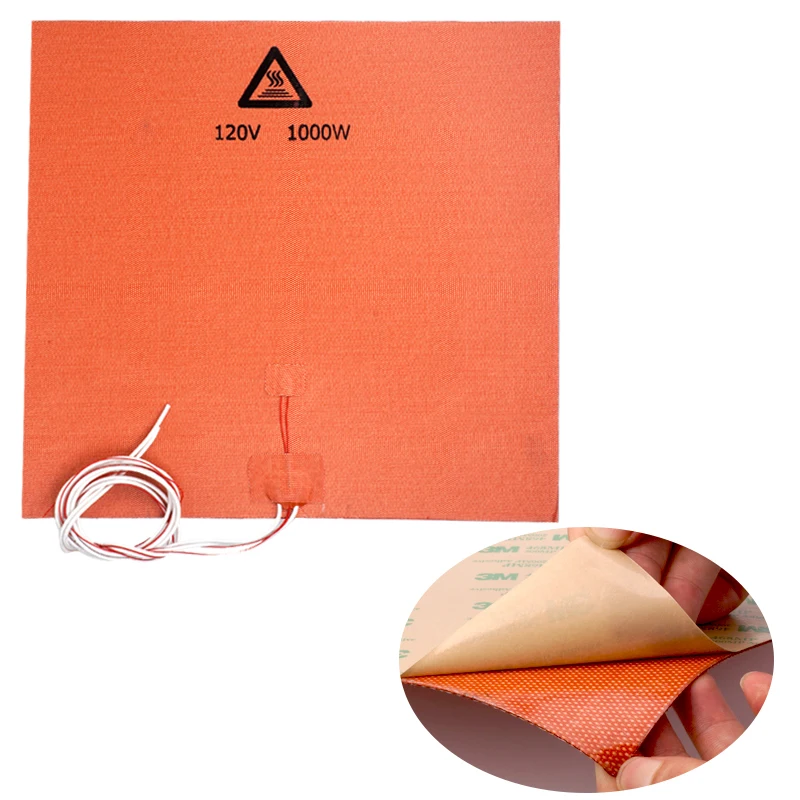

Customized size Silicone Heater Pad Silicone Heater Mat Heat bed With NTC 100K Thermistor 3M Adhesive
- Category: Printer Supplies >>>
- Supplier: Shenzhen,Fuyuansheng,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Customized size Silicone Heater Pad Silicone Heater Mat Heat bed With NTC 100K Thermistor 3M Adhesive
Accessories:
1m power cable(white)
Surface mount NTC 100K thermistor + 1m extension wire(red)
3M adhesive backing
4 pre-made screw holes as per drawing
Advantage:
Wonderful silicone heater for your 3D printer build plate heating.
Rated at 5.2 watts per square inch with fast and even heating.
Equipped with NTC 100K thermistor ( Beta 25/50 3950K-1%) as temperature control sensor which is supported directly by Marlin firmware.
3M adhesive backing offers excellent and easy mounting onto most surfaces.
Versatile and may be used in many other applications.
Important Notes:
Please heat only when after it's mounted onto the build plate (Aluminum plate recommended).
WE CAN OME,when your order>5pcs
supply voltage: | 0-400V,Please contact us for other voltages. |
Insulation Material: | Silicone Rubber Coated Fiberglass |
Max.Operating Temperature: | 260 Deg C or 500 Deg F |
Max.Power Density: | 5w/sq.cm depending on application |
Heating Elements | Wire Wound or Etched Foil.Please contact |
Resistance Tolerance: | about +/- 5% |
Thickness: | 1.5mm |
Flammability: | Flame retardant |
Thermal Protection: | On board thermal fuse,thermostat,thermistor and PT100 are available as part of your thermal management solution. |
Power Leads: | High temperature PTFE or Silicone insulation leads |
