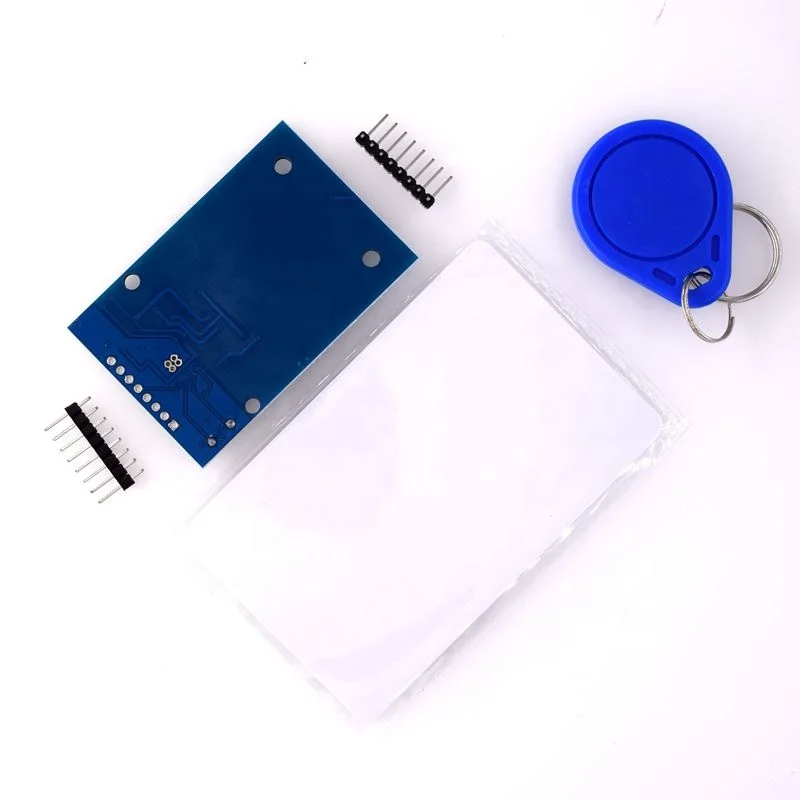

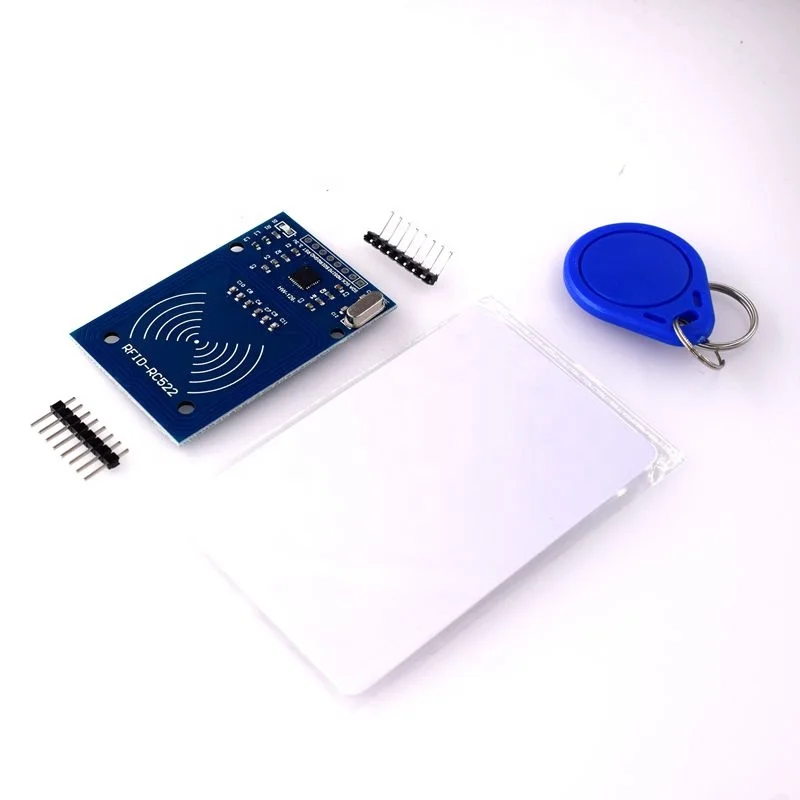

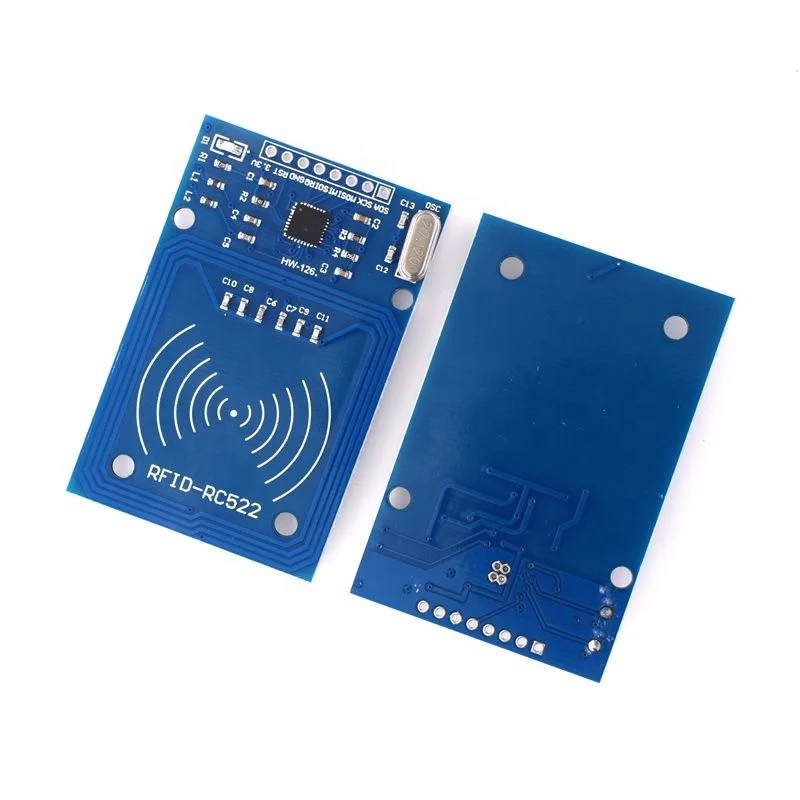

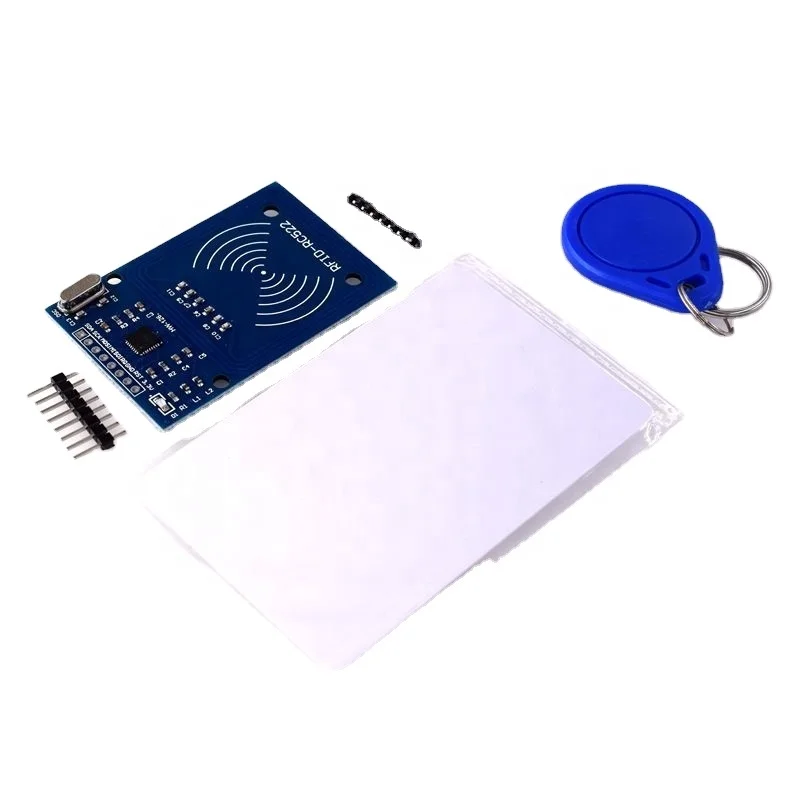

#126A MFRC 522 RF IC reader Card 13.56MHz RFID RC522 Sensor read Module rc522 rfid card reader writer module
- Category: Access Control Systems & Products >>>
- Supplier: Shenzhen Hairuixing Technology Co. Ltd.
Share on (62256499594):
Product Overview
Description
Product Description
Product introduction:
The MF522-AN module adopts Philips MFRC522 original chip design card reader circuit, which is easy to use and low in cost. It is
suitable for users of advanced applications such as device development and card reader development, and users who need to design/produce RF card terminals. This module can be directly loaded into various reader molds. The module adopts a voltage of 3.3V, and can be directly connected with any CPU motherboard of the user through a few lines of the SPI interface, which can ensure stable and reliable operation of the module and long reading distance.
Parameters:
* Working current: 13-26mA/DC 3.3V
The MF522-AN module adopts Philips MFRC522 original chip design card reader circuit, which is easy to use and low in cost. It is
suitable for users of advanced applications such as device development and card reader development, and users who need to design/produce RF card terminals. This module can be directly loaded into various reader molds. The module adopts a voltage of 3.3V, and can be directly connected with any CPU motherboard of the user through a few lines of the SPI interface, which can ensure stable and reliable operation of the module and long reading distance.
Parameters:
* Working current: 13-26mA/DC 3.3V
* Idle current: 0-13mA/DC 3.3VSize:40mm × 60mm
* Sleep current:<80uA Peak current:<30mA
* Operating frequency: 13.56MHz
* Supported card types:mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Ambient operating temperature:-20-80 degrees
* Celsius Environmental storage temperature: -40-85 degrees
* Celsius environment relative Humidity: 5%-95% relative humidity
* Data transmission rate: up to 10Mbit/s
* Data transmission rate: up to 10Mbit/s
Company Introduction
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
