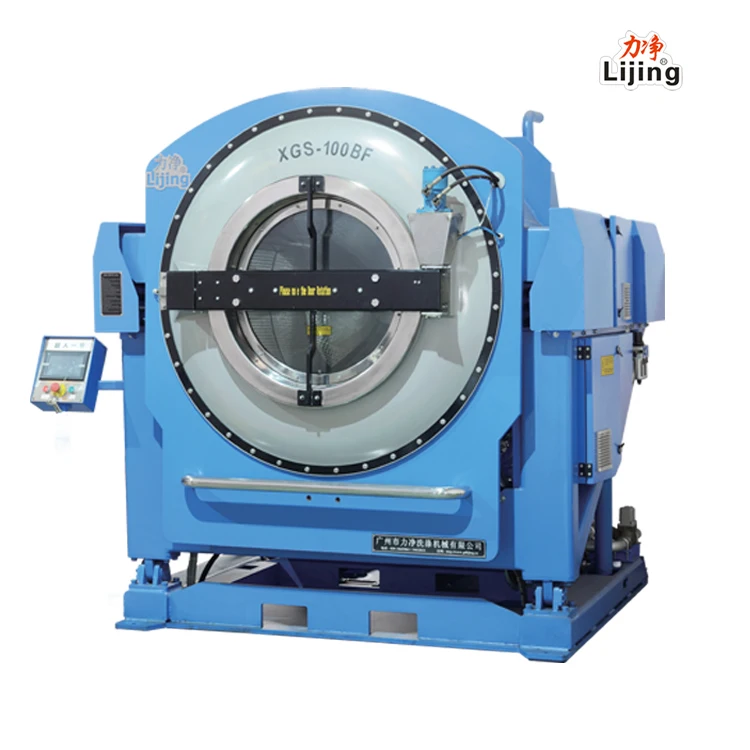

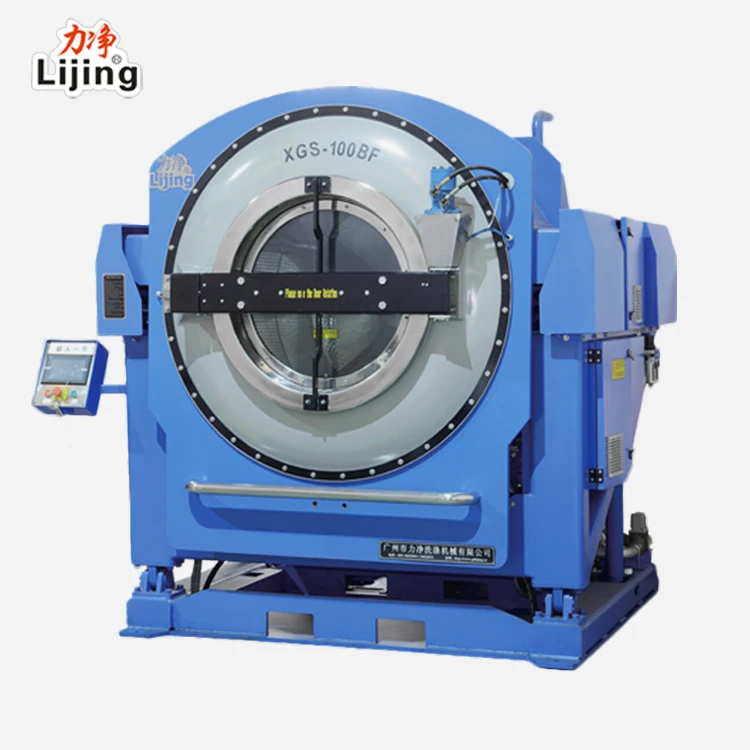

Garment factory 100kg Super Series Variable Frequency Commercial Tilt Washer Extractor Hotel Washer Extractors
- Category: >>>
- Supplier: Guangzhou Lijing Washing Equipments Co. Ltd.
Share on (62256679452):
Product Overview
Description
Clothes Washer Extractor Equipment
Product Description
1. This series of machine have the functions of washing and dewatering, automatic and manual switch back and forth. Arbitrary choice of the wash cycle, the number of cleanings, dehydration time, etc. For a wide range of fabrics. The device uses a variable frequency drive, speed adjustment smooth, flexible, low noise; equipment used back drainage structure to solve the problem of clean laundry;
2. Large screen computer version control, strong function, flexible and professional. 40 sets of program memory. Manual controller, when the computer controller failure, you can switch the emergency operating system, manual operation, complete the washing.
3. Inner drum is made of high quality stainless steel welded strength, punching sided, double-sided polishing and reduce fabric wear.
4. Mechanical equipment used under suspension spring shock structure, low noise, wash and high speed extract excessive smooth, no need the base.
5. Floating Viton sealing, completely isolated from the water, and the PH of the material penetration and protect bearings, improve life.
6. Large diameter, stainless steel deep-style doors fitted clothes, effectively prevent the clamp pull linen, while reducing the labor intensity of the operation; narrow popular in Europe and America, the big door, to ensure reliable sealing of the door.
7. Flushable five positions soap injection system, dual drainage options to configure, save energy, protect the environment, add the washed material is simple and convenient;
8. In vitro using the automatic refueling device, ergonomically mechanics, reduce maintenance labor intensity, can delay life;
Application:
Hotels, restaurants, laundry, hospital, school, enterprise and public institution and so on.
Product specification
| Model | XGQ-15 | XGQ-25 | XGQ-35 | XGQ-50 | XGQ-100 | XGQ-120 |
| Washing Capacity(kg) | 15 | 25 | 35 | 50 | 100 | 120 |
| Drum size (mm) | Φ700×450 | Φ800×470 | Φ920×500 | Φ1070x610 | Φ1200x875 | Φ1300x875 |
| Roller Speed(r/min) | 45 | 45 | 36 | 36 | 34 | 34 |
Motor Power (kw) | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 11 |
Steam pressure(Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Steam consumption (kg/h) | 18 | 25 | 33 | 35 | 60 | 70 |
| Air pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Dimension (mm) | 1050x970x1500 | 1200x1080x1700 | 1200x1180x1750 | 1430X1520X2100 | 1680X2080X1175 | 1770X2080X2080 |
Weight (kg) | 400 | 625 | 2100 | 2650 | 3600 | 4000 |

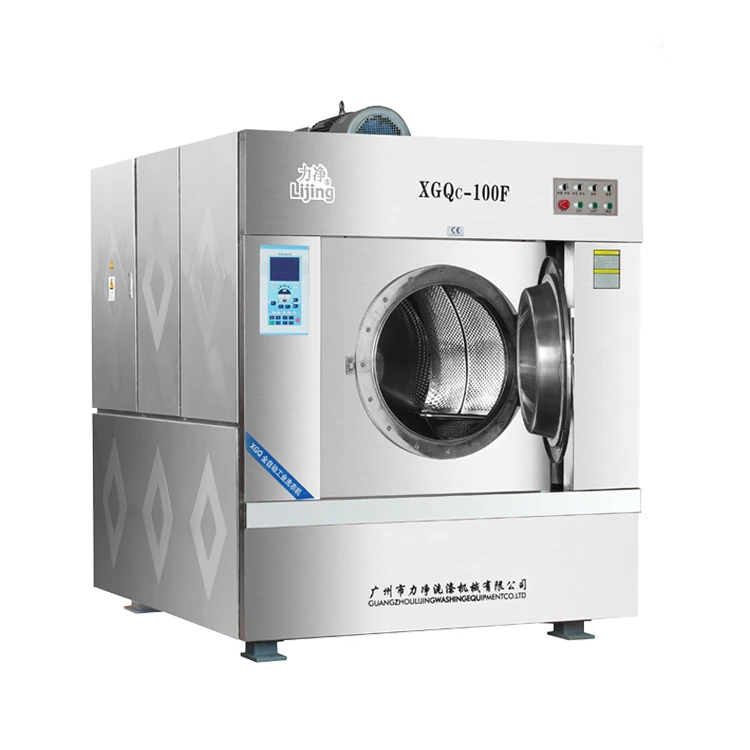

Product Picture:
Details:
Packaging & Shipping
Packing and Delivery:
Factory photo

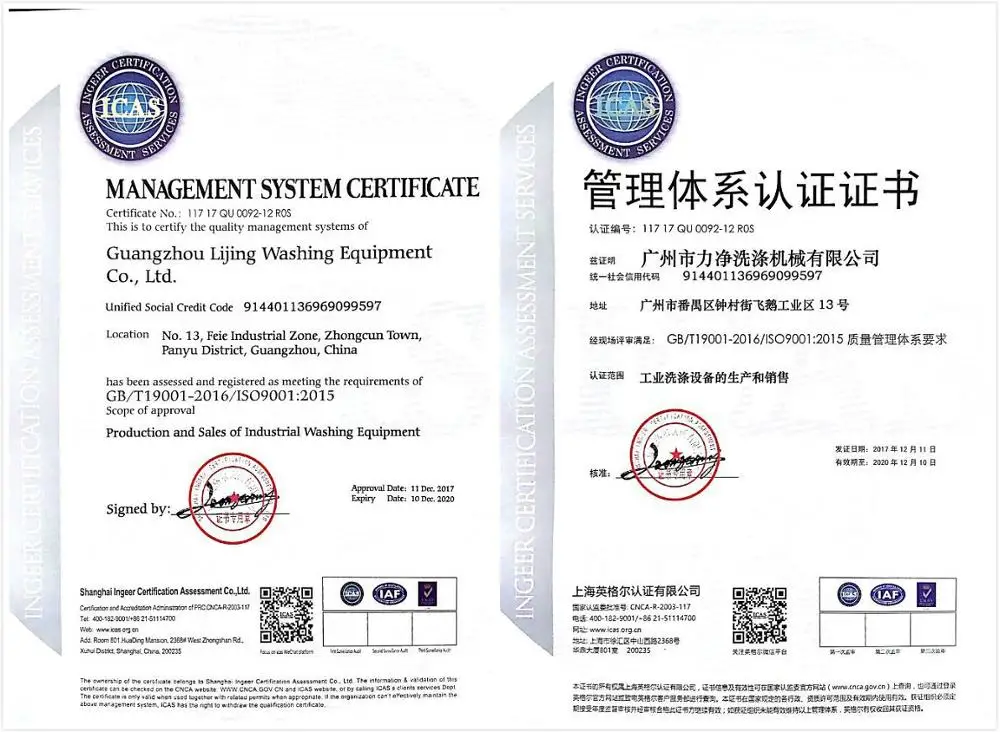

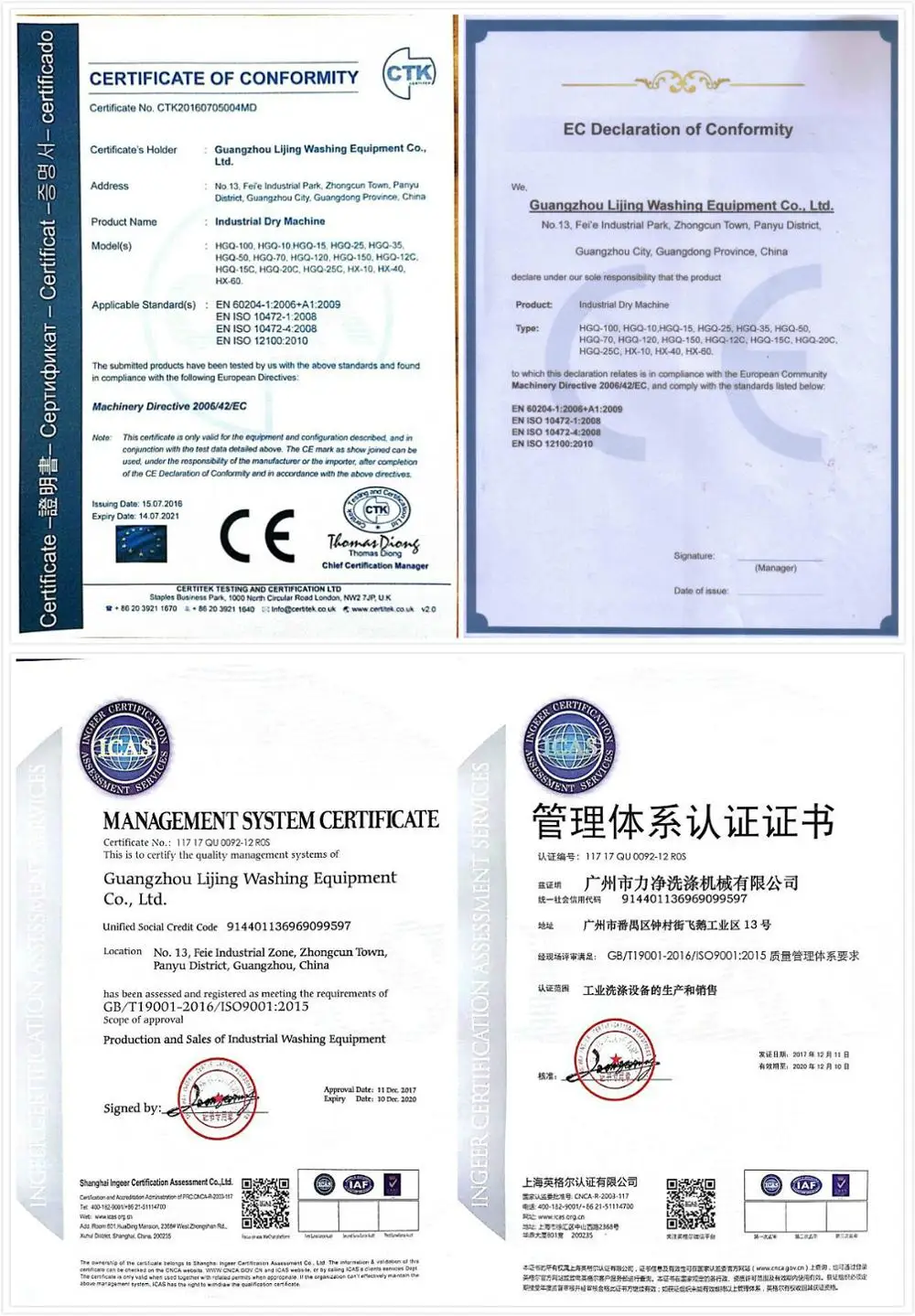

Our Certification:
Customer Picture
Why choose us
1. We are a leading professional manufacturer.
2. We have more than 20 years experience exporting all over the world.
3. Approvered by CE and ISO9001 system.
4. Rapid response of after-sales service.
5. Some machines have the spare parts, spare parts for free.
