waterproof SDI/IP/AHD /Analog 4G wireless vehicle mounted outdoor security PTZ CCTV Camera surveillance NVR kits laser vision
- Category: >>>
- Supplier: Shenzhen Bestscreen Technology Co. Ltd.
Share on (62256796992):
Product Overview
Description
Product Description
1.many options for customer selected ,IR /HID /Laser /infrared themal image camera as cusotmer selected
2. Camera Pixels :20x or 30x
3, H.264 video compression output and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
4,Full digital control, flexible programming, drive line compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
5, Max resolution 1080P@30fps ,720P/30fps
6,Supporting dual stream and HD capture
7,Supporting variety of HD Platform connection
8,It can be used on car surveillance.DC11V-DC18V
9,Weatherproof design, high die-cast aluminum casing,work temperature:-35℃~+55℃.,with sun-shield housing and wiper ,with infrared LED range up to 150meters ,it could catching image promptly at night.
10,360°Continuously rotation ,upward angle +90°~ -90°,no blind spot.
11,Pan preset speed 100°/S,tilt preset speed 80°/S,with 256 preset positions,6 cruising tracks.
12,Can be set to auto-cruise, horizontal scanning, the camera mode and displays the title.
13,PTZ coordinates, the lens magnification display function.
14,Car-surveillance shock absorber for optional,
15.Waterproof level: IP 66

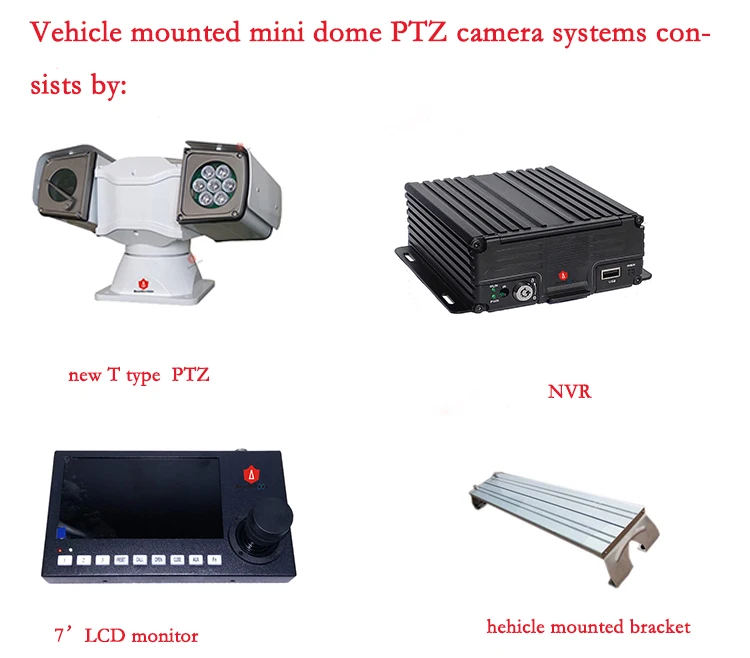

| Item | Parts of Descrpiton | Model | Parameters | Qty |

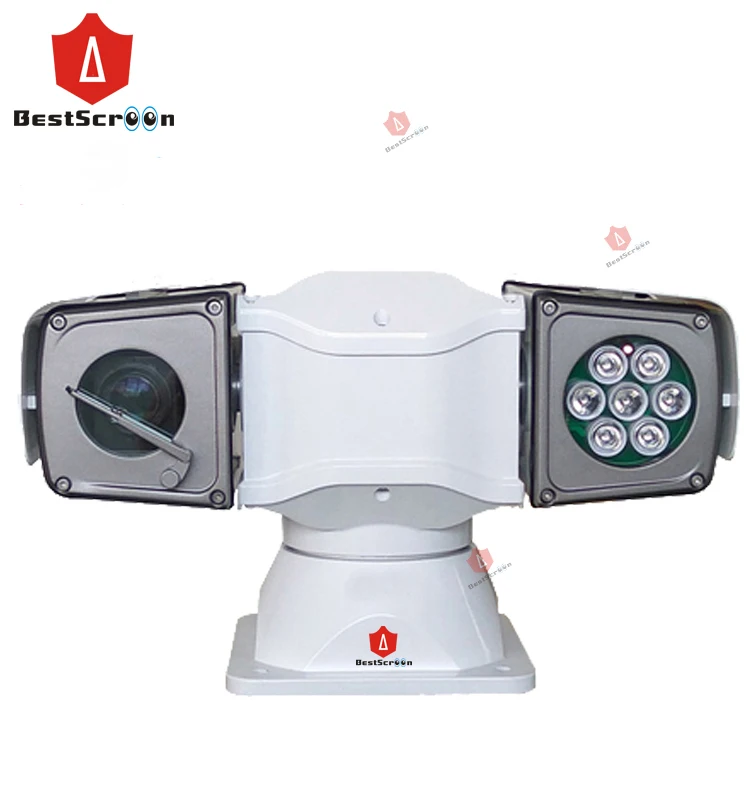

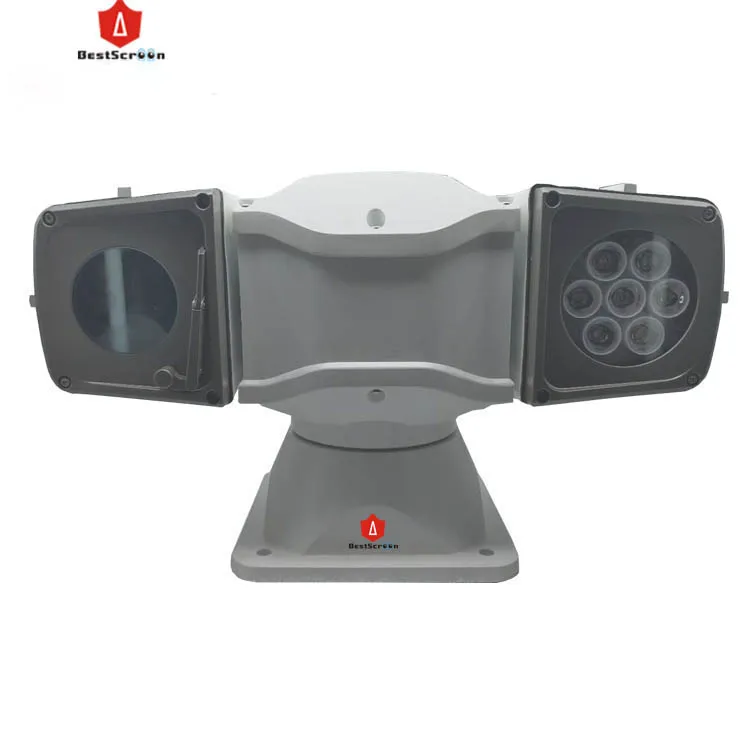

| 1 | mini dome Descrption | BSD10T-30-20IPTW | 1.Applicated in all weather conditions, dependant disfroging and disfrosting design . 2.360°continuously rotation, no blind spots when it looks up to 180°,PTZ high-speed rotation is smoother, low-speed rotation without jitter 3.Night version distance >=120m 4Pan Rotation speed =120°/s and tilt rotation 60°/s 5.Aluminium alloy ,stongly anti-seismic ,IP66 waterproof level, DC12V input 6.256 preset ,with power off memory function 7.Support a variety of mainstream digital HD camera movement & HD SENSOR, acquiring HD images ,with whisper and shock absorber seat 8. can built-in 20X /30X zoom camera 8.English user guide | 1 |

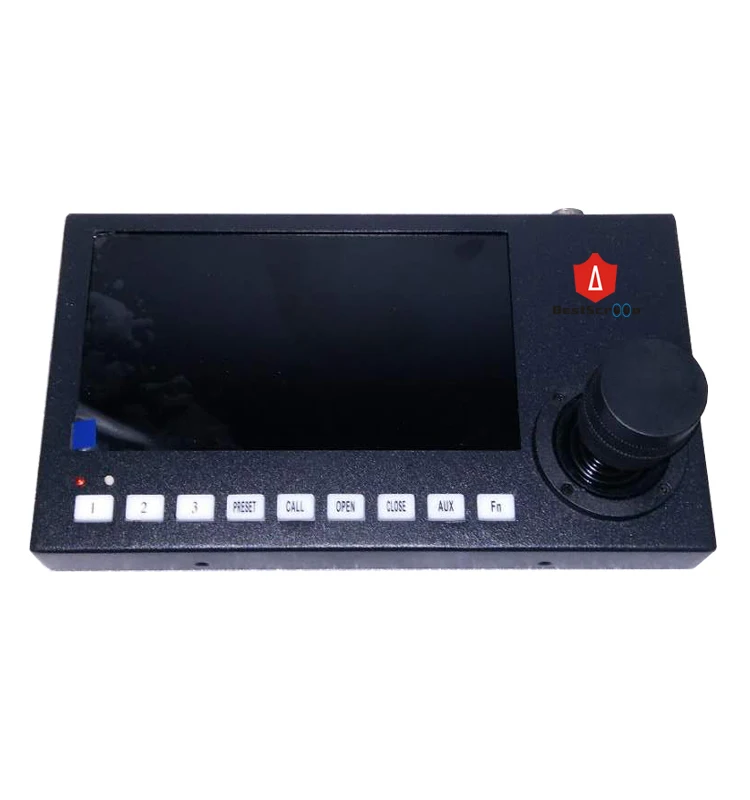

| 2 | 7' LCD keyboard monitor | BSKB-701 | 1.Integration of 7" monitor and 3-dimensional keyboard makes it looks smart and lighter 2.Used for controlling PTZ camera,able to control 5 pcs PTZ camera at the same time and set up preset positions 3.English keys and English user guide 4.Can set-up shortcuts order for Wiper,Infrared lamp ,Capture,Up and Down etc. 5..Rated Voltage :AC/DC 12V; Power:20W | 1 |

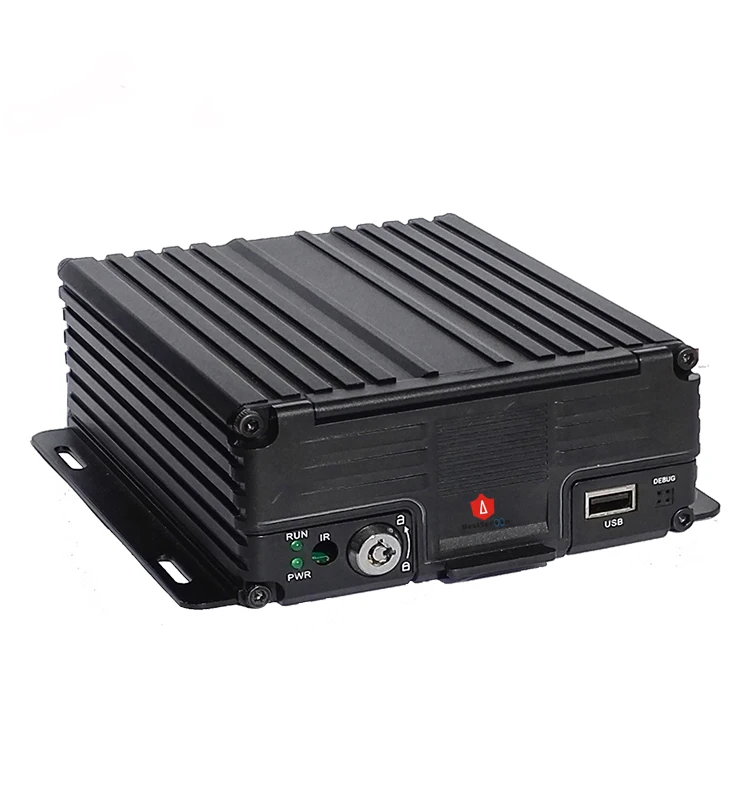

| 3 | 4 Channels NVR ( GPS,4G WIFI,HD ,SD is optional) | BSDV-4R-TL02 | 1.Video Input: 4 channels AHD /Analog signals access+1 channel IP signal input 2.2.Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug) ,1080p image resolution 3. Storage :1T HDD or .128 SD memory card for your optional 4. Additonal :4G wifi /GPS is for optional 5.Vedio compression :H.264 ,DC 12V | 1 |

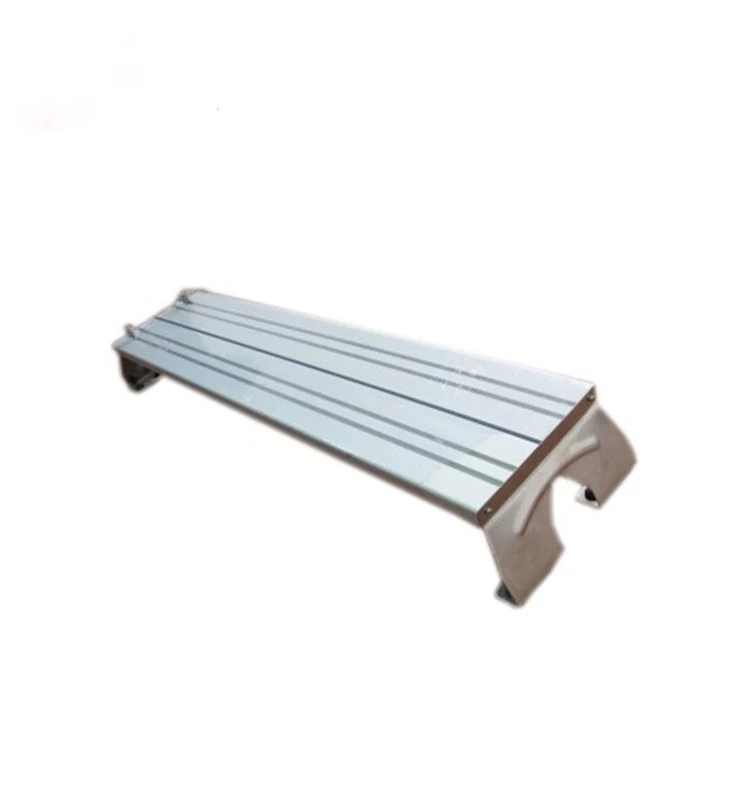

| 4 | Vehicle mounted Bracket | BSM-ZJ-01 | Standard vehicle mounted bracket ,1100~1500X240X135 mm, with 4 clasps and screws | 1 |
| 5 | Remark : if you need 4G /GPS long distance remote contral function ,we wil give you ID number if you use our server and operation platform of CMSV6 ,if not ,you can build your own's sever | |||
Parameters of built-in Camera :
Part NO. | BSD10T-TA4000 Series | |
Pan preset speed | 120°/S(manual contro0°~80°/S) | |
Tilt preset speed | 60°/S(manual control 0°~40°/S) | |
Pan range | 360° | |
Tilt range | +90°~-90° | |
Electric machinery | stepping motor (worm and gear) | |
Preset positions | 256 Preset positions | |
Control Way | RS485(Ntwork and SDI support RS485 and RJ45 | |
Baud rate | 2400Bps~19200Bps | |
Control protocol | Pelco-D/Pelco-P | |
Chroma | 850nm | |
Distance | 120m | |
Audio input/output | Support | |
Alarm Input/ Output | Support | |
Operating temperature | -35°C~+65°C | |
IP Grade | IP66 | |
Power Supply | DC10.5V~DC16V(6A) | |
Weight | 3KG(net weight) | |
IP(Network)Chipset | ||
Model | 20IP | 30IP |
Imaging sensor | 1/2.8 progressinve scanCMOS | 1/2.8 progressinve scan CMOS |
Effective pixels | 2.1 mega pixels | 3 mega pixels |
Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X) | |
Min.illumination | 0.095 lUx (F1.6,ICR open) | |
Frame rate | 25FPS & 30FPS | |
Double stream | H.265/H.264 | |
SDK Docking | standard ONVIF protocols,Support SDK two development | |
SDI/AHD Chipset | ||
Model | SDI | AHD |
Imaging sensor | 1/2.5 sony CMOS | 1/4inch CMOS |
Effective pixels | 30X 3 mega pixels | 36X 2.0 mega pixels(According to chipset) |
| 20X2 Mega pixels | 18 x2.0 mega pixels | |
Frame rate | 60FPS & 30FPS | 30FPS |
| Laser Parameters | ||
| Model | 500 M distance | 1000 M distance |
| Power | 3W | 8W |
| wave length | 850+10nm | 808+10nm |
| effective distance | >=500 | .+1000 |
Order Models. | ||
2.0 Megapixel IP PTZ Camera | BSD10T-TA4000-20IP | |
3.0Megapixel IP PTZ Camera | BSD10T-TA4000-30IP | |
2.0Megapixel SDI PTZ Camera | BSD10T-TA4000-20SDI | |
3.0Megapixel SDI PTZ Camera | BSD10T-TA4000-30SDI | |
2Megapixel AHD PTZ Camera | BSD10T-TA4000-36AHD | |
2.0Megapixel AHD PTZ Camera | BSD10T-TA4000-20AHD | |
2.0Megapixel IP+HID PTZ Camera | BSD10T-TA4000-20IPHID | |
2.0Megapixel IP+Laser 500 PTZ Camera | BSD10T-TA4000-20IPLA500 | |
2.0Megapixel IP+Laser 1000 PTZ Camera | BSD10T-TA4000-20IPLA1000 | |
Company Information
Packaging & Shipping
Application
Certificates
Certificates
Our Services
OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1. What is your terms of payment?
A: We accept T/T(Telegraphic Transfer),Western Union or Paypal ,also will sign official contract before payment.
Q2,What is your minimum order quantity?
A: MOQ 1 PCS
Q3. What is your sample policy?
A: we can provide sample if customer can absorb the cost and logistic cost ,also appreciated you come to our office to validate the sample.
Q4. Have you the export certificates and test report ?
A: Yes, we will provide the test report and export certificate ( CE/FCC etc ..)
Q5: What is quality guarantee policy ?
A:Normally guarantee term is 1 years ,we offer 2 years PTZ main body and 1 year for camera
Q6: Do you accept OEM/ODM?
A:Yes! We accept to label your brand if you would like .
