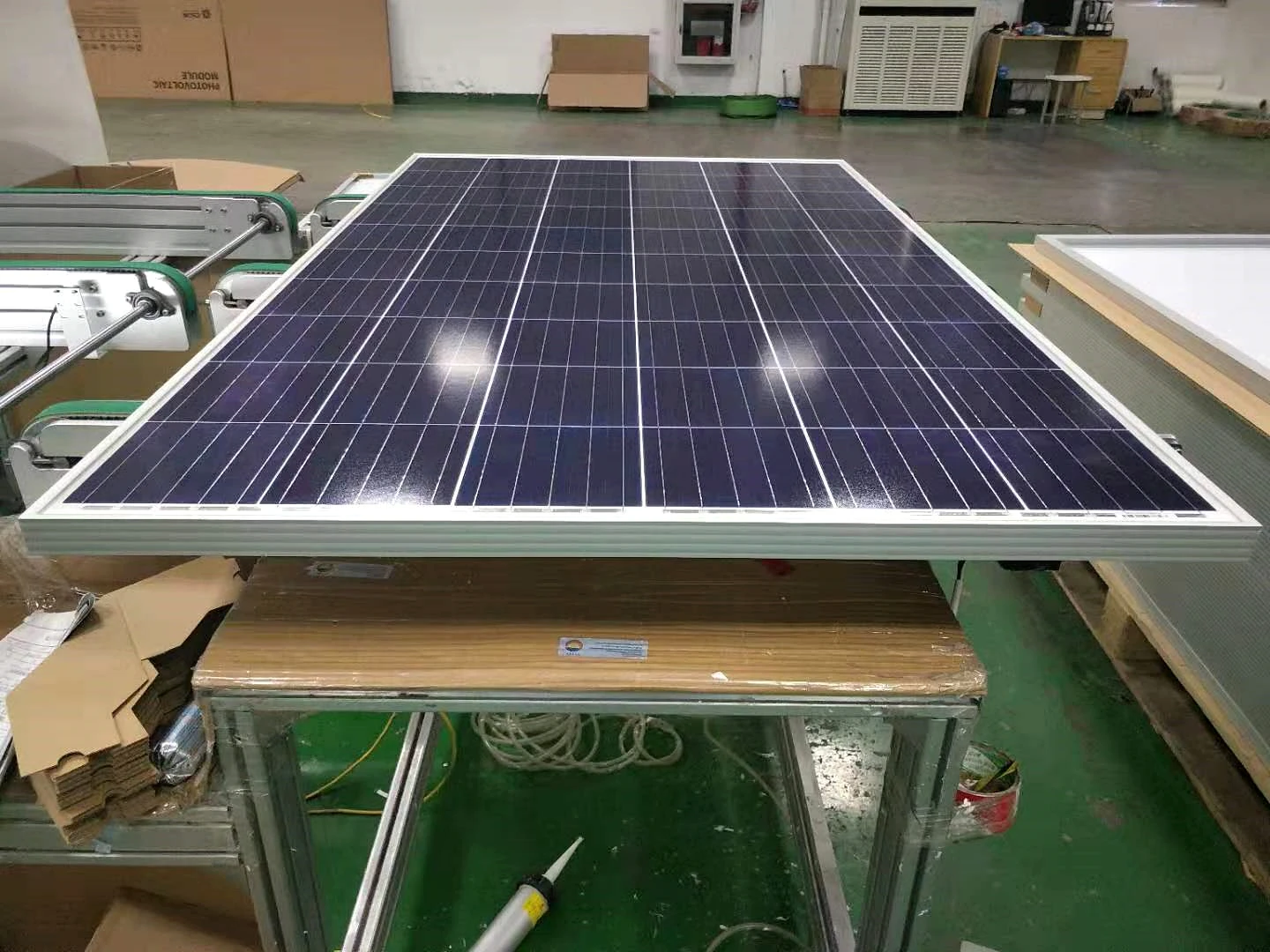

Poly 270W 275W 280W 285W Polycrystalline Solar Panel Module 60 Cells
- Category: >>>
- Supplier: Shenzhen Topsky Energy Co. Ltd.
Share on (62256929316):
Product Overview
Description
Hi, I am Sunny chen. Thanks for your interesting
Tel:+86-13417506105
Whatsapp:+86-13417506105
Skype:topskysolar09
Email: sales09(at)topsky-tech.com
Website: //www.topsky-tech.com
Skype:topskysolar09
Email: sales09(at)topsky-tech.com
Website: //www.topsky-tech.com
Product Description

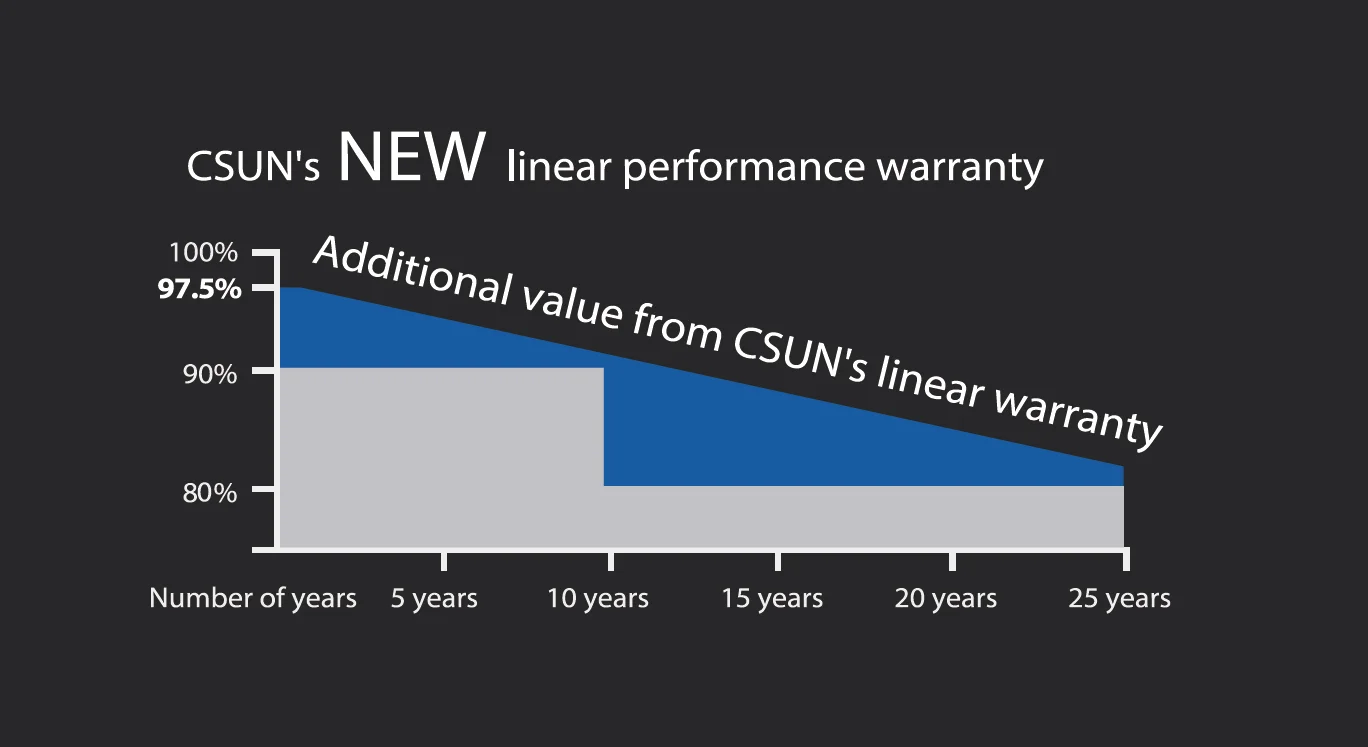

The power output shall not be less than 97.5% of the minimum power output stated in the product data sheet in the first year of the product's life cycle.The loss of power output shall not exceed 0.7% per year thereafter, ending with 80.7% in the 25th year.
Typical Mechanical Characteristics | ||
Dimension | 1640 x 992 x 35 mm | |
Weight | 18.1 KG | |
Frame | Anodized Aluminum Profile | |
Front Glass | White Toughened Safety Glass, 3.2 mm | |
Cell Encapsulation | EVA | |
Back Sheet | Composite Film | |
Cells | 6x10 Polycrystalline Solar Cells (5BB 156.75 x 156.75 mm) | |

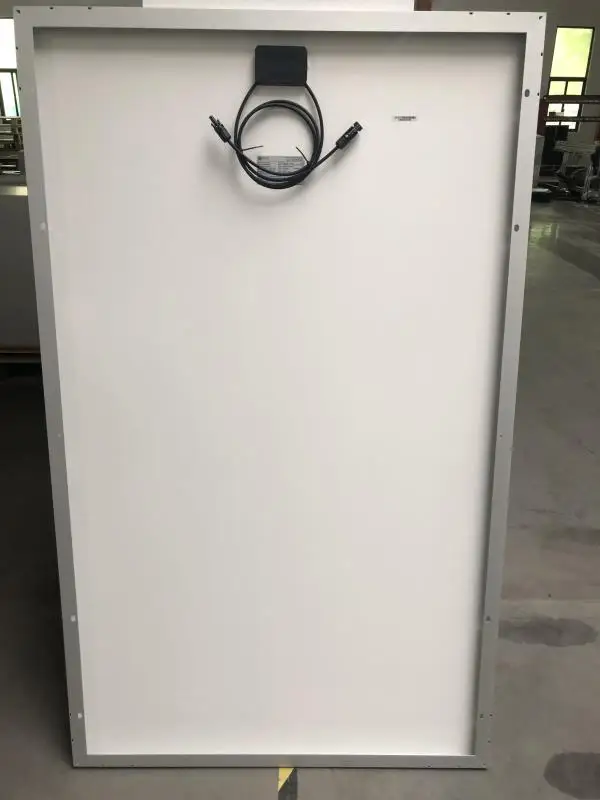

Junction Box | Rated Current ≥ 13A, IP ≥ 67, TUV&UL | |
Cable | Length 900 mm, 1 x 4 mm² | |
Connector | Compatible with MC4 | |
Electrical Characteristics at Standard Test Conditions (STC) | ||||||||
Module Type | CSUN 285-60P | CSUN 280-60P | CSUN 275-60P | CSUN 270-60P | ||||
Maximum Power - Pmpp (W) | 285 | 280 | 275 | 270 | ||||
Positive Power Tolerance | 0~3% | 0~3% | 0~3% | 0~3% | ||||
Open Circuit Voltage - Voc (V) | 38.6 | 38.5 | 38.4 | 38.3 | ||||
Short Circuit Current - Isc (A) | 9.49 | 9.36 | 9.27 | 9.19 | ||||
Maximum Power Voltage - Vmpp (V) | 31.6 | 31.4 | 31.3 | 31.2 | ||||
Maximum Power Current - Impp (A) | 9.02 | 8.92 | 8.79 | 8.67 | ||||

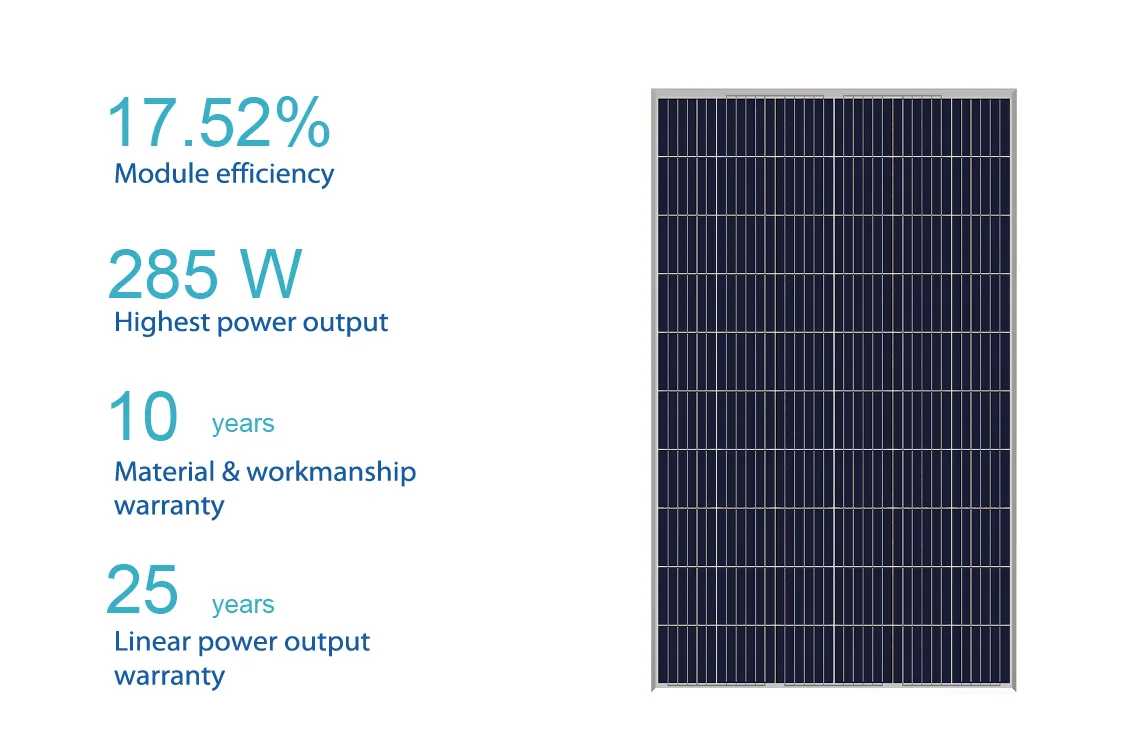

Module Efficiency | 17.52% | 17.21% | 16.90% | 16.60% | ||||
Electrical data relates to standard test conditions (STC) : irradiance 1000W /㎡ ; AM 1.5 ; cell temperature 25℃ measuring uncertainty of power is within ±3%. Certified in accordance with IEC61215, IEC 61730-1/2 | ||||||||
Electrical Characteristics at Normal Operating Cell Temperature (NOCT) | ||||||||
Module Type | CSUN 285-60P | CSUN 280-60P | CSUN 275-60P | CSUN 270-60P | ||||
Maximum Power - Pmpp (W) | 210 | 206 | 203 | 198 | ||||
Maximum Power Voltage - Vmpp (V) | 35.7 | 35.6 | 35.5 | 35.4 | ||||
Maximum Power Current - Impp (A) | 7.66 | 7.54 | 7.47 | 7.41 | ||||
Open Circuit Voltage - Voc (V) | 29.2 | 29.1 | 29.0 | 28.9 | ||||
Short Circuit Current - Isc (A) | 7.18 | 7.06 | 7.00 | 6.88 | ||||
Electrical data relates to normal operating cell temperature (NOCT) : irradiance 800W /㎡ ; wind speed 1 m/s ; cell temperature 45℃ ; ambient temperature 20℃ measuring uncertainty of power is within ±3% | ||||||||
Temperature Characteristics | Maximum Ratings | ||||
Voltage Temperature Coefficient | -0.292%/K | Maximum System Voltage (V) | 1000&1500 | ||
Current Temperature Coefficient | +0.045%/K | Series Fuse Rating (A) | 20 | ||
Power Temperature Coefficient | -0.408%/K | Reverse Current Overload (A) | 27 | ||

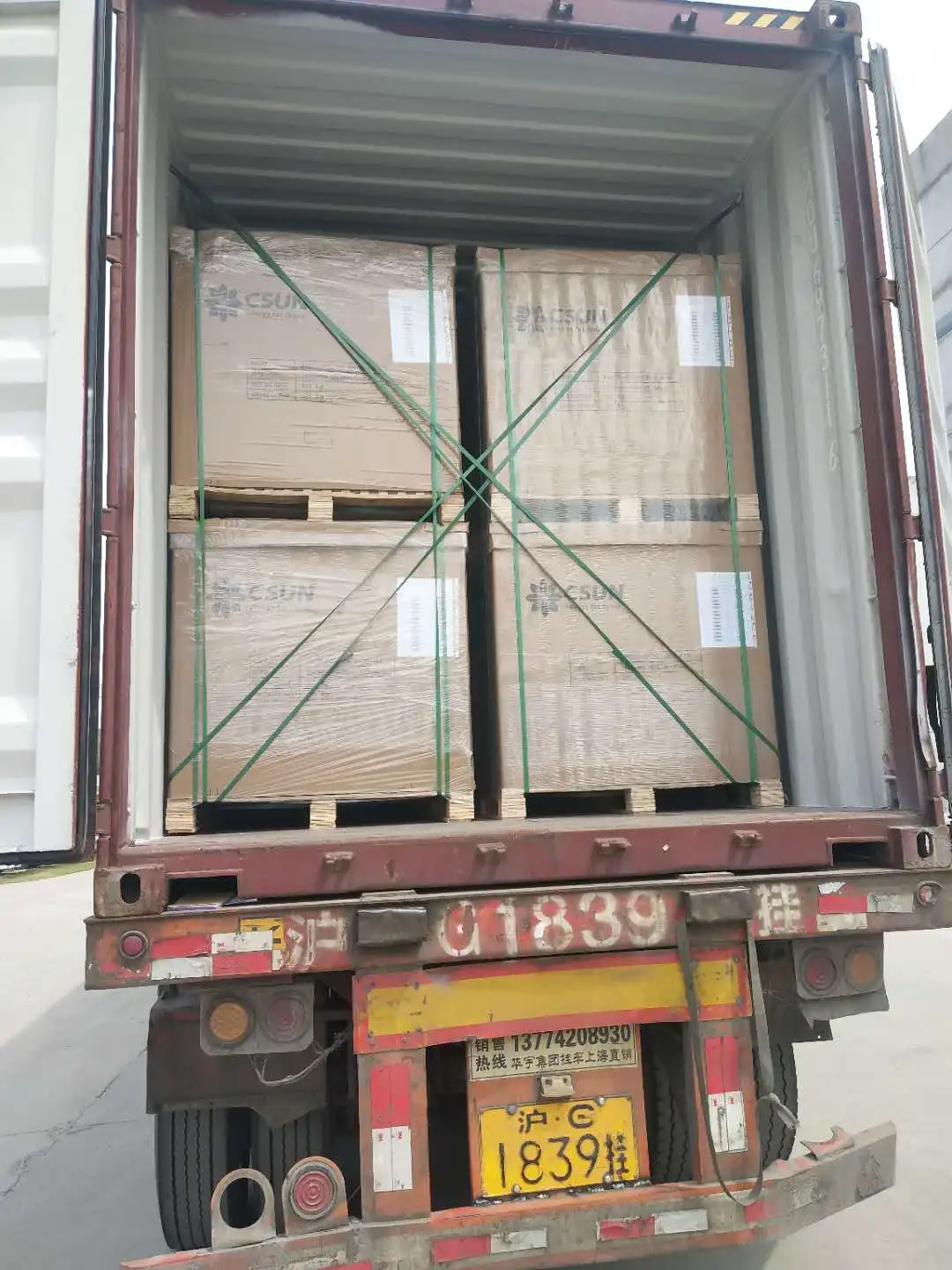

Packaging | System Design | ||||
Container 20' | 360 pcs. | Temp. Range | -40℃ to +85℃ | ||
Container 40' | 840pcs. | Hail | Max. diameter of 25mm with impact speed of 23m/s | ||
Container 40'HC | 910pcs. | Max. Capacity | Snow 5400 Pa, wind 2400 Pa | ||
Application Class | A | ||||
Safety Class | Ⅱ | ||||

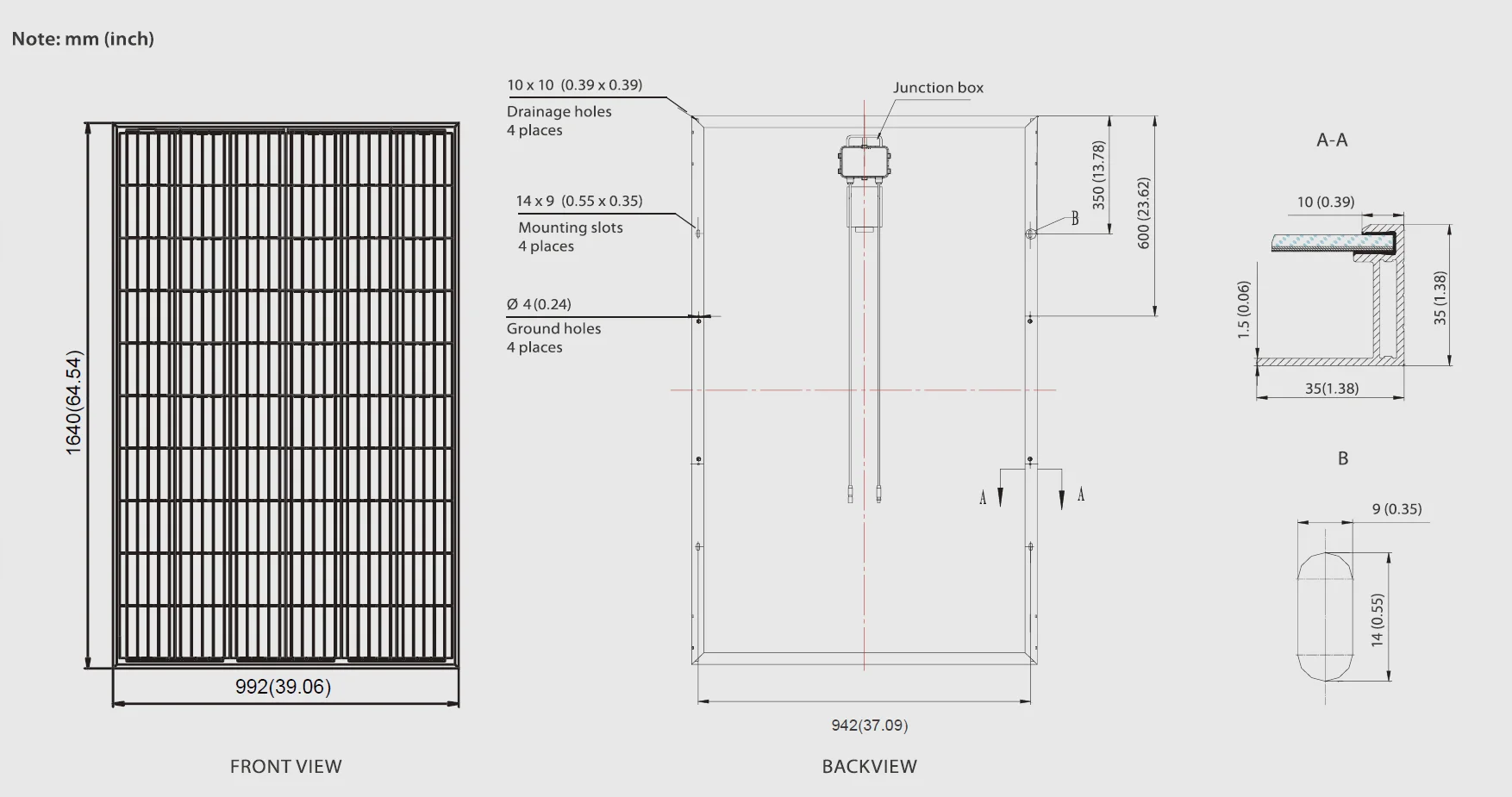

Dimesions

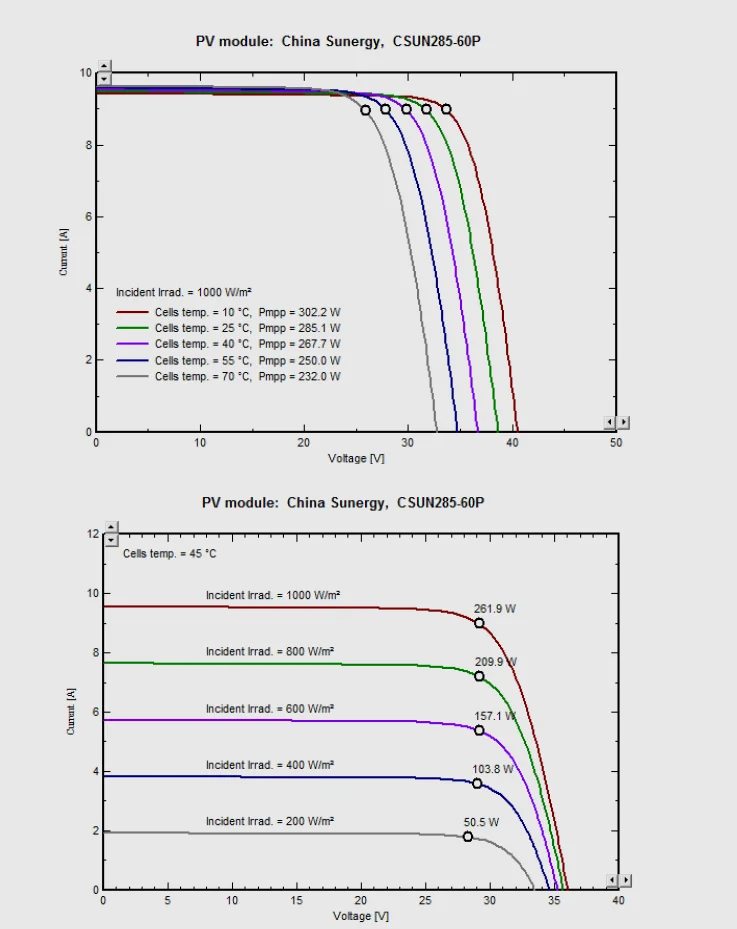

IV-Curves

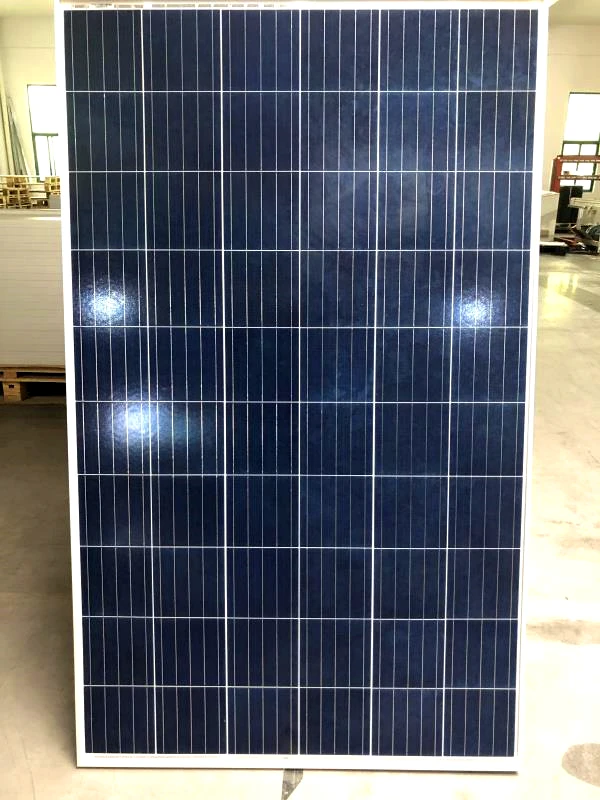

Details Images
