china factory taiyaki fish shaped waffle automatic taiyaki fish shaped waffle making machine
Product Description

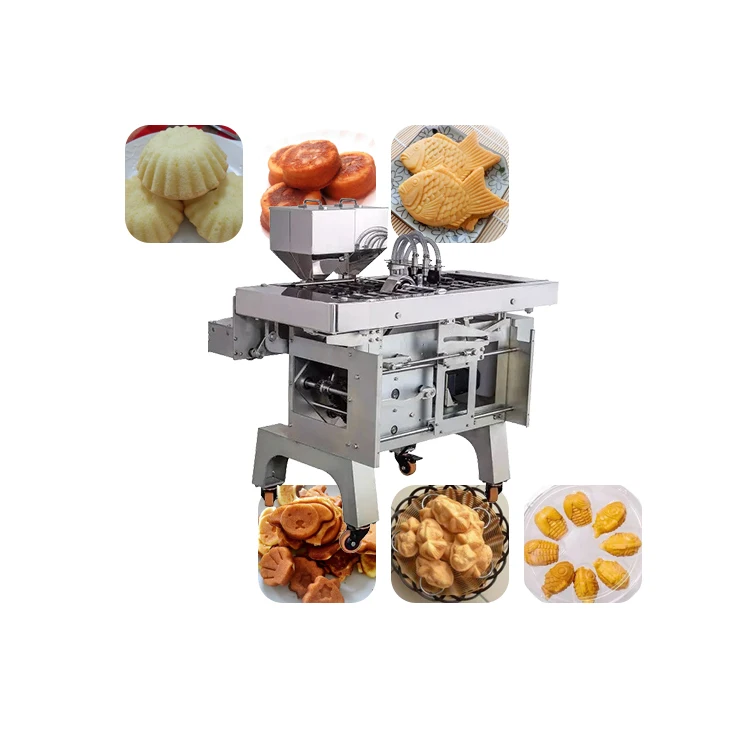

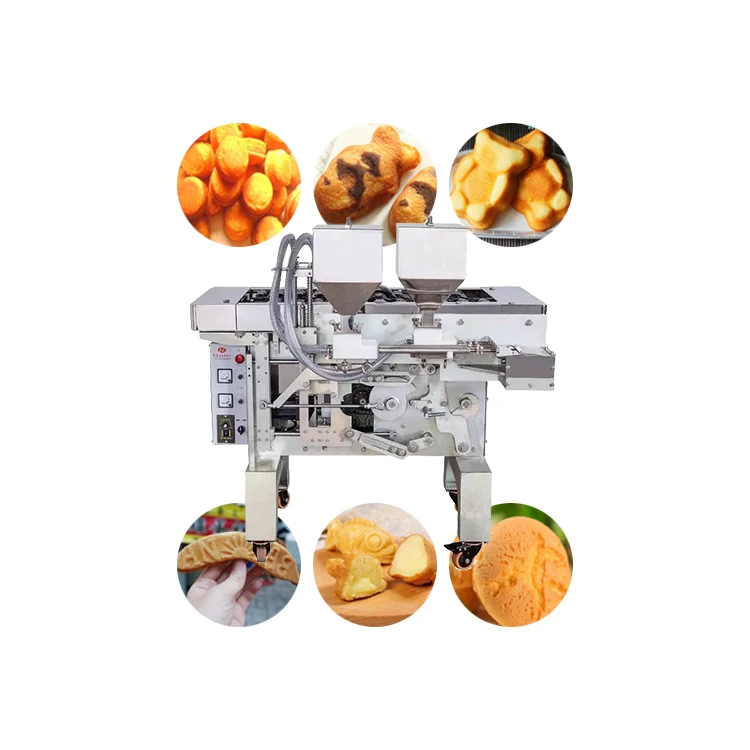

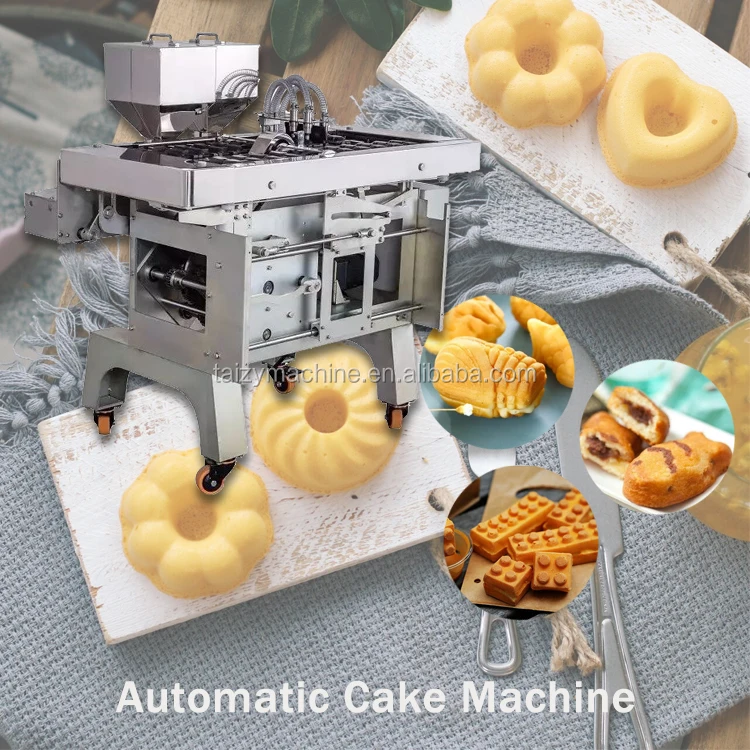

Introduction of automatic taiyaki fish shaped waffle making machine
The fully automatic sandwich cake machine has a high degree of integration and can realize the whole process of filling, molding and baking production of a sandwich cake by a machine. The machine has the characteristics of compact structure, simple operation, small size and flexibility, and a high degree of automation. By changing the different styles of pastry molds and recipes, you can produce a variety of three-dimensional shapes and sandwiches of various flavors.

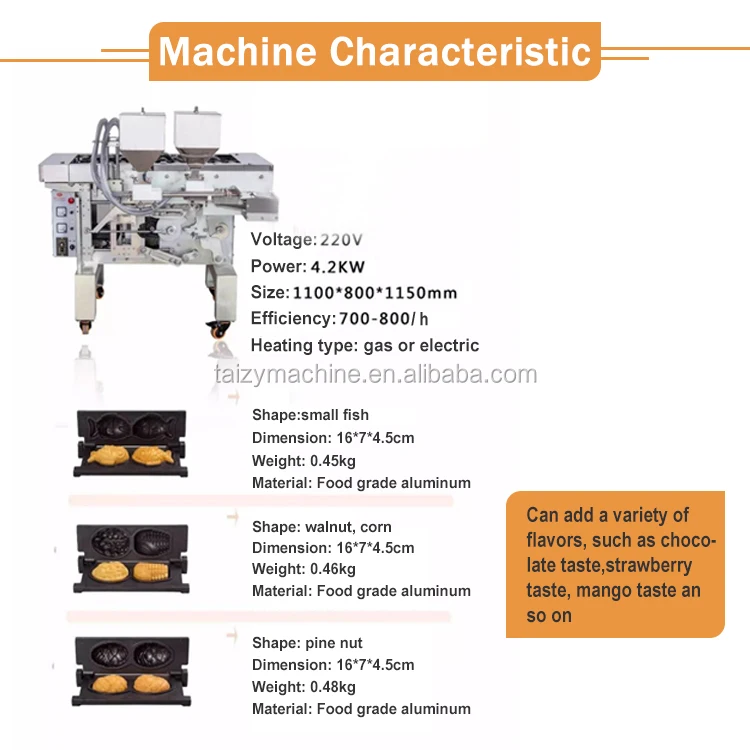

Parameters of taiyaki fish shaped waffle making machine
Model
TZ-01
Voltage
110v 220v
Power
4.5kw
Weight range
14-20g
Capacity
Max 600pcs/h
Shape of mold
Walnut, fish and corn etc
Dimension
760*1160*1075mm
Description of taiyaki fish shaped waffle making machine
Related machines for making cakes include flour spoons, temperature measuring boxes, bread clips, portable eggbeaters (mainly used to adjust cake fillings), electronic scales (weighing of cakes and cake fillings), and small scrapers (scraping Flour), small brush.

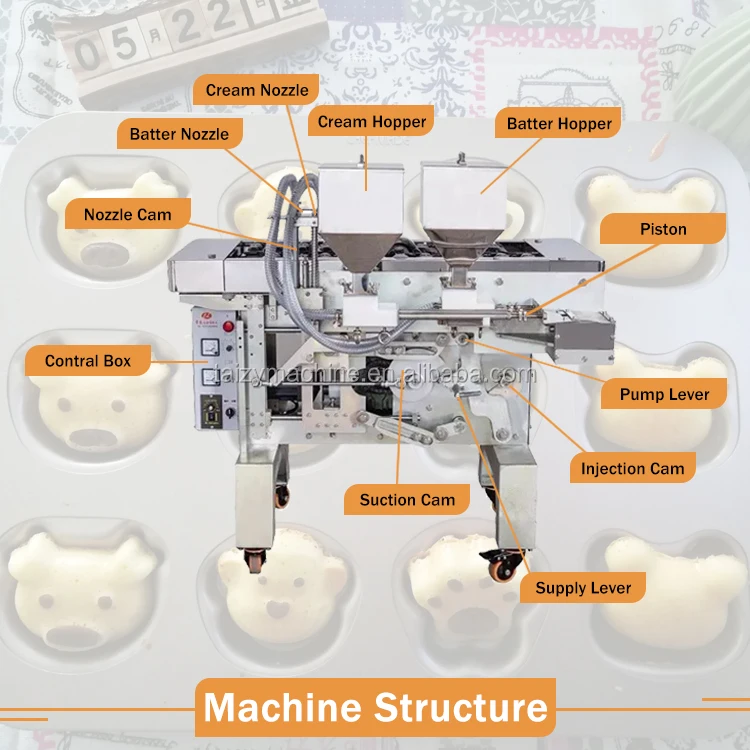

The machine includes the main power switch and the leakage protection switch. The customer needs to connect the bottom line first, open the main switch, the whole panel operation button is the power prompt light, the left temperature switch, the right temperature switch, open the motor switch, debug production Speed (40 is recommended for starting speed), this switch is positive and negative, (Note: please reverse this switch when the machine is stuck), cake making abrasive tools, mold placement, please strictly follow the placement method and direction of this video Place it, otherwise the machine will get stuck, turn on the left and right switch, adjust to the maximum temperature to start preheating, preheating time is about ten minutes, measure the mold temperature with a temperature measuring gun, reach 180 °C to make. The temperature is adjusted to a low level. After long-term use, the oil is brushed to the inside of the mold after cleaning, and the new mold does not need to be brushed.
Application of automatic taiyaki fish shaped waffle making machine

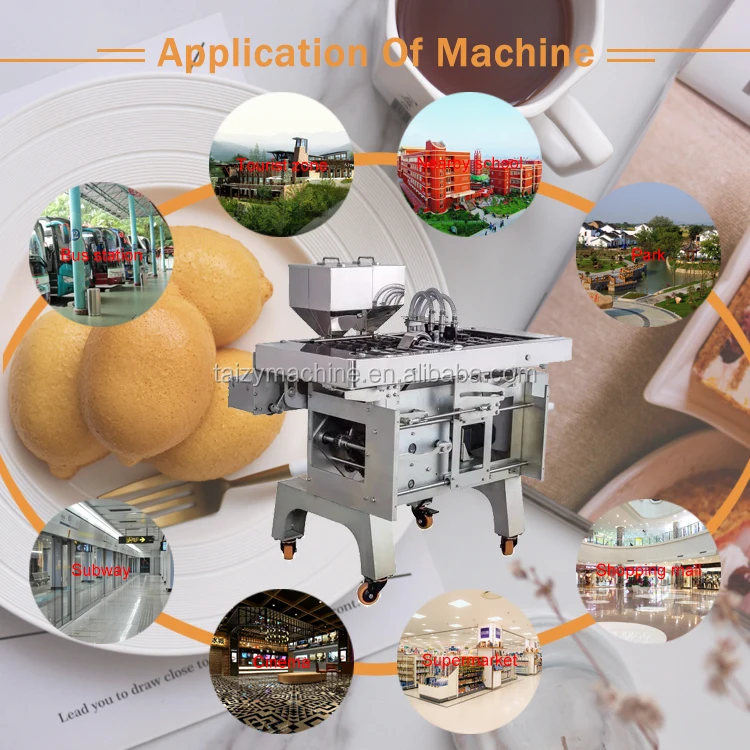

The automatic cake machine is suitable for large-scale shopping malls, supermarkets, commercial streets, stations, entertainment parks, restaurants, and other places are now sold.
How to make a delcious cake?
Cake processing flow: Raw material: egg 0.55kg, milk 0.2kg, flour1kg, cooking oil 0.15kg—paste(Stir for 5 minutes)
Cake filling: A bag of Cake filling, 0.20kg milk (mix well)
Before making the cake, put the leather, add the filling, open the injection switch, discharge the air inside the tube, adjust the injected material, inject the leather into the mold by 2/3, and fill the filling just enough. Please note the filling into the middle of the mold, adjust the height of the filling, adjust the injection volume, the amount of the injection to the left is small, the adjustment to the right is large, after the bread is baked, clip it out with a clip.
Machine cleaning:
(1). Do not use chemical agents for mold cleaning. Clean the soft brush with water.
(2). Remove the injector, wash it with clean water, push the tube to clean the remaining waste, and place the injection tube on the faucet with water.
Maintenance and repair of the machine: it is recommended to maintain it once a month.
Open the countertop, drip the lubricating oil into the oil filling hole, open the other side panel, drip the lubricating oil into the oil filling hole, open the sprocket cover, let the machine run slowly, slowly drip the lubricating oil, on the machine side Add grease to all drive components.
Feedback
FAQ
1. How long will the transportation take?
Depending on your quantity, for goods, we have in stock. Delivery takes a few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.
2. Are you a manufacturer or distributor?
We are an experienced manufacturer and exporter. We own a technical team comprised of over-average experts in R&D and innovation. Notably, we own high-level factories and cooperating factories who can offer efficient manufacturing and high-end products when dealing with a bulk order.
3. How do I know about the details and quality of your machine?
First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.
4. What certification do you have?
We have ISO, CE, BV, SGS, TUV etc. Please do trust us, we are determined to provide you the best quality equipment.
5. Why choose us?
We have dedicated to the machinery manufactory industry for more than 10 years with a rare negative response. We are time has proven-- client’s response and comments are the most validated evidence.
Packaging & Shipping
We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
