Product | Blind Rivet |
Material | SS304, SS316 |
Standard | DIN,GB/T, ANSI |
Diameter | 2.4/3/3.2/4/4.8/5mm |
Finish | Nature |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

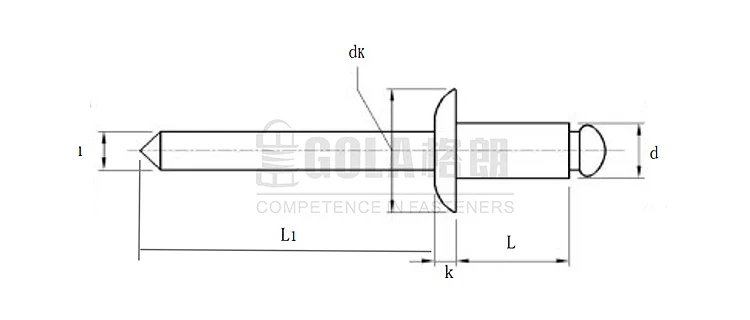

d (diameter) | 2.40 | 3.00 | 3.20 | 4.00 | 4.80 | 5.00 |
L (length) | 4-12 | 6-10 | 5-10 | 8-16 | 8-18 | 10-16 |
dk | 5.00 | 6.30 | 6.70 | 8.40 | 10.10 | 10.50 |
k | 1.00 | 1.30 | 1.30 | 1.70 | 2.00 | 2.10 |
d1 | 1.55 | 2.00 | 2.00 | 2.45 | 2.95 | 2.95 |
L1 | 25.00 | 25.00 | 25.00 | 27.00 | 27.00 | 27.00 |





ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 | |||||||
