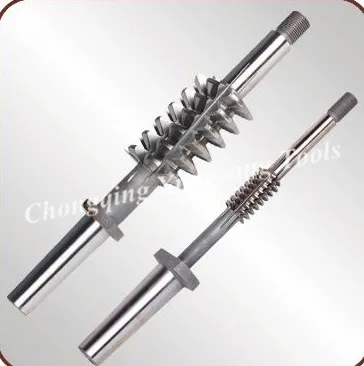

HSS Shank Type Worm Wheel Hob
- Category: >>>
- Supplier: Chongqing Xingwang Tools Manufacture Co. Ltd.
Share on (622570460):
Product Overview
Description
Module and DP Shank Type Worm Wheel Hob
1.HSS worm hobbing cutter
2.PA20,Single or double-thread worm gear hobs
3.Right and left hand
4.Material: HSS M2/M35
normal specification of Shank Type Worm Wheel Hobs
| Module | Pitch Circle Dia. | Working Length | Overall Length | Morse Taper |
| 2 | 26 | 45 | 390 | 4 |
| 2.5 | 30 | 55 | ||
| 3 | 36 | 65 | ||
| 3.5 | 42 | 70 | ||
| 4 | 44 | 80 | ||
| 4.5 | 49.5 | 85 | ||
| 5 | 50 | 95 | ||
| 6 | 54 | 115 |
We are engaged in offering an extensive range of worm wheel hobs which is available in industry leading prices.These worm wheel hobs are offered in standard options but can be customized as per the clients requirements.
Our range of worm wheel hobs is widely appreciated by for their various distinctive features such as corrosion resistance, dimensional accuracy and longer service life.
Pls contact us for inquiry of shank type worm wheel hobs and cutter tools.
