metal coating machinery

Product Overview

Description

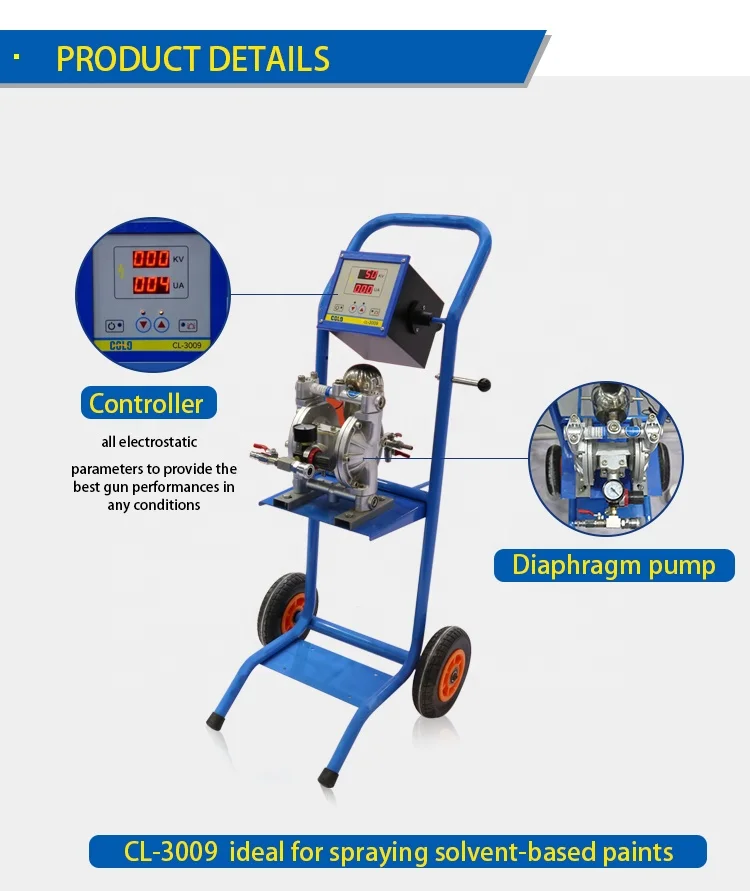

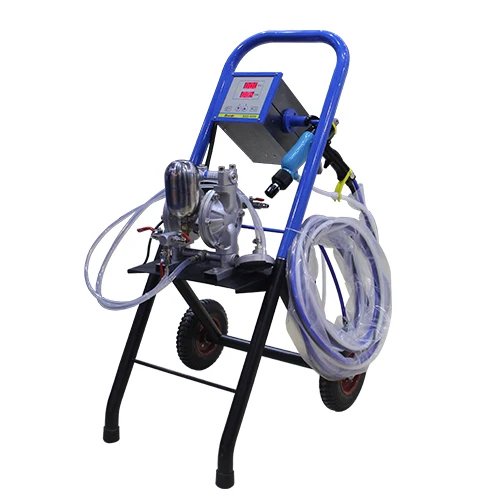

CL-3009 metal coating machinery

CL-3009 adopts diaphragm pump paint supply system, which can adjust the paint flow and high voltage electrostatic accurately.and it is a reliable guarantee for safe production.



The economic of electrostatic system and pneumatic paint supply system has the characteristics of saving space, easy to move, clean and beautiful. The high end electrostatic spraying technology not only can make high-quality coating, but also can greatly save the application amount of paint.



Applicable Scope:

Food machinery, food utensils, appliance fittings, hardware, building curtain wall, decorative profile and other need to surface coating products.



Advantages:

Strong electrostatic, painting can be fully charged, good coating effect, can be controlled remotely, easy to be carried and transferred, integrated operation.

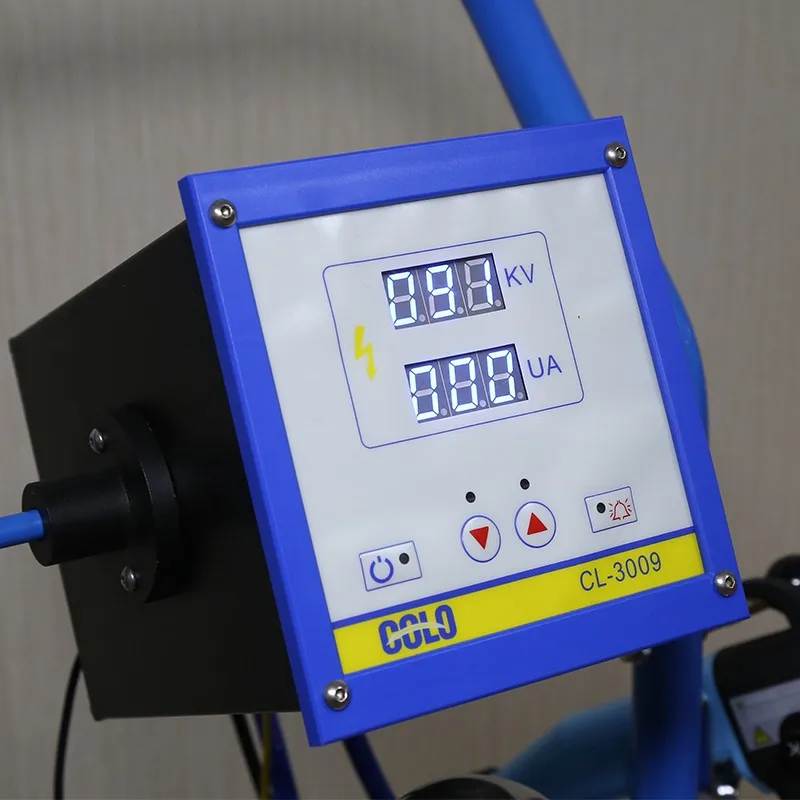

 Controller (for assembly)



supply voltage:	AC220(50—60Hz)	Air Pressure:	0.6MPa—0.8MPa
Output voltage:	10KV—80KV	Output current:	10UA—25UA
Power off protection:	26UA—100UA	Controller  weight:	3.5kg
Controller size:	250*200*150mm	display:	LED display

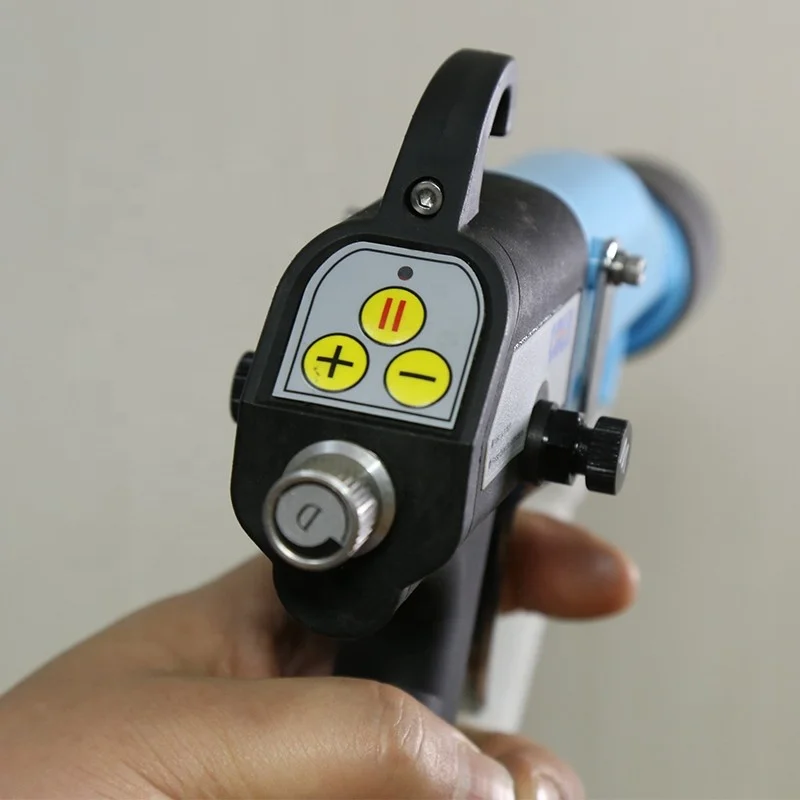

Electrostatic spray gun(for assembly)

Gun length:	230mm	KV output:	10—80KV
Spraying distance:	150-230mm	Paint tube length:	5500mm
Cable length:	5000mm	Air tube length:	5000mm
Nozzle diameter:	18mm	Air pressure:	0.4—0.6MPa
Paint output:	80—220ML/min	Air consumption:	75—230L/min

Before you choose the electrostatic liquid spray gun, pls tell us the questions a follow:

1, which shape part you will paint? complex or flat simple shape

2, the paint you use is solvent-based or Waterborne paints
