vibrating screen separator for insects/organic compost matter screening machine

Product Overview

Description



vibrating screen separator for insects/organic compost matter screening machine







Description:
YongQing DZSF series linear vibrating screen machine is a vibratory size sorting machine, electric vibrating motor drived, sizing/grading raw materials by different mesh size, and separating raw materials into different size fractions. Mainly applicated to mineral, cereal,rubber recycle,Chemical industries etc.

As professional factory manufacturer, we offer various customize designing service. and will always recommend our clients most suitable screening solution based on your process requirement.













 Fine Mesh Vibrating Screen Machine for screening powder particles



Vibrating screen machine	Model DZSF1020
Screen dimension	1000*2000mm
Mesh type	stainless steel woven wire mesh
Mesh size	4--200mesh
Screen layer	single layer (or multi layers as required)
Structure material	carbon steel Q235

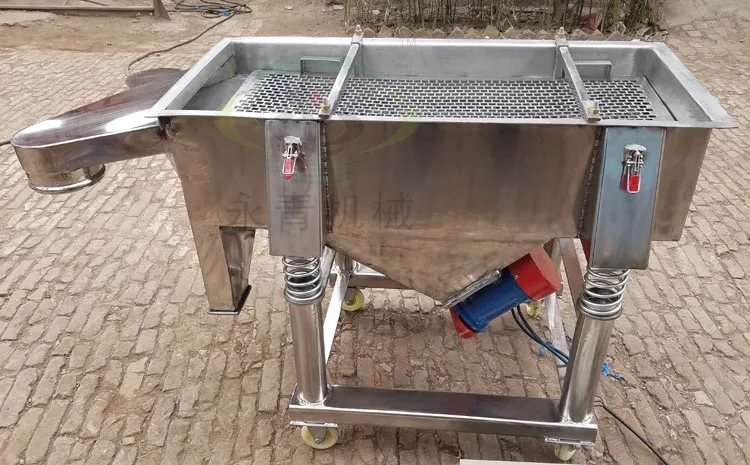

 Large Aperture Size Vibrating Screen Machine With Casters

for Particle size grading/sorting



Model	DZSF510
Screen dimension	500*1000mm
Mesh type	punching hole meshes (round hole or square hole)
Mesh size	1mm--20mm
Screen layer	single layer (or multi layers as required)
Structure material	304 stainless steel (or ss316 or carbon steel)











 Different Models of DZSF Linear Vibarting Screen Machine



Model	Layer	Screening Area(mm)	Mesh (mm)	Particle Size(mm)	Capacity (t/h)	Power (kw)	Dual Amplitude
DZSF-612	1-5	600*1200	0.02-20	≤20	≤3	0.37×2	6-10 mm
DZSF-520		500*2000			≤5	0.37×2
DZSF-525		500*2500			≤8	0.37×2
DZSF-1020		1000*2000			≤12	0.75×2
DZSF-1025		1000*2500			≤16	0.75×2
DZSF-1030		1000*3000			≤20	1.1×2
DZSF-1224		1200*2400			≤23	1.5×2
DZSF-1525		1500*2500			≤28	1.5×2
DZSF-1530		1500*3000			≤32	2.2×2







Packing:



Outer packing	plywood case, which is up to the international standards.
Inner packing	moisture-proof and water-proof membrane.
Delivery	7 working days after deposit







 You May Interested In:

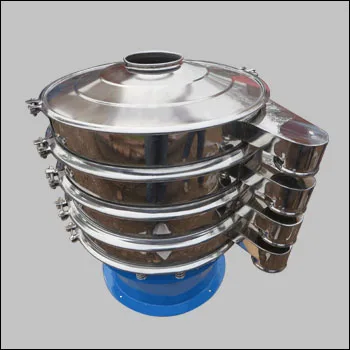

rotary vibrating screen	test sieve	inline check vibrating sieve

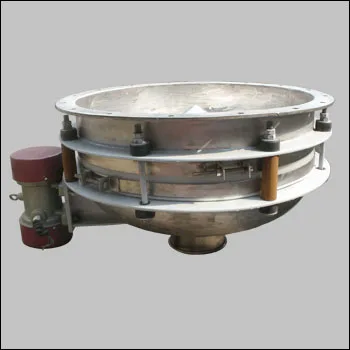

gzv small vibrating feeder	screw conveyor	bin activator
