Product Overview
Description
115mm 4.5 inch Super Thin Porcelain Tile Angle Grinder Flush Cutting Diamond Saw Blade
Diamond glass tile saw blade is a kind of cutting tool, widely used in concrete, refractory material, stone, ceramics ,brick,granite and other hard brittle materials processing.
* The first-class toothed saw blade to hold intensity, granularity and concentration in diamond
* Basic type, rigidity and antifriction, it is important that including cohesiveness. We always satisfy this condition in processing.
Parameter : outer dia*inner dia*segemnt height*segemnt thickness
Application: For cutting masonry material
Size: 4''-20''diameter
Advantage: Without Drop Segment (Low Protection Teeth).
fast, free, smooth cutting,no chipping
Reduce cutting friction a lot, improve slab flatness, save energy.
high sharpness
FEATURE:
*OEM is accepted
*Durable diamond saw blade,wet cutting
*Efficiency saw blade tooth make good quality
*Strict quality control to ensure enough safety and cutting sharpness
*Multi-color painting increase the beauty visual effect and work efficiently
hot pressed diamond saw blade: is the powder of the cutting tools are attached to the substrate by electroplating method.
Saw blade speed:
When sawing granite, saw blades linear velocity can be in 25 m ~ 35 m/s within the scope of the selected.
Particle size
The commonly used diamond grain size in the range of 30/35 ~ 60/80. The hard rock, should be selected with a fine granularity.
The size for your reference
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET/dry cutting. | |||||
| Diameter (D) | Bore | Segment Height | Segment Thickness | ||
| Inch | MM | Inch | MM | ||
| 4” | 105 | 5/8” 7/8” | 16/20/22.23 | 7/10 | 1.8 |
| 4.3” | 110 | 5/8” 7/8” | 16/20/22.23 | 7/10 | 1.8 |
| 4.5” | 115 | 7/8” | 22.23 | 7/10 | 1.9 |
| 5” | 125 | 7/8” | 22.23 | 7/10 | 1.9 |
| 6” | 150 | 7/8” | 22.23 | 7/10 | 2 |
| 7” | 180 | 7/8”/1 | 22.23/25.4 | 7/10 | 2.2 |
| 8” | 200 | 7/8”/1 | 22.23/25.4 | 7/10 | 2.4 |
| 9” | 230 | 7/8”/1 | 22.23/25.4 | 7/10 | 2.4 |
| 10” | 250 | 7/8”/1-1/5”/2” | 22.23/25.4/30/50 | 7/10 | 3 |
| 12” | 300 | 7/8”/1-1/5”/2” | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 14” | 350 | 7/8”/1-1/5”/2” | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 16” | 400 | 7/8”/1-1/5”/2” | 22.23/25.4/30/50 | 7/10 | 3.4 |
Take one model as a sample(4.5''/115mm)
| Reference picture |  |
| Product | 4.5''/115mm sintered continuous rim diamond saw blade |
| Specification | 115 x 1.2 x 22.23mm |
| Segment height | 10mm |
| Style | turbo |
| Craft | sintered |
| Application | for cutting marble, concrete, tile, etc. |
| Cutting method | wet/dry cutting |
| Service | customized and OEM |

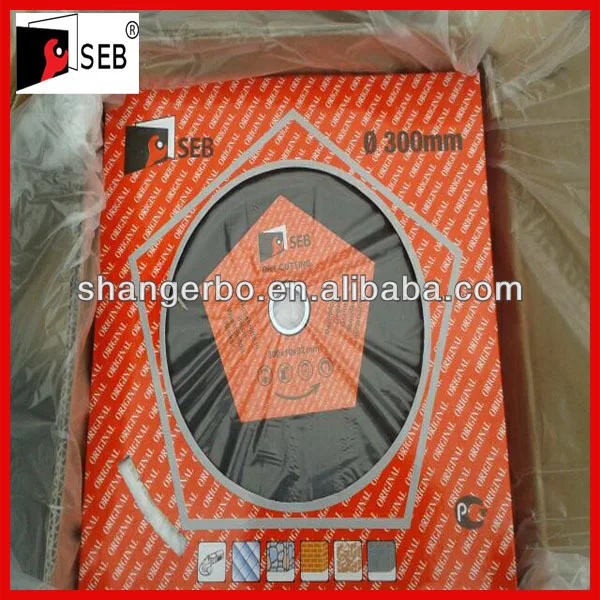

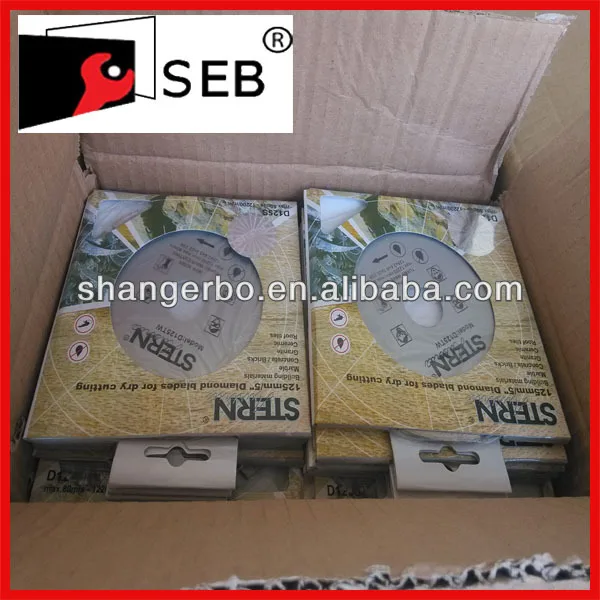

Packaging and shipping
diamond saw blade
inner color box + outer carton box
inner: white box, color box, blister, double blister, cardboard etc.
outer: brown corrugated box
shipping:
1. samples by express(before make an order, you can get free samples)
2. small order by air or by sea
3. order in bulk by sea
After finishing production, flexible shippment to you at your convenience.
Port: Shanghai/Ningbo
Payment
Payment: T/T payment term or L/C at sight.
T/T: 30% deposit before production, and 70% balance before loading.
L/C: 100% L/C at sight.
Why choose us?
1.Choose high quality diamond to provide more stable product to our customers.
2.We promote product value by more smooth section.
3.We accelerate production efficiency by improving quality of saw blades and longer lifespan.
4.The company complete quality control system, solving customer’s concern.
FAQ:
Q: How is your quality?
A: We have a very seriously control system. Our products keep the high performance and we got good feedbacks from our customers.
Q: Can we use our brand?
A: Yes, we provide OEM service, just send us your packaging and Logo design.
Q: Do you have different quality for different kind of stone?
A: Yes, according to stone’s hardness and feature, we offer normal, middle and top quality products.
Q: If we need technical support, can you offer us?
A: Yes, we have experienced and supporting suppliers who can offering our customers additional benefits with specific advice.
Q: How can we be your agent in our country?
A: Please inform us your detailed company, we will discuss and propose helpful suggestion.
Q: Do you offer free samples?
A: Before making an formal order, reasonable FREE samples are available.
Services
We can provide free sample for you test. Process from the order to delivery is strictly controlled. If you want to make something special, please feel free to contact us!
Shanghai Shangerbo Import and Export Co., Ltd is a professional hardware manufacturer and exporter. We can supply a wide range of products and are majored in saw blade, drill bit as well as fastener. Our goods are popular in many countries because of best quality and competitive price.
With the enterprise idea of "sincerity, mutual benefit , high efficiency and innovation", our company has developed rapidly and steadily since being established. We have many excellent suppliers who support us, which help us to satisfy the buyer completely. Now we have established business relationship with many buyers from all over the world, including North America, Europe, the Middle East and so on.
With the enterprise idea of "sincerity, mutual benefit , high efficiency and innovation", our company has developed rapidly and steadily since being established. We have many excellent suppliers who support us, which help us to satisfy the buyer completely. Now we have established business relationship with many buyers from all over the world, including North America, Europe, the Middle East and so on.
