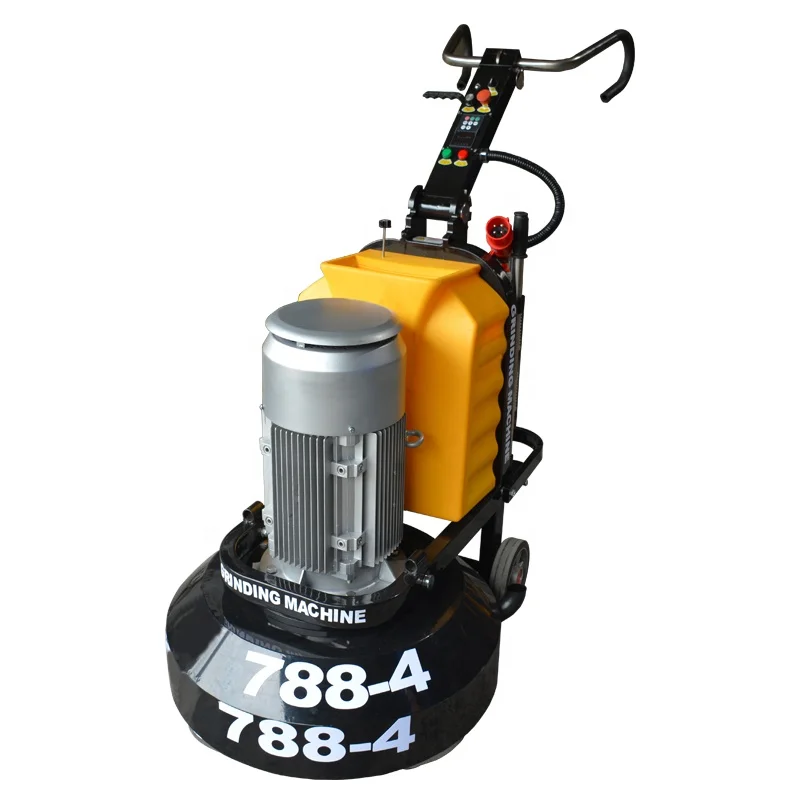

Planetary concrete grinder

Product Overview

Description

Planetary concrete grinder

Planetary concrete grinder uses all-aluminum alloy gearbox and gear-drive planetary head reduce noise and improve surface flatness.

The S-shape shelf design allows for a larger angle to be seen when changing the grinding disc,and the grounding is more stable.

Iron block transforms the center of gravity through the slider,not only increase the weight of the machines,but also help you lift the bottom and carry it easily.

Model	520-3	588-3	688-4	788-4
Voltage	220v/380v	220v/380v	380v	380v
Phase	1phase/3phase	1phase/3phase	3 phase	3 phase
Inverter	7.5kw(10hp)	7.5kw(10hp)	7.5kw(10hp)	15kw(20hp)
Frequency	50/60hz	50/60hz	50/60hz	50/60hz
Working width	510mm	570mm	670mm	770mm
Disc quantity	9pcs	9pcs	12pcs	24pcs
Rotating speed	300-1800rpm	300-1800rpm	300-1800rpm	300-1800rpm
Water tank volume	68L	68L	68L	80L
Weight	265kg	295kg	380kg	480kg
Packing size	105x80x120cm	105x80x120cm	120x80x130cm	135x85x130cm

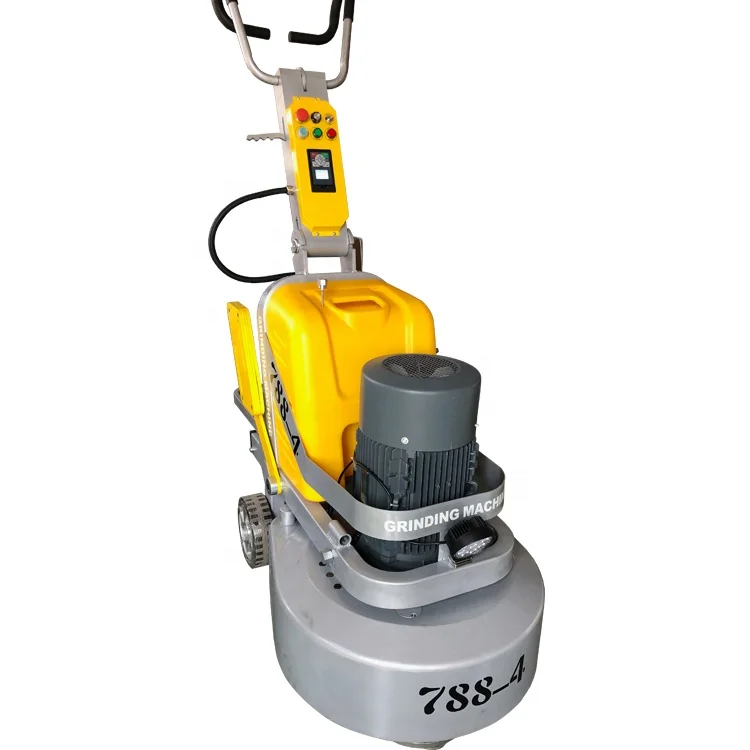

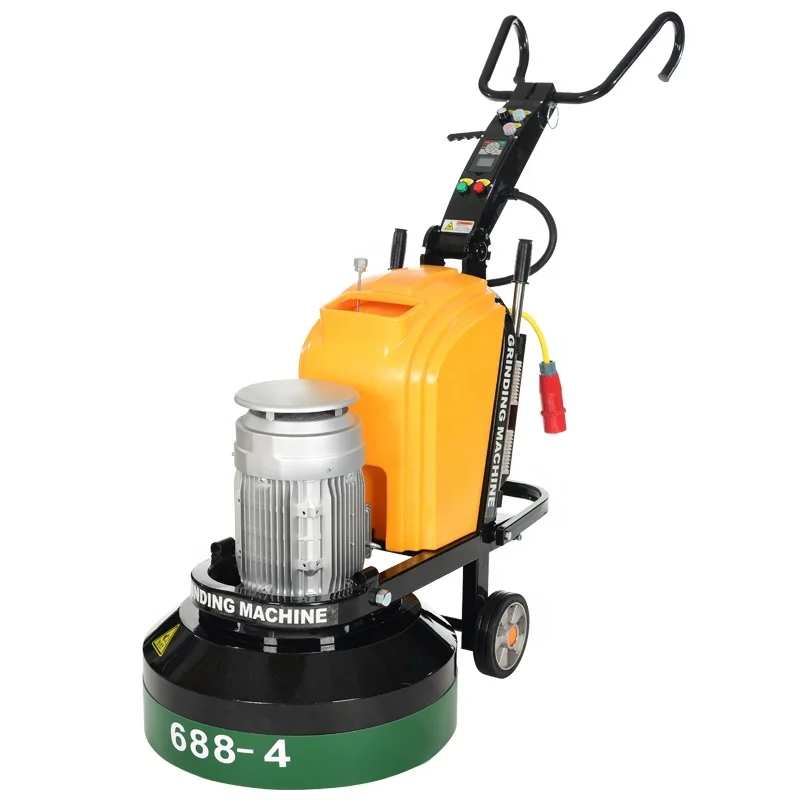

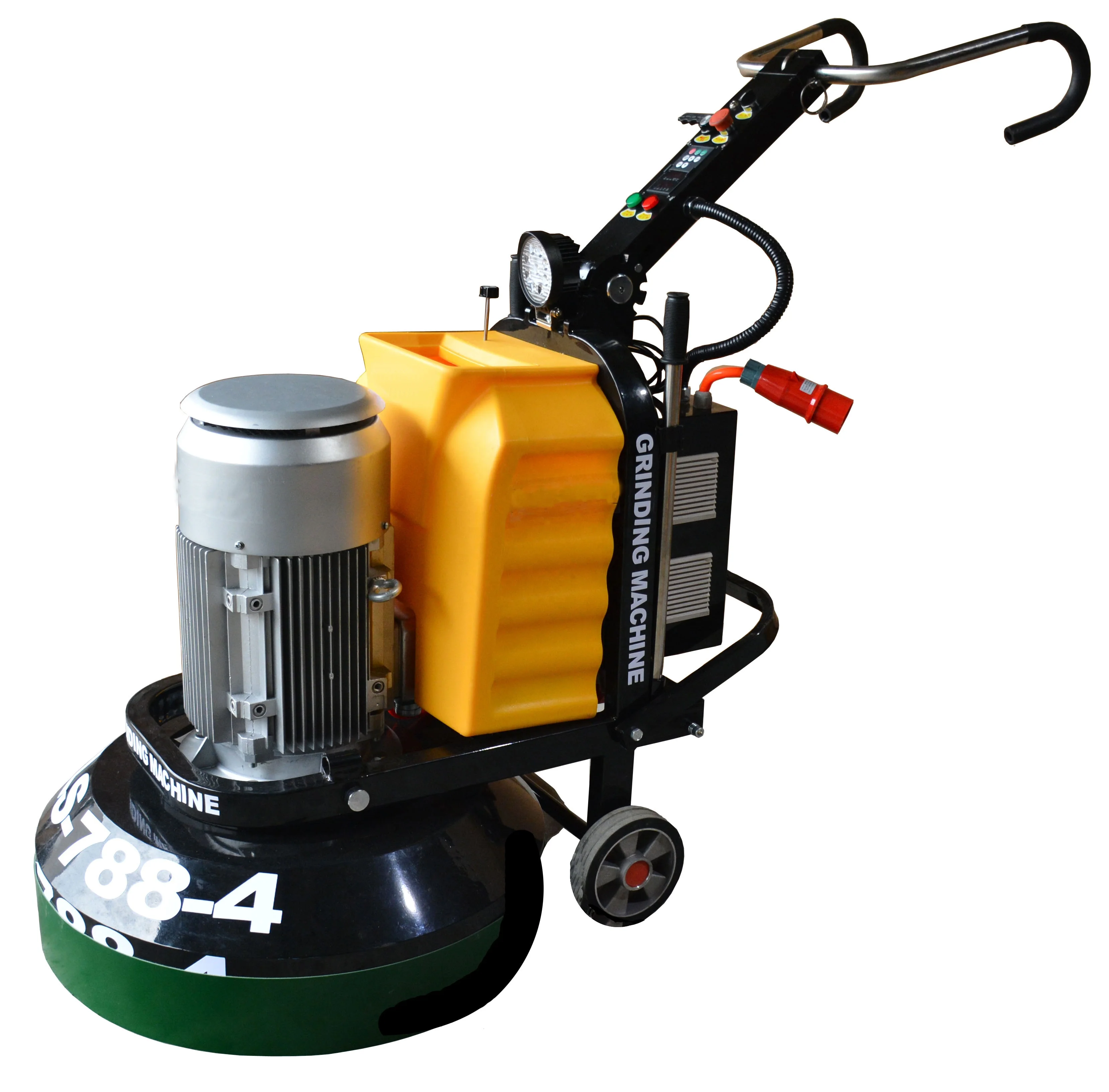

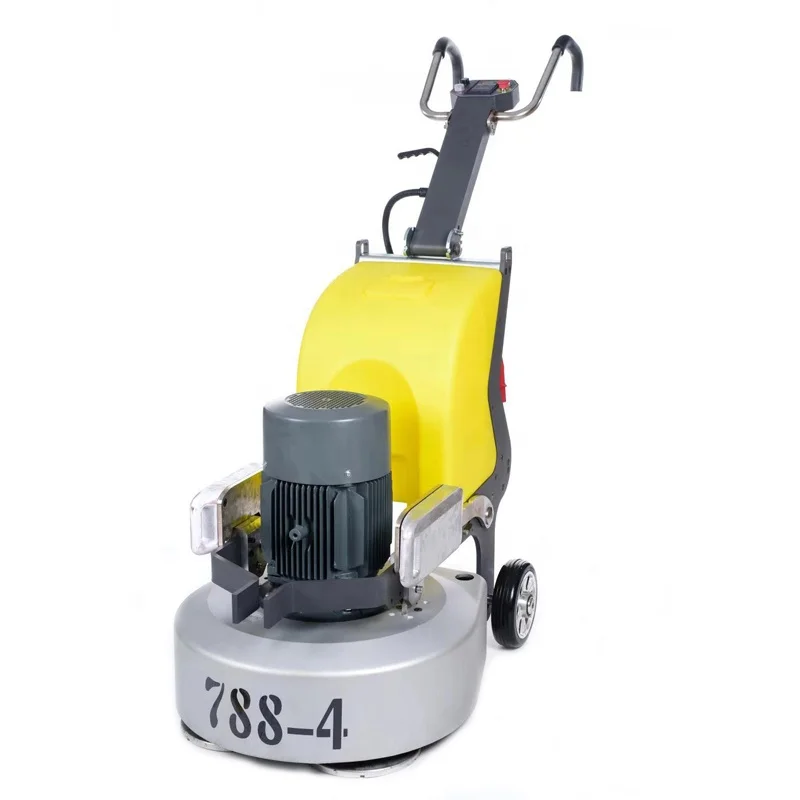

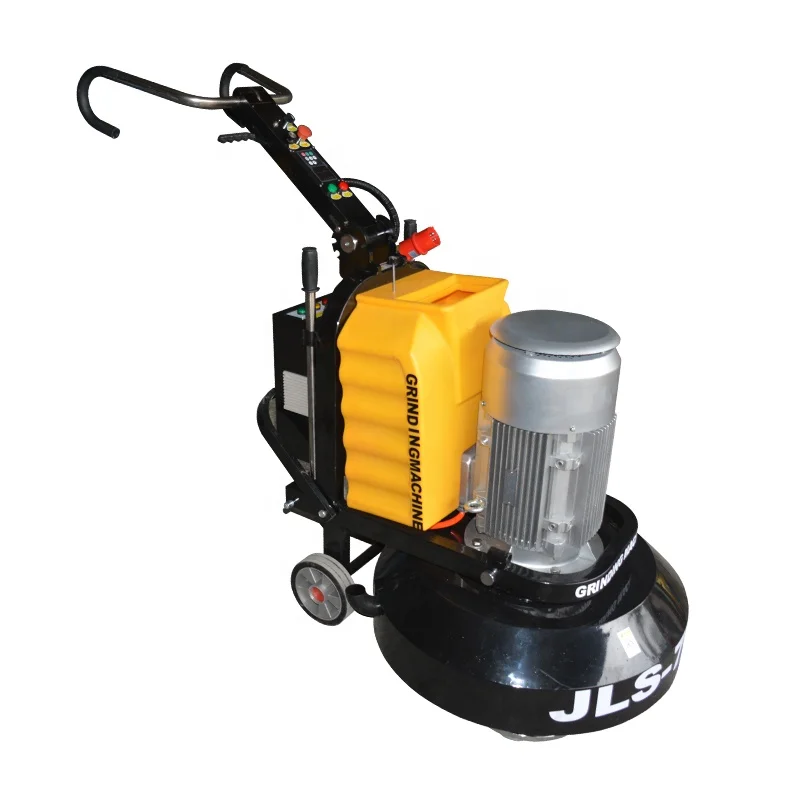

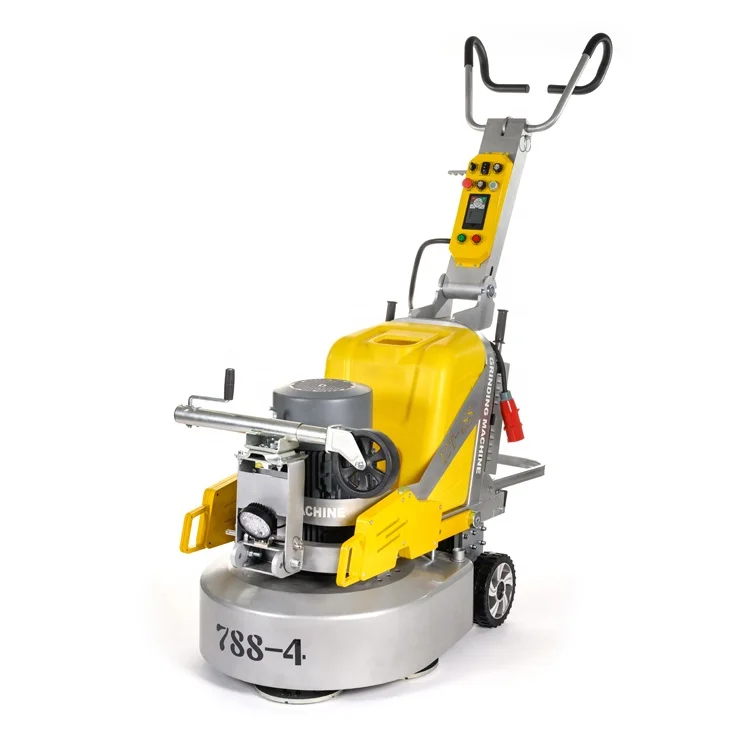

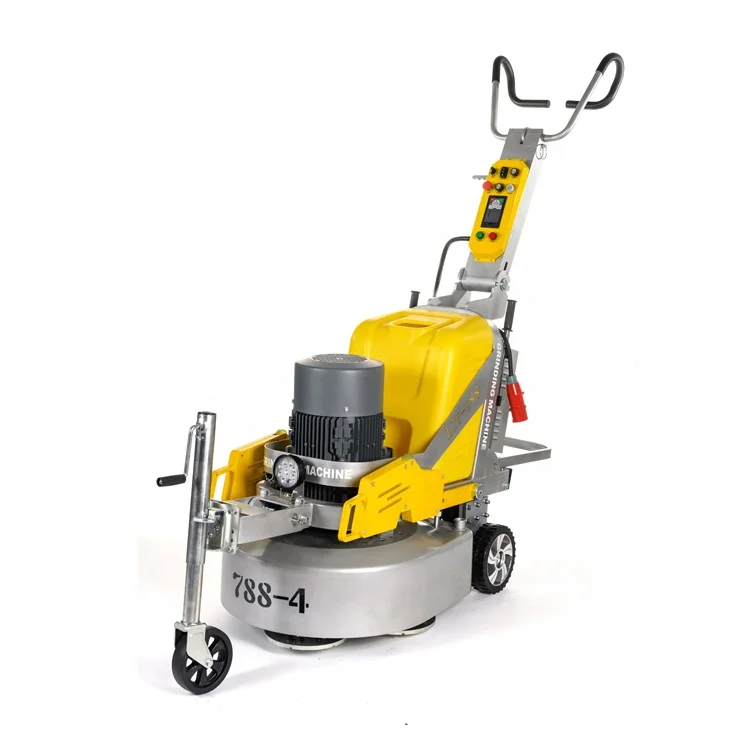

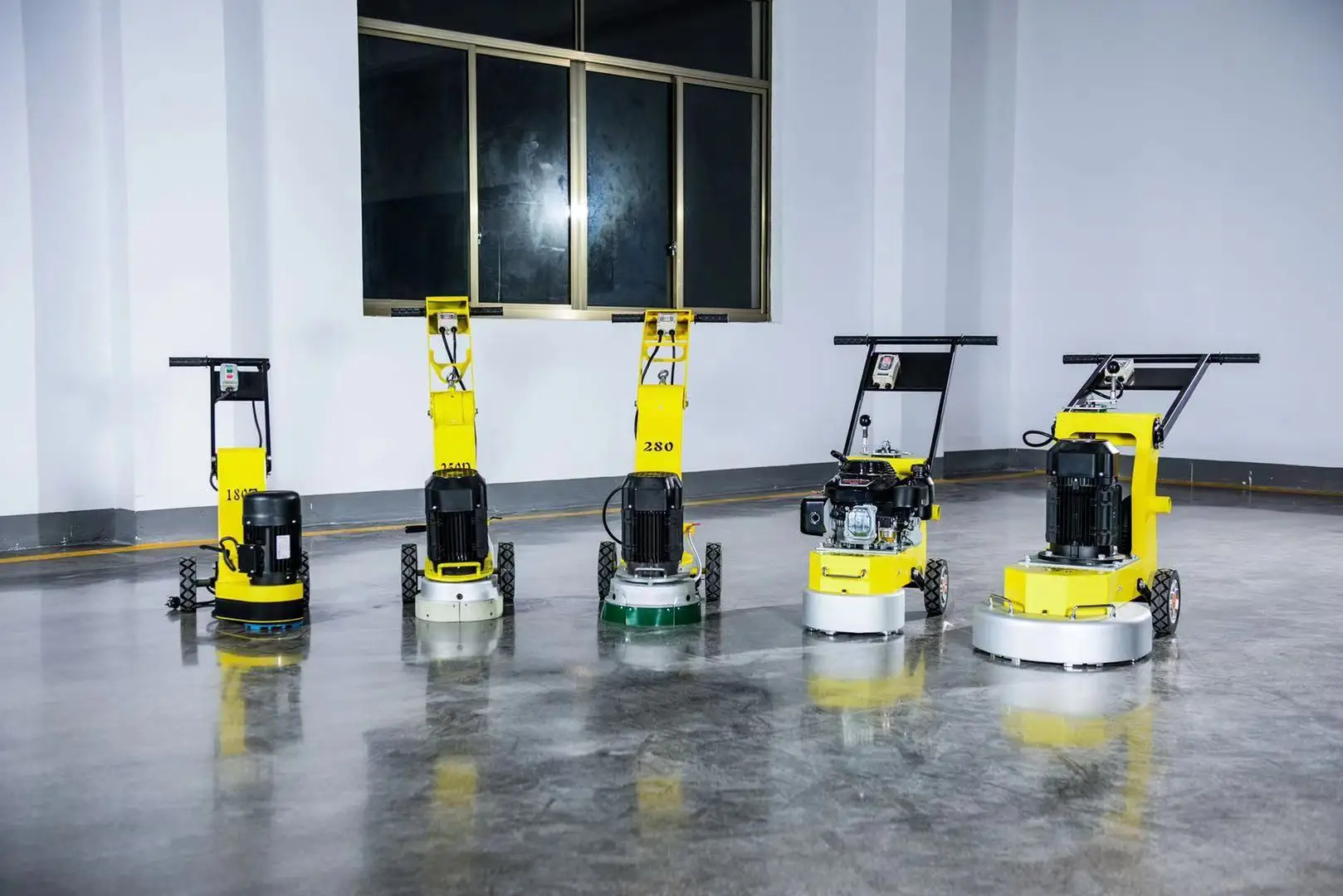

We have old style and new style planetary concrete floor grinder for you choose as below

It could be fixed with diamond blades or resin polishing pads, and could connect with dust vaccum machine

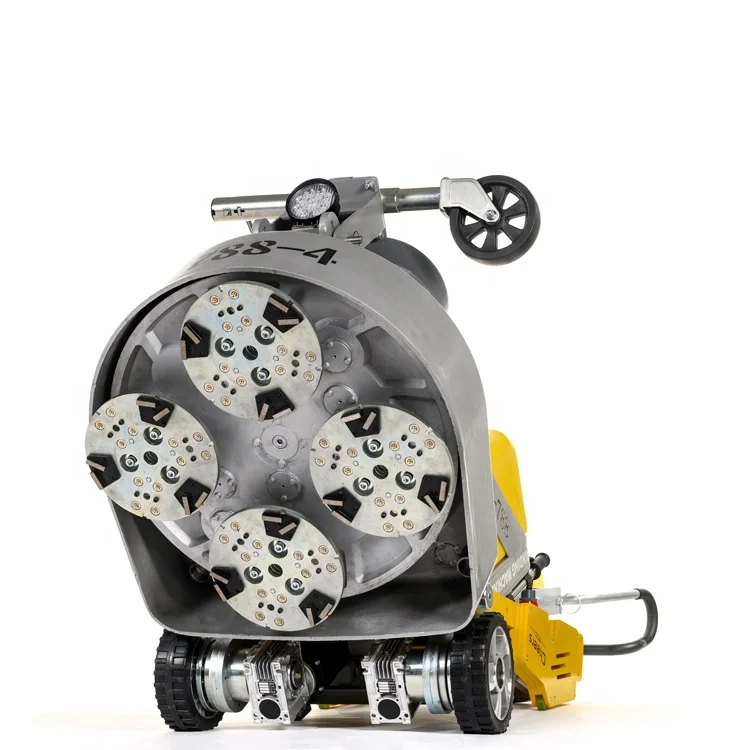

The planetary concrete floor grinding machine is with 4 plates, and could be fixed with 24 heads, stick with diamond metal pads or resin polishing pads.

If you are interest or need any information please contact me freely
