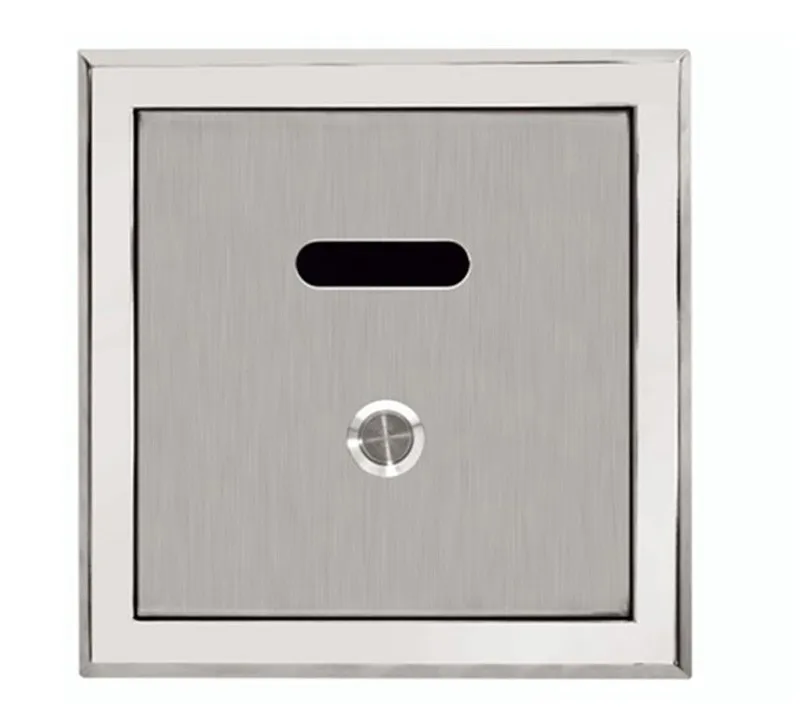

Infrared Sensor With Manual Button Control urinal flusher

Share on (622575309):


Price:

Quantity:


Product Overview

Description



2222_02

Operating power

DC:6V  (4xAA Alkaline batteries)

AC:220V, 50Hz

AD combined: Auto switch

  Applicable Water Pressure

0.05-0.7MPa

  Applicable Ambient Temperature

1-45ºC

  Applicable Water Temperature

1-60ºC

  Water flow

1.5-4L(10s flush time based on water pressure 0.3-0.6MPa)

  Inlet water Connection size

G1/2"

  Certification

CE

  Warranty

2 years, free spare parts will be supplied within two years

2222_04

10671067-21067-1



Note:



1.Control:Designed with SCM. Intelligent and save water.
2.Low power consumption: 4AA alkaling batteries can be used 2 years based on 100 flushes/day.
3.Structure: S.S face plate&housing, brass valve,strong and durable.The electronic parts are selaed,waterproof and moistureproof.
4.Adjustable Distance: Sensing distance can be adjusted beteen 30-70cm.
5.Adjustable water flow: Water flow can be adjusted just according to water pressure.
6.Strainer device: Strainer can be removed and clean to prevent blocking.
7.Anti-blocking needle: The solenoid valve is protected by anti-blocking needle inside.
8.Installation: Consealed, water inlet and outlet from up and down,wall thickness exceed 10CM.
9.Auto flush: If nobody use in 24hrs,if flushes one time automatically.
10.Manual : With manual button, to avoid sensor can not use.
