Double wall pipe heat exchanger use for drinking water of the cooling/heating
- Category: >>>
- Supplier: Et Heat Exchanger Co. Ltd.
Share on (62257565341):
Product Overview
Description
Product Description
High Efficiency Tube in Shell Heat Exchanger can be widely use in water-source air conditioner/industry chiller and heat pump etc.
Material
Heat Exchanger Tube
Standard applied:GB/T19447,or equal with ASTMB359,ASMESB359.
Material:copperT2/TP2,and NICKEL-Copper90/10,Copper BFe10-1-1,BFe30-1-1 for option.
Standard applied:GB/T19447,or equal with ASTMB359,ASMESB359.
Material:copperT2/TP2,and NICKEL-Copper90/10,Copper BFe10-1-1,BFe30-1-1 for option.
Shell:High quality steel
Feature:
High Efficiency of Heat Exchanger
1.Using high efficiency rifle tube ,heat exchanger area is 3.6time than the smooth type.
2.Fins inside & outside tube induce turbulence flow of freon and water .It's one cause of high efficiency.
3.The compact helix structure of the coil ensures sufficient heat exchanger between the gas and water.
Safety:
1)Whole tube inside shell has no internal jionts ,That' means no welding bug.
2)The copper is fully shaped and then installed into the shell thus free from curedamage.
3)There is not block on water loop and the water flow is smooth ,thus keep it free from ice and dirty.
4)The drain is on the lowest poin of the heat exchanger and easy for drainage in cold season.
High Efficiency of Heat Exchanger
1.Using high efficiency rifle tube ,heat exchanger area is 3.6time than the smooth type.
2.Fins inside & outside tube induce turbulence flow of freon and water .It's one cause of high efficiency.
3.The compact helix structure of the coil ensures sufficient heat exchanger between the gas and water.
Safety:
1)Whole tube inside shell has no internal jionts ,That' means no welding bug.
2)The copper is fully shaped and then installed into the shell thus free from curedamage.
3)There is not block on water loop and the water flow is smooth ,thus keep it free from ice and dirty.
4)The drain is on the lowest poin of the heat exchanger and easy for drainage in cold season.
Small volume:
Compact size is helpful to save the space for the heat pump and thus reduce the volume of the unit.
Compact size is helpful to save the space for the heat pump and thus reduce the volume of the unit.
uses
It can be widely used in drinking water of the cooling/heating ,dairy/beverage heating/cooling,chemical engineering,bio-food,medicine and other special industries cooling/heating heat exchanger;because of its unique twoyier inner tube structure,and to prevent leakage in the heat exchanger used for particpating in the two kinds of heat exchange meadia,anti-channeling does not occur,resulting in leakage after the media flow in the double-decker sandwich of copper tube and efficient,cross-contamination does not occur.Improved heat exchange of security and reliability.

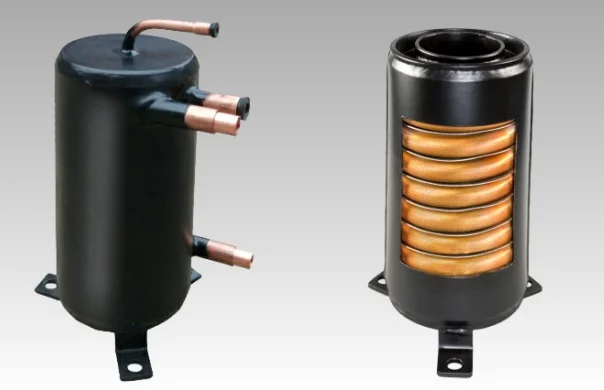

Detailed Images

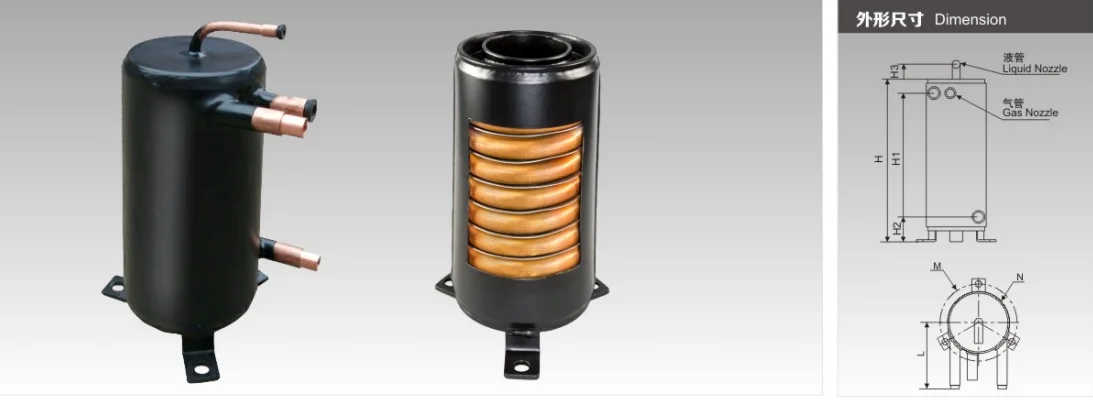

Size Information

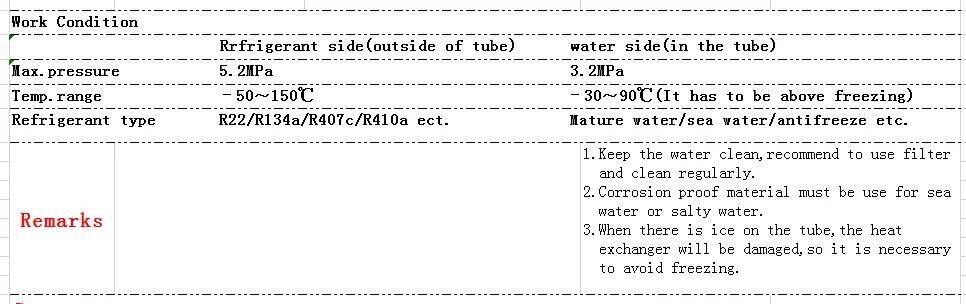

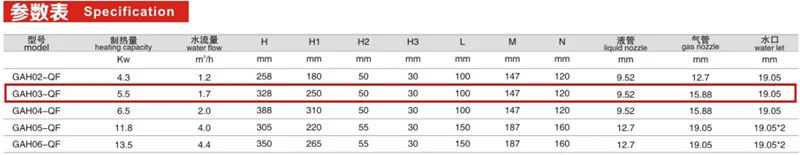

Specification
Related Products
Packing&Shipping
Package:
Packed in wooden cases
If you need customized packaging, please contact us
Shipping:Nansha new part
After Sales Service
After Sales Service
Support online installation service and video teaching installation
Company Introduction
Guangzhou ET Energy-efficiency equipment Co.,Ltd starts in 2015,and is a professional manufacturer of titanium heat exchanger,coaxial heat exchanger,tube in shell heat exchanger,titanium shell water to water heat exchanger ,air heat exchanger etc..ET has excellent production base(cover 13000square meter,equipped with advanced production and inspection machines.ET owns a professional team of R&D,manufacture and sales to keep innovation,which has been dedicated for decades.ET has established a long-term and stable cooperation with the famed companies from domestic and oversea in HVAC,which promotes ET to gain strong experience and high-level in the field. "Satisfy you with high-efficient and energy-saving heat exchanger "Is our commitment to clients and the pursuit of forever.
Quality Policy and Objectives
Quality policy:Satisfy clients' requirements,exceed customers expectation.
Business philosophy:Quality-oriented,service-available,credibility-first.
Corporate honor
Some cooperative partners
