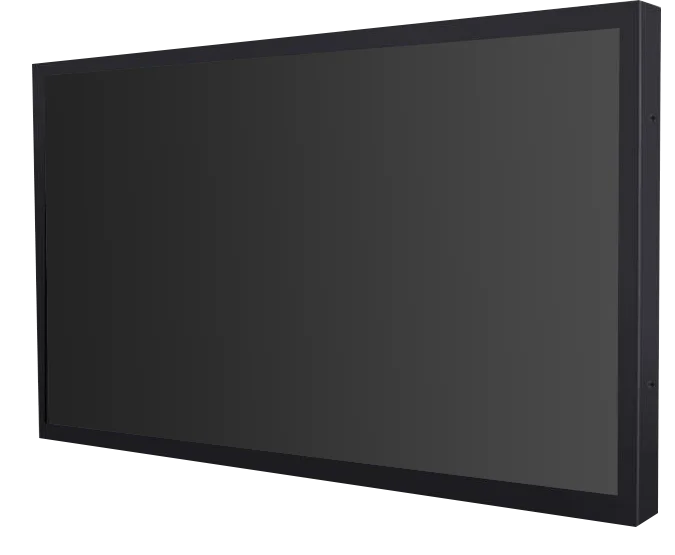

19 inch LED/LCD Professional CCTV Monitor in Metal Casing

Product Overview

Description

19 inch LED/LCD Professional CCTV Monitor in Metal Casing



Application Field:

SOHO Offices

Shopping Mall

School

Government Users



Premium Solution Feature:

USB Input

Compatible with JPEG, BMP,PNG; RM, MPEG1,

MPEG2, RMVB, MOV, MJPEG, DivX; WMA, MP3, M4A



Video Input/Output:

Display CVBS Signal by BNC Connector



Resolution: SXGA (1280x1024)



Built in 3D Comb Filter







19" 5:4 CCTV Monitor with USB Input



I. Specifications



Model No.	AKA-1901MA
Display	Screen Size	19" 5:4 TFT Color LCD
	Max. Resolution	SXGA (1280x1024)
	Pixel Pitch	0.294 mm
	Brightness	300cd/m²
	Contrast Ratio	1000:1 Typical
	Viewing Angle (U/D/L/R)	80/80/80/80
	Display Color	16.7Million
	Response Time	5ms Typical
	Power Consumption	Approx. 23 Watts
	Video System	NTSC / PAL
Interface	Solution No.	M5 ( Premium Solution )
	Video 1 Input	CVBS Input (BNC type) x1
	Video 2 Input	CVBS Input (BNC type) x1
	Video 2 Output	CVBS Output (BNC type) x1
	PC-RGB Input	VGA (15Pin D-Sub) x1
	Audio Input	Stereo 3.5mm Input x1
	Audio Output	Stereo 3.5mm Output x1
	S-Video Input (Option)	1
	HDMI Input	1
	USB Input	1 (Compatible with JPEG, BMP,PNG; RM, MPEG1, MPEG2, RMVB, MOV, MJPEG, DivX; WMA, MP3, M4A)
	DC 12V Input	1
Features	Built in Comb Filter	3D
	Built in De-interlace	3D
	Source	VGA/VIDEO 1/VIDEO 2/HDMI
	Multi Language	English, Chinese, French, German, Spanish, etc
Audio	Built-in Speakers	2
Cabinet	Color	Black
	Material	Metal
	Wall Mount	VESA
	Base Stand	Desk Top Stand
Circumstance	Operating Temperature	0 ~ 50° C / 32 ~ 122° F
	Storage Temperature	-20 ~ 60° C / -4 ~ 140° F
Packings	Unit N.W./G.W.	Approx. 7KG/6KG
	Gift Box Dimension	500x185x500 mm (LxWxH )
Regulations	RoHs, FCC , CE, C-tick, and so on.
*Specifications are subject to change without notice.







II. Product Details (For Reference Only)

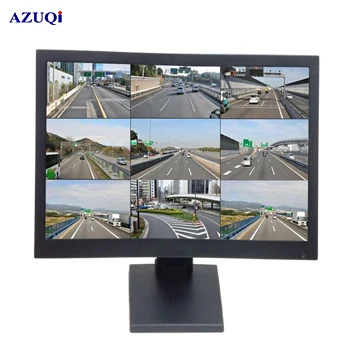

1. Metal Casing CCTV Monitor with Base







2. Metal Casing CCTV Monitor without Base

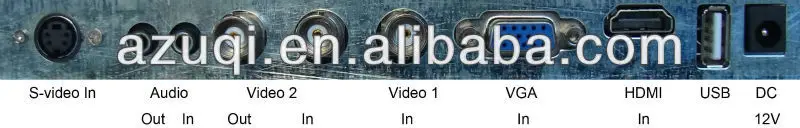

Interface for reference:









III. OEM/ODM service is available; MOQ 50PCS would be in neutral packing.







PS: For more details, please send e-mail to us directly or send messages by trademanager online chatting.
