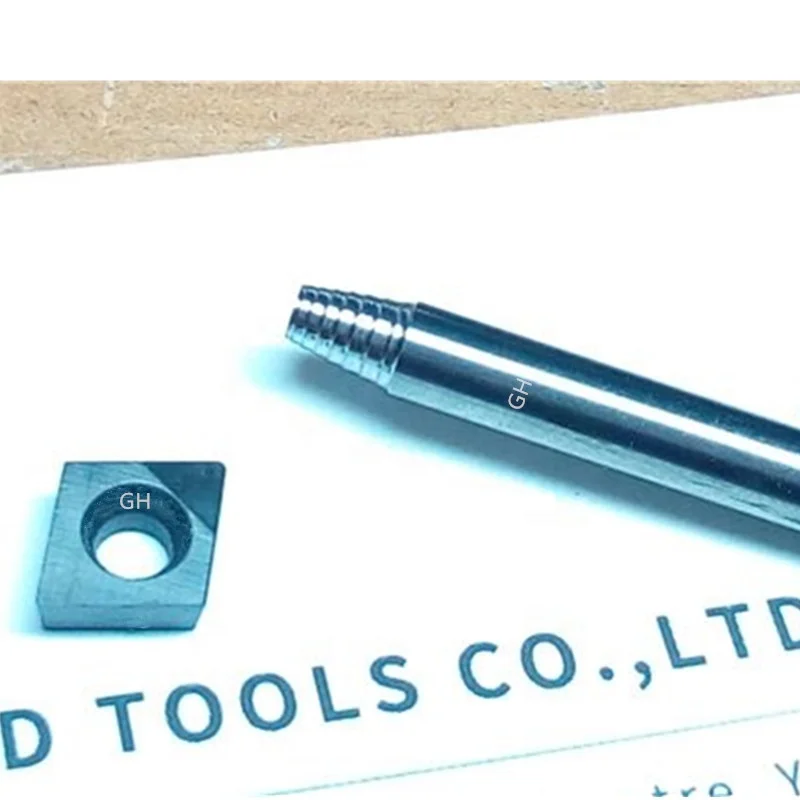

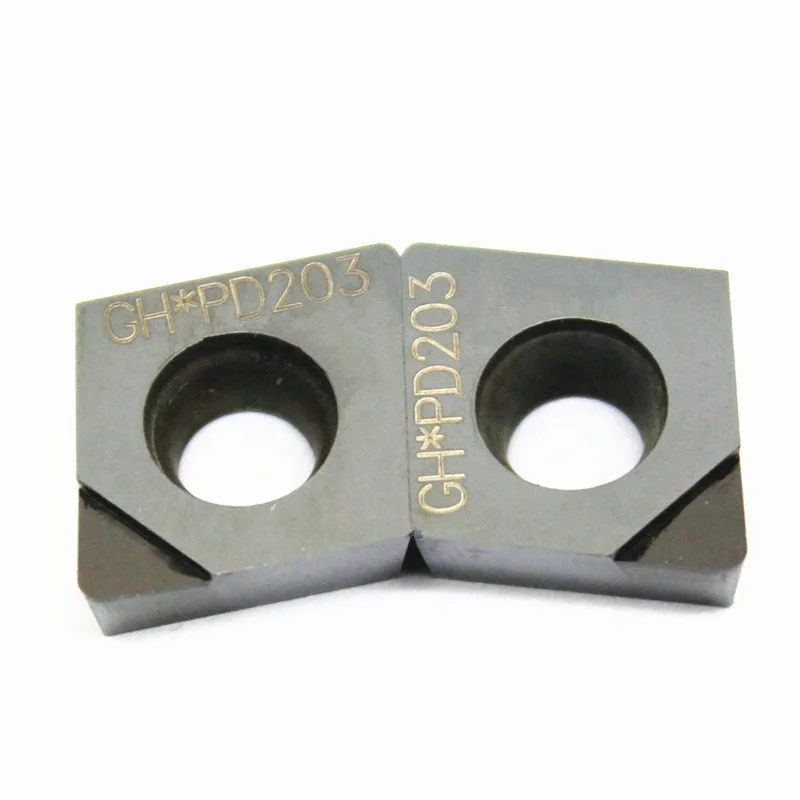

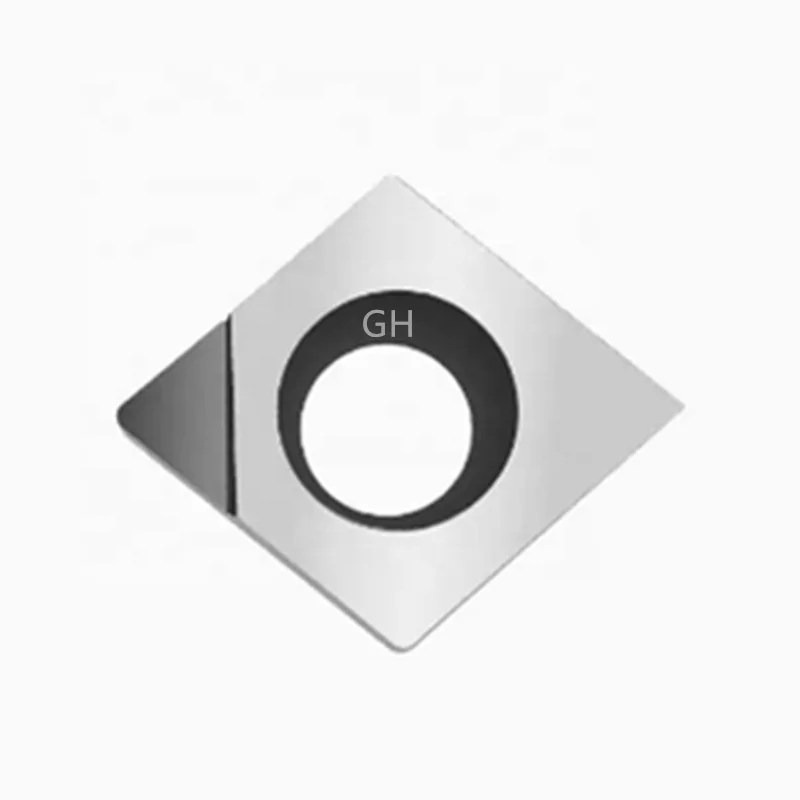

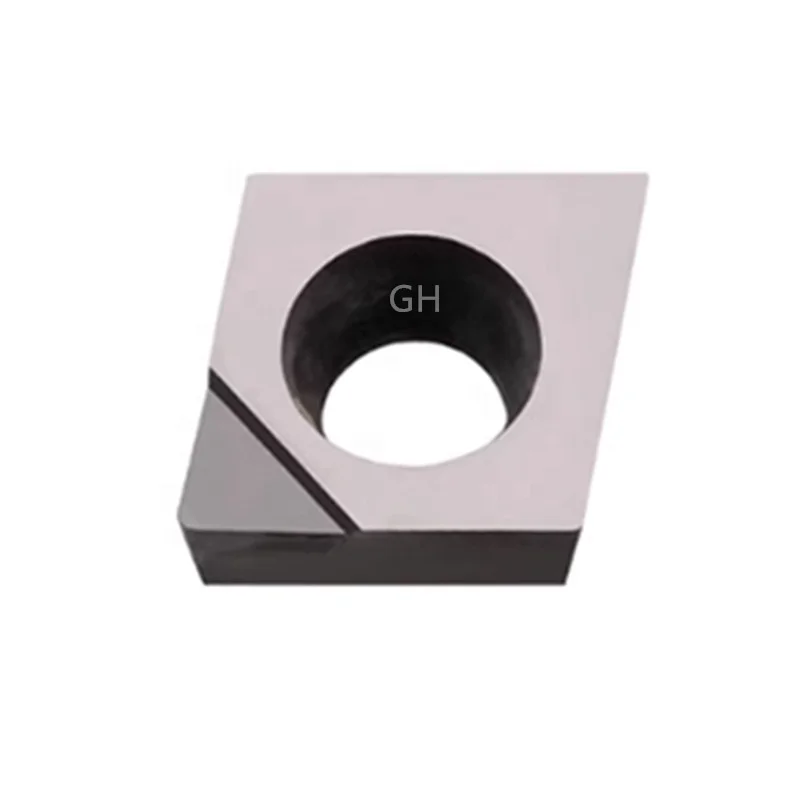

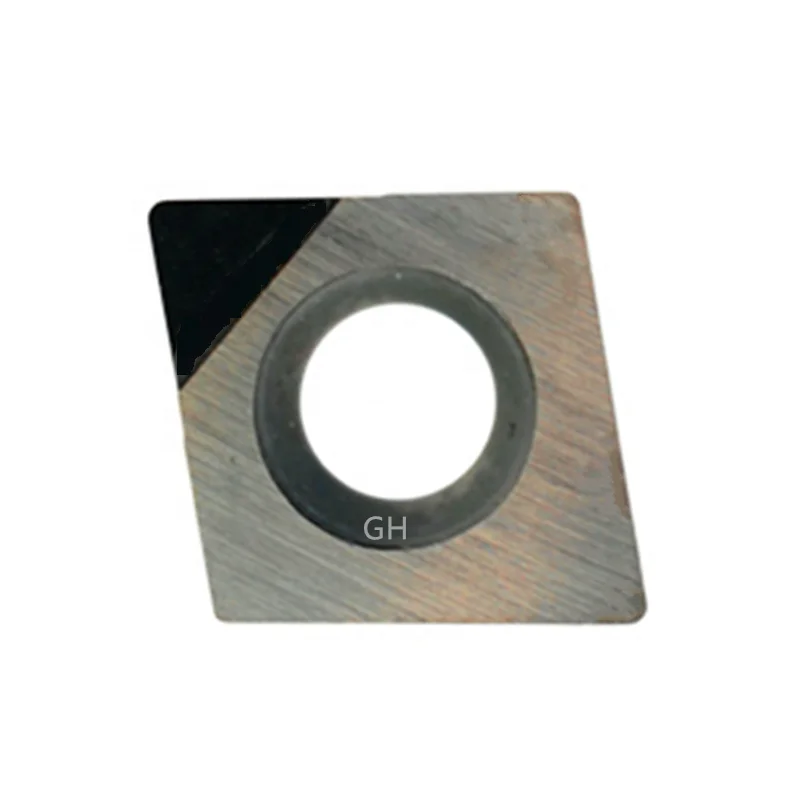

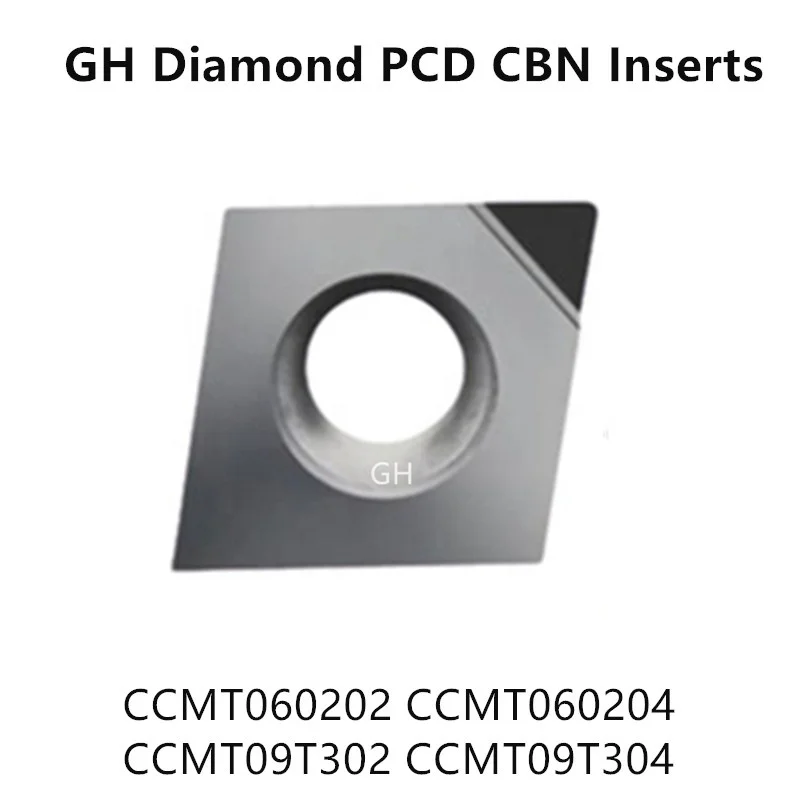

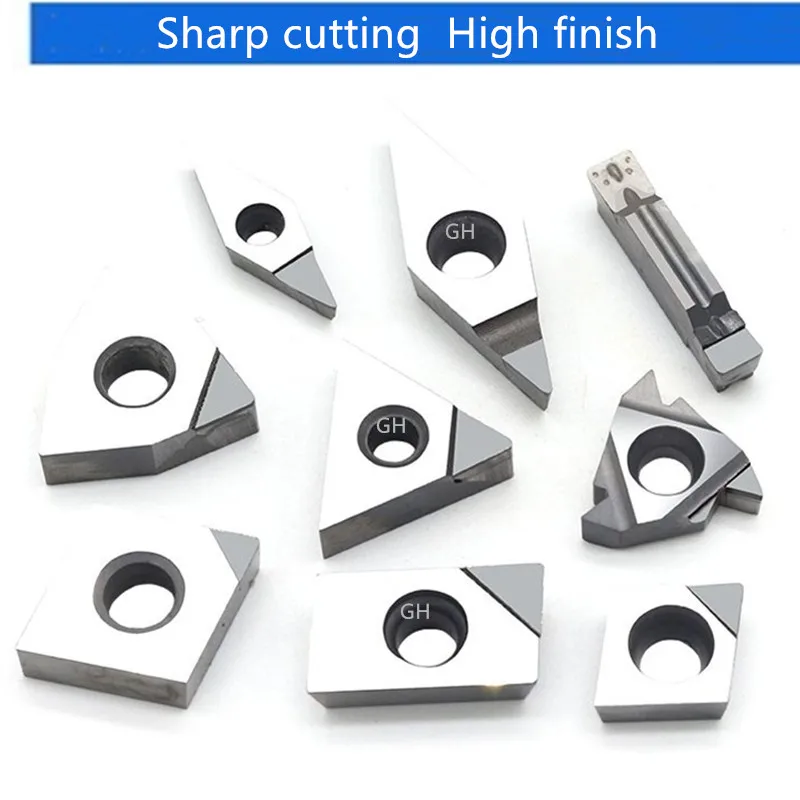

Factory price CNC Diamond tip carbide insert CCGT CCGW CCMT CNMG120408 PCD insert for aluminum brass copper

l  PCD

PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

Features:

--All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.

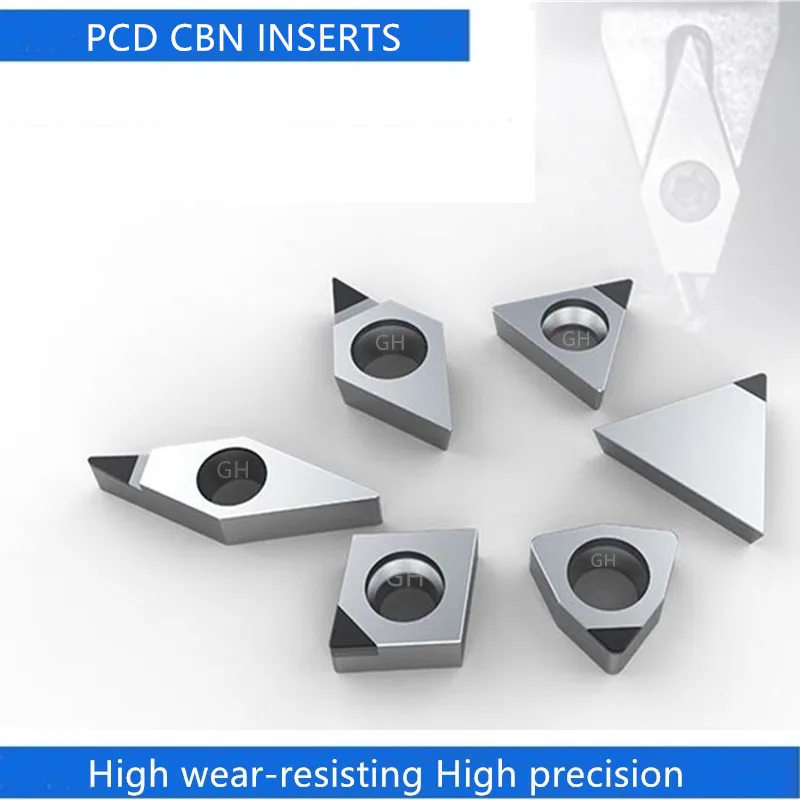

--The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.

---With sharp cutting edge , sharp, high precision,

---The body uses high quality tungsten carbide or steel.

-- Machines imported from UK, Germany, Japan

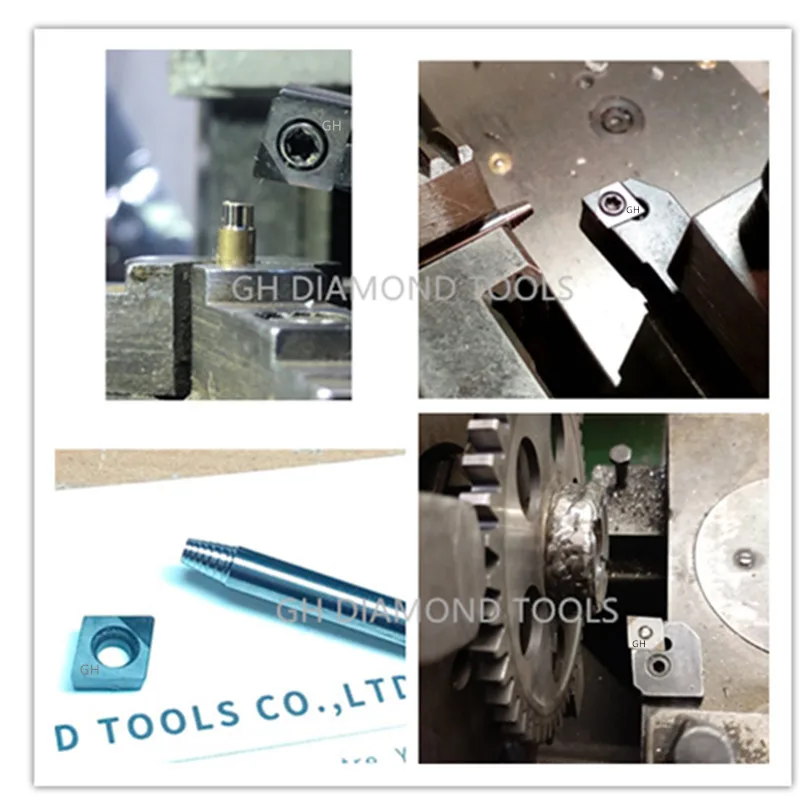

Application:

PCD may be cost effectively employed to machine the following broad range of materials:

• Non-ferrous metals and alloys including, aluminum, copper, bronze, brass, green tungsten carbide, precious metals and MMC's.


• Non-metallic materials including, ceramics, reinforced plastics, hard rubber, chipboard, MDF's and other fibreboards, etc.

How to order?

In order to supply the product you require we would need to have the following information:

1. The insert & tools designation - ISO code or drawing.
2. The type of abrasive (Diamond or CBN).
3. The material to be machined. As there any different series of PCD/PCBN is used for processing different targets.
4. Length of required PCD/PCBN cutting edge.
5. Any special features eg: Top rake or radius different to the code etc.

We hope to receive your drawing of indexable type insert and tools.
