PBDS 8 Automatic Capsules Counting And Filling Machine
- Category: Tablet Counter >>>
- Supplier: Wenzhou CapsulCN Technology Co. Ltd.
Share on (62257918356):
Product Overview
Description
The PBDS-8 is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.
Products Description
PBDS-8 Automatic Capsule & Tablet counting machine

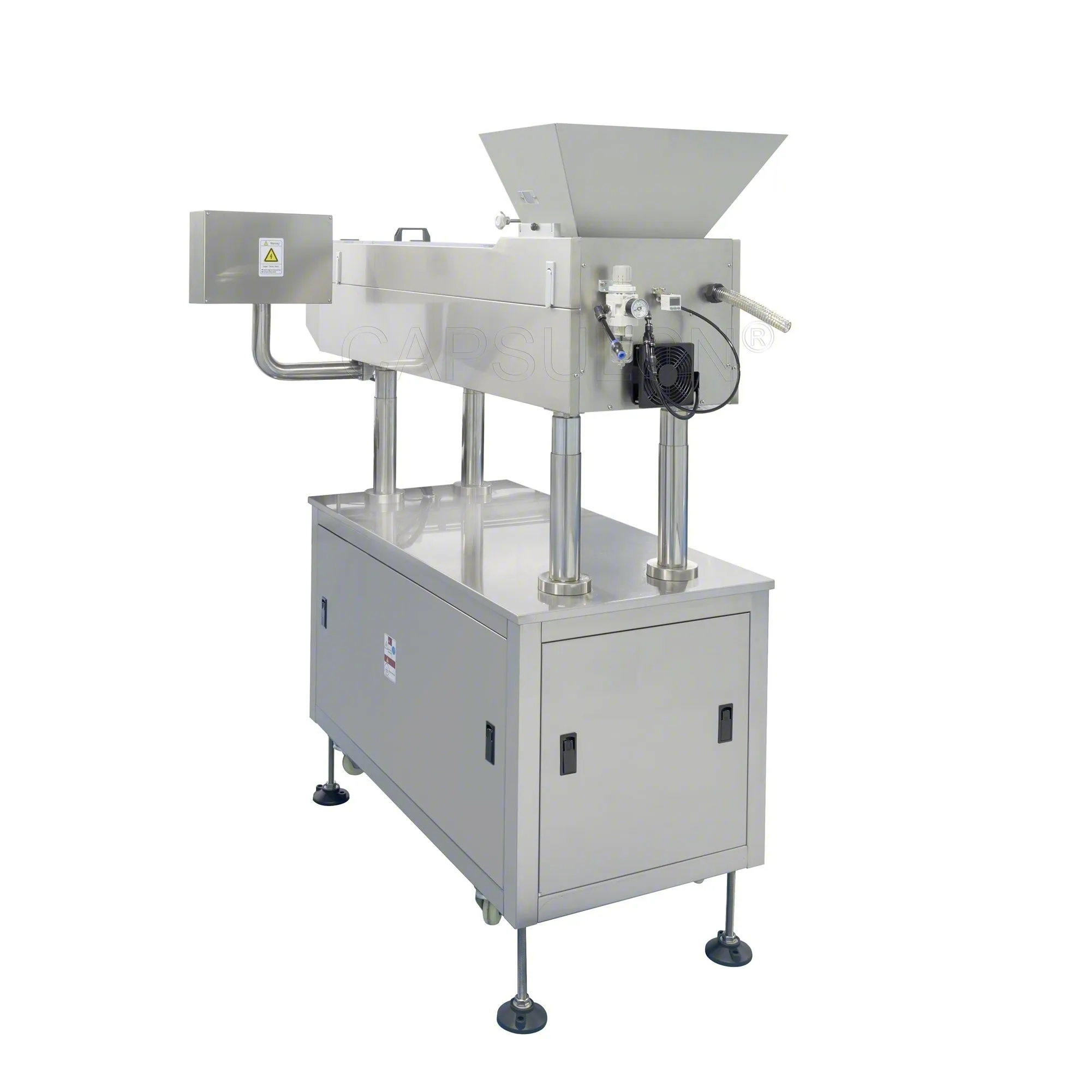

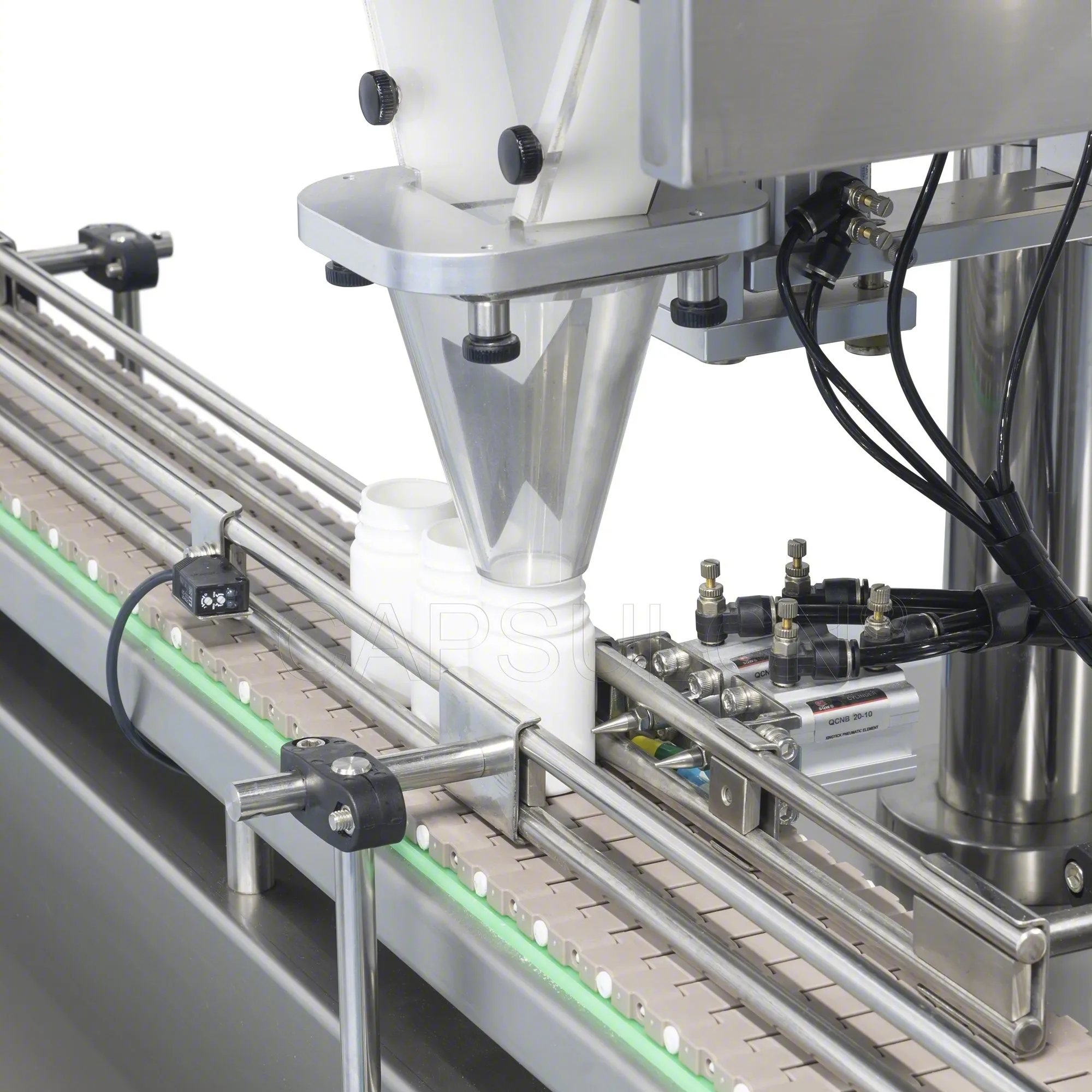

The electronic counting machine PBDS-8 is a kind of light and compact counting and filling equipment for solid particles. It adopts the internationally advanced 8-channel vibration, computer control, dynamic scanning counting, automatic bottle conveying and photoelectric control. It is designed in strict conformance with GMP standard and equipped with intelligent safety protection devices such as system self-inspection, error warning and automatic shutdown. As a high-tech material counting and filling machine, the PBDS-8 is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.
Main features:

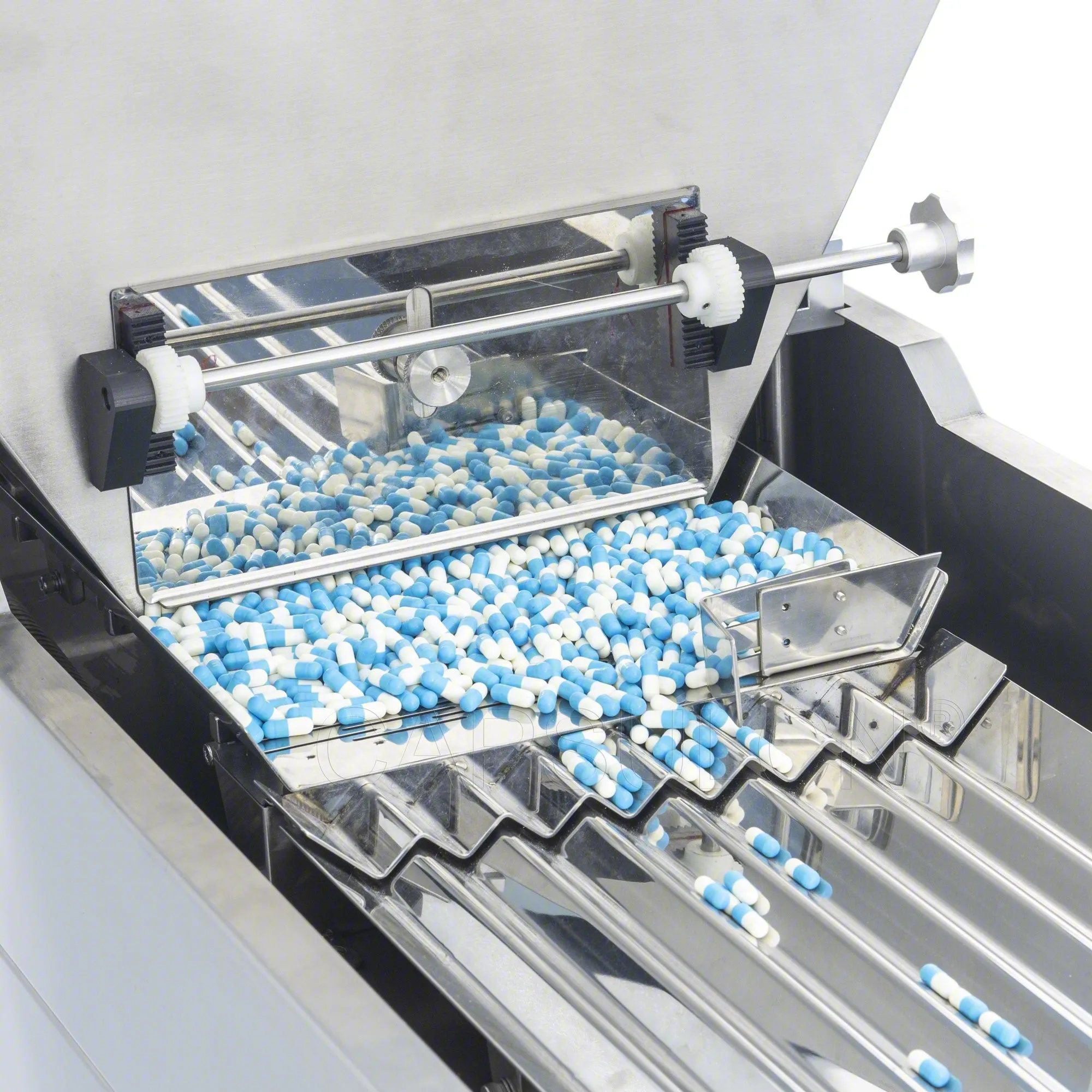

*Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
*Reliable operation：It runs stably and smoothly with low noise.

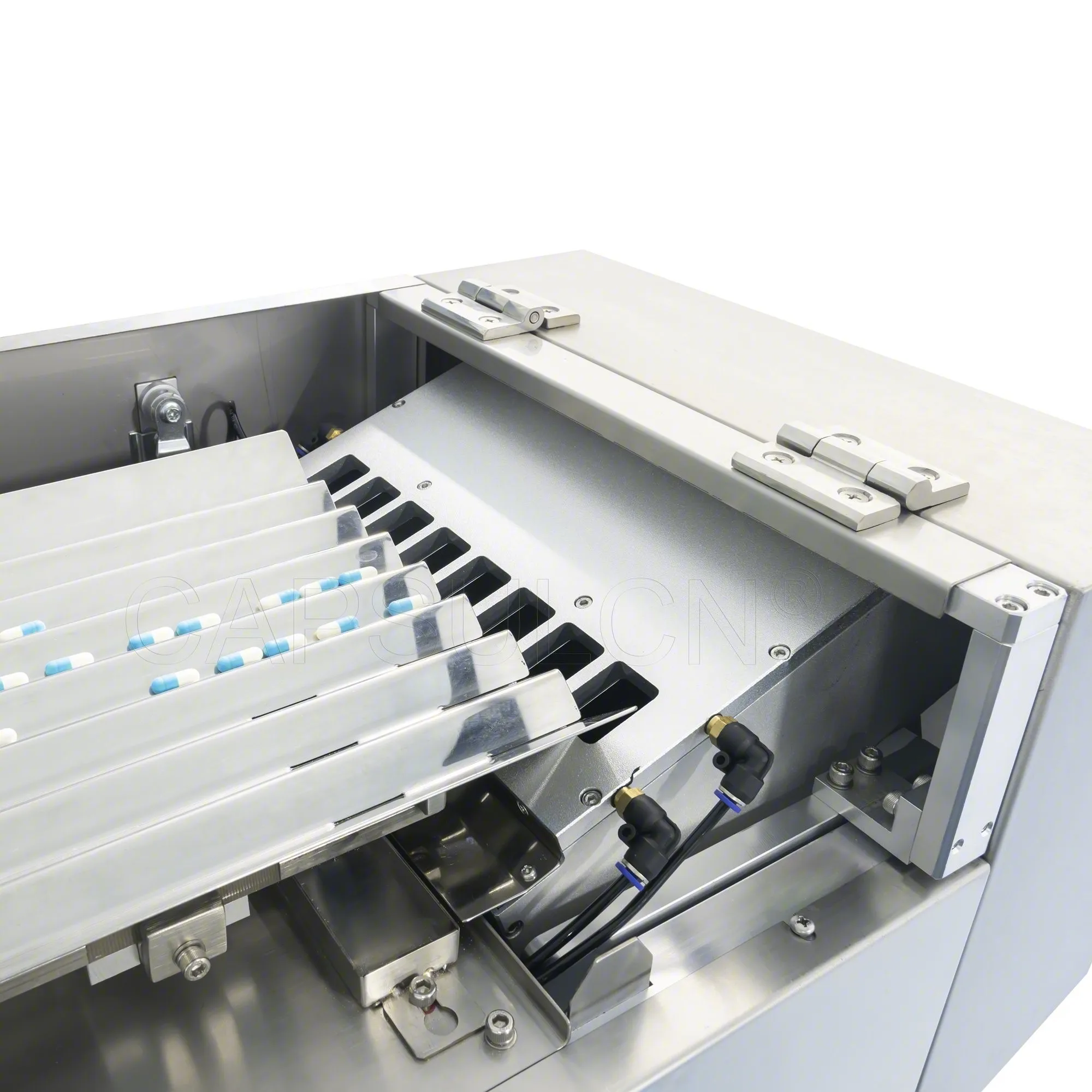

*High dust resistance：It adopts unique anti-dust photoelectric sensor.
*Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
*Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.

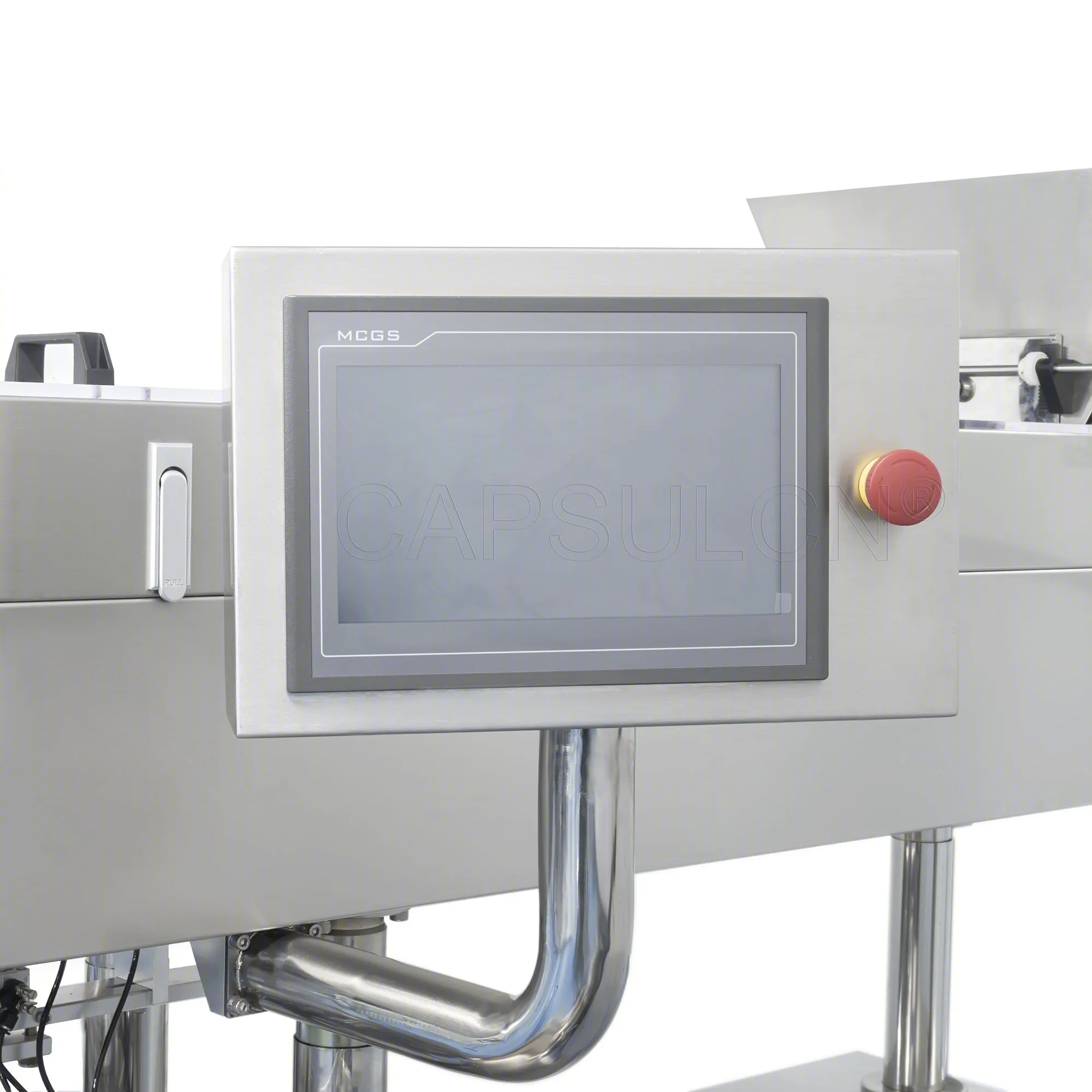

*Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
*Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
*Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
*The platform height can be adjusted according to the bottle height.
*The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
*Reliable operation：It runs stably and smoothly with low noise.
*High dust resistance：It adopts unique anti-dust photoelectric sensor.
*Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
*Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
*Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
*Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
*Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
*The platform height can be adjusted according to the bottle height.
*The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
Details Images
Product Paramenters
capacity | 30-50 bottles /min |
Size of Capsule | #00-#5 Capsule |
Voltage | AC220V , 50/60Hz |
Power | 600W |
Air Consumption | 0.8 M3/h |
Hopper Volume | 30ltrs |
Overall Dimension | 1600*1500*1600mm |
Weight | 200kg |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
Recommend Products
Let the machine work for you!
Dear customer,
Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.

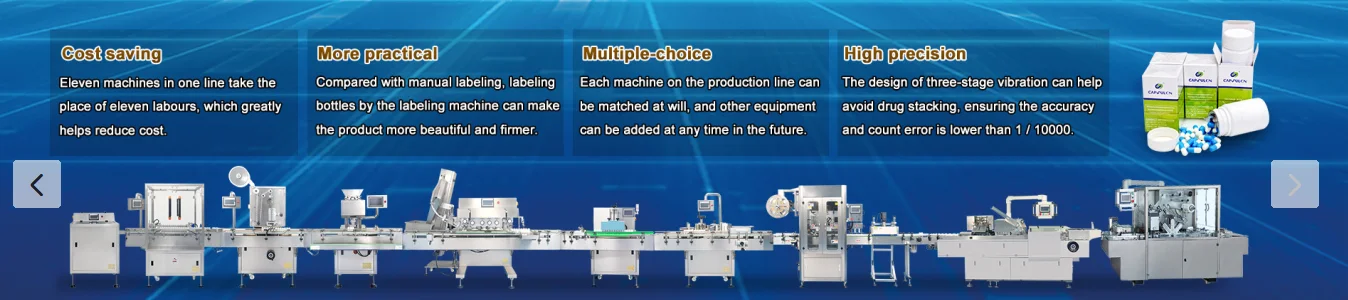

Eleven machines cooperate perfectly
