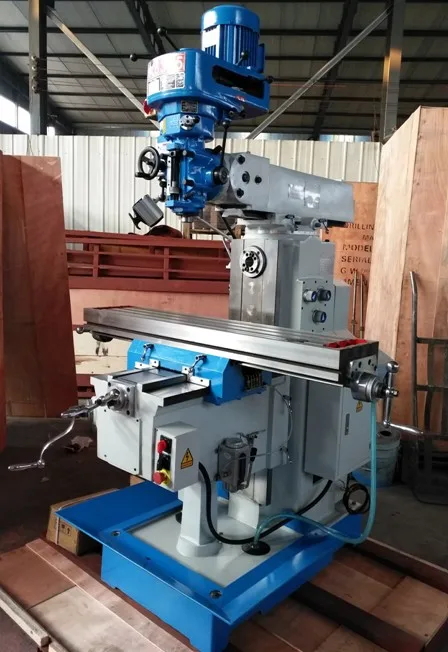

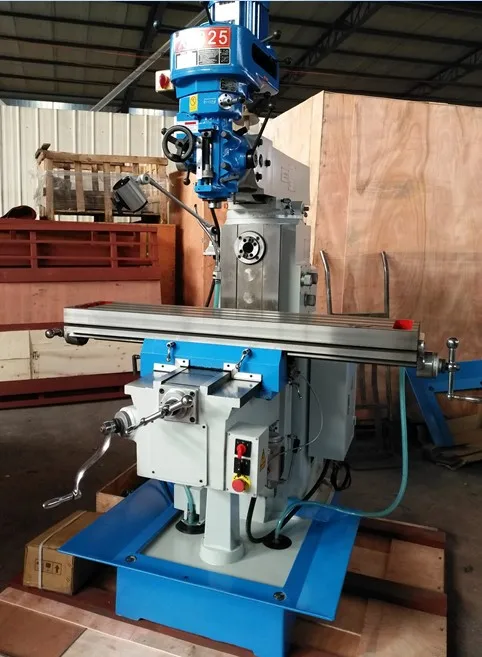

Вертикальный и горизонтальный ручной фрезерный станок X6325W
- Category: >>>
- Supplier: Dalian Dahui Machine Tool Co. Ltd.
Share on (62257920783):
Product Overview
Description
Product Description
Product ApplIcation
The rocker milling machine X6325W has vertical and horizontal axis, with high speed milling head, high precision and high- speed range. The milling head inclinable by ±45 degrees.
Parameters
Specifications | X6325W |
Table size(mm) | 254X1270 |
Longitudinal travel(mm) | 800 |
Transverse travel(mm) | 420 |
Vertical travel(mm) | 420 |
Spindle speed range(rpm) | (V) 16steps 65-4500 |
(H) 8steps 48-1560 | |
Spindle travel(mm) | 127 |
T-shot | 3/16/65mm |
Automatic spindle feeds | 0.04/0.08/0.15 |
Distance between spindle center and Column(mm) | 140-609 |
Distance between spindle nose and Table top(mm) | 0-450 |
Spindle taper | (V) R8 |
(H)ISO40 | |
Spindle motor power(kw) | (V) 2.2kw (H)3.0kw |
Head swivel | 90° |
Head tilting | 45° |
Machine weight | 1550/1650kg |
Machine dimension | 1750x1530x2340mm |
MaIn Features
1.Milling machine(H/V)
2.Vertical milling spindle automatic feed
3.Y axis mechanical feed
4.Axis motor lift
5.Head swivel 90° Head tilting 45°
Detailed Images

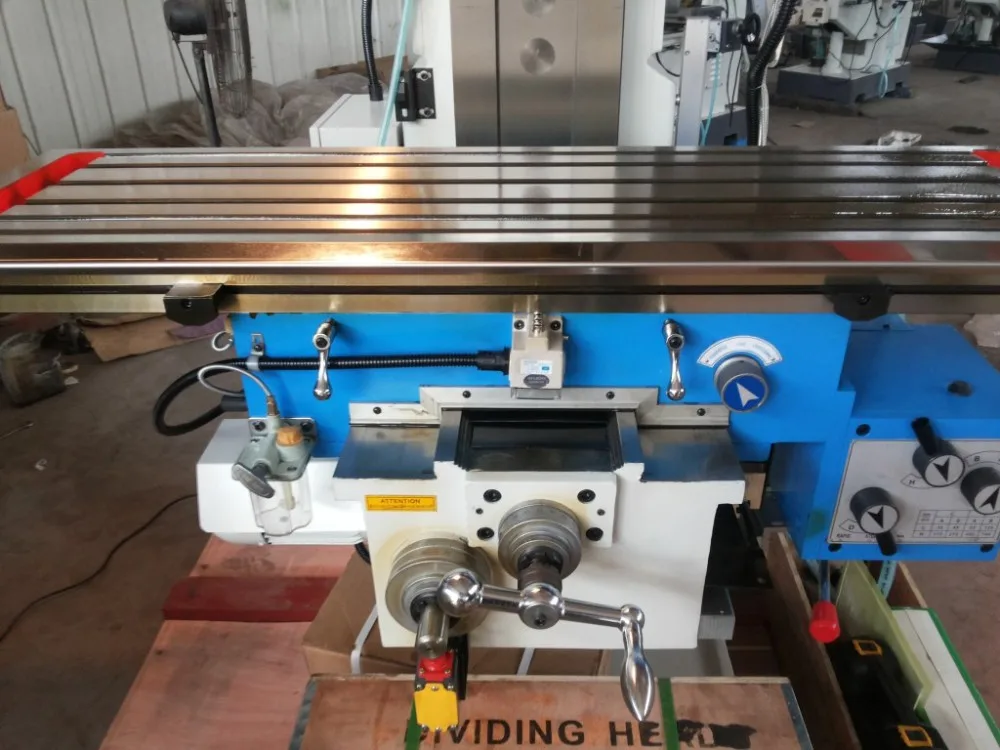

Machine Parts Name: Worktable
The worktable size is 254x1270mm, with began, stop, inching and variable speed function.
Machine Parts Name: Horizontal Spindle
It is used to install the tool pole and rotate the milling cutter. The spindle is a hollow shaft, and the front end has a precision taper hole of 7:24. Its function is to install the taper shank of the milling cutter.
Machine Parts Name: Vertical Milling Head
The end milling head can be adjusted in the vertical plane and the reverse rotation, and the machining range of the machine can be expanded.

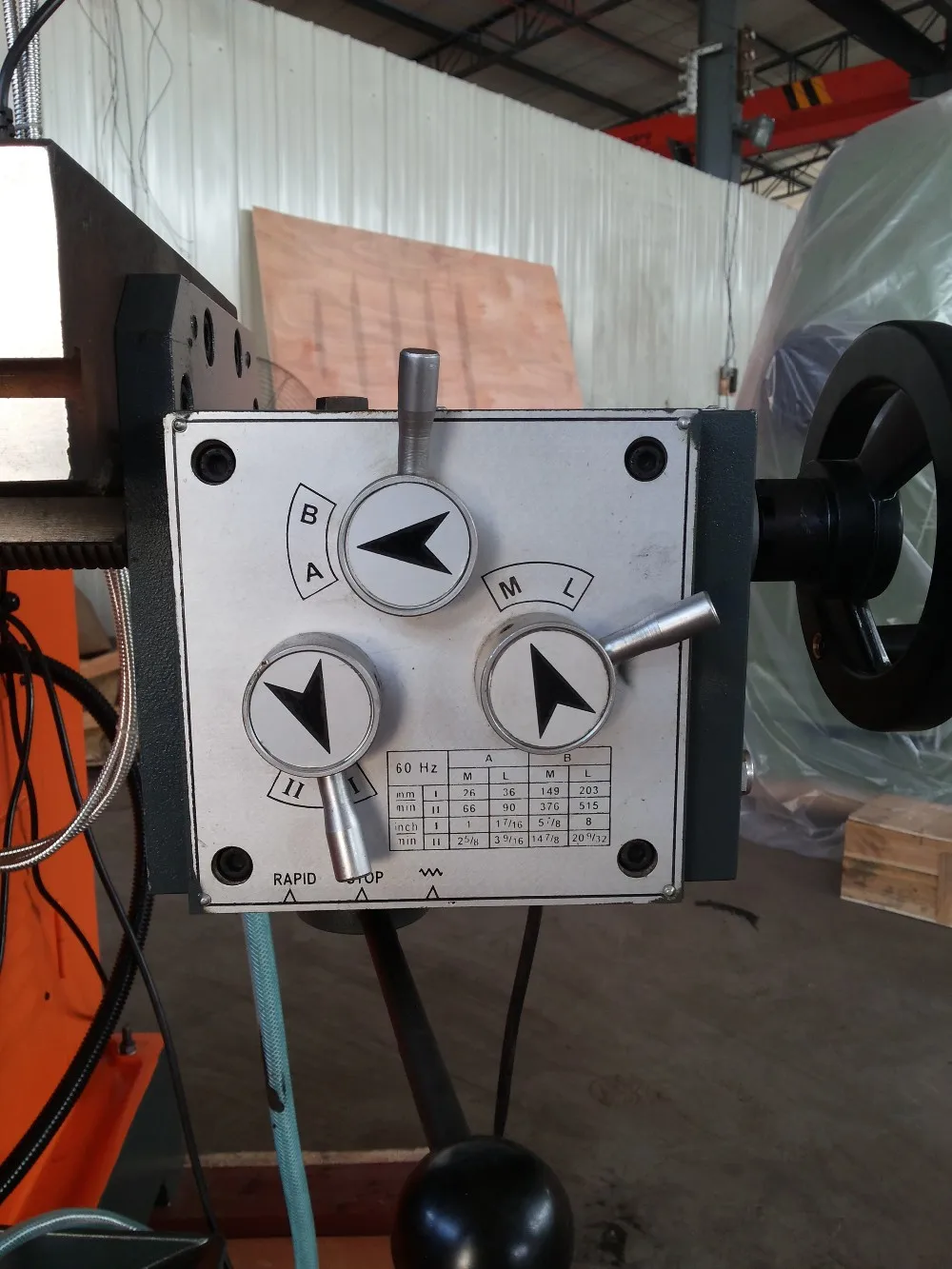

Machine Parts Name: Gearbox
The gearbox is to transfer the fixed speed of the feed to the motor through the gear change, and transfer it to the feeding machine in 18 different speeds.
The various speeds of working table movement are realized to meet the need of milling.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
