Automatic Samll Plastic PET PP LDPE HDPE Chemical Oral Liquid Medicine Bottle Unscrambling Sorting Arranging Machine/Unscrambler

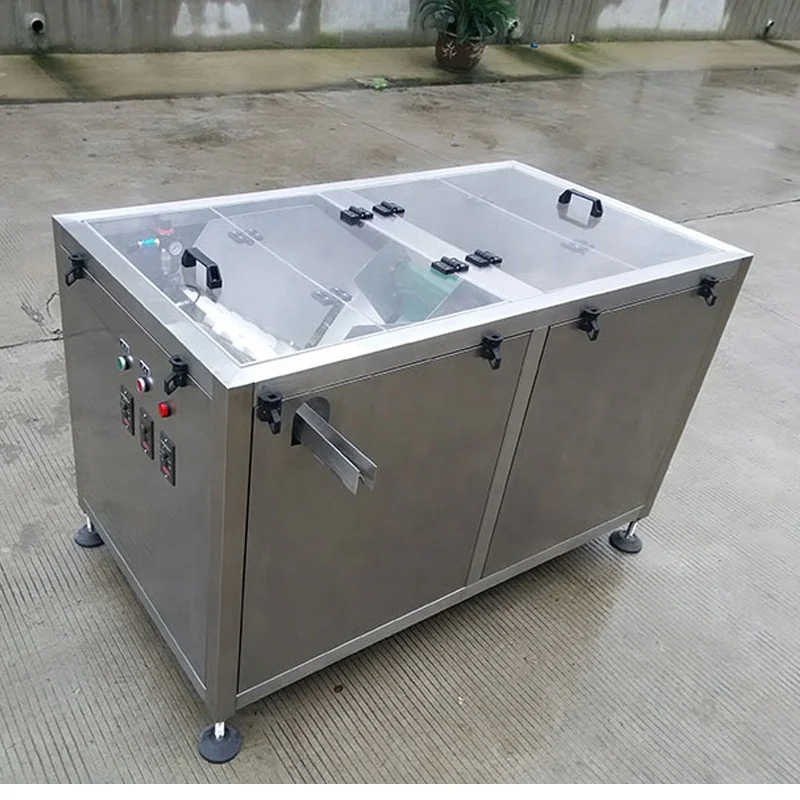

Product Description

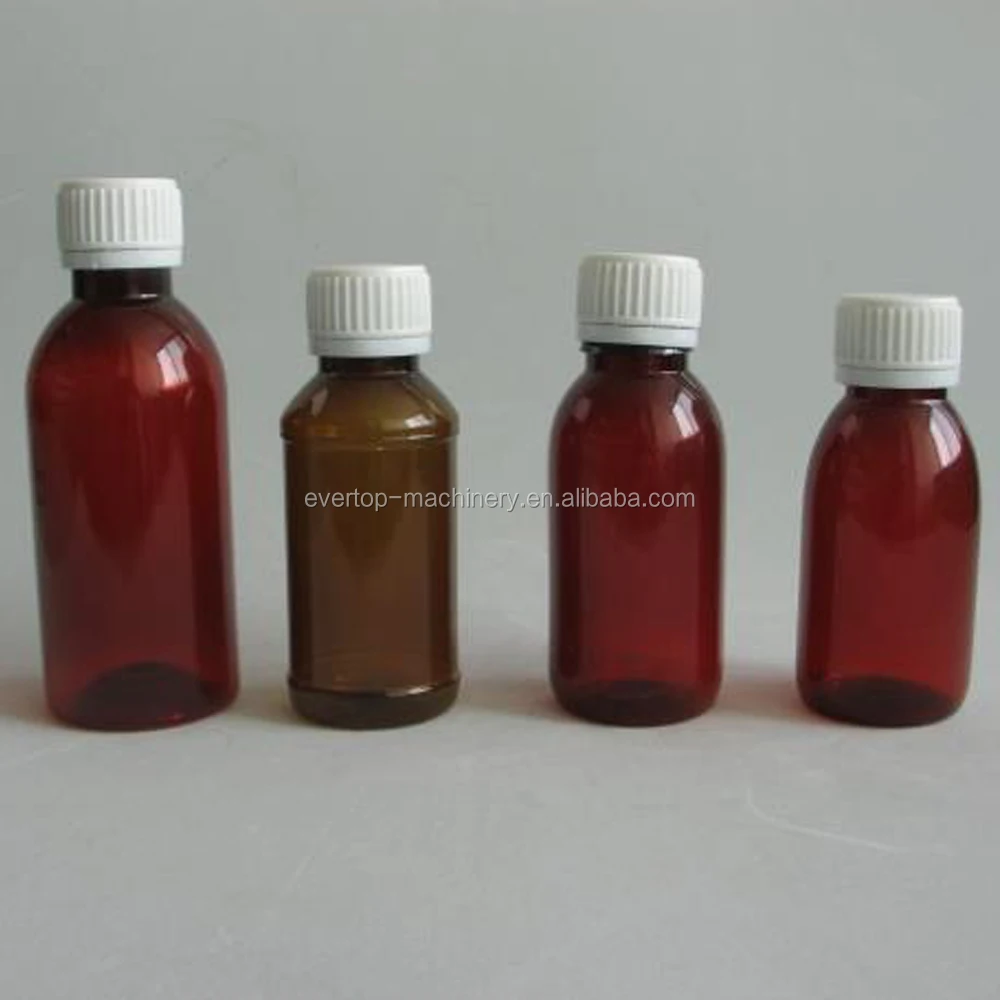

This full-automatic bottle unscrambler is the support equipment for the chemical, medicine, oral liquid filling equipment, applicable for the orderly arrangement of messy plastic (PET, PPE, LDPE, HDPE) bottles and then deliver to filling packing production line.
1. This machine is a mechatronics equipment, easy operation, simple maintenance.
2. The machine is equipped with quantitative control detection and overload protection device for bottle discharge.
3. Noise is less than < 70db.
4. The material of this machine is made of 304 high quality stainless steel.
5. Using the mechanical anti-bottle correcting mechanism, the bottle mouth is unified.
6. It is equipped with bottle feeding device, which greatly improves the production efficiency.
7. This machine is equipped with three stepless speed regulating motors. One of them is only used to adjust the speed of the bottle turntable. The faster the speed of the bottle turntable, the faster the speed of the bottle coming out.
8. The outlet of the machine is equipped with a photoelectric switch to check whether there is bottle blockage on the conveyor belt. If bottle blockage occurs, the motor of the bottle handling turntable stops automatically. If bottle shortage is detected, the machine will start automatically again.
9. This machine realizes the whole process intellectualization.
10. Suitable Bottle Diameter: 10mm~65mm
11. Production capacity: 6000-12000 bottles per hour (based on 50ml)
12. Power supply: AC220V/50Hz, single phase
13. Power: 0.5Kw
14. Weight: 200 kg

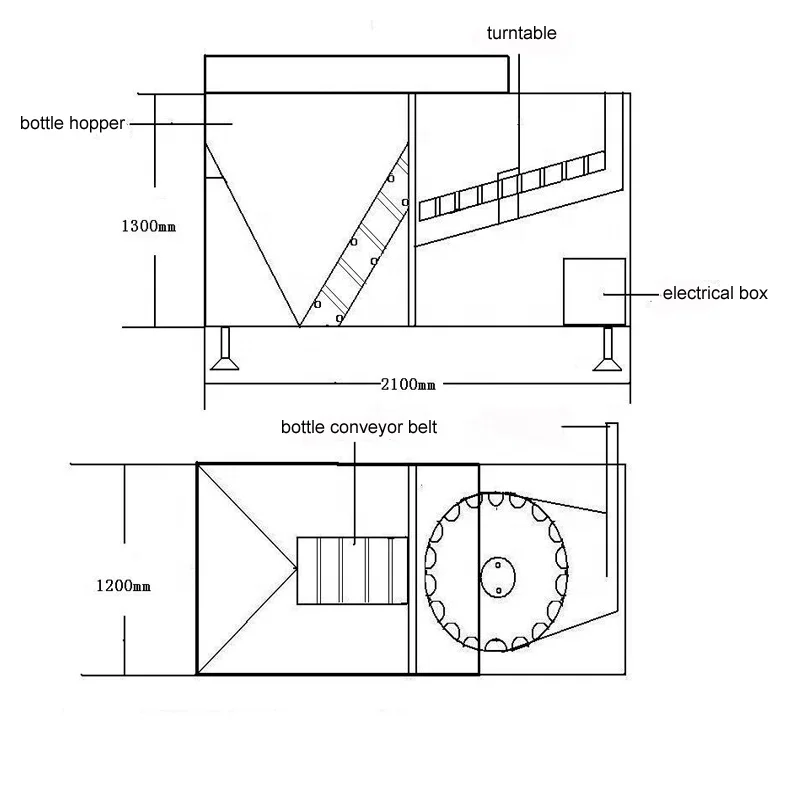

15. Shape size: 2100mm * 1200mm * 1300mm
Packaging & Shipping
Our Services
1. The plant layout To provide customers with pre-project planning workshop, design.
2. Commissioning services Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers.
3. Parts It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide.
4. Technical training To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

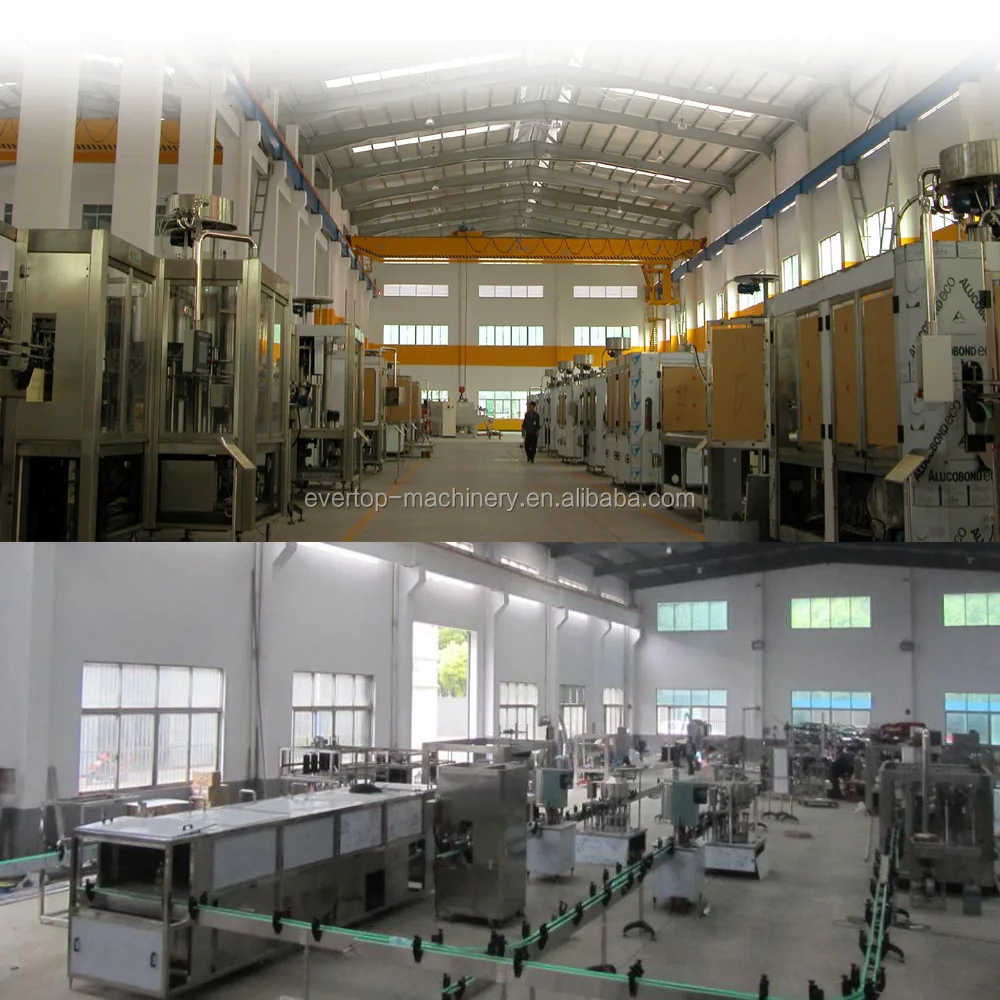

Company Information
Zhangjiagang Evertop Machinery Co.,Ltd. is located in Sanxing Industrial Zone, Jinfeng Town, the scenic city of Zhangjiagang, Jiangsu Province,which is a specialized beverage packaging enterprise.
We export to Russia, South Africa, Thailand, Philippines, Pakistan, Malaysia, Brazil, Sudan, Sierra Leone, Egypt, Kenya, Saudi Arabia, Yemen, Oman, the United Arab Emirates, the United States, Canada, and manyother countries, well received by most customers.
We are sincerely providingthe customers the following products: mineral water 3-in-1 filling machine, juice 3-in-1 filling machine, carbonated drink3-in-1 filling machine, automatic blow molding machine, 5 gallon bottle series unit, complete sets of water treatment system, automatic batching, mixingsystem, a variety of sterilization equipment, complete sets of beveragepackaging equipment and other follow-up packaging equipment.
FAQ
Q What is your trade clause? A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.
Q What is your payment term? A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment, or 100% by L/C at sight.
Q What is the valid of your price? A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.
Q How could I know if your products' specification is suit for our country power? A All the machines are custom made. We will make suitable voltage and frequency products according to your need.
Q How long can you arrange delivery? A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
Related Bottles Filling Packing Production Line Machines We Supply:
