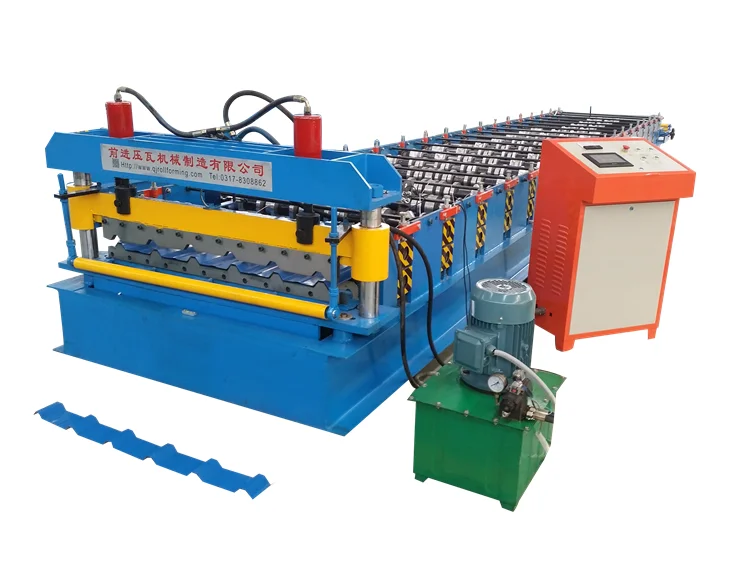

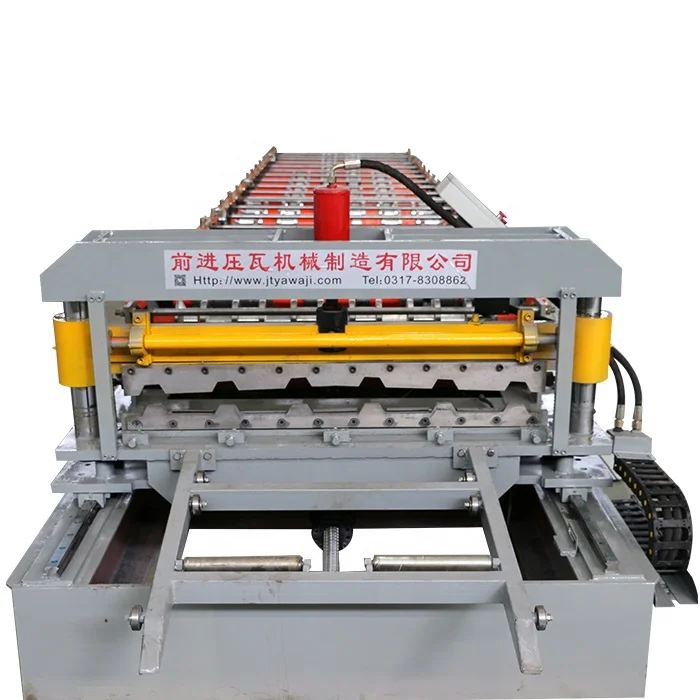

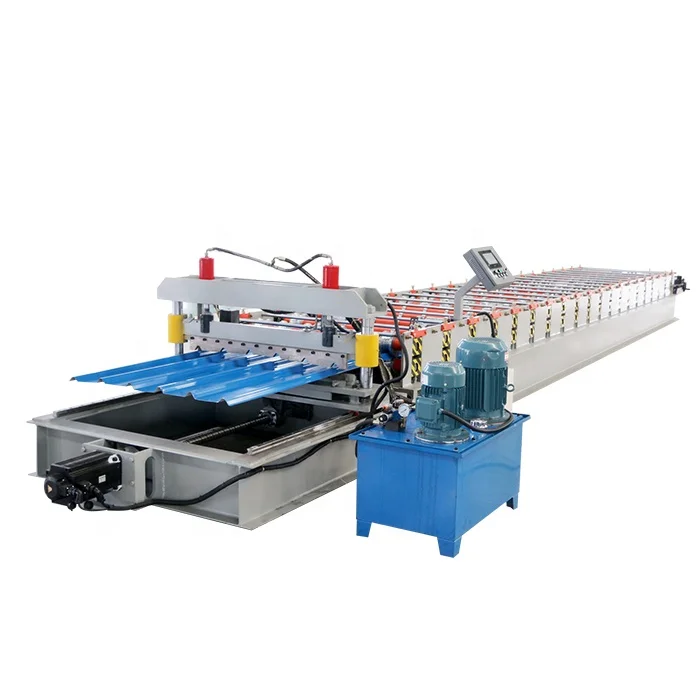

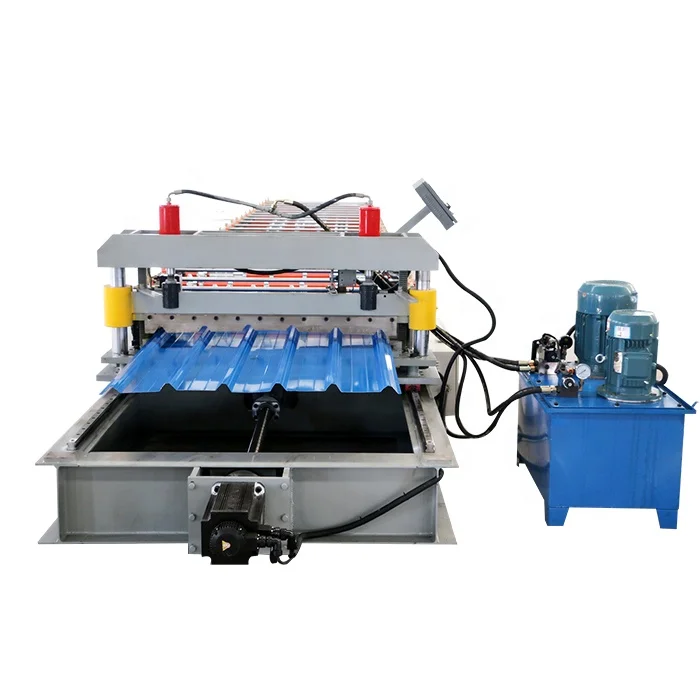

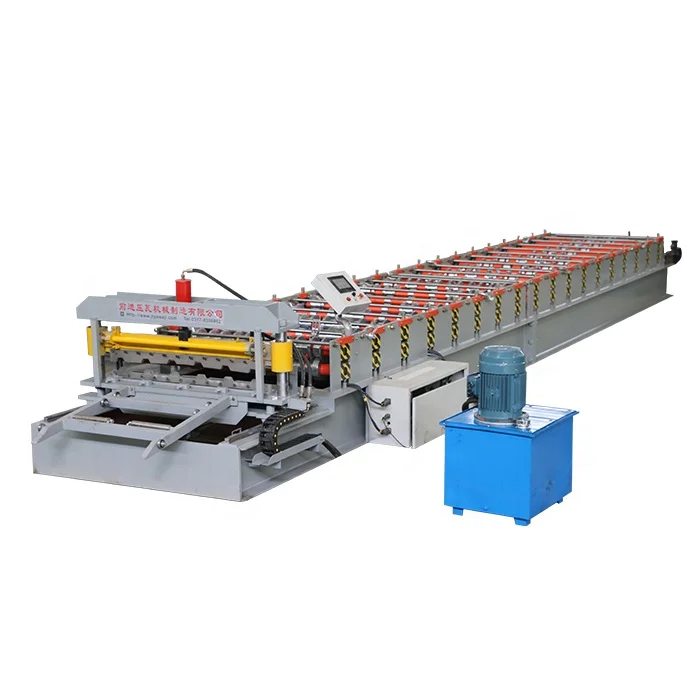

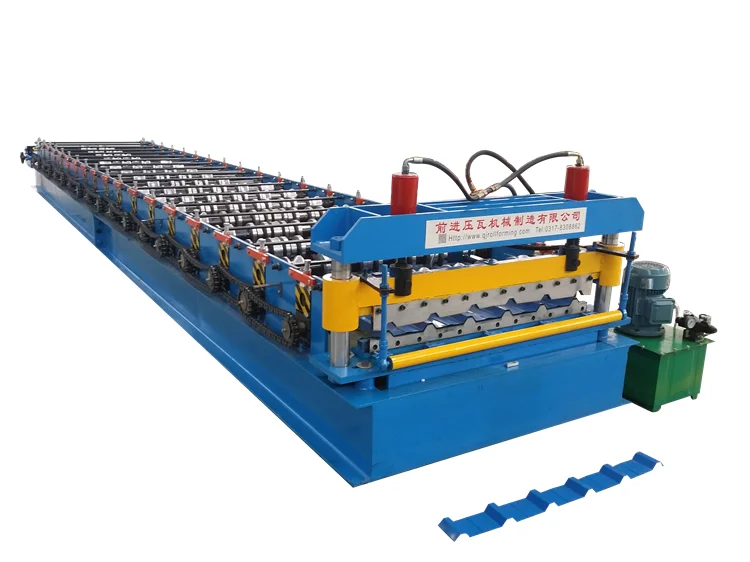

Hot Selling IBR Galvanized Steel Roofing Sheets Roll Forming Machinery For South Africa
Product Description
The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
- Main Technical Specifications:
NO.1 Feeding Platform | |
Frame Structure | Steel Plate Welded |
Roller Flatting System | let the feeding fluently |
NO.2 Roll Forming M/C | |
Installation Dimension | 8500mm*1400mm*1500mm |
Machine Under Frame | 400H-beam |
Sidewall Plate Thickness | 16mm |
Roller Stations | 18 Steps |
Shaft Diameter | 70mm |
Main Shaft Material | 45# steel with finish turning |
Roller Material | 45# Forging Steel with Chromium Plate |
Chromium Plate Thickness | 0.05mm |
Motor Power | 5.5kw |
Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
Chain Wheel and Cycle Chai | 1 Inch |
Roll forming Speed | 15-20m/min(adjusted with frequency changer) |
NO.4 PLC Control Cabinet The target piece length is adjustable and digit of it can be adjusted | |
PLC Control System | Delta |
Frequency Converte | Delta |
Voltage | 3phase/380V/50Hz(For confirmation ) |

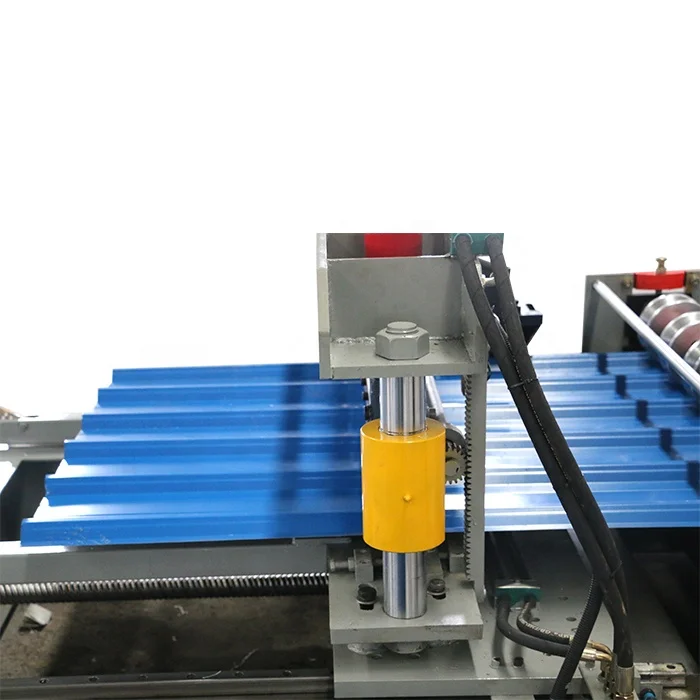

NO.5 Hydraulic Cutting System It adopts hydraulic drive and automatic location system to decide the dimension and cut the target . | |
Working Method | Stop to cut then post cut |
Hydraulic Tank | 1 set |
Hydraulic Pump Station | 5.5KW |
Cutting Length Tolerance | 10m ±1mm |
Cutting Tool Material | Cr12 with quenched treatment 58°C-62°C |
NO.6 Exit Rack | |
Function | Load Steel Purline |
Length/set | 3 meters |
Operation Flow
- Main Components:
Item | Name | Qty |
1 | 5T Manual Decoiler | 1 |
2 | Feeding platform with hand cutting system | 1 |
3 | Main forming system | 1 |
4 | Hydraulic cutting system | 1 |
5 | Hydraulic pump station | 1 |
6 | Electrical motor | 1 |
7 | PLC control system | 1 |
8 | Touch screen operation | 1 |
9 | Finished products receive table | 1 |
10 | Safety shield(optional) | 1 |
11 | Hydraulic decoiler(optional) | 1 |
12 | Automatic stacker(optional) | 1 |
Production Flow
Trade Shows
Company Information
Packaging & Shipping
Sale Terms
- Payment Method
30% as deposit ,balance payment after inspection while before delivery.
- Production Period
30 days after the 30% deposit.
- Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
- After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
- Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
