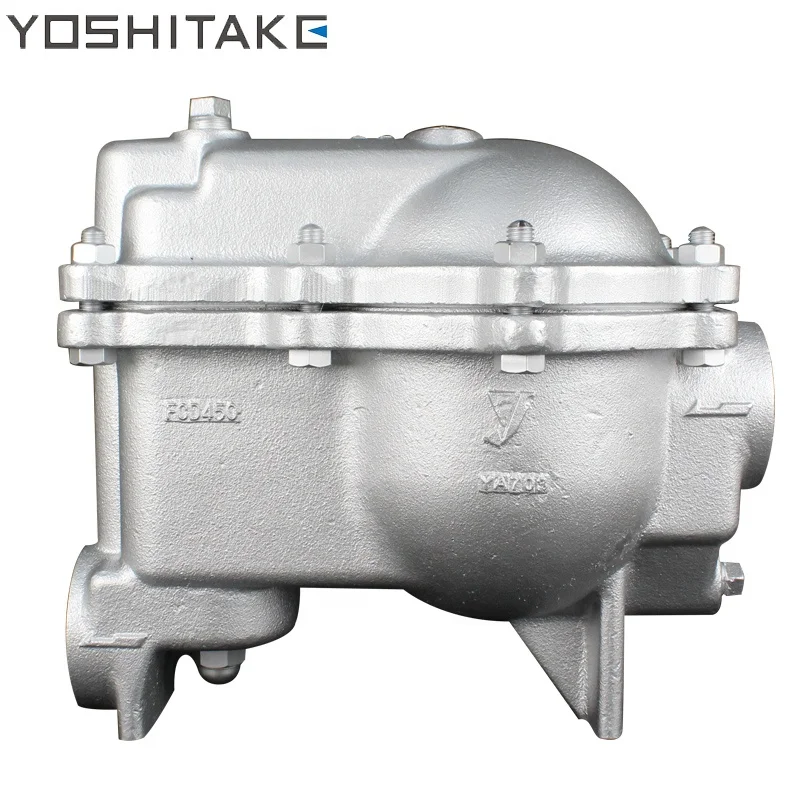

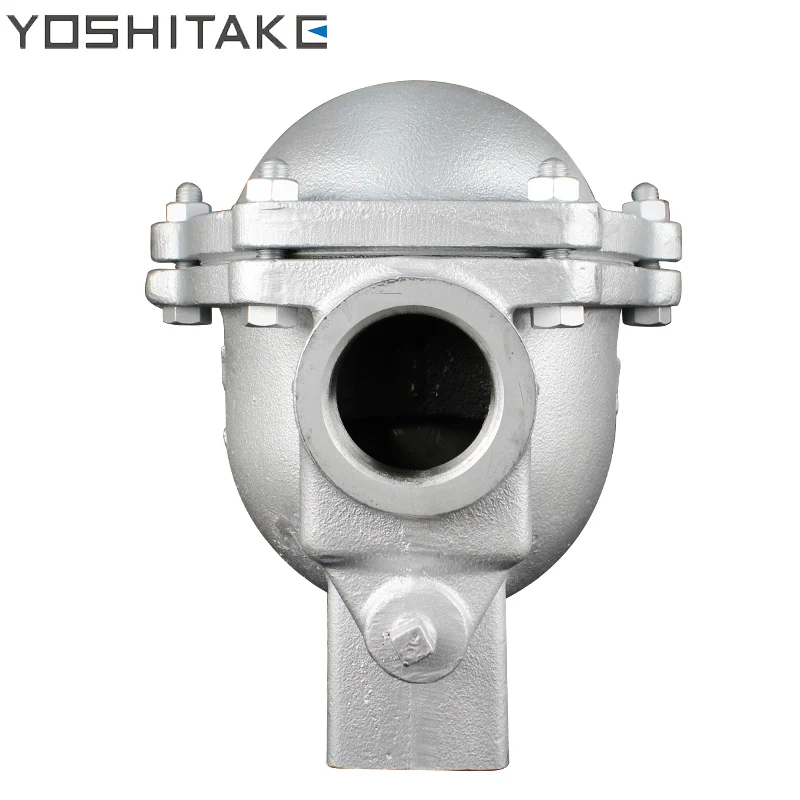

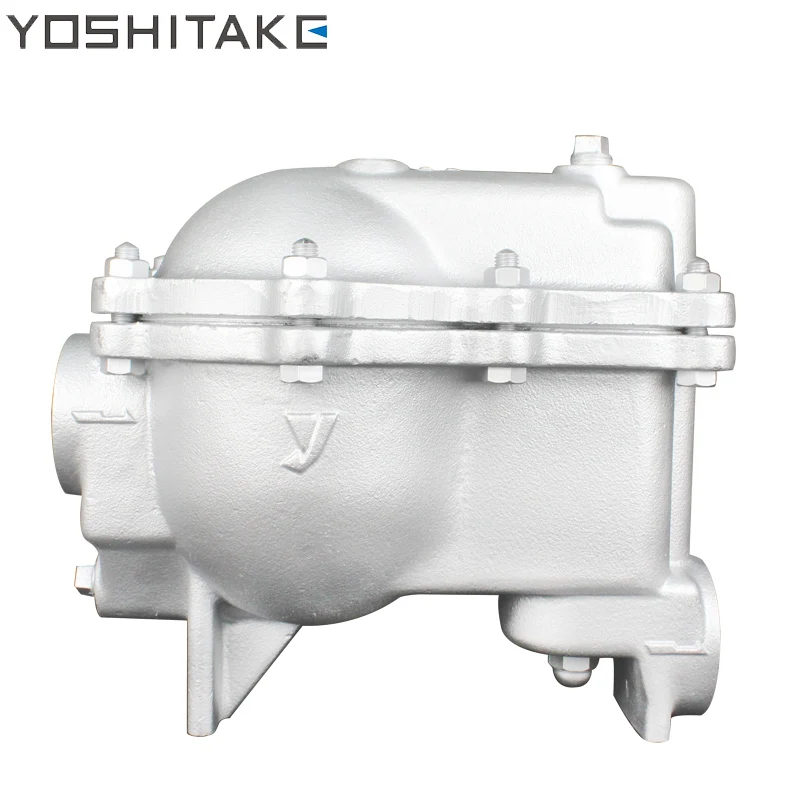

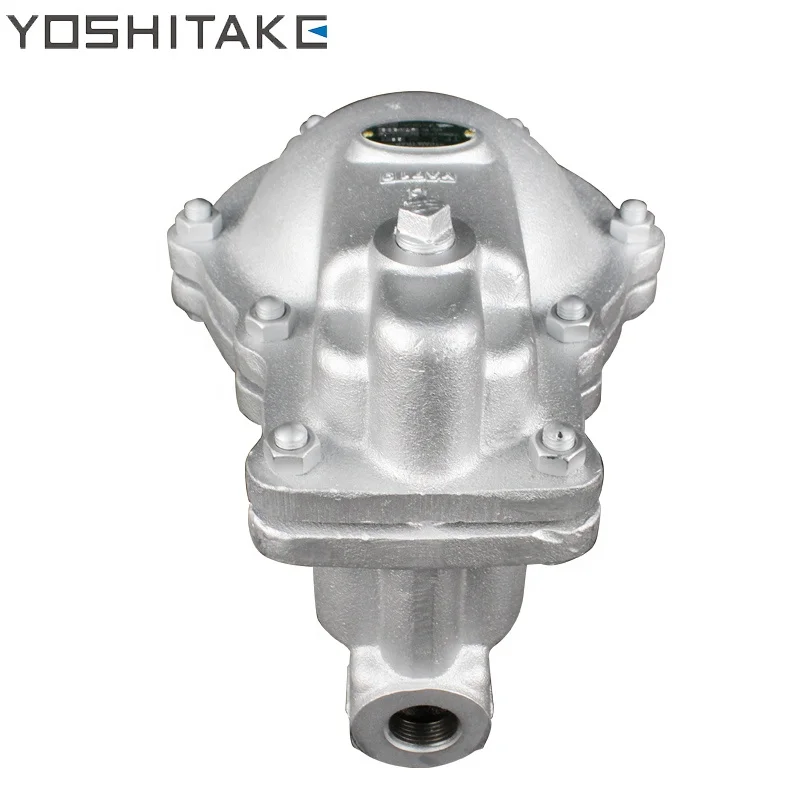

Japan YOSHITAKE steam trap for steam pipe TF 2 Ductile cast iron screwed float type JIS 10K RF flanged

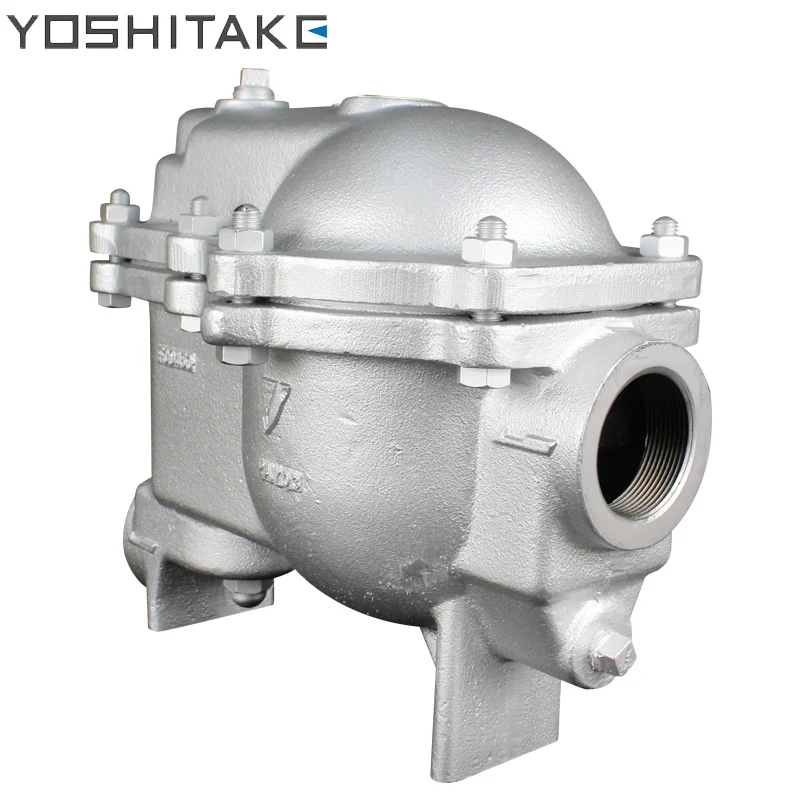

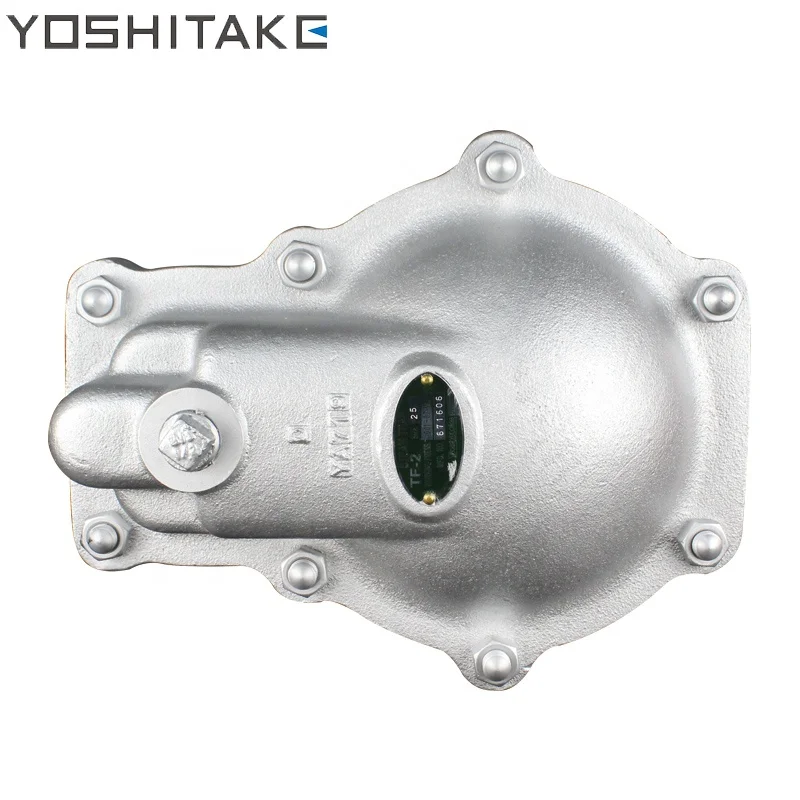

Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged
Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged
Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged
Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged
Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged
Japan YOSHITAKE steam trap for steam pipe TF-2 Ductile cast iron screwed float type JIS 10K RF flanged

Japan YOSHITAKE steam trap for steam pipe TF 2 Ductile cast iron screwed float type JIS 10K RF flanged

Share on (62258208307):


Price:

Quantity:


Product Overview

Description





Product Overview






Products Description




Features

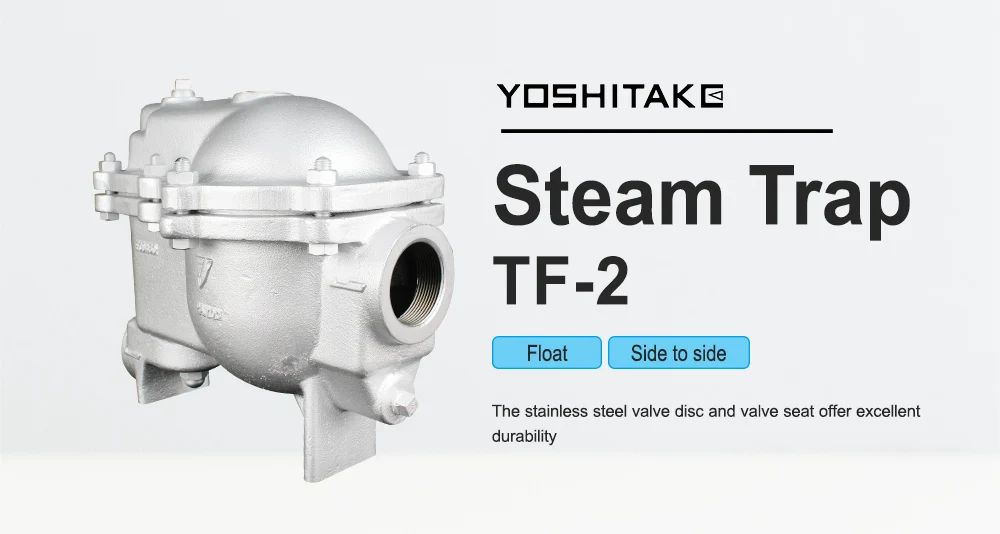

1. The stainless steel valve disc and valve seat offer excellent durability(TF-2).
2. Built-in air vent prevents air-binding problem, offering higher durability.
3. Reliable performance and large discharge capacity ensured by leverfloat system.


Model
TF-1
TF-2
Application
Steam condensate
Working pressure
0.01-0.3 MPa
0.01-0.7 MPa
Max. temperature
 150°C
 170°C
Material
Body
 Ductile cast iron
Valve, valve seat
 Bronze
Stainless steel
Float
 Brass
Stainless steel
Connection
JIS 10K RF flanged
JIS Rc screwed

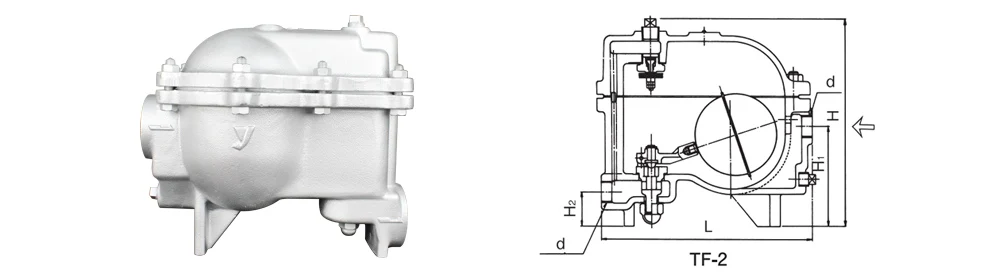

Dimensions (mm) and Weights (kg)
Nominal size
d
L
H1
H
Weight
15A
Rc 1/2
257
122
252
13.3
20A
Rc 3/4
257
122
252
13.3
25A
Rc 1
290
122
266
15.5
32A
Rc 1 1/4
290
122
266
15.5
40A
Rc 1 1/2
335
159
310
19.2
50A
Rc 2
335
159
310
19.2

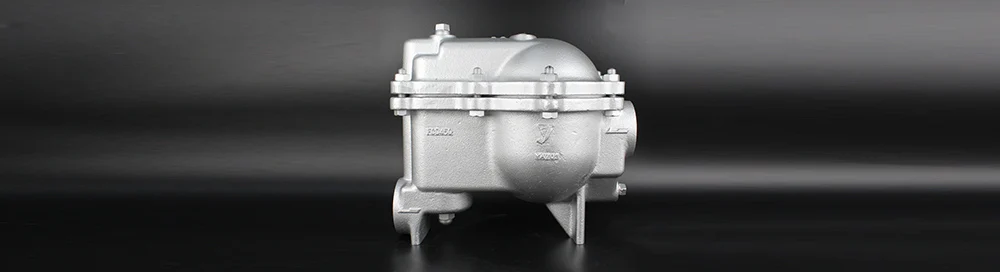

Product Display

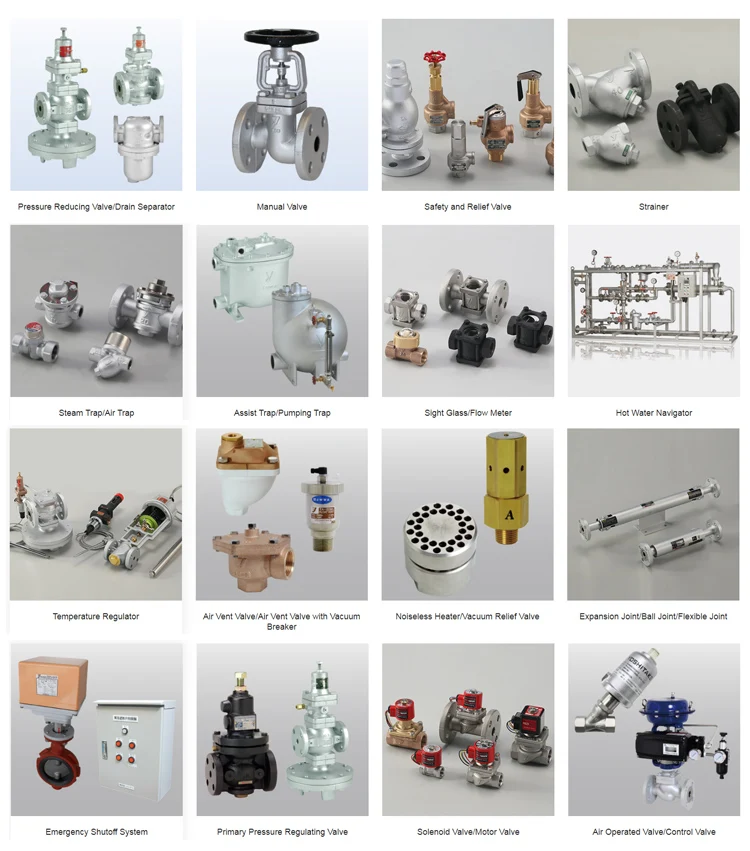

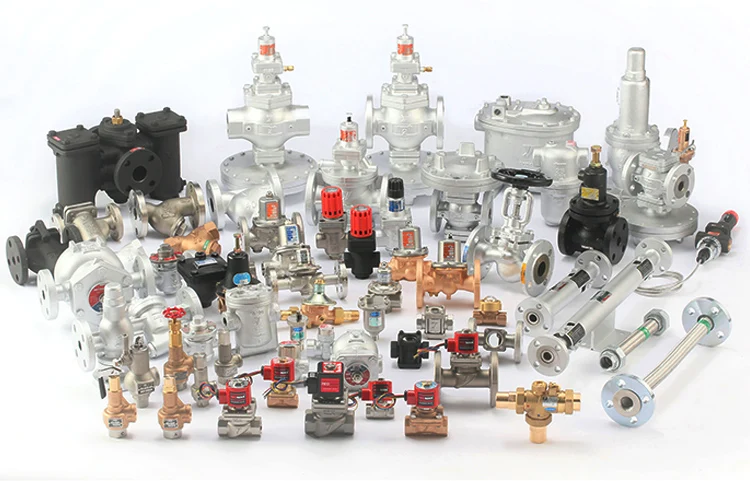

Product List




About YOSHITAKE




FAQ


Q1：Do you have your products in stock ?
A1：Yes . We have a large warehouse in Beijing
Q2：What is your mode of transportation ?
A2：You can choose any mode of transportation you want . For example , express airand shipping.
Q3：What's the minimum quantity ?
A3：According to the product , the quantity is different.
Q4：Are your products guaranteed ?
A4：All our products have a one-year warranty period.
Q5：How long will the product be ordered ?
A5：Spot products can be shipped at any time . Futures products can be orderedording to different products and different relatives . You can send an email for detailed inquiries.
