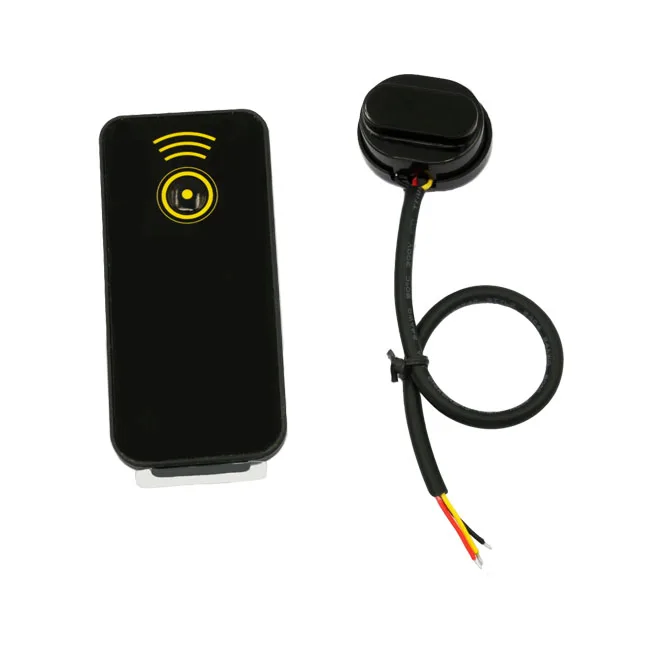

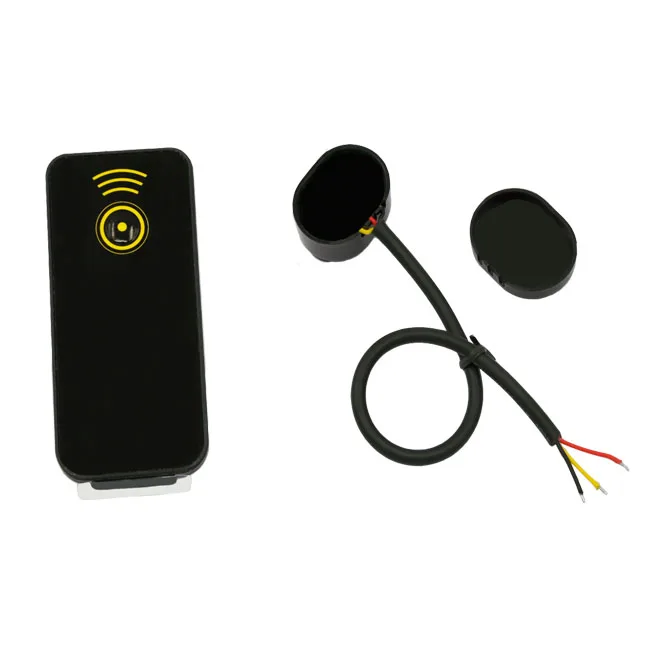

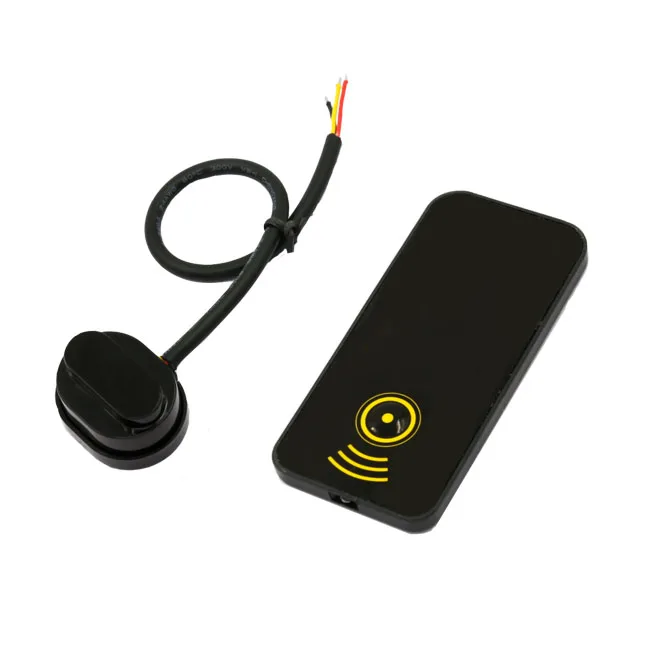

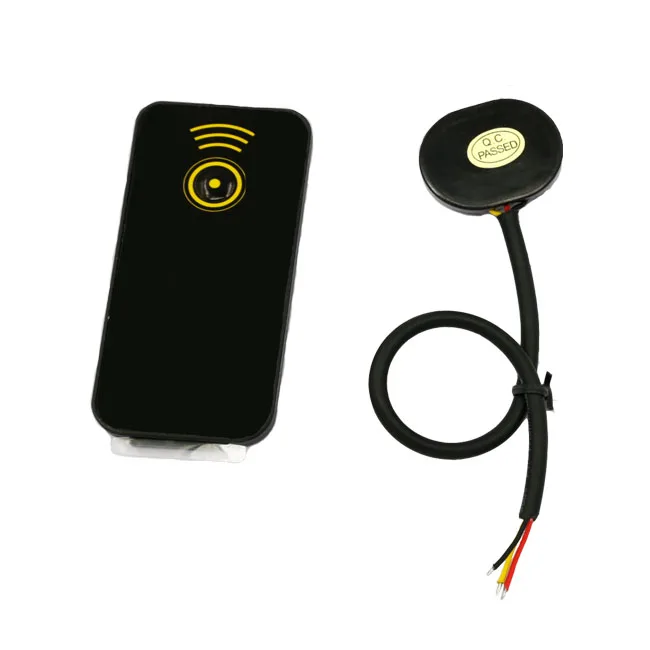

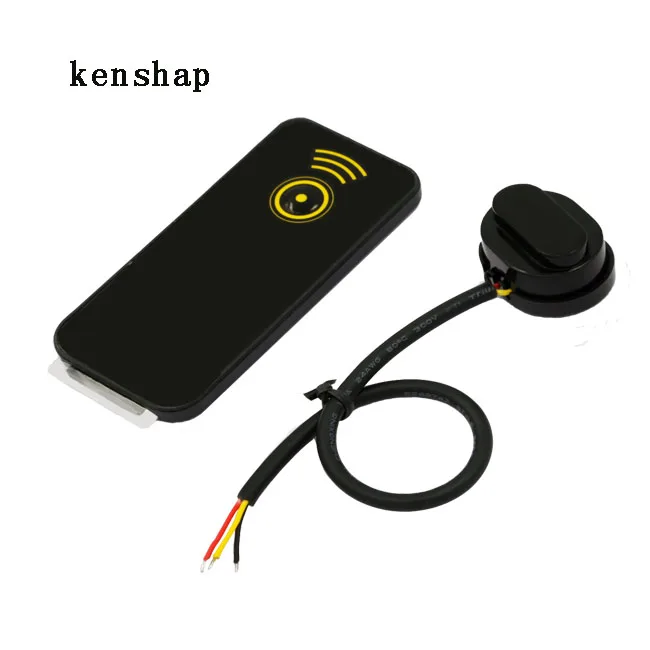

Remote control infrared distance measuring sensor
- Category: >>>
- Supplier: Shenzhen Liyan Modern Tehnology Co. Ltd.
Share on (62258359211):
Product Overview
Description
Overview
Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | kenshap | |
| Model Number | LYXD-IR04D-AST | Usage | Automatic Infrarde Tap Sensor | |
| Input Voltage | DC 5V-24V | Output Voltage | DC 3.3V | |
| Sensing distance | 1cm-250cm | Line Lenhth | 200mm | |
| Quiescent Current | ≤10mA | Scan cycle | 500ms(Custmizable) |
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details 500PCS/ctn
Port ShenZhen
Lead Time With 5 working days

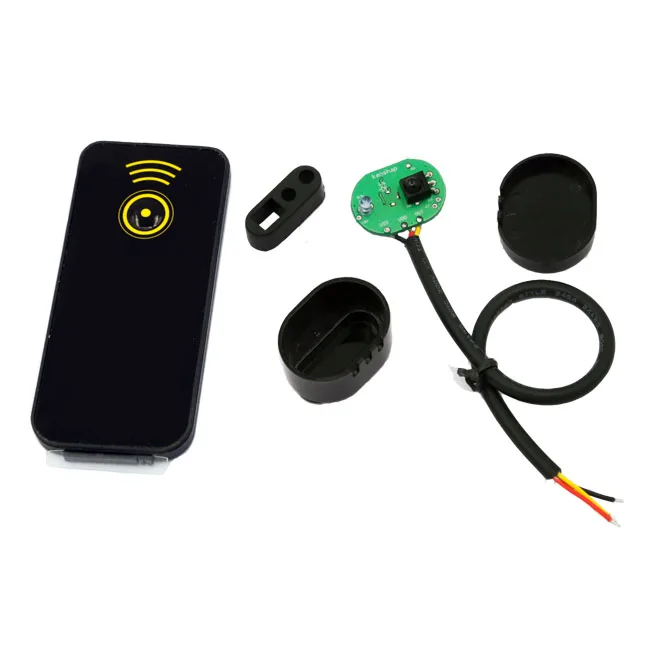

LYXD-IR04D-AST is a remote control waterproof infrared sensor based on VISHAY TSOP4038 infrared receiver. It consists of infrared emitting diode and infrared receiving diode. It receives different frequencies of 20KHZ-72KHZ emitted by itself. Infrared waves of different distances are detected by the diffuse reflection of obstacles in front to detect the presence or absence of obstacles in front. They are used for obstacle measurement and control, alarms, intelligent sensor switches, etc.
Features:
1 \\Infrared obstacle detection, waterproof sensor switch;
2 \\Long-distance sensing, touch can adjust the sensing distance;
3 \\Excellent anti-interference ability;
4 \\ small detection angle;
2 \\Long-distance sensing, touch can adjust the sensing distance;
3 \\Excellent anti-interference ability;
4 \\ small detection angle;
Specifications:
1 \\Power supply: DC5V-24V;
2 \\Induction distance: 1cm-200cm (touch adjustable);
3 \\Induction angle: 10-15 ° (taper angle);
4 \\ sensing type: infrared diffuse reflection;
5 \\Infiltrated transparent organic materials, such as glass, acrylic, PC cover...
6 \\Power consumption: <10mA;
7 \\ indicator: red indication;
8 \\ working temperature: -10-50 ° C;
9 \\PCB board shape and function can be customized;
2 \\Induction distance: 1cm-200cm (touch adjustable);
3 \\Induction angle: 10-15 ° (taper angle);
4 \\ sensing type: infrared diffuse reflection;
5 \\Infiltrated transparent organic materials, such as glass, acrylic, PC cover...
6 \\Power consumption: <10mA;
7 \\ indicator: red indication;
8 \\ working temperature: -10-50 ° C;
9 \\PCB board shape and function can be customized;
Remote control to adjust the sensing distance step:
1): Place the obstacle (person) at the required distance within 2.5 meters directly in front of the module;
2): The remote controller is aligned with the module, and the remote control button is pressed until the red light flashes slowly, and the button is released;
3): The module enters the automatic lock distance state, the obstacle remains unchanged, within 10 seconds,When the module is separated from the lock distance, the indicator light is long.On, if the indicator is off, then The lock distance failed;
4): The distance locked at this time is the distance sensed by the infrared module;
2): The remote controller is aligned with the module, and the remote control button is pressed until the red light flashes slowly, and the button is released;
3): The module enters the automatic lock distance state, the obstacle remains unchanged, within 10 seconds,When the module is separated from the lock distance, the indicator light is long.On, if the indicator is off, then The lock distance failed;
4): The distance locked at this time is the distance sensed by the infrared module;
Application wiring diagram:
Note:
Customized by customers:including product function,PCB shape,plastic mold design and processing...!
